2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
Ozark Mountain Offgrid

2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount

Sale price$6,049.00
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount
2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount Sale price$6,049.00

2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount

The 2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 2.2KW Solar Roof Mount is a fully customizable, high-performance off-grid package designed for cabins, shops, RVs, and remote structures. This starter system delivers 5120W of usable lithium battery storage and approximately 9900W of daily solar production based on 4.5 hours of sunlight. Built for scalability, the system supports future expansion with additional batteries and solar panels to meet growing energy needs.

System Specifications

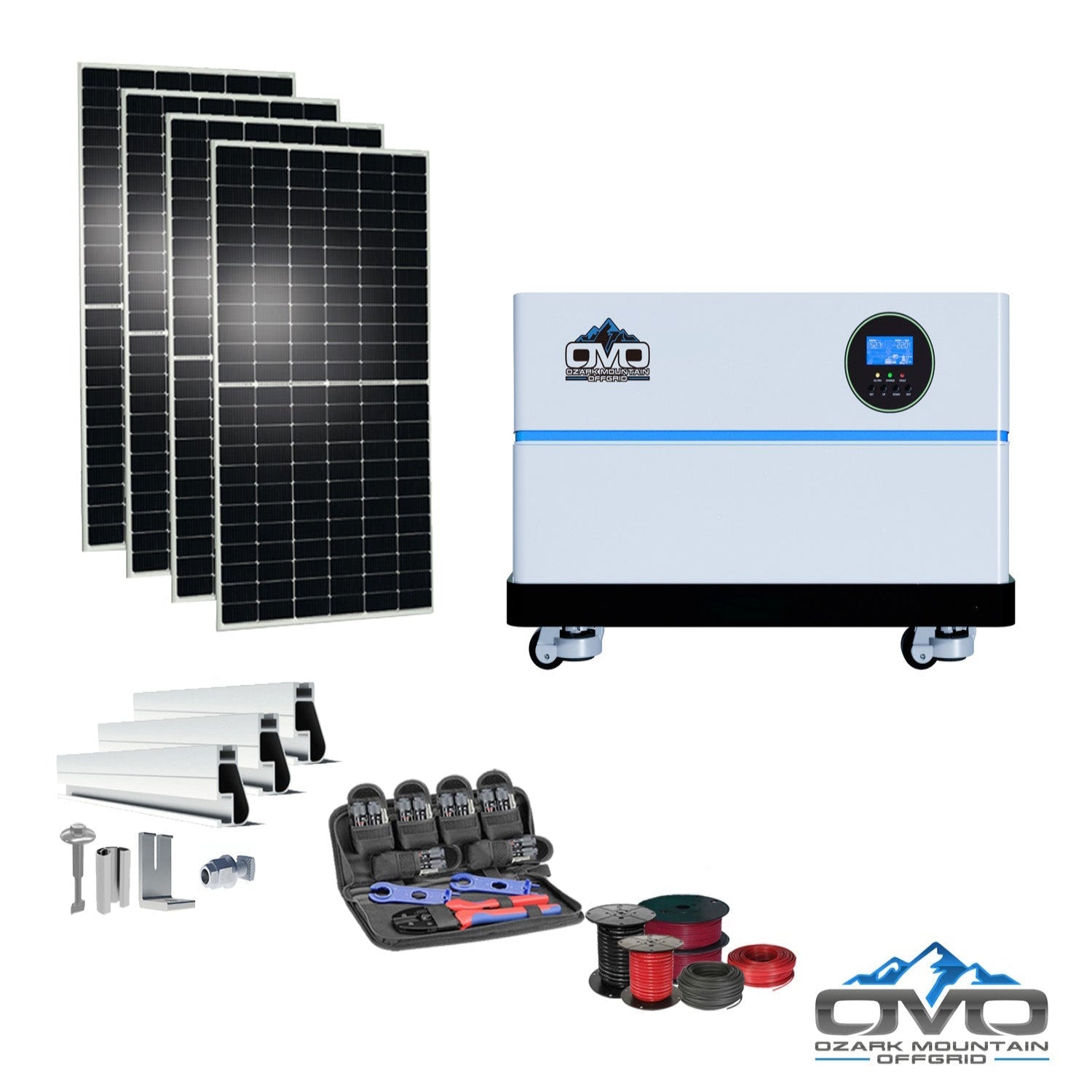

  • Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

  • Battery Bank: 1× 51.2V 5.12kWh Stackable Heated Lithium Battery w/ Bluetooth (Expandable up to 6 total per inverter)

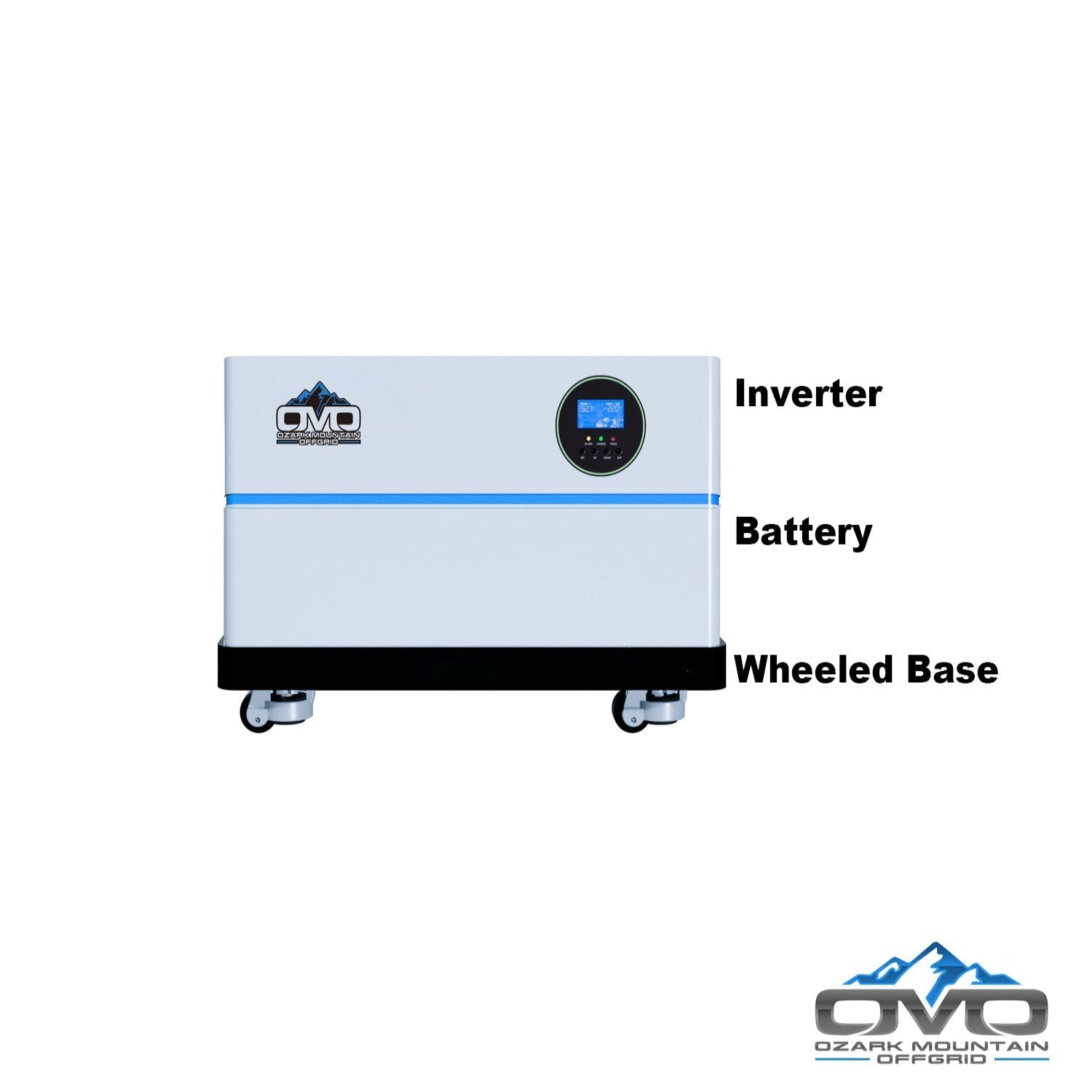

  • Base: 1× OMO Stack System Wheeled Base

  • Solar Panels: 4× 550W Bifacial Mono Panels (2200W array) — expandable up to 10 panels per inverter

  • Mounting Hardware: Complete Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, Bolts

  • Tools & Wiring: MC4 Crimper Tool Set, 500' PV Direct Burial 10AWG Wire, 100' 6AWG AC Output/Input/Generator Cable

Features

  • Bifacial Double-Glass Panels: Capture up to 25% more energy from rear-side reflection and perform efficiently in cloudy, hazy, or low-light conditions

  • Durability: 5400PA snow load & 2400PA wind load ratings for harsh weather environments

  • Long-Term Performance: 30-year power warranty

  • Scalability: Expandable solar array and battery bank for increased capacity

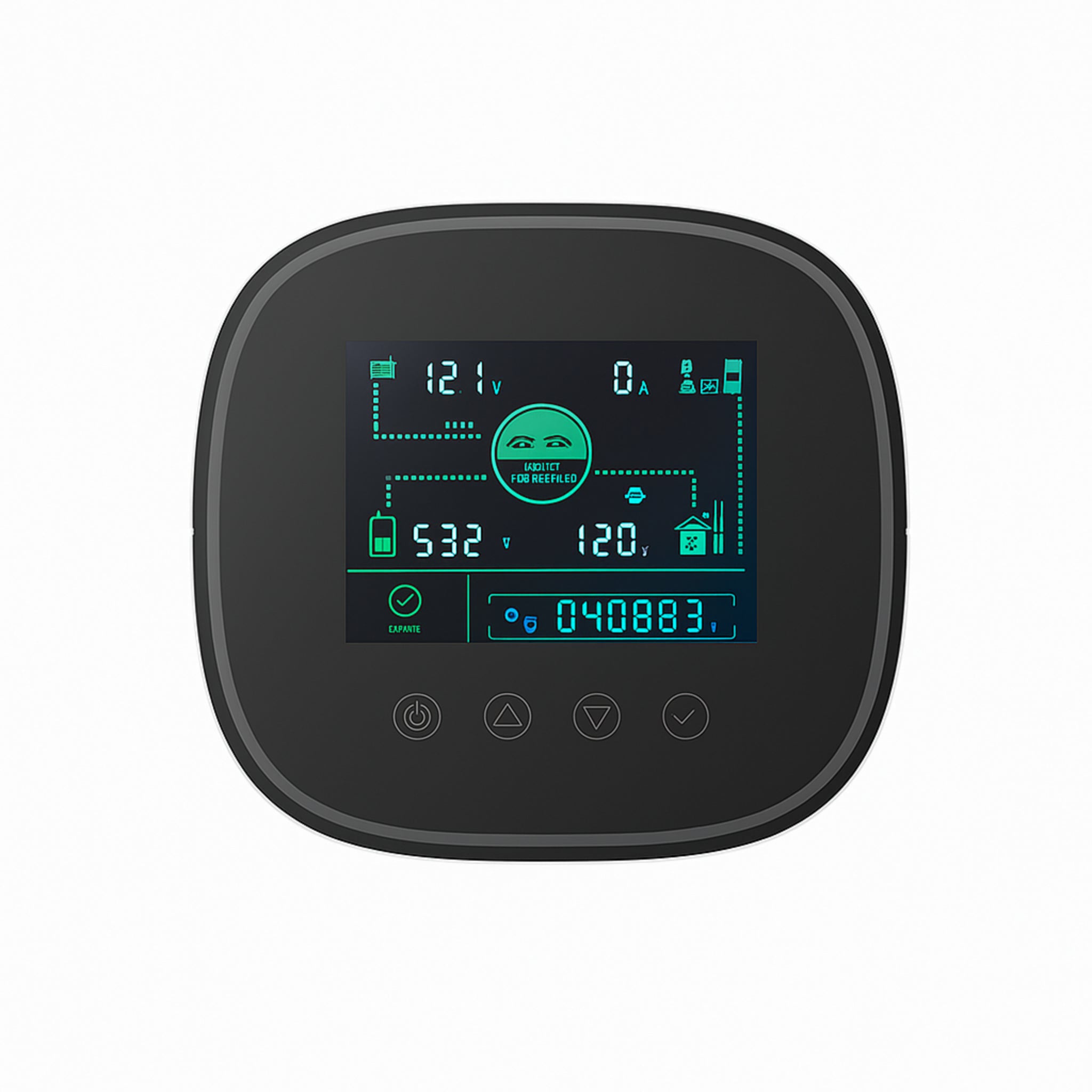

  • Monitoring: WiFi & Bluetooth system monitoring

  • Compatibility: Ideal for systems using around 297kWh per month

Inverter Details

  • MPPT Solar Charge Controller: Built-in, 5500W PV rated input

  • Solar Input Current: 22A max

  • MPPT Voltage Range: 125–450V DC

  • AC Output: 5500W pure sine wave

  • Parallel Capability: Up to 6 units

  • Grid/Generator Input: 90–140VAC / 63A bypass current

  • Monitoring: WiFi & Bluetooth

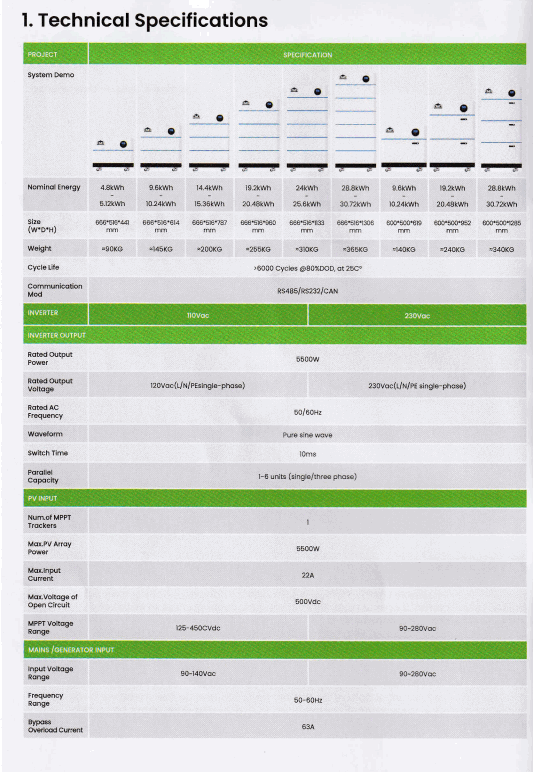

Inverter Specification Sheet

Battery Specification Sheet
