100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +100.2KW Solar with Ground Mount and Wiring

The 100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +100.2KW Solar with Ground Mount and Wiring is engineered for full off-grid homes, farms, and large properties requiring serious energy production. With a massive 100.2KW solar array producing approximately 450,450 watts per day (based on 4.5 hours of sun), this system supports monthly usage around 13,513 kWh. Built for scalability, you can expand both the solar array and battery bank as needed.

This package includes a powerful 64kWh lithium battery bank and six Sol-Ark 15K hybrid inverters capable of split-phase output, grid-tie or off-grid operation, and full generator support.

Specifications

• Solar Array: 182× 550W Bifacial Mono Panels (100,100W total)

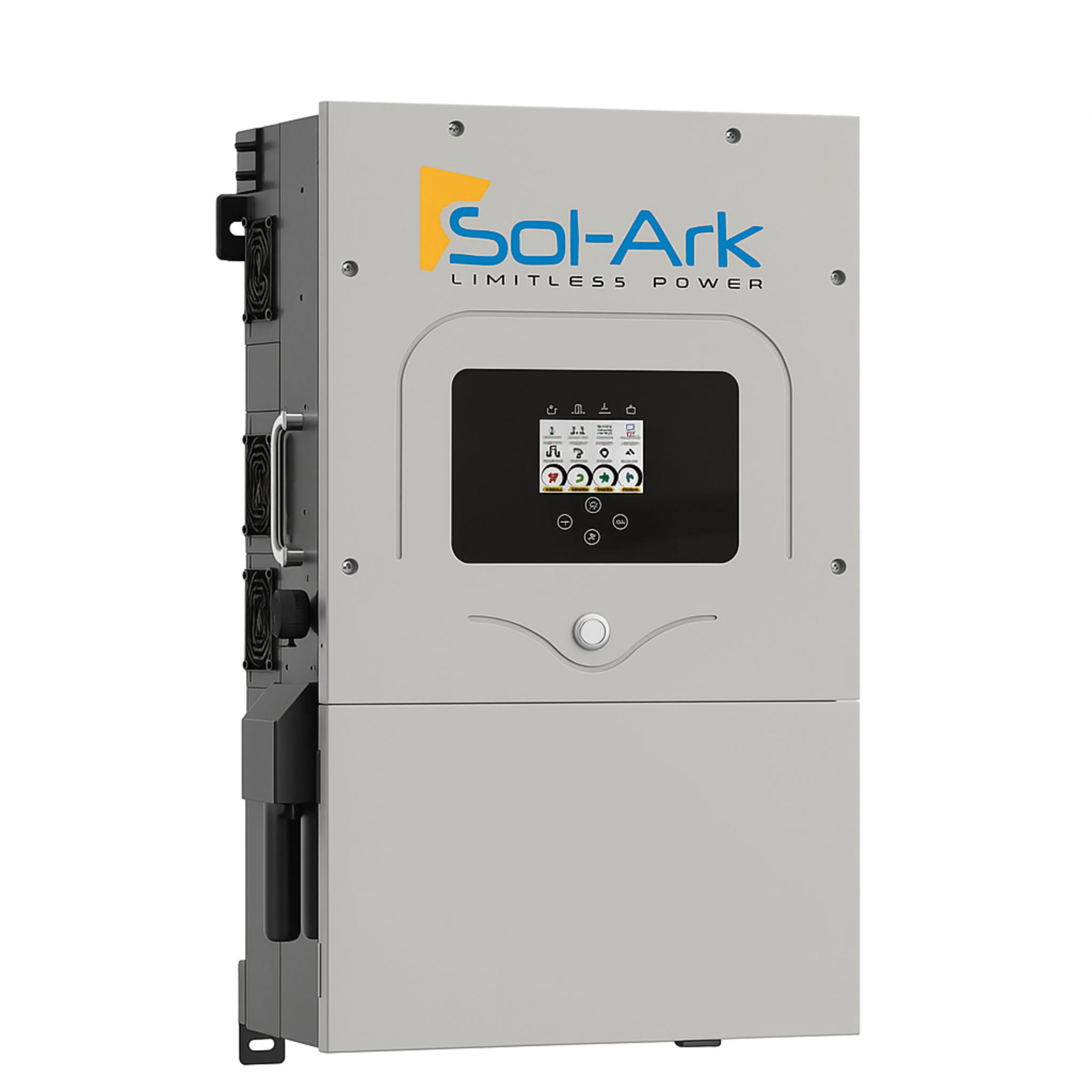

• Inverters: 6× Sol-Ark 15K Hybrid/Off-Grid Inverters with built-in MPPT charge controllers

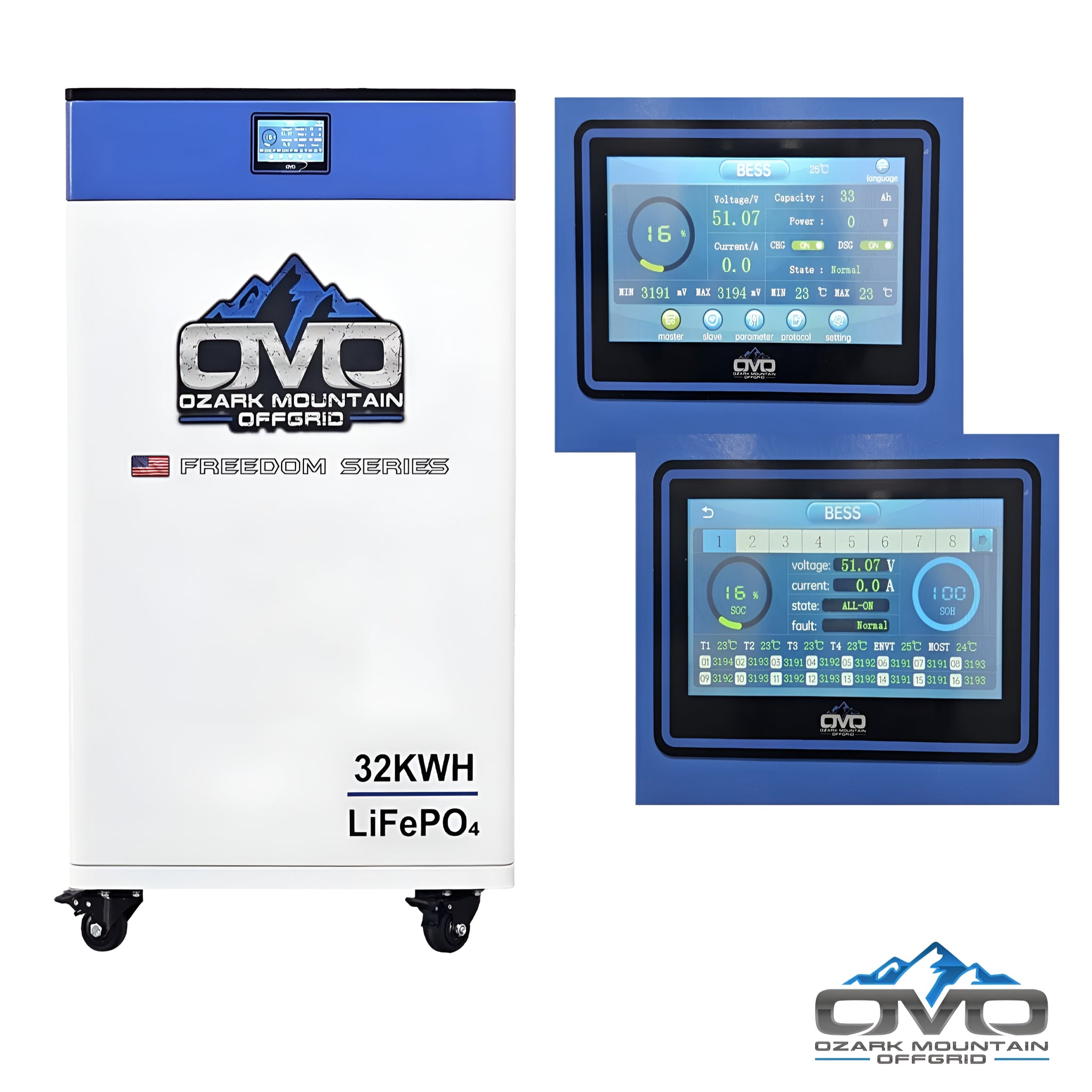

• Battery Bank: 2× OMO 32kWh 48V Freedom Series Heated Lithium Batteries (Bluetooth + LCD Display) — 64kWh total capacity

• Ground Mount System: Full Iron Ridge ground mount rail kit (customer supplies 3" sch 40 pipe)

• Combiner & Wiring: 6× PV combiner boxes, 2× 500' 10AWG MC4 cabling, MC4 crimp tool, 2× 100' 6AWG AC cabling, 2× 20' 2/0 main line, 6× wire gutter boxes, AC combiner box kit

• Included: Anderson battery cable set + Installation manual

Features

• Bifacial Double-Glass Panels: Rear-side energy harvesting up to 25% more output; excellent in weak-light conditions

• High Durability: 5400 PA snow load / 2400 PA wind load rating + 30-year power warranty

• Large-Scale Power: Designed for full off-grid houses, agricultural operations, or high-demand properties

• Sol-Ark 15K Hybrid Features: Split-phase output, generator support, MPPT controller, WiFi, LCD touchscreen, transformerless design

• Parallel Capability: Stack up to 8 Sol-Ark inverters for extremely large systems

• Fast Transfer: 4ms transfer time between battery and grid power

Maintenance

• Monthly: Inspect array, clean debris, review inverter output

• Quarterly: Wash panels, inspect ground mount hardware, confirm cable integrity

• Annually: Full system inspection, inverter diagnostics, battery health review

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

• Batteries: See Battery Specification Sheet
