100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter + 32kWh OMO 48V Freedom Series Lithium Battery +100.2KW Solar with Ground Mount and Wiring

The 100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter + 32kWh OMO 48V Freedom Series Lithium Battery +100.2KW Solar with Ground Mount and Wiring is designed for fully off-grid homes, farms, and large property installations that require extremely high, reliable power output. Featuring a 100.2KW bifacial solar array producing approximately 450,450 watts per day (based on 4.5 hours of sun), this system supports heavy usage of around 13,513 kWh per month. It includes six Sol-Ark 15K hybrid inverters and a 32kWh OMO Freedom Series lithium battery to deliver dependable whole-property energy. This system is fully expandable with room for additional panels or batteries.

Specifications

• Solar Array: 182× 550W Bifacial Mono Panels (100,100W total)

• Inverters: 6× Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters (48V, built-in MPPT charge controllers)

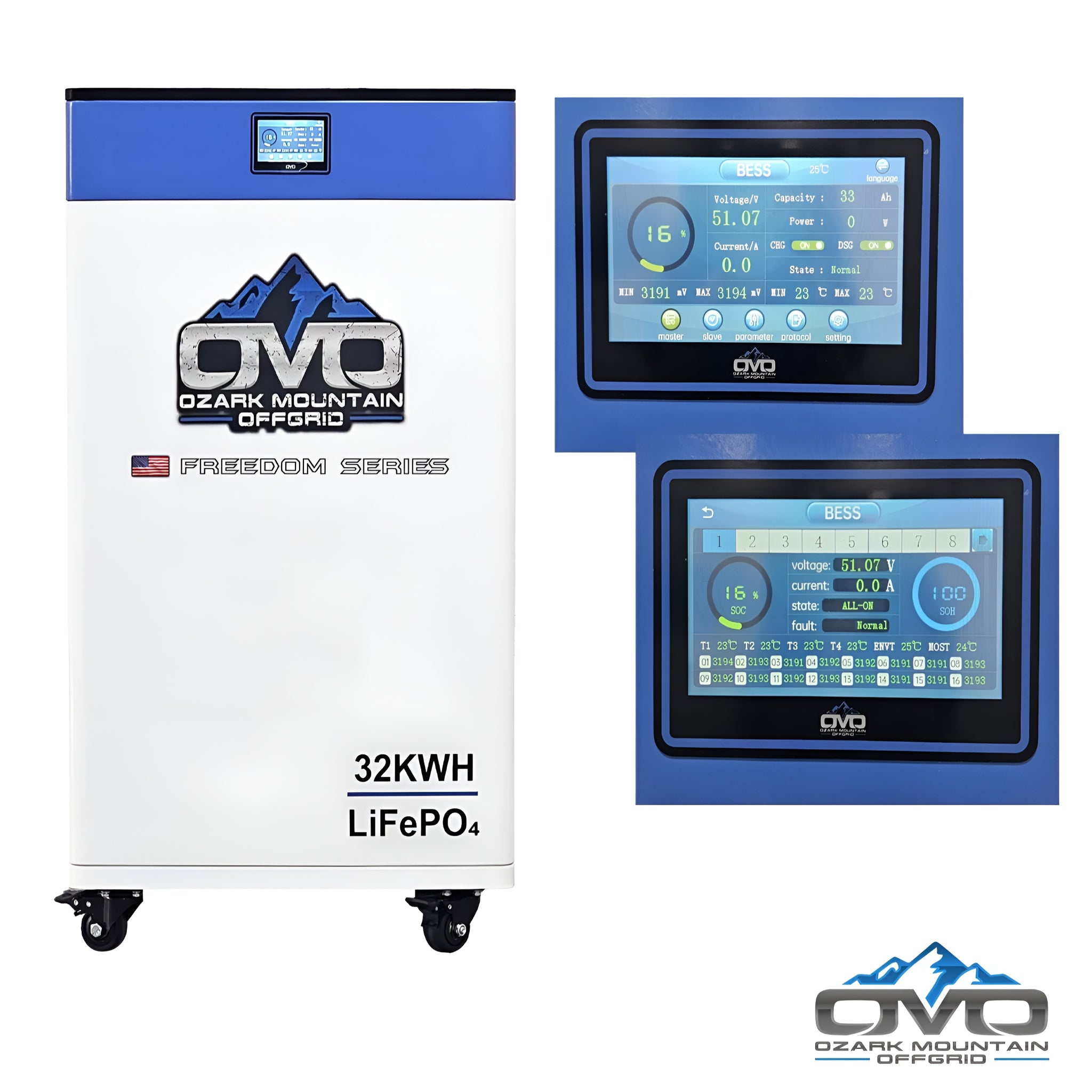

• Battery Bank: 1× OMO 32kWh 48V Freedom Series Heated Lithium Battery with Bluetooth & LCD

• Ground Mount System: Full Iron Ridge GROUND mount rail kit with top caps, rail connectors, fasteners, and bolts

• Combiner & Wiring: 6× PV combiner boxes, 2× 500' 10AWG MC4 cabling, 2× 100' 6AWG AC cabling, 2× 20' 2/0 AC main line, 6× wire gutter boxes, AC combiner box kit, Anderson plug battery cables, MC4 crimper tool set, installation manual

Features

• Bifacial Double-Glass Panels: Capture up to 25% additional rear-side energy and generate more power during low-light conditions such as cloudy or early-morning hours

• Extreme Durability: 5400 PA snow load & 2400 PA wind load ratings with 30-year power warranty

• Sol-Ark 15K Inverter: 120/240V split phase, grid-tie or off-grid, 48V battery support, 3× MPPT inputs, generator support, LCD touch display, WiFi, transformerless design, NEMA 3R outdoor-rated

• Parallel Stacking: Stack up to 8 Sol-Ark units for extremely large installations

• Fast Transfer: 4ms automatic transfer from battery to grid power for seamless operation

• Scalable Architecture: System designed for future expansion — easily add additional solar or battery capacity

Maintenance

• Monthly: Inspect ground mount structure, clean debris, and verify inverter production data

• Quarterly: Wash panel surfaces, check wiring, tighten accessible fasteners, and examine combiner boxes

• Annually: Full system audit including inverter diagnostics, battery performance review, and structural safety check of the ground mount array

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

• Batteries: See Battery Specification Sheet
