10KW Complete Offgrid Solar Kit + 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery + 11KW Solar with Ground Mount and Wiring

The 10KW Complete Offgrid Solar Kit + 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery + 11KW Solar with Ground Mount and Wiring is a high-performance starter package engineered for reliable, long-term off-grid living. This system includes an 11KW bifacial solar array paired with two premium 32kWh OMO 48V Freedom Series heated lithium batteries for a total of 64,000 watts of usable energy. Producing approximately 49,500 watts of solar power per day (based on 4.5 hours of sun), this kit is ideal for cabins and small-to-mid sized homes consuming around 1,400 kWh per month. The entire system is designed for scalable expansion, allowing additional solar panels and batteries to be integrated seamlessly as energy needs grow.

Specifications

• Solar Panels: 20× 550W bifacial mono solar panels (11,000-watt array)

• Inverter: 1× Sol-Ark 15K hybrid/off-grid all-in-one inverter (48V) with built-in MPPT charge controller

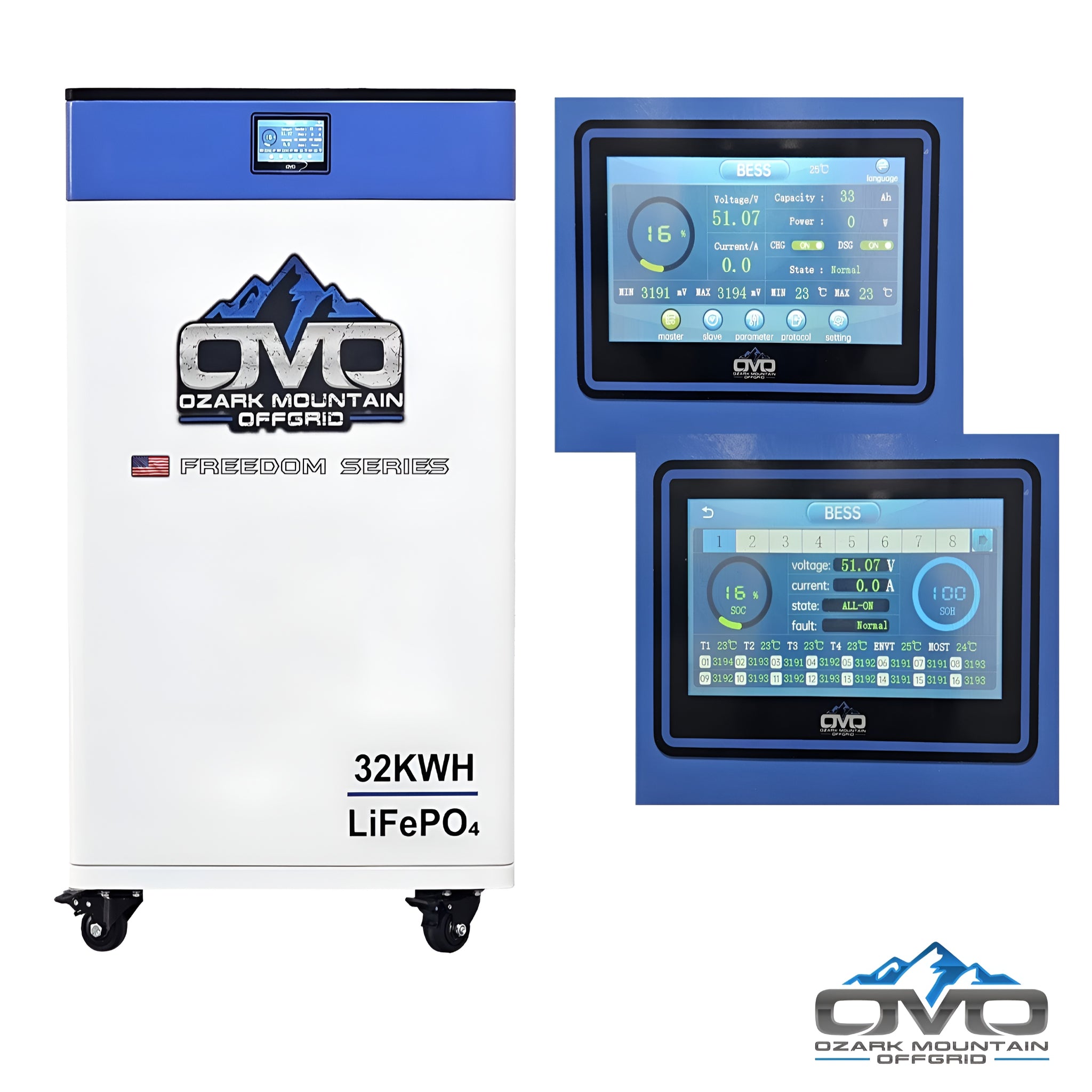

• Battery Bank: 2× OMO 32kWh 48V Freedom Series heated lithium batteries (64kWh total) with Bluetooth and LCD readout

• Mounting System: IronRidge ground-mount rails, top caps, connectors, fasteners, and bolts (3" SCH 40 pipe sourced locally)

• Cabling: 500' 10AWG direct burial PV wire, 100' 6AWG AC input/output/generator cable, 20' 4/0 AC main line, and Anderson plug battery cable sets

• Components: Solar combiner box (expansion-ready), gutter box, MC4 crimp kit, installation manual

• Battery Sheet: OMO Freedom Series Specification Sheet

Features

• Bifacial Double-Glass Panels: Up to 25% additional back-side production, improved low-light output, 5400 Pa snow load, 2400 Pa wind load, 30-year warranty

• High-Capacity Battery Bank: 64kWh of heated, Bluetooth-enabled lithium storage with LCD monitoring

• Off-Grid Ready: Perfect for remote homes and cabins using ~1,400 kWh monthly, with room to expand

• Sol-Ark Inverter Technology: 120/240V split phase, 3 MPPT inputs, generator support, WiFi, LCD touchscreen, transformerless design

• High Efficiency: 97.5% inverter efficiency with NEMA 3R outdoor rating for durability

• System Scalability: Expandable panels, expandable battery bank, and inverter support for parallel stacking up to 8 units

Maintenance

• Daily: Monitor inverter output and ensure ground-mounted panels remain unobstructed

• Weekly: Check wiring integrity, confirm battery enclosure temperature stability, verify Anderson plug connections

• Annually: Complete hardware inspection, test inverter diagnostics, update firmware, and inspect ground-mount stability and corrosion resistance

Warranty

• Solar Panels: 30-year performance warranty

• Sol-Ark Inverter: 10-year manufacturer warranty
