11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 20.48K Lithium Battery + 11KW Solar Roof Mount is a complete, customizable solution built to deliver dependable 120/240V split-phase power for off-grid homes, cabins, garages, and small properties. This system includes dual stackable inverters, expanded lithium battery storage, a powerful bifacial solar array, premium IronRidge mounting hardware, and all essential wiring—designed for easy expansion and long-term reliability.

Specifications

• Inverters: 2× OMO 5500W 120/240VAC pure sine wave stackable inverters (11,000W total output)

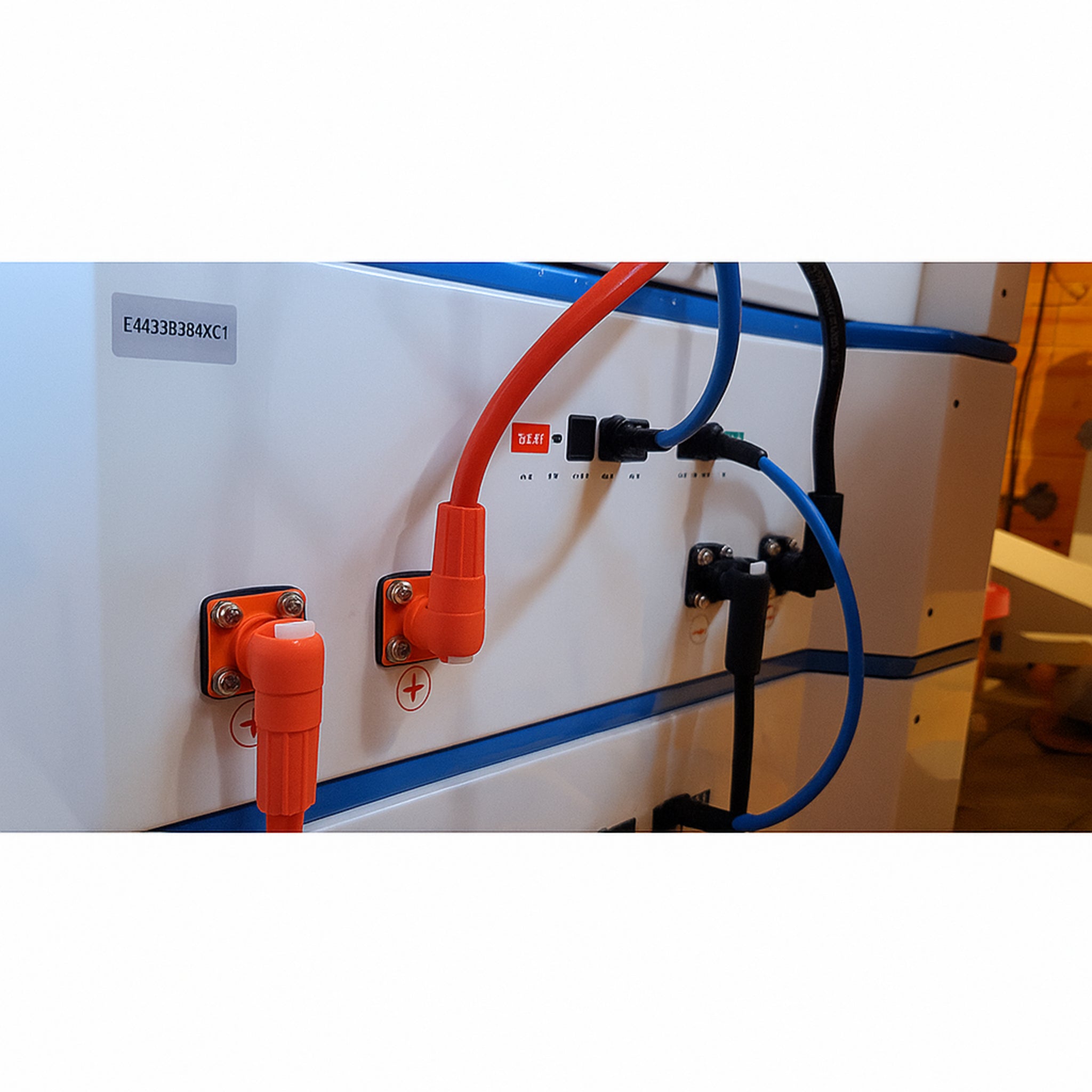

• Batteries: 4× 51.2V 5.12KW stackable heated lithium batteries with Bluetooth (expandable to 6 batteries per inverter)

• Solar Array: 20× 550W bifacial mono panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge roof-mount rails, L-feet, splices, fasteners, and bolts

• Tools Included: MC4 crimper tool set

• Wiring: 500' 10AWG PV direct-burial solar wire and 100' 6AWG AC output/input/generator cabling

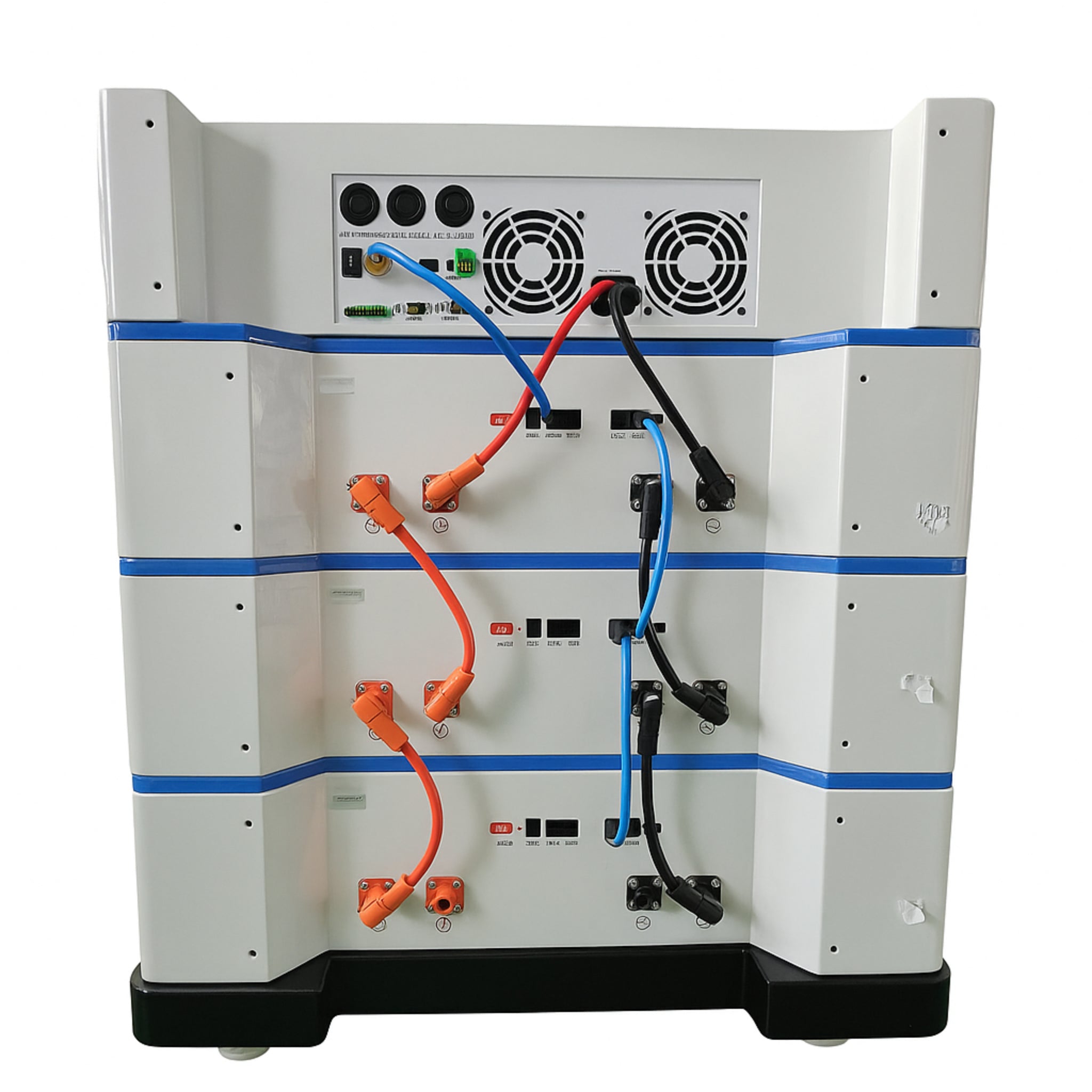

• Base System: OMO stack system wheeled base

Features

• Bifacial Double-Glass Panels: Rear-side production boost up to 25% and improved output in cloudy or low-light conditions

• Extreme Weather Rating: 5400 PA snow load and 2400 PA wind load

• Long-Term Warranty: 30-year power warranty on solar panels

• Expandable Design: Add more panels or batteries as your energy needs grow

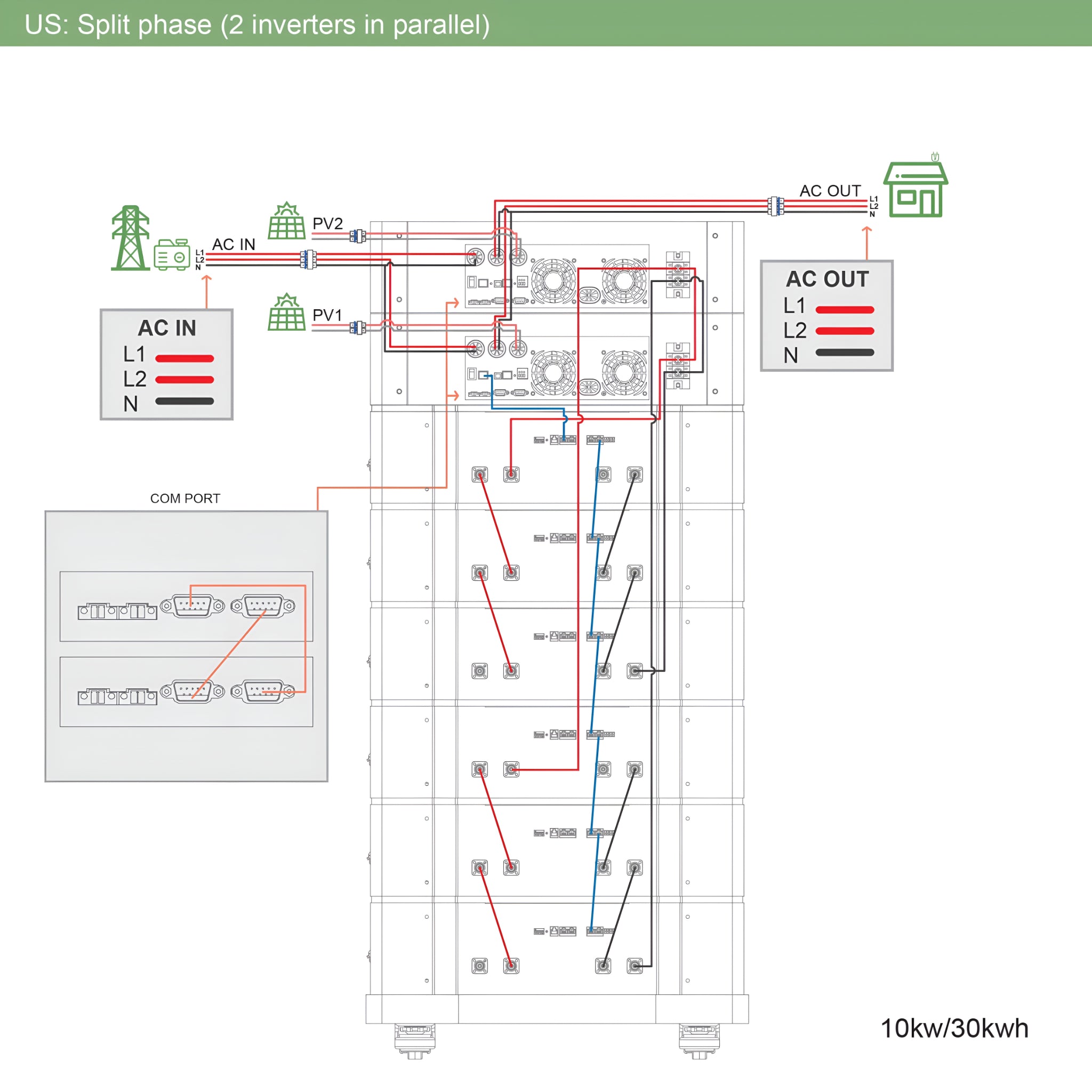

• Split-Phase Output: Capable of powering most standard household appliances

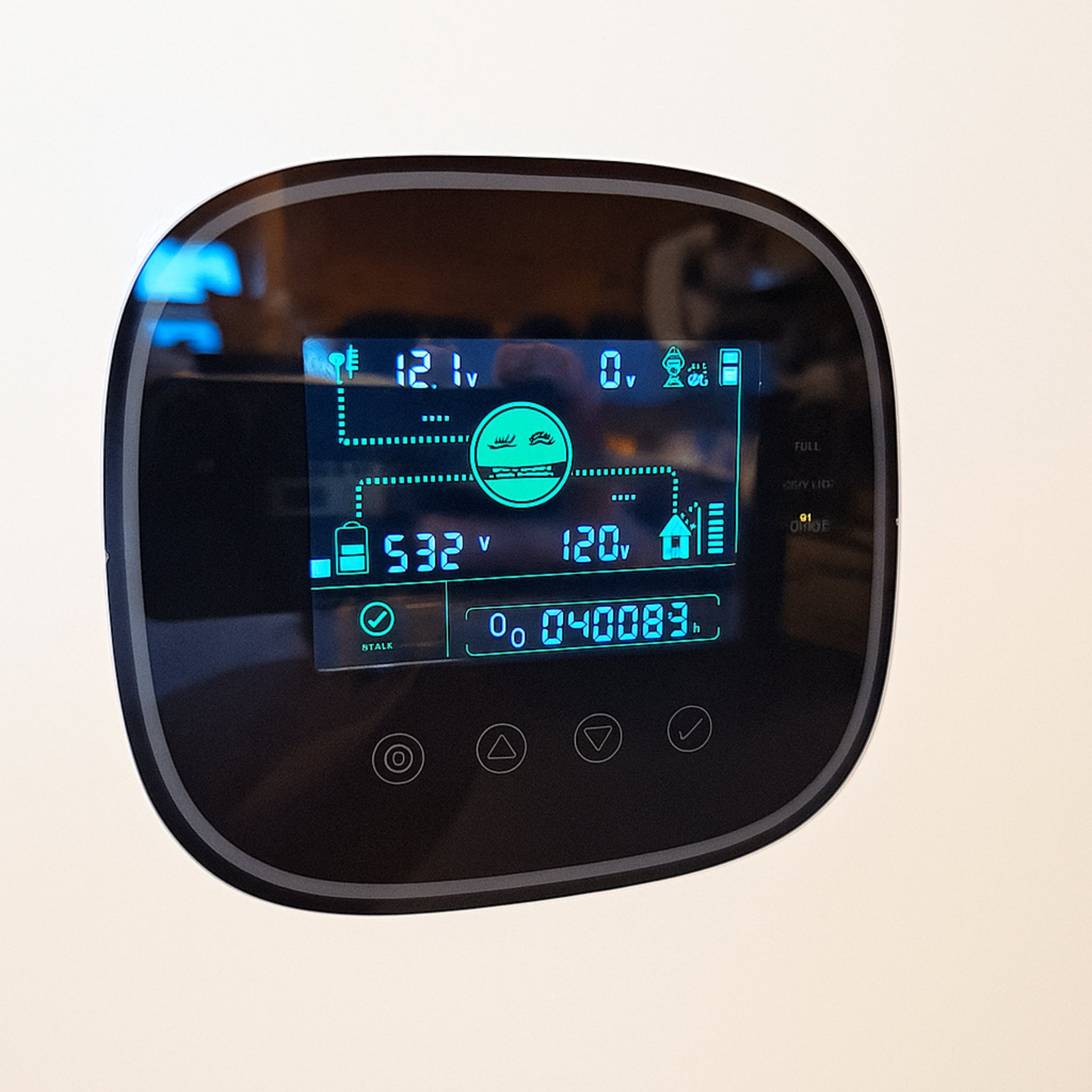

• Smart Monitoring: Batteries include Bluetooth; inverters include WiFi & Bluetooth monitoring

Maintenance

• Daily: Check system performance via Bluetooth or WiFi monitoring

• Weekly: Clear dust or debris from panels and verify battery ventilation

• Annually: Clean solar modules, inspect wiring, and check for firmware updates

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Batteries: Refer to manufacturer warranty documents

Inverter Specs

• MPPT Solar Charge Controller: 5500W PV rated input each

• Max Solar PV Current: 22A per inverter

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave each

• Parallel Capability: Supports up to 6 units in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass

• Monitoring: WiFi & Bluetooth
