11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 30.72K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 30.72K Lithium Battery + 11KW Solar Roof Mount is a complete, customizable off-grid power solution engineered to deliver reliable whole-home energy independence. This system includes high-capacity lithium storage, robust split-phase inverters, a premium bifacial solar array, and all mounting, wiring, and installation hardware required for a full off-grid build.

Specifications

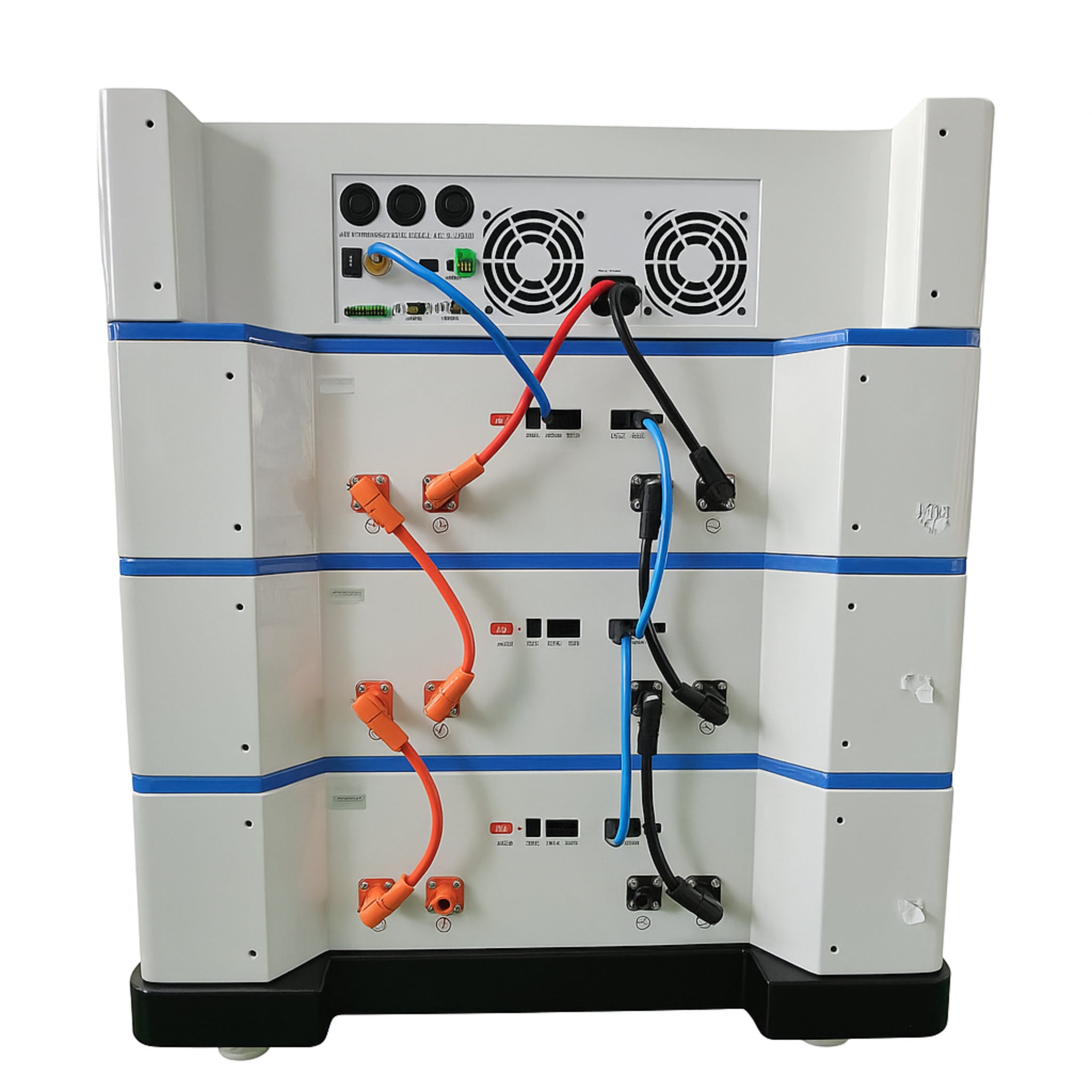

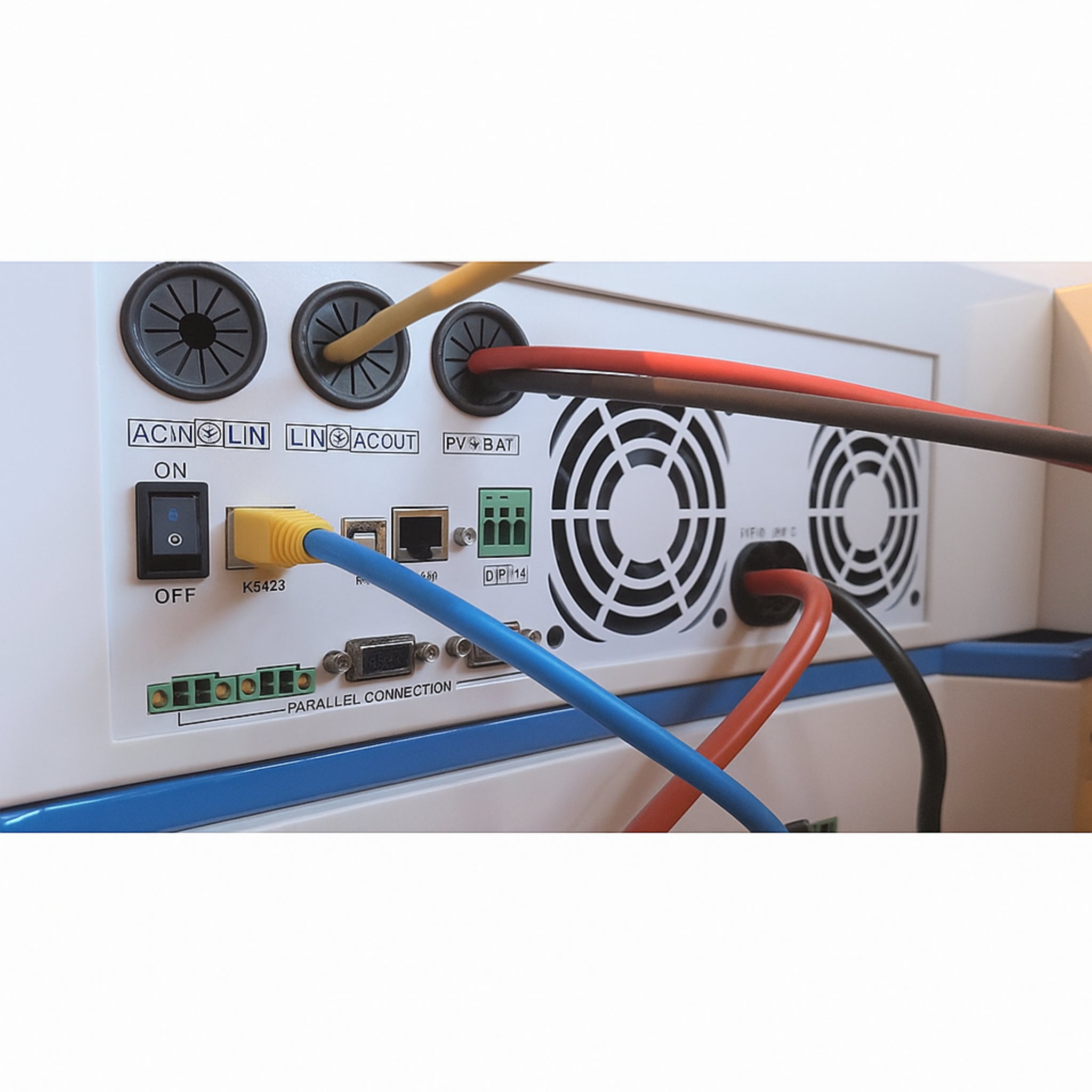

• Inverters: 2× OMO 5500W 120/240VAC 60Hz pure sine wave stackable inverters (11,000W total output)

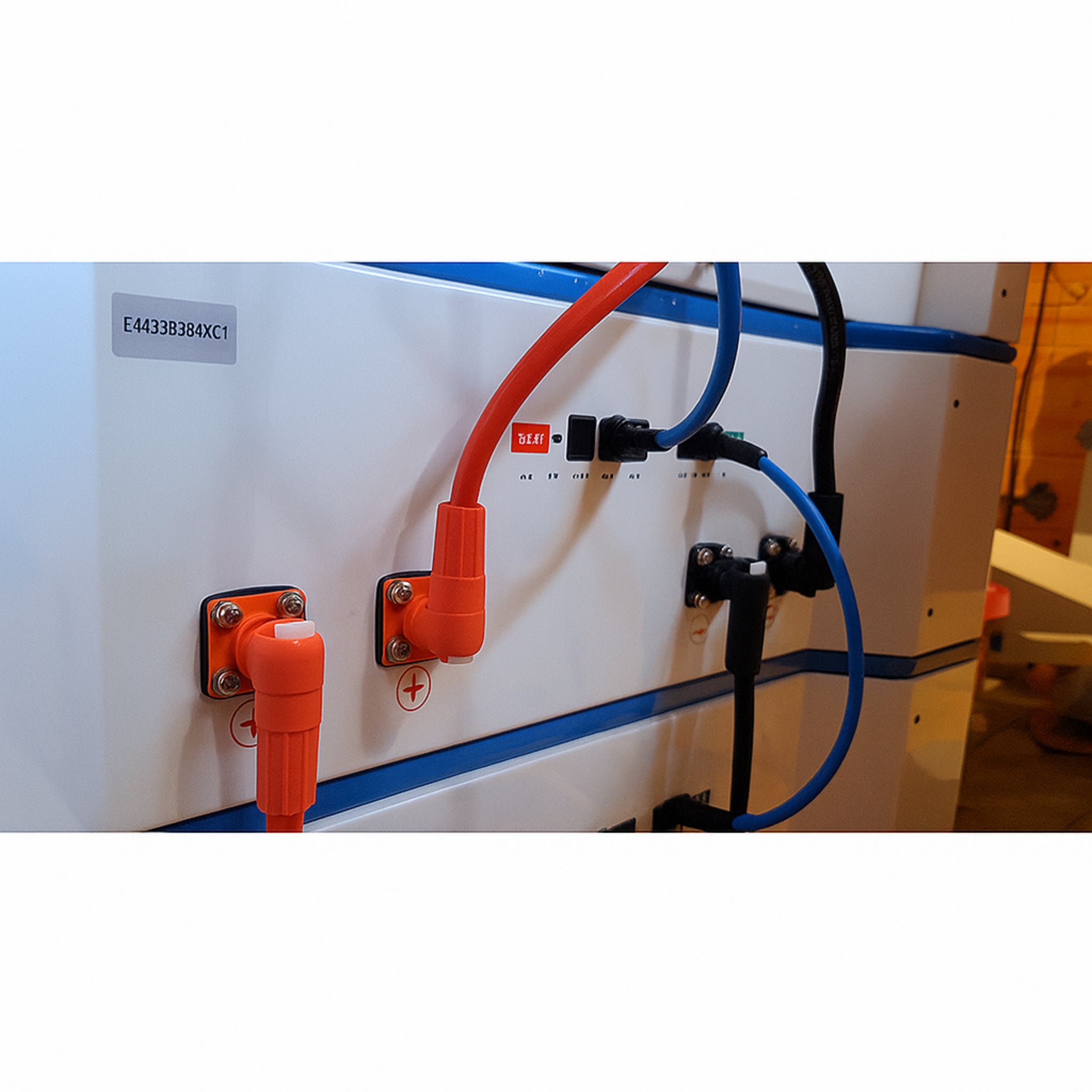

• Batteries: 6× 51.2V 5.12KW stackable heated lithium batteries with Bluetooth (maximum of 6 per inverter)

• Solar Array: 20× 550W bifacial mono solar panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge roof-mount rails, splices, L-feet, fasteners, and bolts

• Tools Included: MC4 crimper tool set

• Wiring: 500' 10AWG PV-rated direct burial solar wire & 100' 6AWG AC output/input/generator cabling

• System Base: OMO stack-system wheeled base

Features

• Bifacial Solar Panels: Dual-glass design captures up to 25% additional rear-side light for higher daily production

• All-Weather Durability: Rated for 5400 PA snow load and 2400 PA wind load

• Long-Term Reliability: Includes a 30-year solar panel power warranty

• Expandable System: Add more batteries or solar panels to grow your off-grid capacity

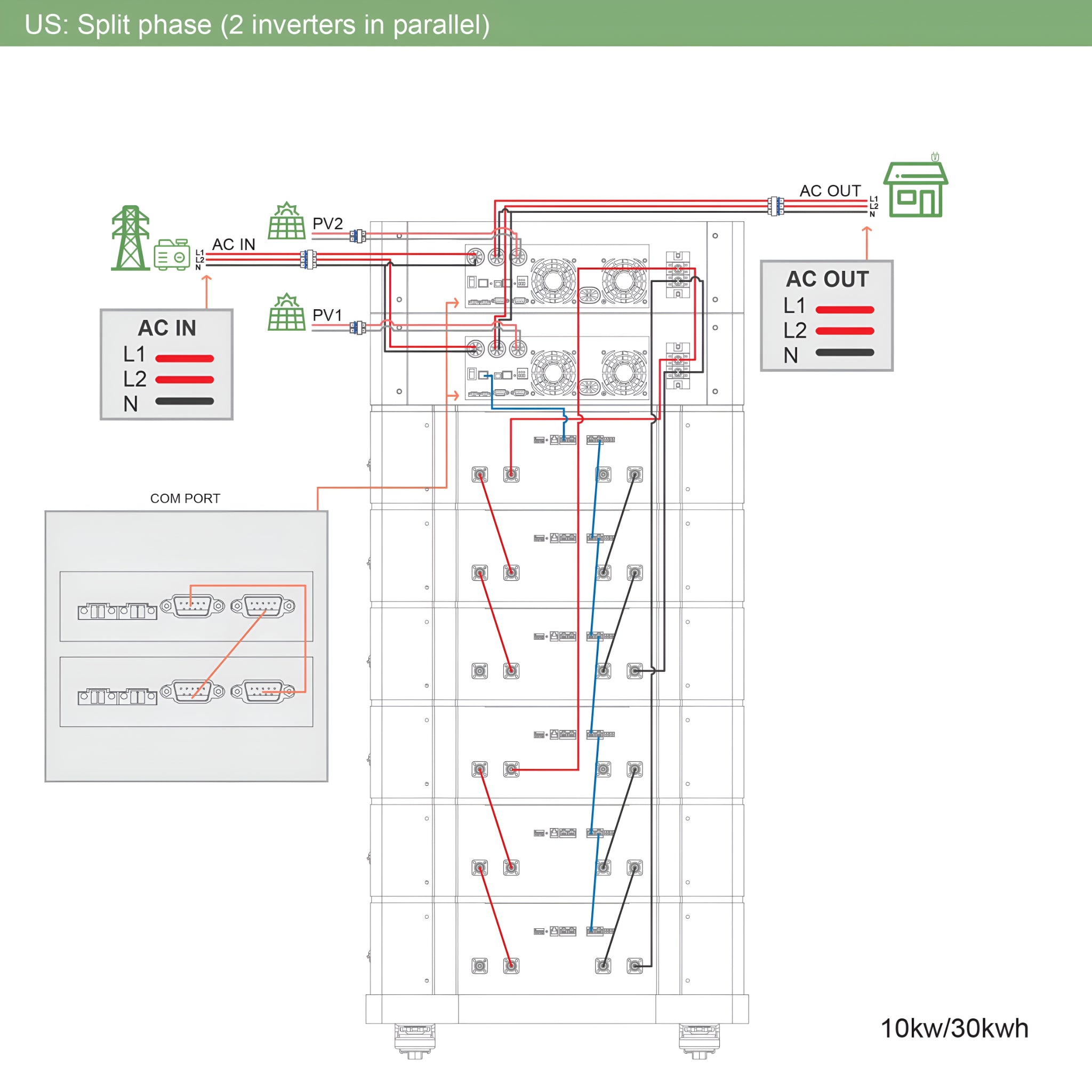

• Split-Phase Power: 120/240V output supports heavy appliances, HVAC, and shop equipment

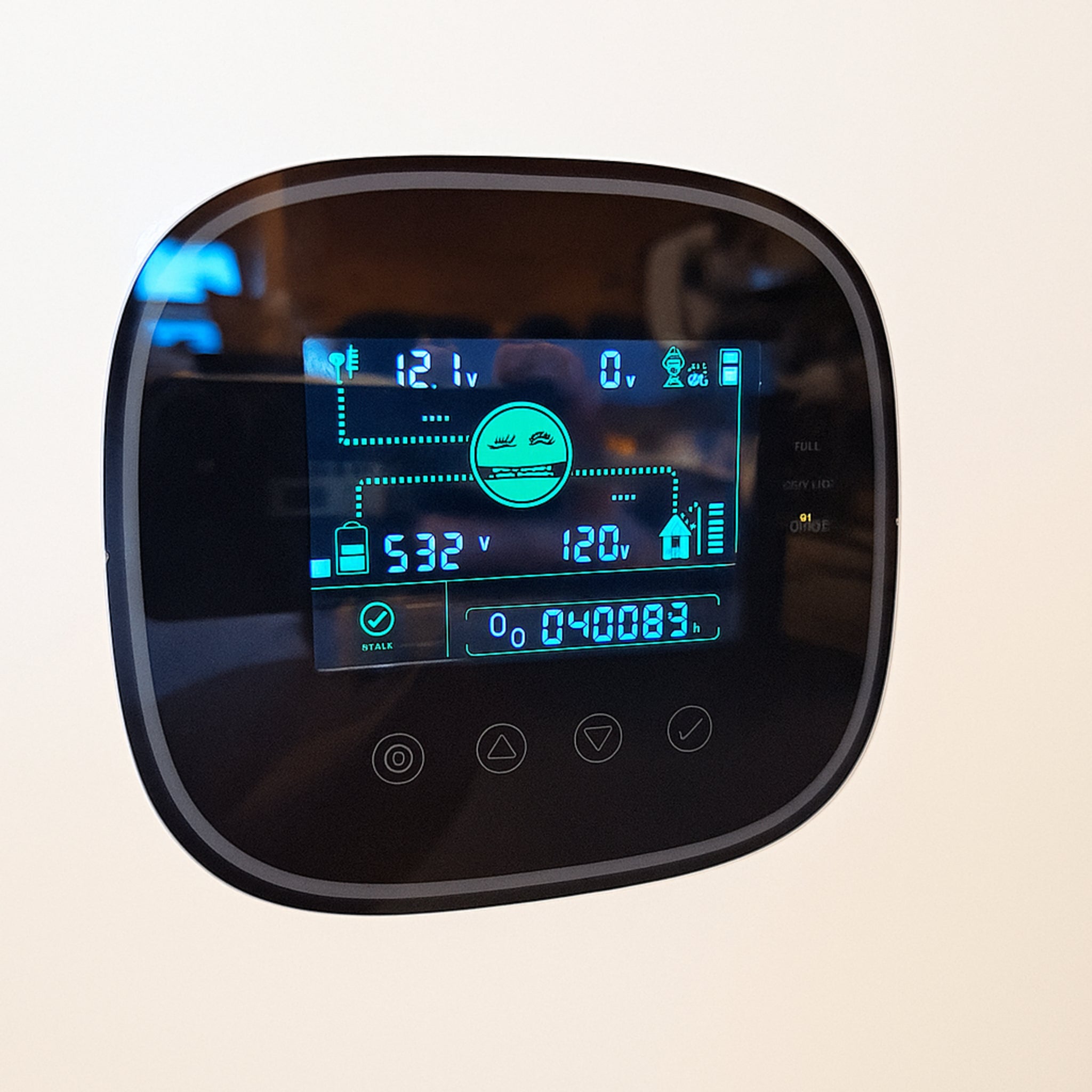

• Smart Monitoring: WiFi and Bluetooth system visibility via inverter and battery apps

Maintenance

• Daily: Monitor battery and inverter performance through Bluetooth/WiFi apps

• Weekly: Clear dust or debris from solar panels and ensure ventilation areas remain open

• Annually: Inspect all wiring, connections, mounting hardware, and perform full panel cleaning

Warranty

• Solar Panels: 30-year power performance warranty

• Inverters & Batteries: Manufacturer component warranties apply

Inverter Specs

• MPPT Solar Charge Controller: 5500W PV rated input per inverter

• Max Solar PV Current: 22A per inverter

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave per inverter

• Parallel Capability: Supports up to 6 units in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass current

• Monitoring: WiFi and Bluetooth enabled
