11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 5.12K Lithium Battery + 11KW Solar Roof Mount is engineered to provide a dependable, customizable power solution for full off-grid living. This complete system includes high-output inverters, reliable lithium storage, a powerful bifacial solar array, and all required mounting hardware and wiring for a full installation.

Specifications

• Inverters: 2× OMO 5500W 120/240VAC 60Hz Pure Sine Wave Stackable Inverters (11,000W total output)

• Batteries: 1× 51.2V 5.12kWh Stackable Heated Battery with Bluetooth (expandable up to 6 per inverter)

• Solar Panels: 20× 550W bifacial mono solar panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting System: Complete IronRidge roof-mount rail kit (rails, splices, L-feet, fasteners, bolts)

• Tools Included: MC4 crimper tool set

• Wiring: 500' PV-rated 10AWG direct-burial solar wire + 100' 6AWG AC output/input/generator cable

• System Base: OMO stack-system wheeled base

Features

• Bifacial Solar Technology: Dual-glass design captures up to 25% extra rear-side production for higher yield

• Weather-Rated Construction: 5400 PA snow load & 2400 PA wind load for harsh-climate durability

• Long-Term Reliability: Solar panels include a 30-year power performance warranty

• Expandable System: Add more batteries or solar panels as energy needs grow

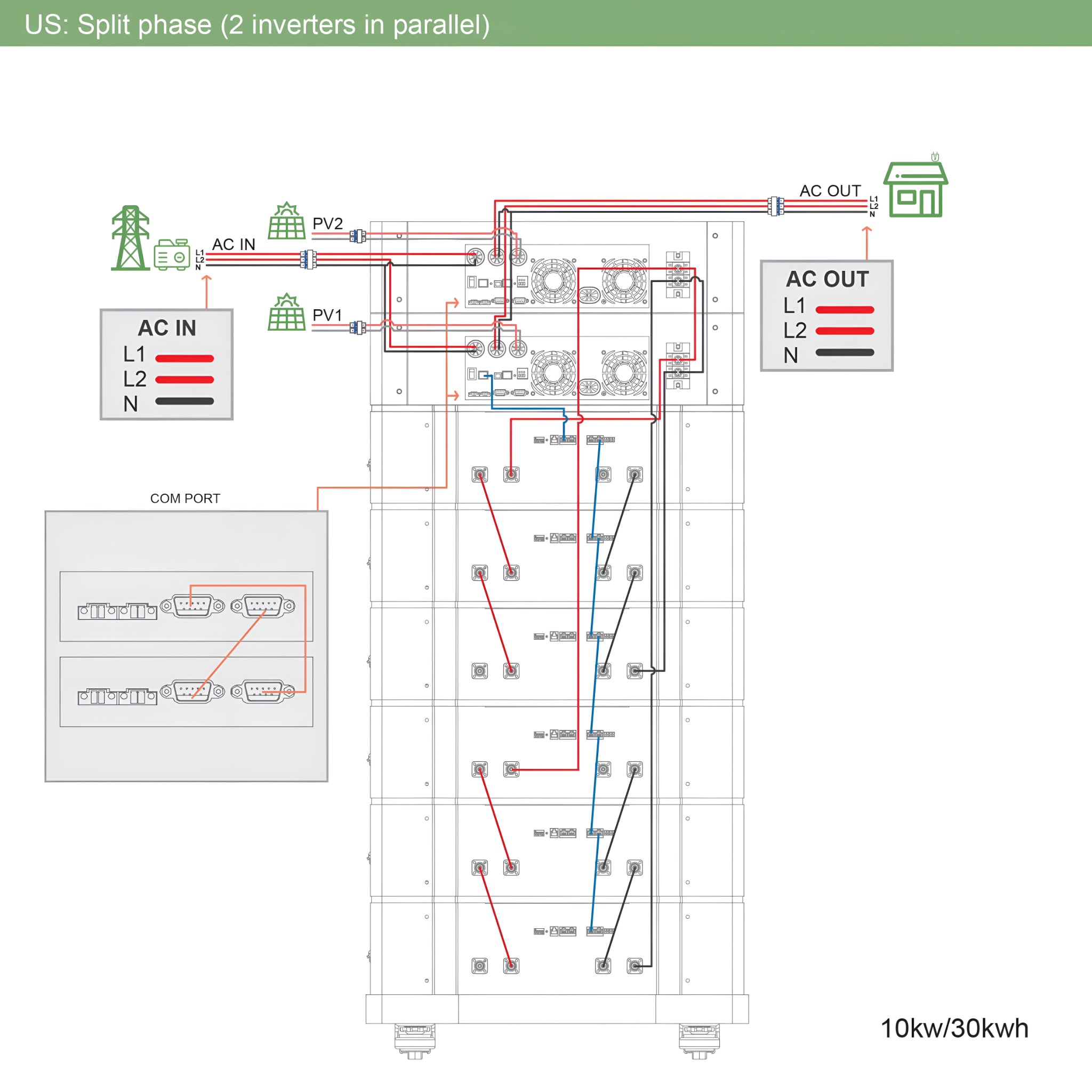

• Split-Phase Output: 120/240V capability supports whole-home loads, tools, pumps, and appliances

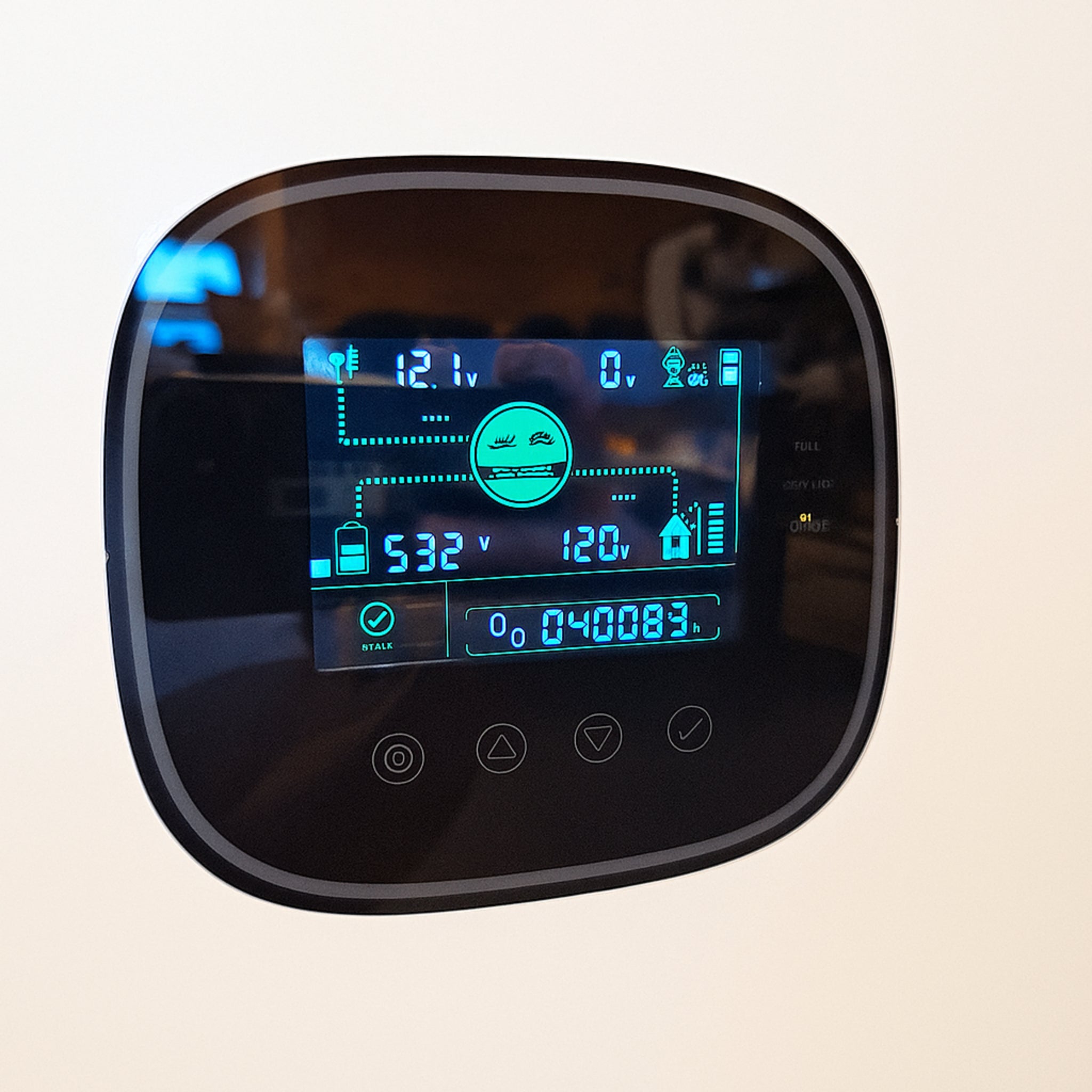

• Smart Monitoring: Built-in WiFi and Bluetooth for inverter + battery management

Maintenance

• Daily: Check inverter/battery app metrics for performance and load monitoring

• Weekly: Remove dust, leaves, or debris from solar panels; ensure system ventilation remains unobstructed

• Annually: Inspect wiring, hardware, seals, and mounting equipment; perform a full panel cleaning

Warranty

• Solar Panels: 30-year power warranty

• Inverters & Batteries: Manufacturer-provided component warranties apply

Inverter Specs

• MPPT Solar Charge Controller: 5500W PV rated input (each)

• Max PV Current: 22A (each)

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave (each)

• Parallel Capacity: Up to 6 units in parallel

• Grid/Generator Input: 90–140VAC, 63A bypass current

• Monitoring: WiFi & Bluetooth enabled
