12KW Complete Offgrid Solar Kit + EG4 18kPV + 32KW OMO 48V Freedom Series Lithium Battery + 13.2KW Solar with Ground Mount and Wiring

The 12KW Complete Offgrid Solar Kit + EG4 18kPV + 32KW OMO 48V Freedom Series Lithium Battery + 13.2KW Solar with Ground Mount and Wiring is a powerful, scalable solution designed for complete off-grid living. This system includes a 32KW OMO Freedom Series heated lithium battery, a 13.2KW bifacial solar array, and the EG4 18kPV hybrid inverter/charger. It provides 32,000W of usable energy and can generate approximately 59,400W of solar power per day based on 4.5 hours of peak sun. Ideal for mid-sized homes using around 1700kWh per month, this package is fully expandable to support future panel or battery additions.

Specifications

• Solar Panels: 24× 550W Bifacial Panels (13,200W Array)

• Inverter: 1× EG4 18kPV 48V Split-Phase Hybrid Inverter/Charger

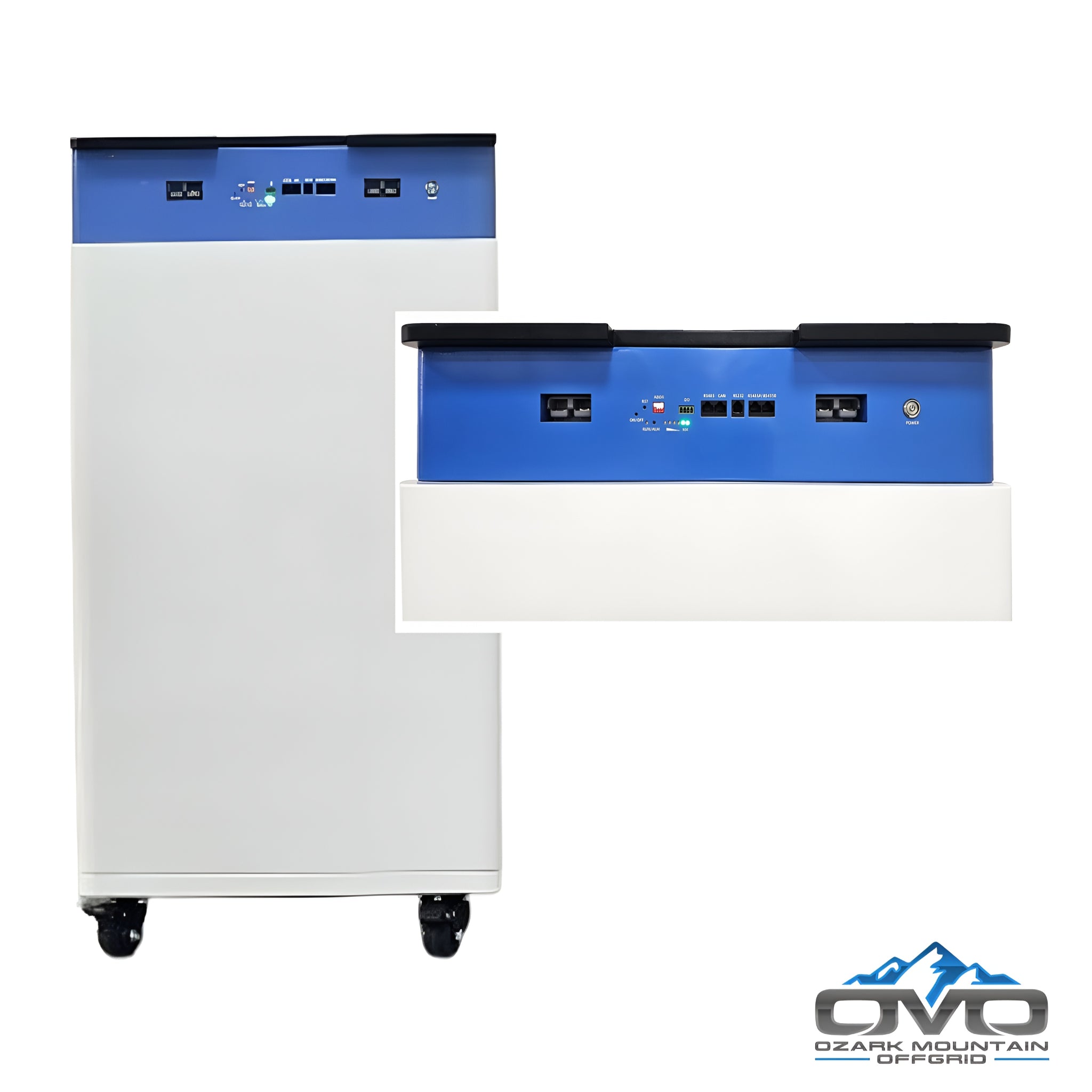

• Battery Bank: 1× 32KW OMO 48V Freedom Series Heated Battery with Bluetooth & LCD Readout

• Mounting: Complete Iron Ridge Ground Mount System (Rails, Top Caps, Connectors, Fasteners, Bolts)

• Combiner & Protection: Solar Combiner Box, Gutter Box

• Wiring: 500' PV Direct Burial Wire + 100' 6 AWG AC Output/Input/Generator Cable

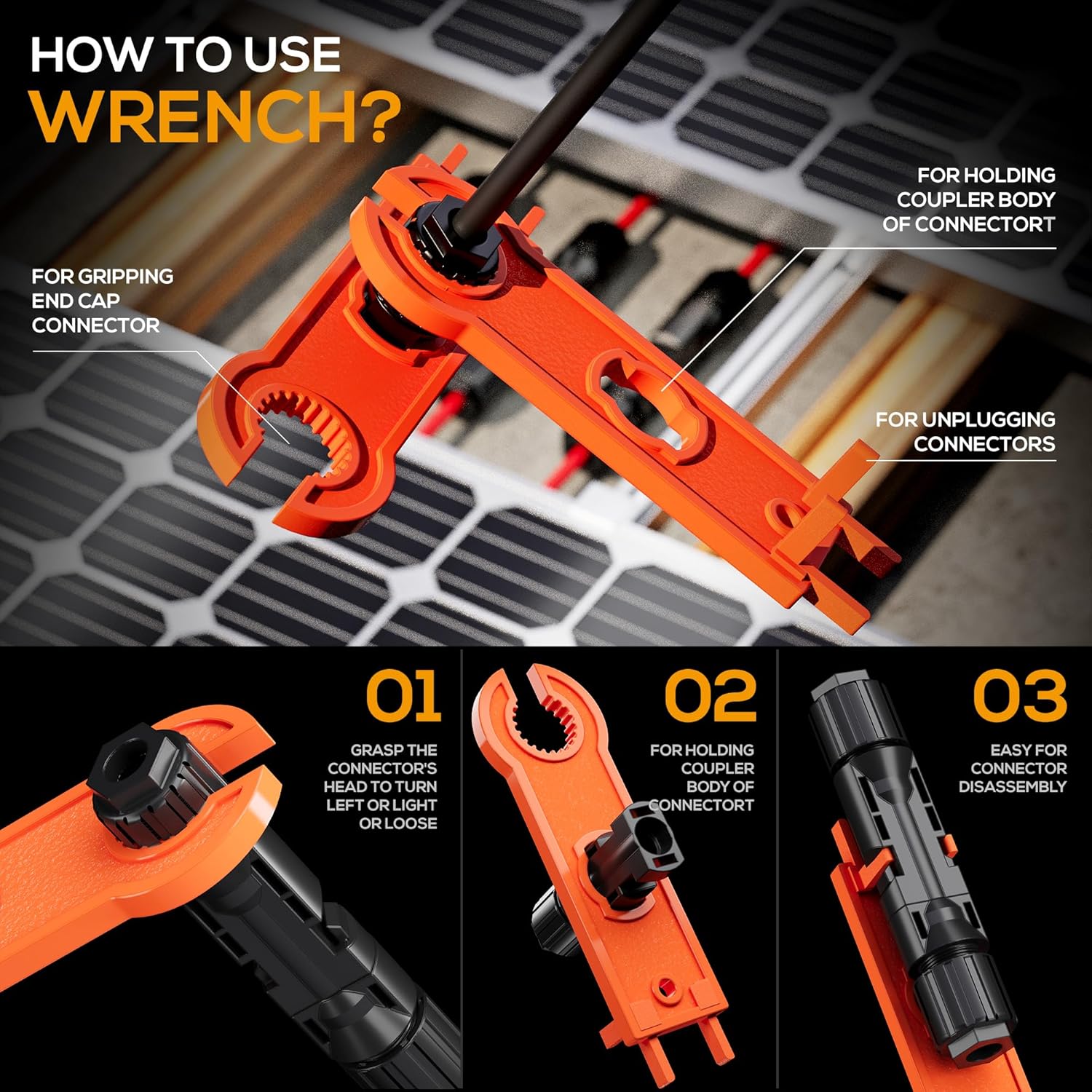

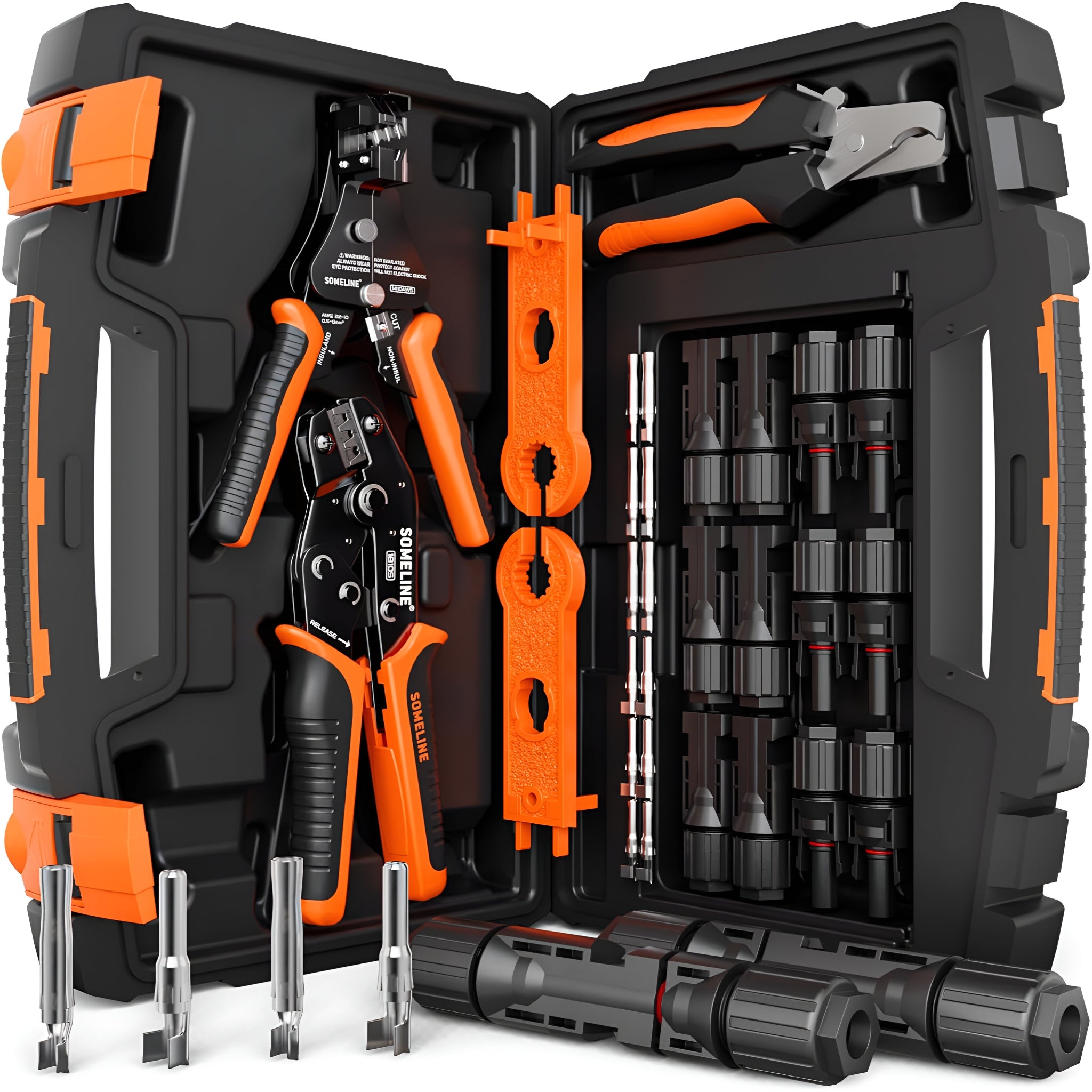

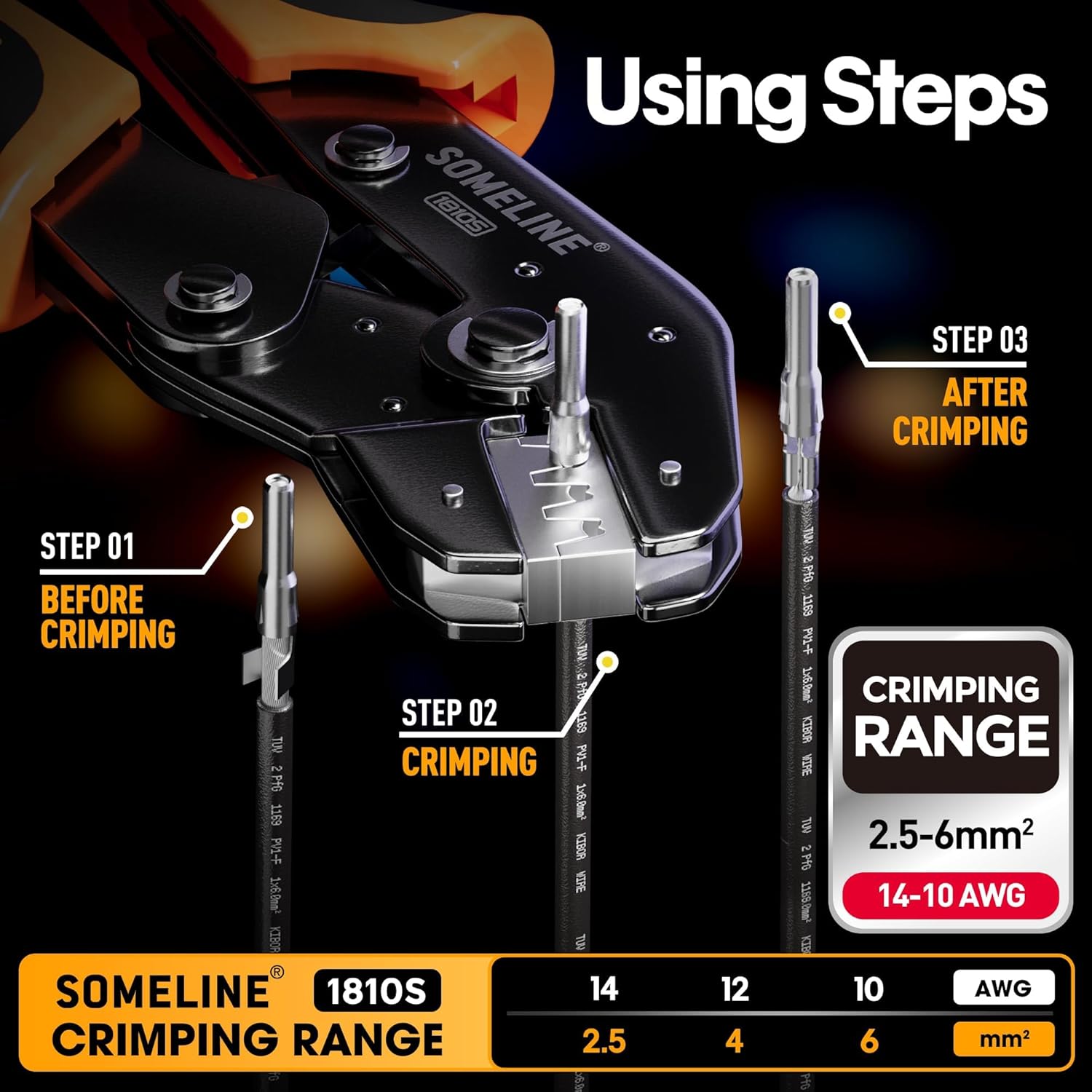

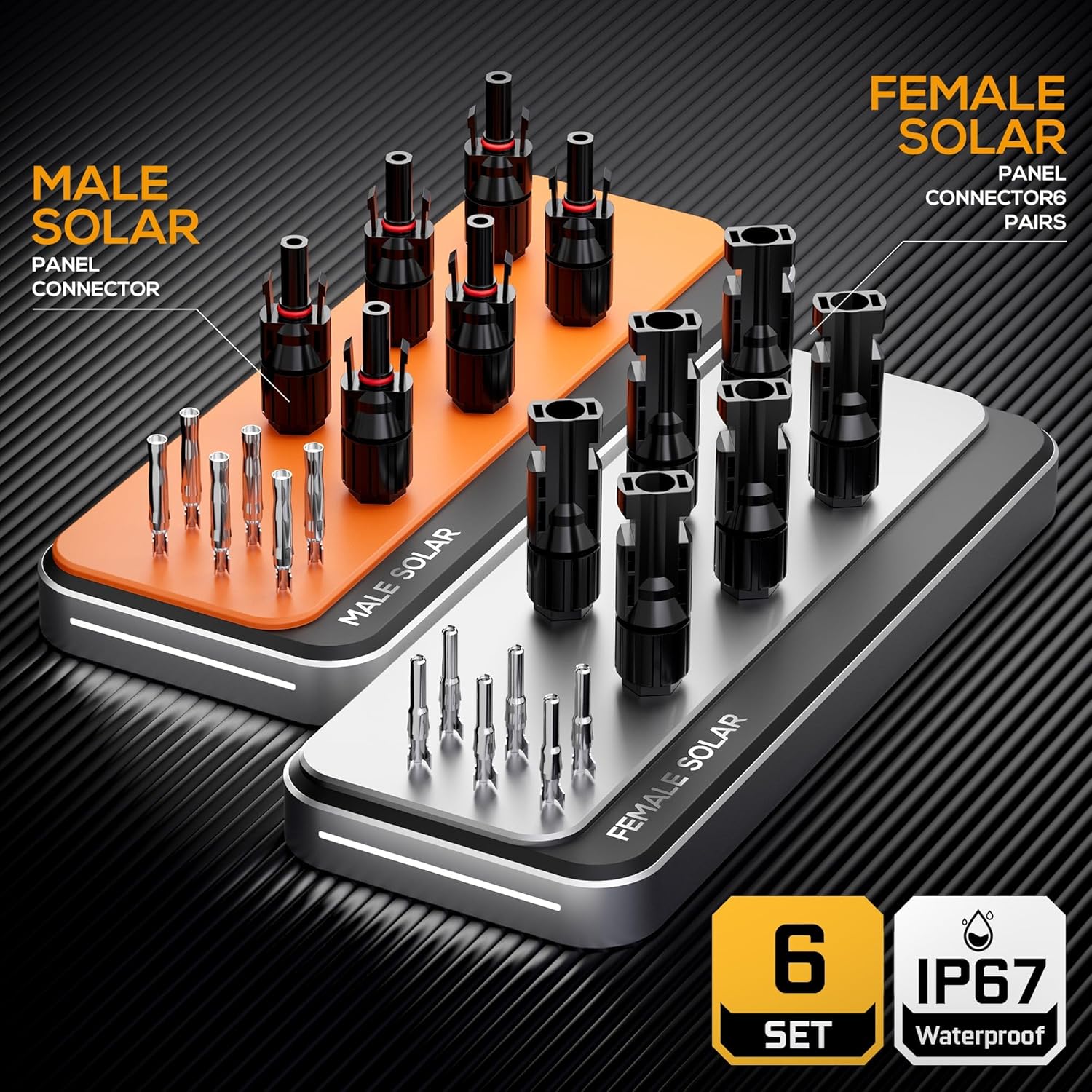

• Accessories: Anderson Plug Battery Cable Set, MC4 Crimp Kit, Installation Manual

Features

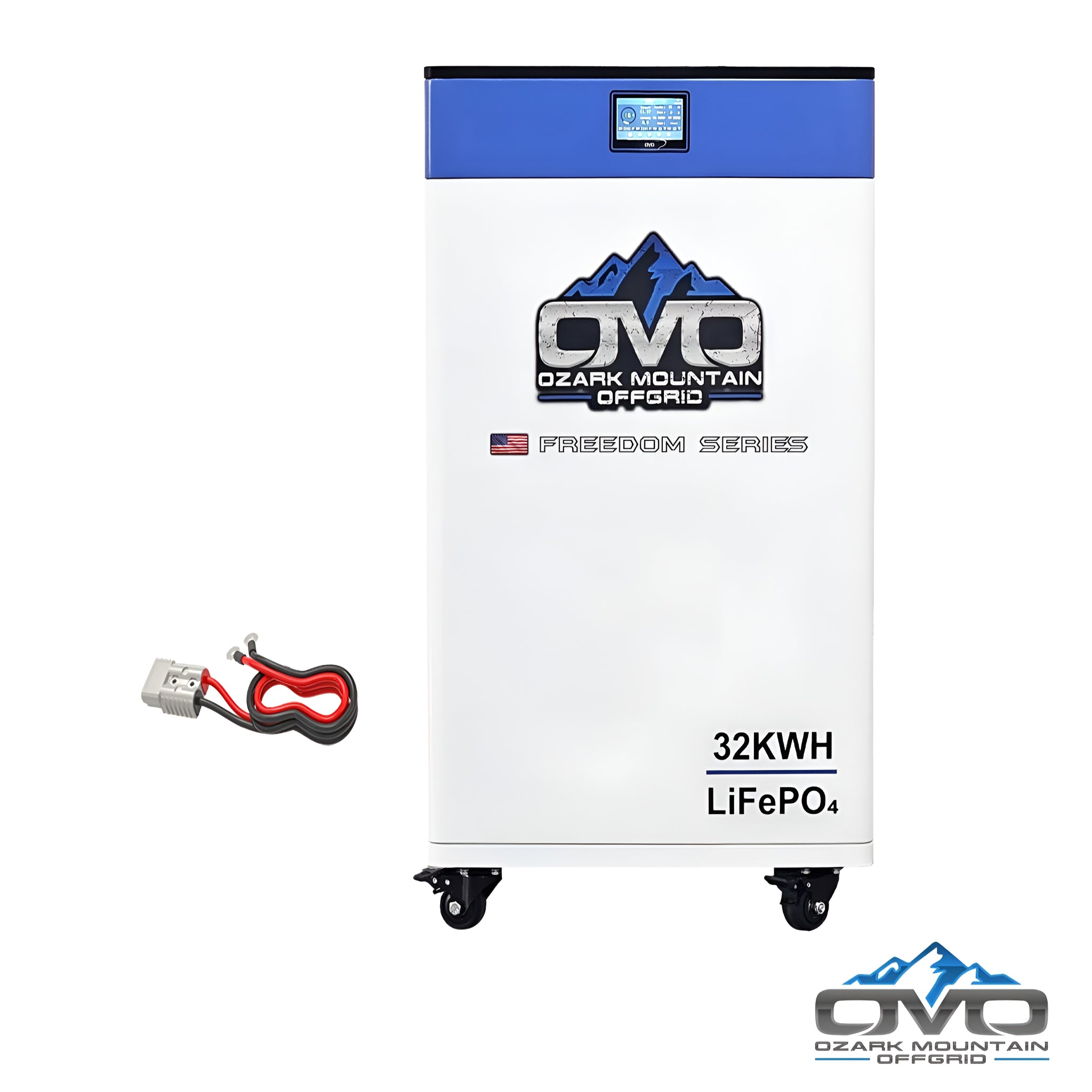

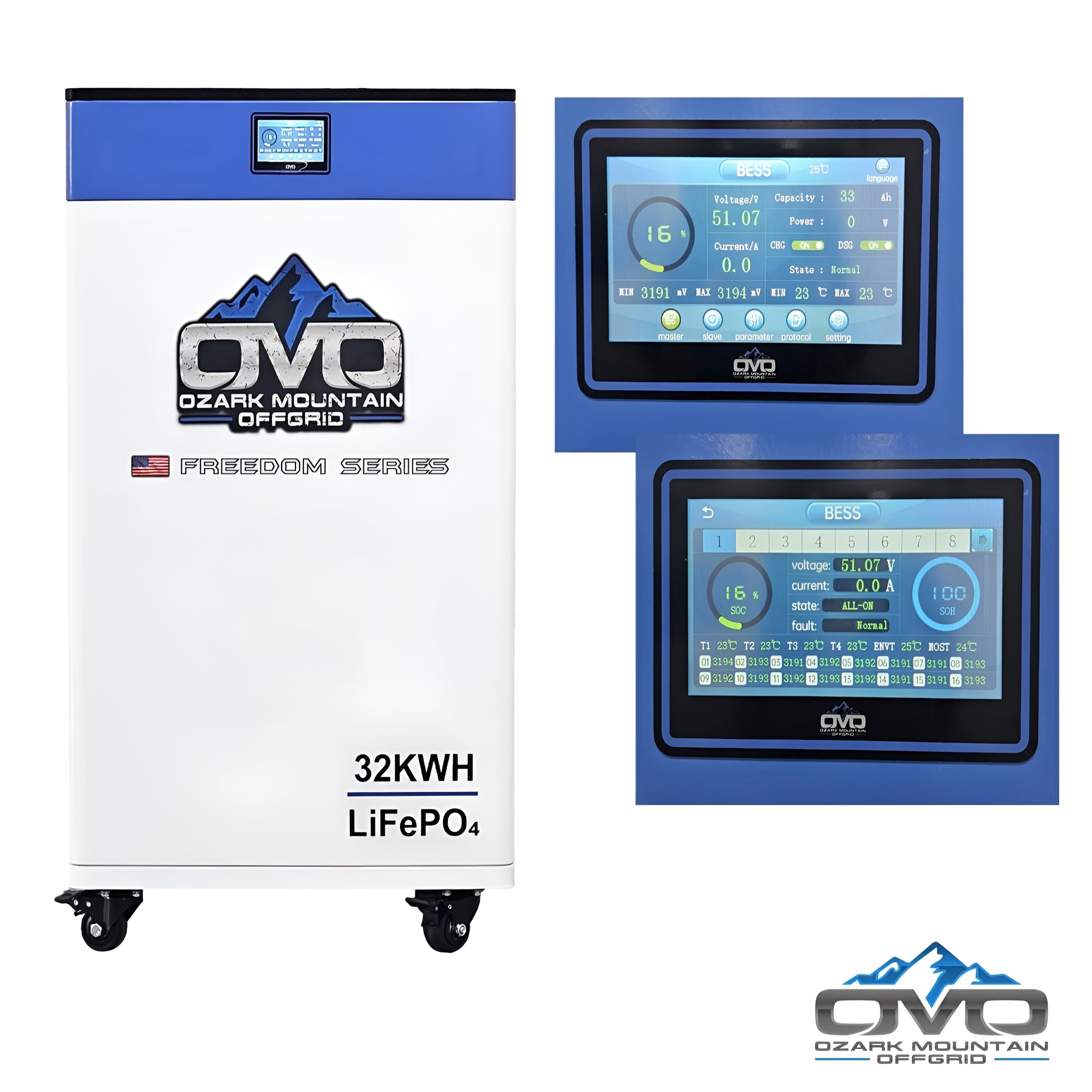

• 32KW Heated Lithium Battery: Freedom Series battery with Bluetooth monitoring & integrated LCD display

• Bifacial Solar Technology: Generates up to 25% additional rear-side energy using reflected light

• High Durability Panels: 5400 PA snow load & 2400 PA wind load, double-glass construction, 30-year power warranty

• Ground Mount System: Built around 3" SCH40 pipe (customer sourced locally); all hardware included

• Expandable Design: Add more panels or batteries at any time for increased capacity

• Hybrid Inverter: Supports solar, battery, grid, and generator inputs with true split-phase output

Additional Information

• Suitable For: Small cabins, RV setups, garages, pole barns, and off-grid homes

• Appliances It Can Run: Wells, washing machines, fans, TVs, lighting, refrigerators, freezers, electronics, and smaller AC systems

• Battery Spec Sheet: View PDF

• Solar Production Guide: Midwest averages 4.5 peak sun hours; more in the Southwest, less in the Northeast

• Skill Level: DIY-friendly for users with basic wiring knowledge; otherwise hire a local electrician

Installation Notes

• Ground Mount: Includes all hardware except the 3" SCH40 pipe (customer-supplied locally)

• Labor Consideration: Racking and mounting are the most time-consuming parts of installation

• Support: Installation questions welcome — guidance available

Warranty

• Solar Panels: 30-Year Power Warranty

• Battery: Manufacturer warranty per Freedom Series specifications

• Inverter: EG4 standard warranty applies
