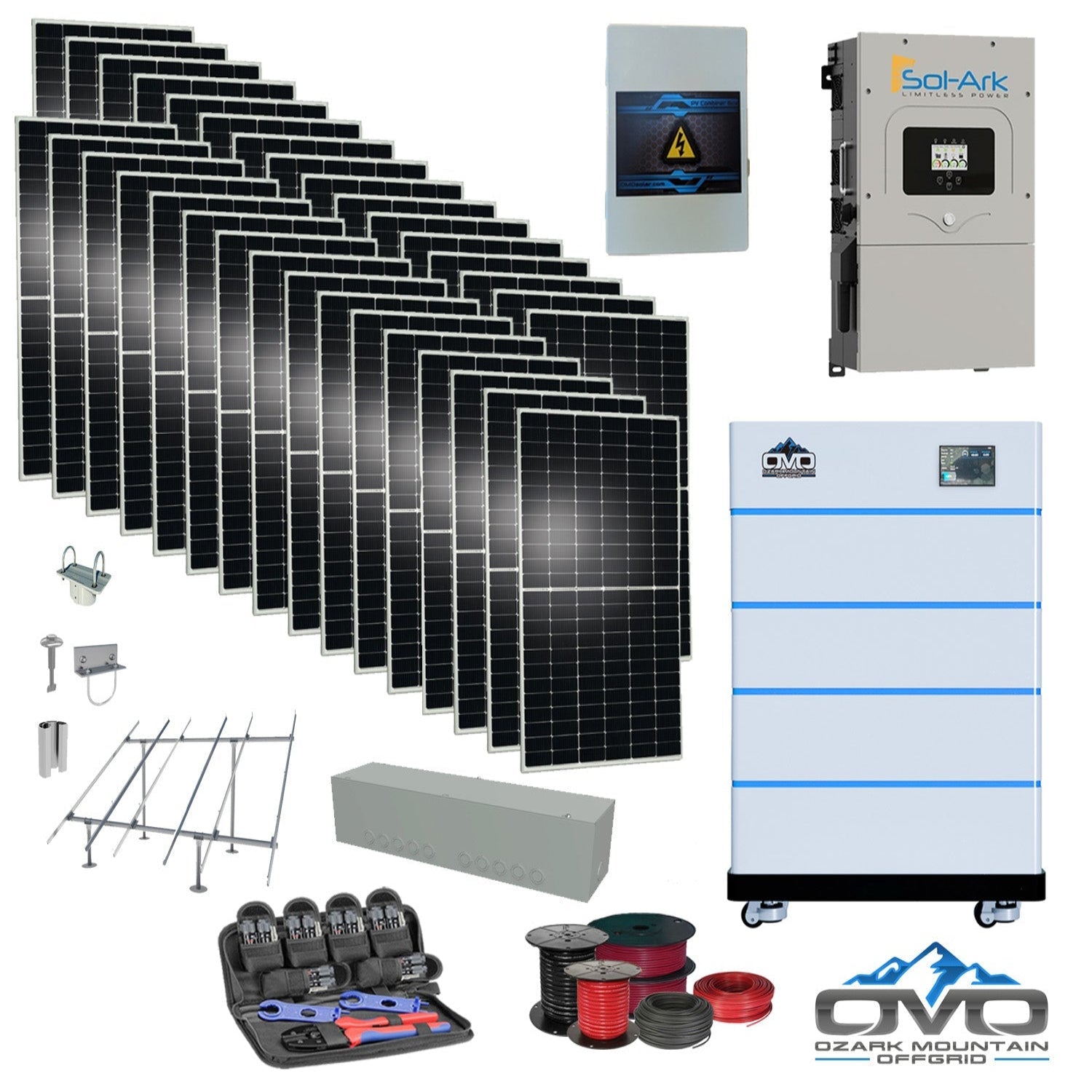

17KW Complete Offgrid Solar Kit - 15K Sol-Ark Inverter + 20.48KW OMO Stack Lithium Battery +17.6KW Solar with Ground Mount and Wiring

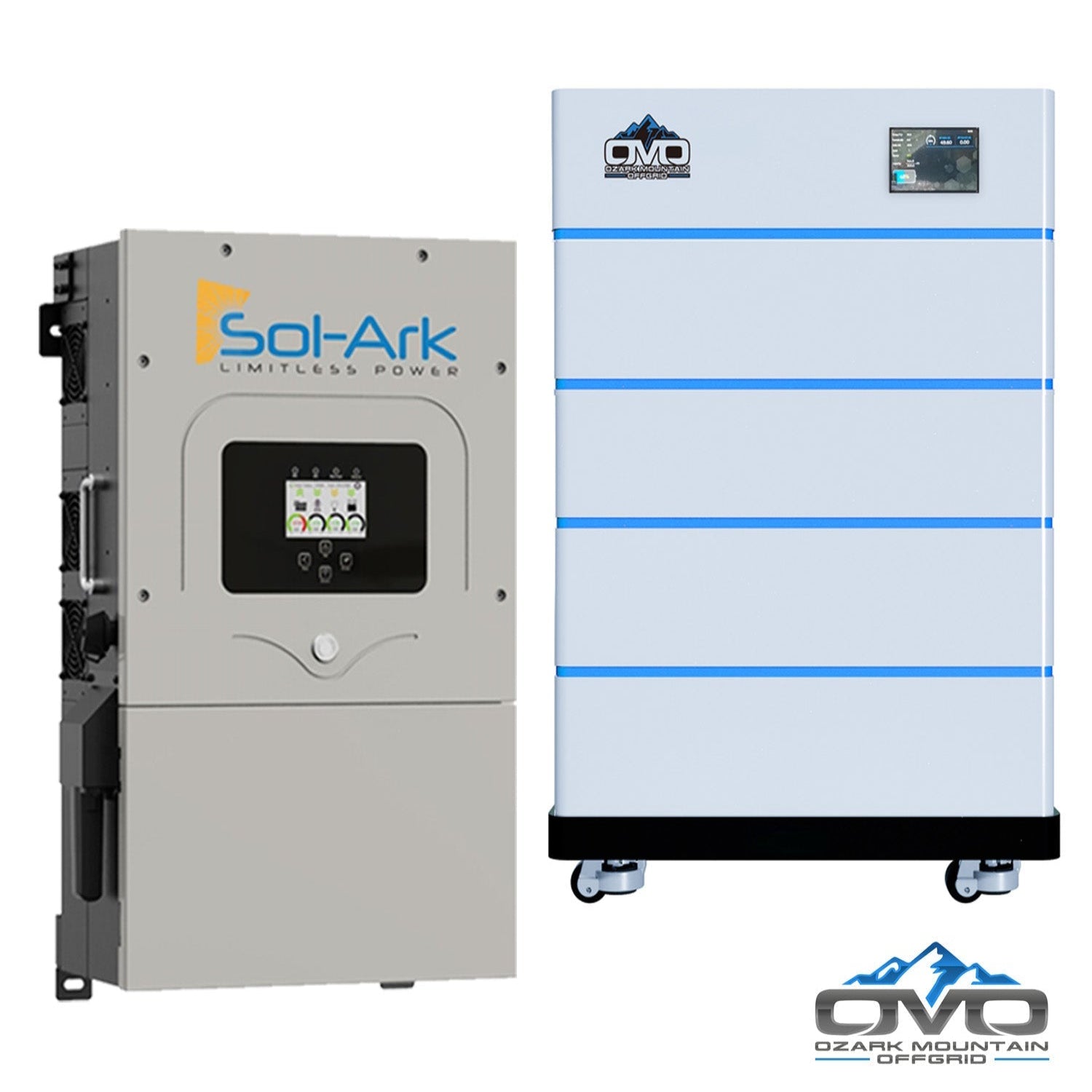

The 17KW Complete Offgrid Solar Kit - 15K Sol-Ark Inverter + 20.48KW OMO Stack Lithium Battery +17.6KW Solar with Ground Mount and Wiring is built for reliable, scalable off-grid power. It pairs a Sol-Ark 15K split-phase inverter with a 17.6kW bifacial solar array and a 20.48kWh OMO stackable lithium battery bank. Expect about 79,200 watts of solar production per day (at ~4.5 peak-sun hours). Ideal for small to mid-sized homes or cabins using around 2,376 kWh/month, the system is engineered to grow with additional panels or batteries.

Specifications

• Solar Array: 32 × 550W bifacial mono modules (17,600W total)

• Inverter: Sol-Ark 15K-2P-N, 120/240V split-phase; grid-tie or generator compatible; built-in 3× MPPT

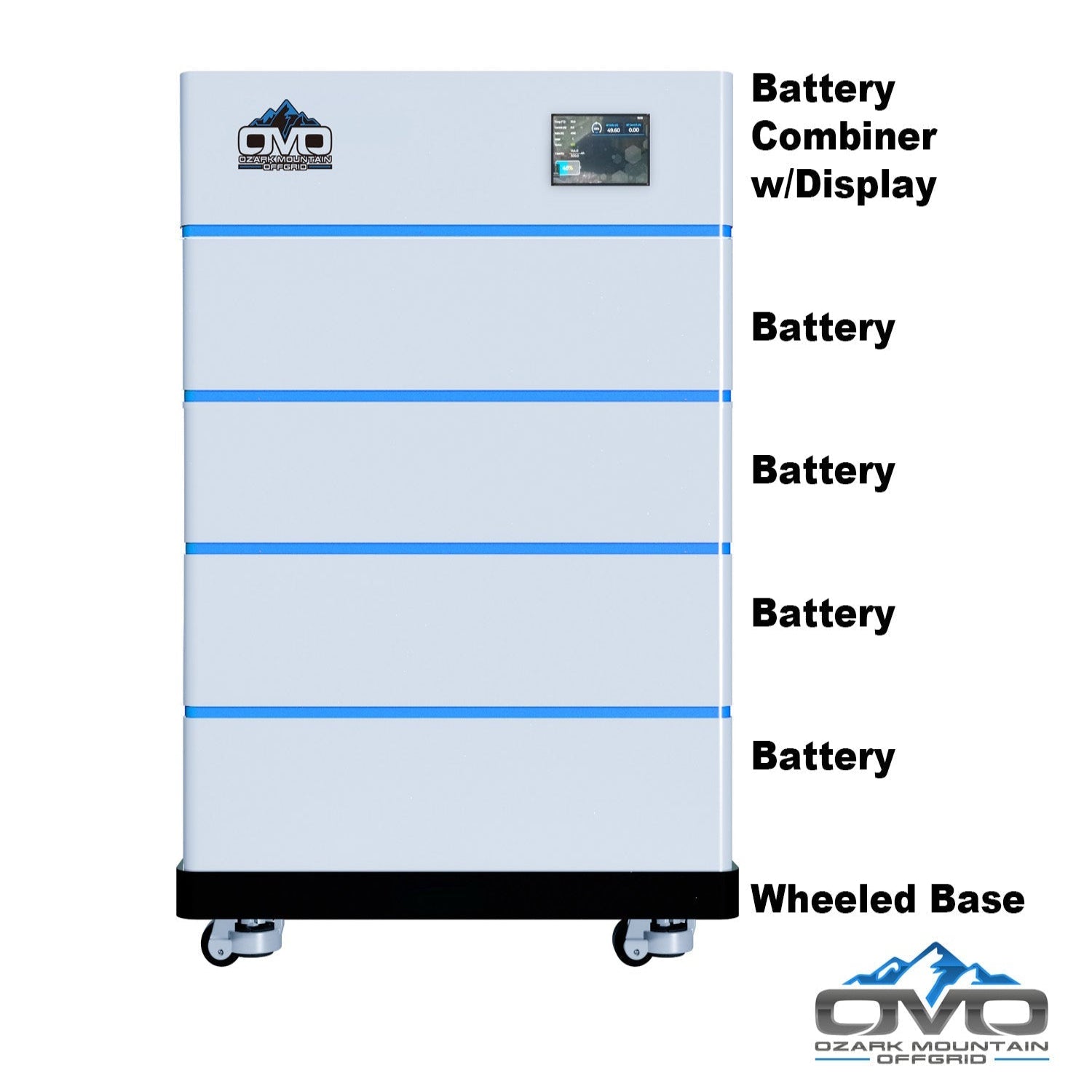

• Battery Bank: OMO Stack system — 4 × 51.2V 5.12kWh heated batteries (Bluetooth) + stackable combiner with LCD + wheeled base (20.48kWh total)

• Mounting: IronRidge ground-mount rails, top caps, rail connectors, fasteners & bolts; 3" Sch 40 pipe sourced locally

• Balance of System: Solar PV combiner box; AC combiner kit (multi-Sol-Ark); wire gutter boxes; MC4 crimper tool set; installation manual

• Cabling: 500' 10AWG MC4 PV cable; 100' 6AWG AC output/input/generator; 20' 2/0 AC main line

Features

• Bifacial Double-Glass Modules: Up to 25% rear-side gain, superior low-light output, 5400Pa snow / 2400Pa wind loads, 30-year power warranty

• High-Performance Inverter: 9kW continuous / 16kW surge (10s), DC-transformerless, 97.5% efficiency, parallel up to 8 units

• Battery-Ready Flexibility: Operates with or without batteries; 48V input supports lead-acid or lithium chemistries

• Monitoring & Control: LCD touch screen, Wi-Fi connectivity, generator support, rapid ~4ms transfer time

• Outdoor-Ready Hardware: NEMA 3R inverter enclosure; robust IronRidge ground-mount structure

• Expandable Design: Stack additional OMO batteries or add panel strings via MPPT inputs as needs increase

Maintenance

• Daily: Check inverter status and battery SOC; confirm system producing/charging as expected

• Weekly: Inspect array, wiring, and combiner boxes; clear debris or shading from ground-mount rows

• Annually: Clean modules, re-torque racking and electrical terminations, and review breakers/surge protection

Warranty

• Sol-Ark Inverter: 10 years (NEMA 3R outdoor-rated)

• Solar Panels: 30-year power performance warranty
