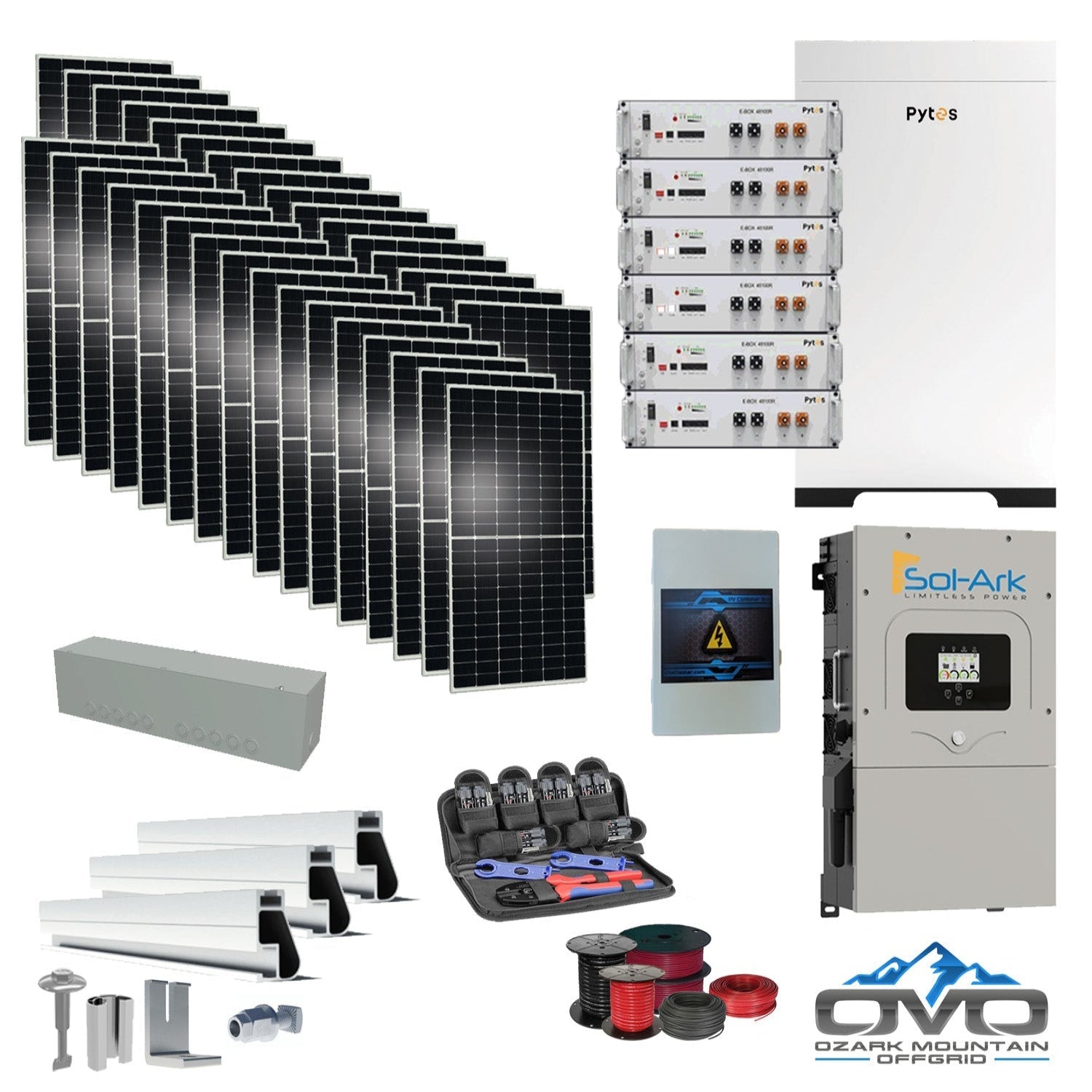

17KW Complete Offgrid Solar Kit - 30.72kWh Pytes Lithium Battery + 15K Sol Ark Inverter +17.6KW Solar with Mounting Rails and Wiring

The 17KW Complete Offgrid Solar Kit - 30.72kWh Pytes Lithium Battery + 15K Sol Ark Inverter +17.6KW Solar with Mounting Rails and Wiring  is designed for homeowners, cabin owners, and off-grid builders seeking a reliable, scalable, and high-performance power solution. Equipped with a 30.72kWh Pytes Lithium Battery Bank, a powerful 15K Sol-Ark Hybrid Inverter, and a 17.6KW bifacial solar array, this package produces approximately 79,200Wh of energy per day based on 4.5 peak sun hours. Ideal for properties using around 2,376kWh per month, this system is also fully expandable for additional batteries or solar panels as your energy needs grow.

Specifications

• Solar Array: 32 × 550W bifacial mono solar panels (17,600W total)

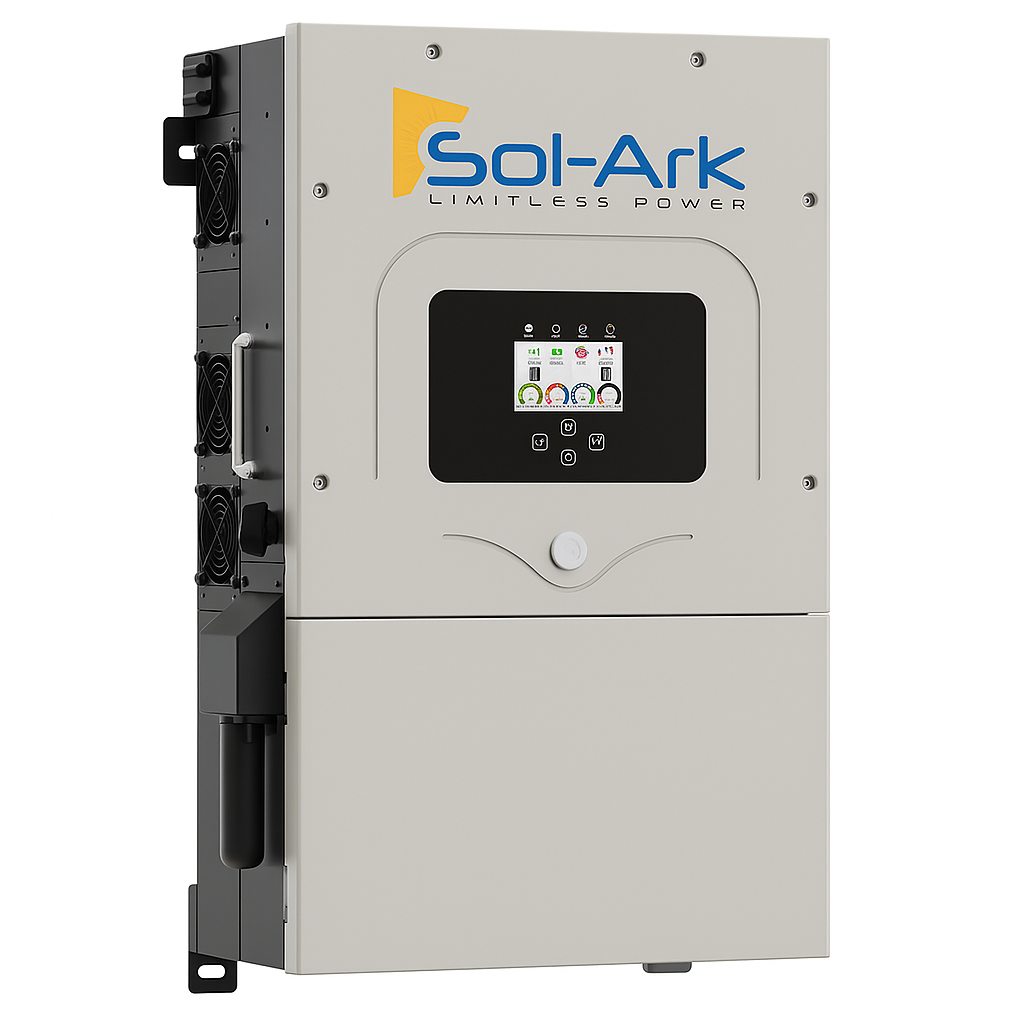

• Inverter: Sol-Ark 15K Hybrid/Off-Grid All-in-One with built-in MPPT charge controller

• Battery Bank: 6 × 5.12kWh Pytes E-Box 48100 Lithium Batteries (30.72kWh total)

• Battery Enclosure: Pytes Forest-RB Cabinet (fits up to six Pytes batteries)

• Mounting Hardware: Full IronRidge roof-mount rails, splices, legs, bolts, and fasteners

• Wiring: 500' 10AWG PV direct burial cable, 100' 6AWG AC generator/output cable, 20' 4/0 AC main line

• Additional Components: Solar combiner box, battery cable set, gutter box, MC4 crimp kit, installation manual

Features

• Bifacial Double-Glass Panels: Harvest up to 25% additional rear-side energy; excellent performance in cloudy, hazy, or low-light conditions.

• High Durability: Rated for 5400 Pa snow load and 2400 Pa wind load; backed by a 30-year power warranty.

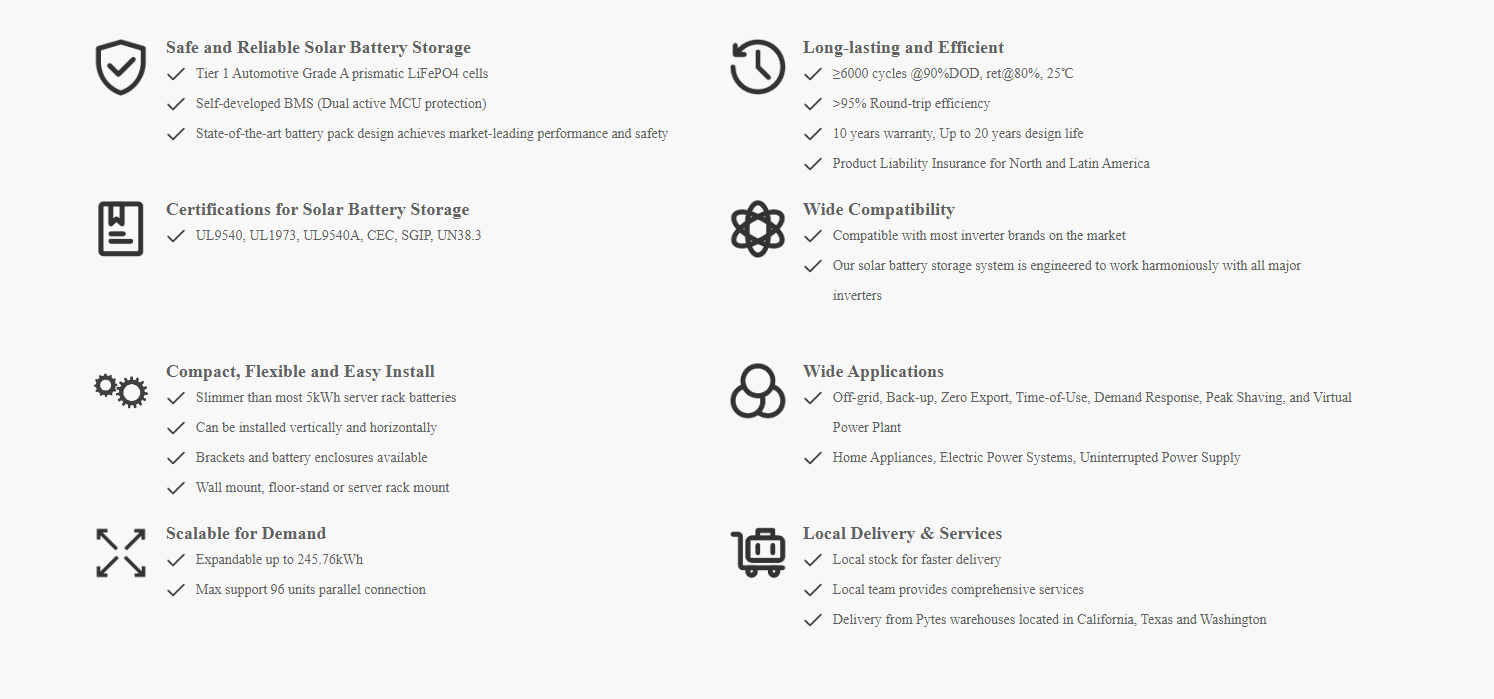

• Pytes Battery System: Lithium iron phosphate (LFP) design with long lifecycle, LCD display, and safe, efficient energy storage.

• Scalable Design: Easily add more panels or batteries as your energy needs grow.

• Complete System Integration: All components selected for seamless compatibility and long-term reliability.

Maintenance

• Daily: Check inverter status and ensure panels remain unobstructed.

• Weekly: Inspect wiring, combiner box, and battery readings.

• Annually: Perform full system inspection, tighten mounting hardware, and review all electrical connections.

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverter: 10-year warranty

• Pytes Batteries: Warranty per manufacturer’s E-Box 48100 specifications
