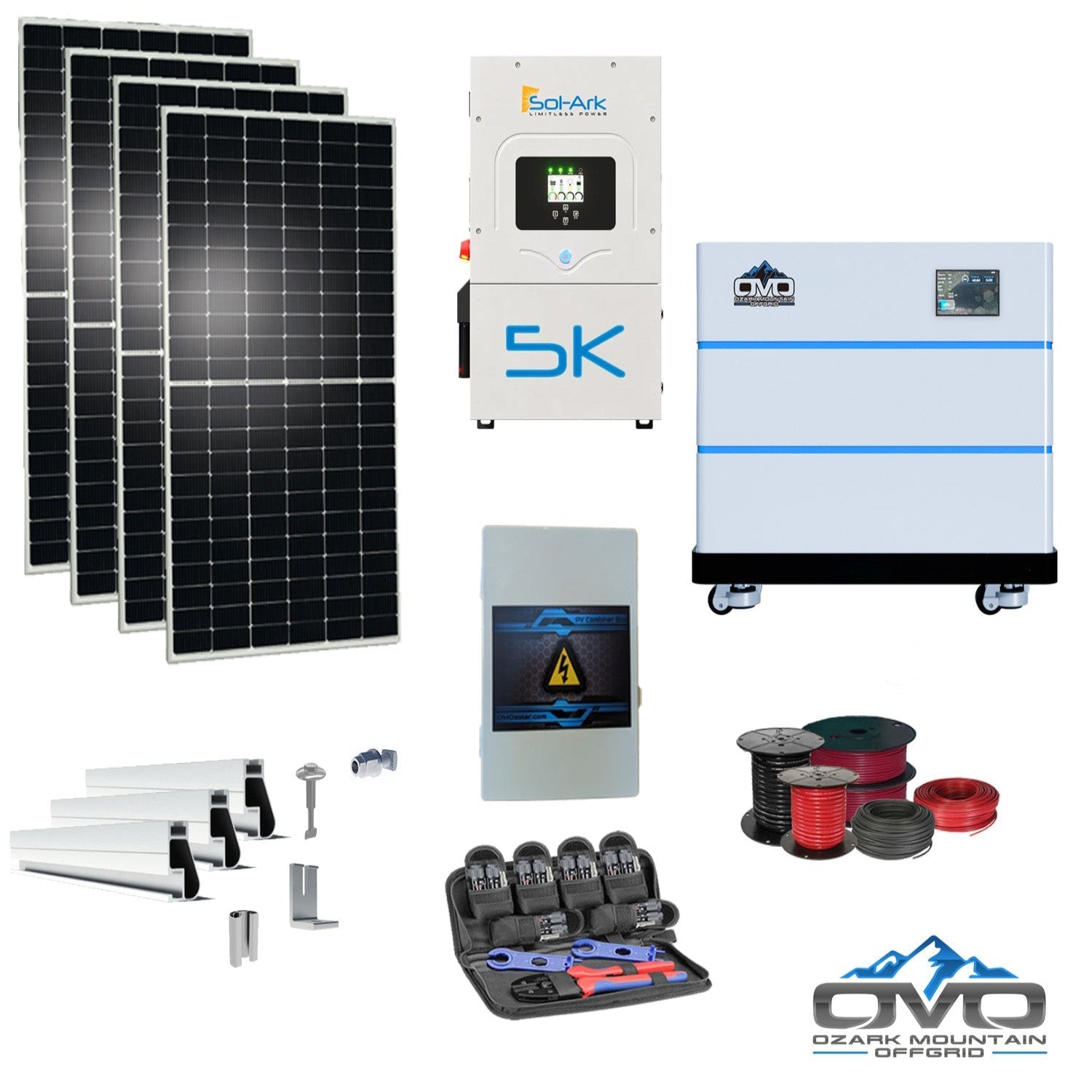

2.2KW Complete Offgrid Solar Kit + 5K Sol-Ark Inverter + 10.24KW OMO Stack Lithium Battery +2.2KW Solar with Mounting Rails and Wiring

The 2.2KW Complete Offgrid Solar Kit + 5K Sol-Ark Inverter + 10.24KW OMO Stack Lithium Battery +2.2KW Solar with Mounting Rails and Wiring is a reliable starter system for cabins, shops, RVs, and small off-grid spaces. It pairs a Sol-Ark 5K split-phase inverter (120/240V) with an OMO 10.24kWh stackable heated lithium battery bank to deliver 10,240 usable watt-hours. The bifacial solar array generates about 9,900 watts per day at 4.5 peak sun hours—well-suited for sites using roughly 297 kWh per month. The system is designed to scale with future panels or battery additions.

Specifications

• Solar Array: 4 × 550W bifacial mono panels (2,200W total)

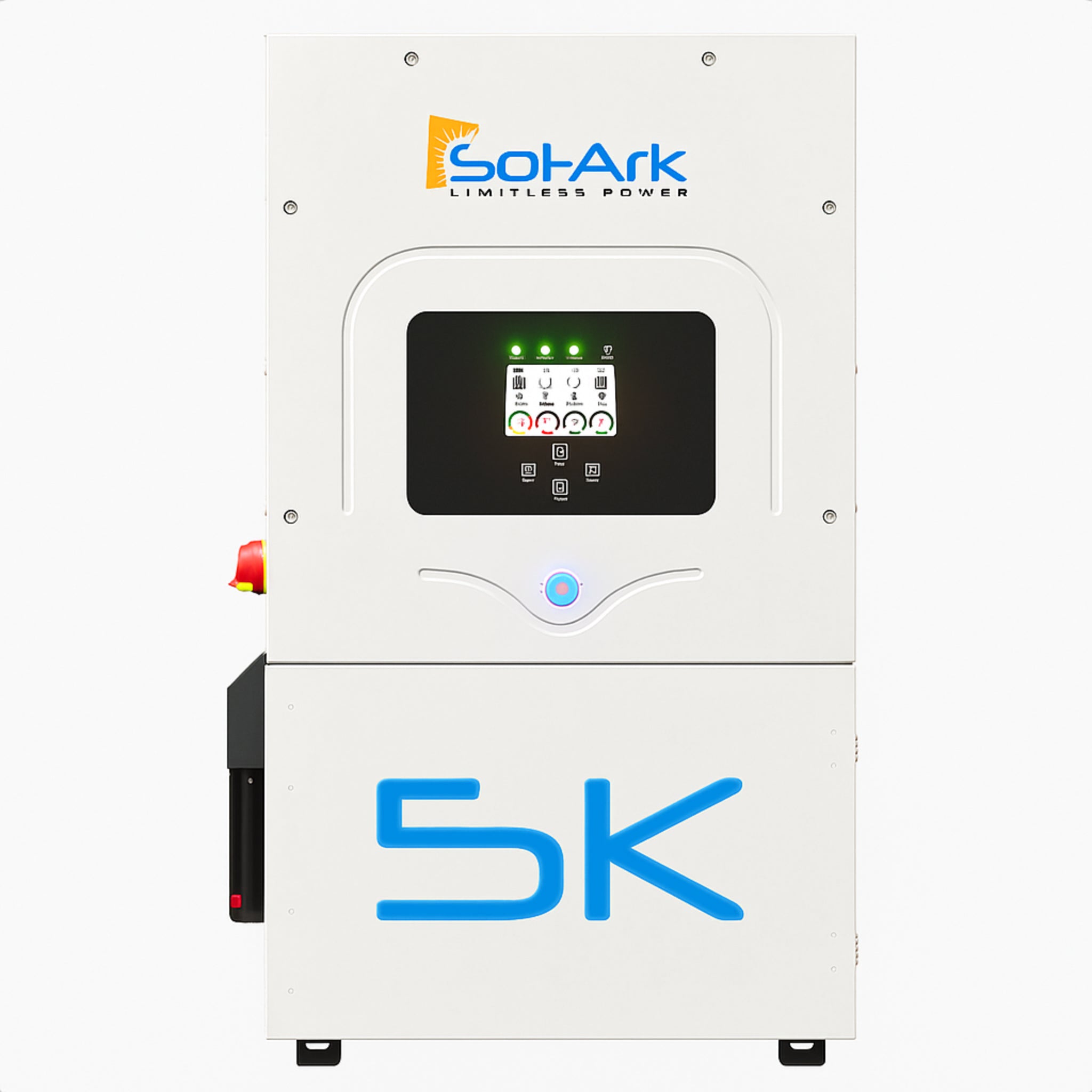

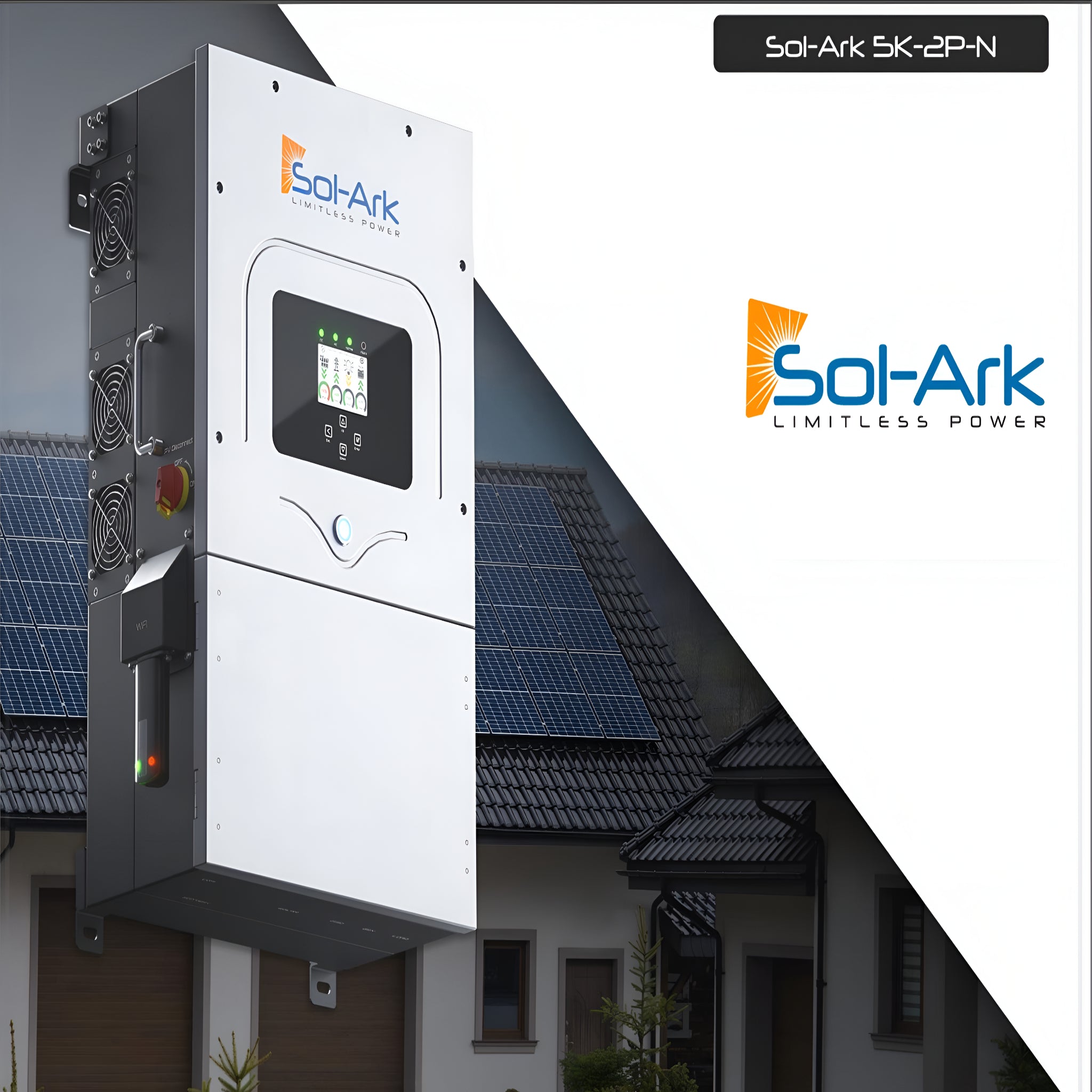

• Inverter: Sol-Ark 5K-2P-N split-phase (110/220V), grid-tie compatible and generator-input compatible

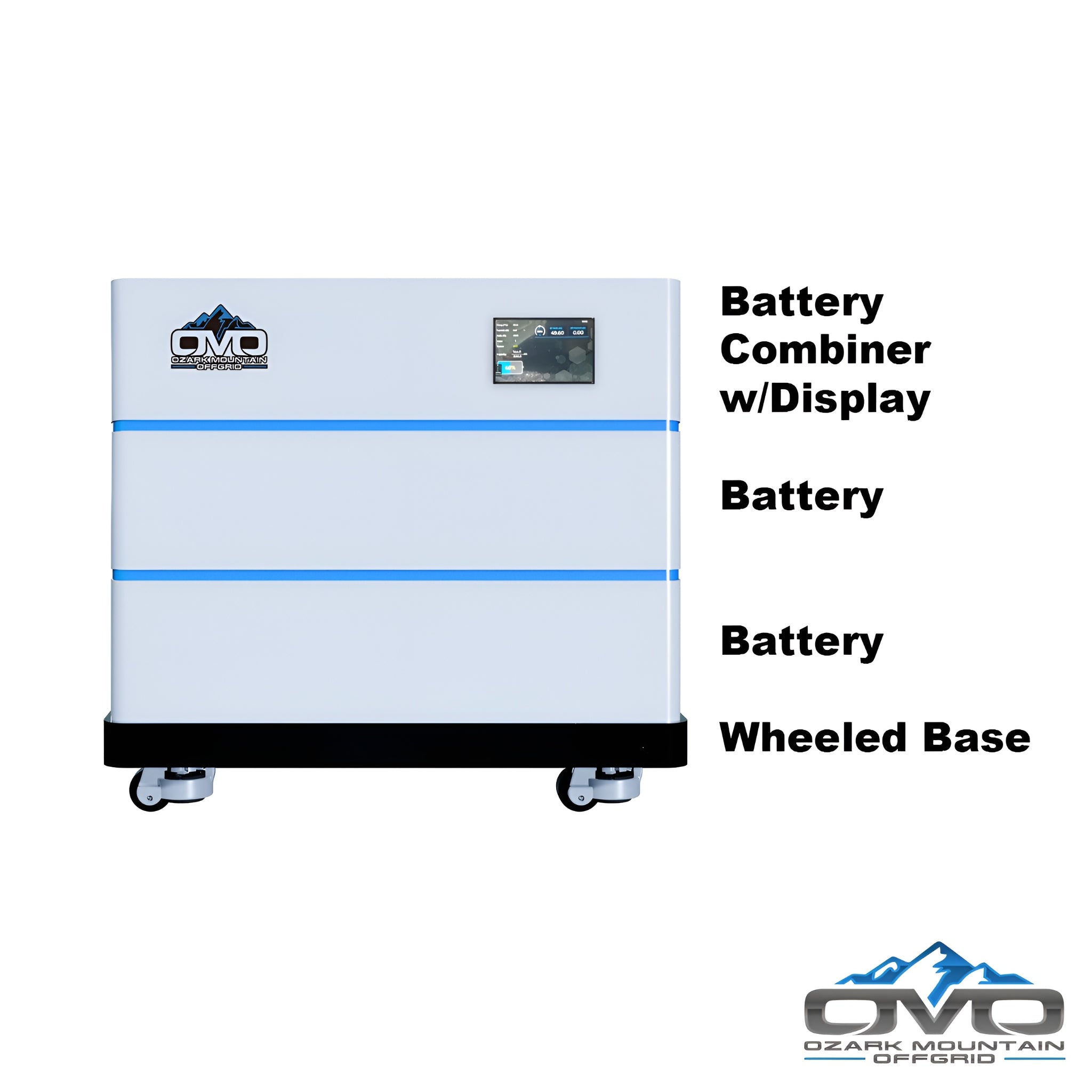

• Battery Bank: 2 × OMO 51.2V 5.12kWh stackable heated lithium batteries with Bluetooth (10.24kWh total)

• Power Management: OMO stackable combiner with LCD readout; OMO wheeled base unit

• Mounting System: IronRidge roof-mount rails, splices, legs, fasteners, and bolts

• Wiring & Balance of System: Solar combiner box; 250' PV direct-burial solar wire; 100' 6 AWG AC output/input/generator cable; MC4 crimp kit; installation manual

Features

• Bifacial Double-Glass Panels: Up to ~25% rear-side gain and stronger output in low-light conditions

• Split-Phase Power: 120/240V output supports common household loads; grid-tie or generator-assist modes

• Smart Lithium Storage: Heated, stackable batteries with Bluetooth monitoring and LCD combiner interface

• Weather-Ready Hardware: IronRidge roof system; panels rated for 5400 Pa snow / 2400 Pa wind

• Expandable Design: Add more panels or batteries as your energy needs grow

• DIY-Friendly: Clear component layout; homeowner-installable with basic wiring knowledge (electrician recommended)

Maintenance

• Daily: Check inverter/battery status and keep modules clear of debris

• Weekly: Inspect wiring, lugs, and mounting hardware; verify expected solar production

• Annually: Tighten roof hardware, test breakers/disconnects, and review performance logs

Warranty

• Solar Panels: 30-year power performance warranty

• Sol-Ark 5K Inverter: Manufacturer warranty included

• OMO Batteries: Warranty per product specifications
