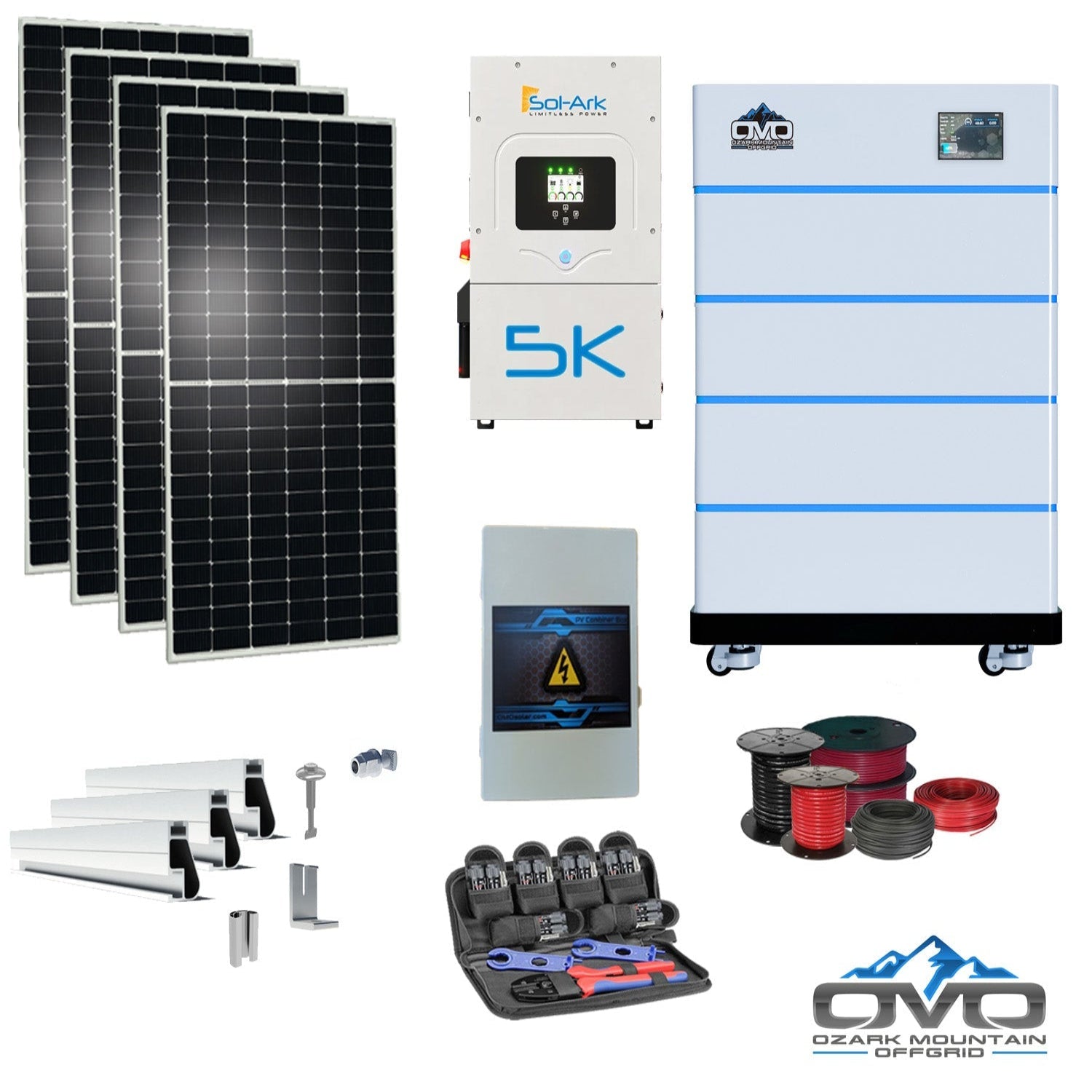

2.2KW Complete Offgrid Solar Kit + 5K Sol-Ark Inverter + 20.48KW OMO Stack Lithium Battery +2.2KW Solar with Mounting Rails and Wiring

The 2.2KW Complete Offgrid Solar Kit + 5K Sol-Ark Inverter + 20.48KW OMO Stack Lithium Battery +2.2KW Solar with Mounting Rails and Wiring is designed for cabins, shops, RVs, and small off-grid structures seeking dependable power independence. This configuration pairs a Sol-Ark 5K split-phase 120/240V inverter with a 20.48kWh OMO heated stackable lithium battery bank. The bifacial solar array generates approximately 9,900 watts per day at 4.5 peak sun hours—well-suited for loads around 297 kWh per month. The system is expandable for future additions of both batteries and panels.

Specifications

• Solar Array: 4 × 550W bifacial double-glass panels (2,200W total)

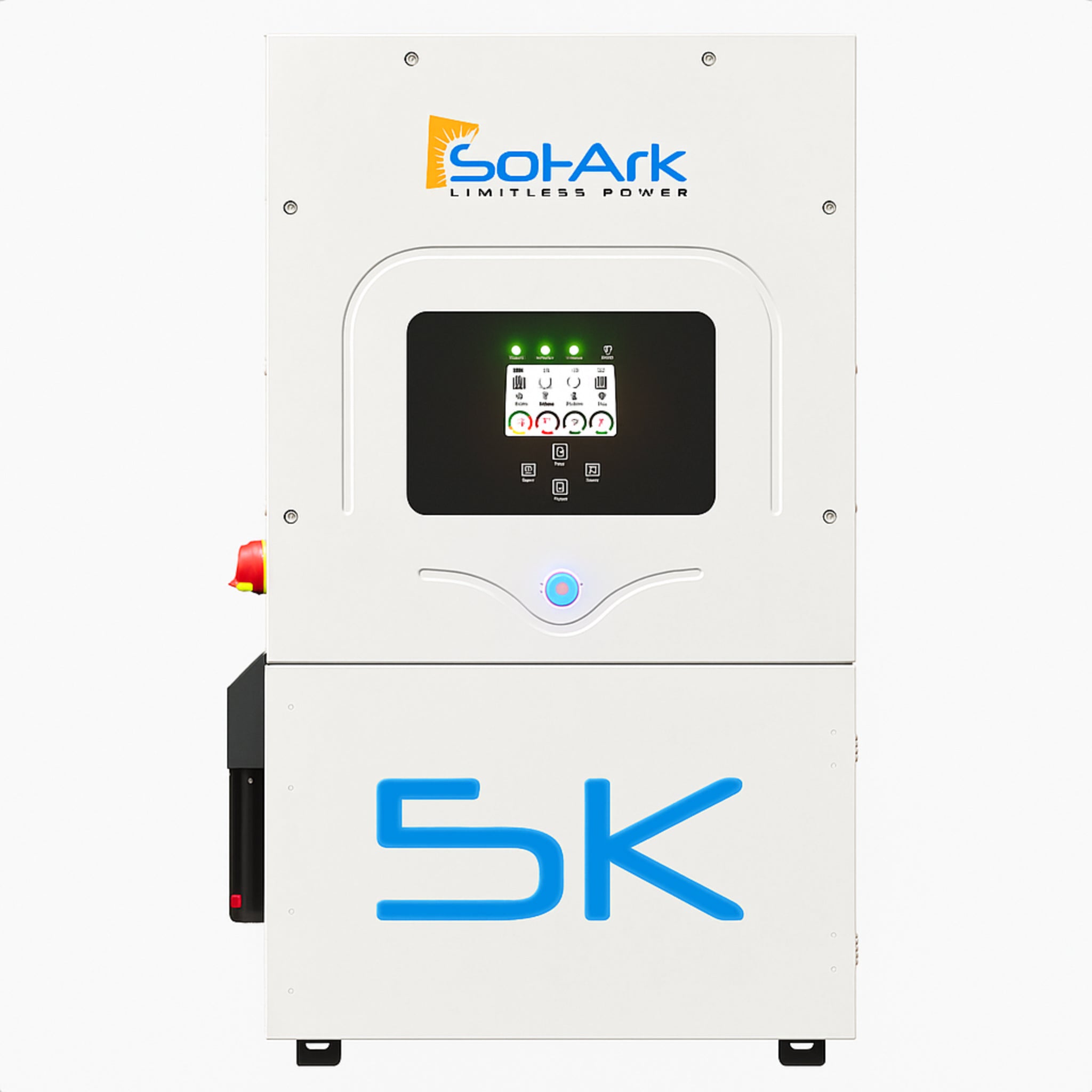

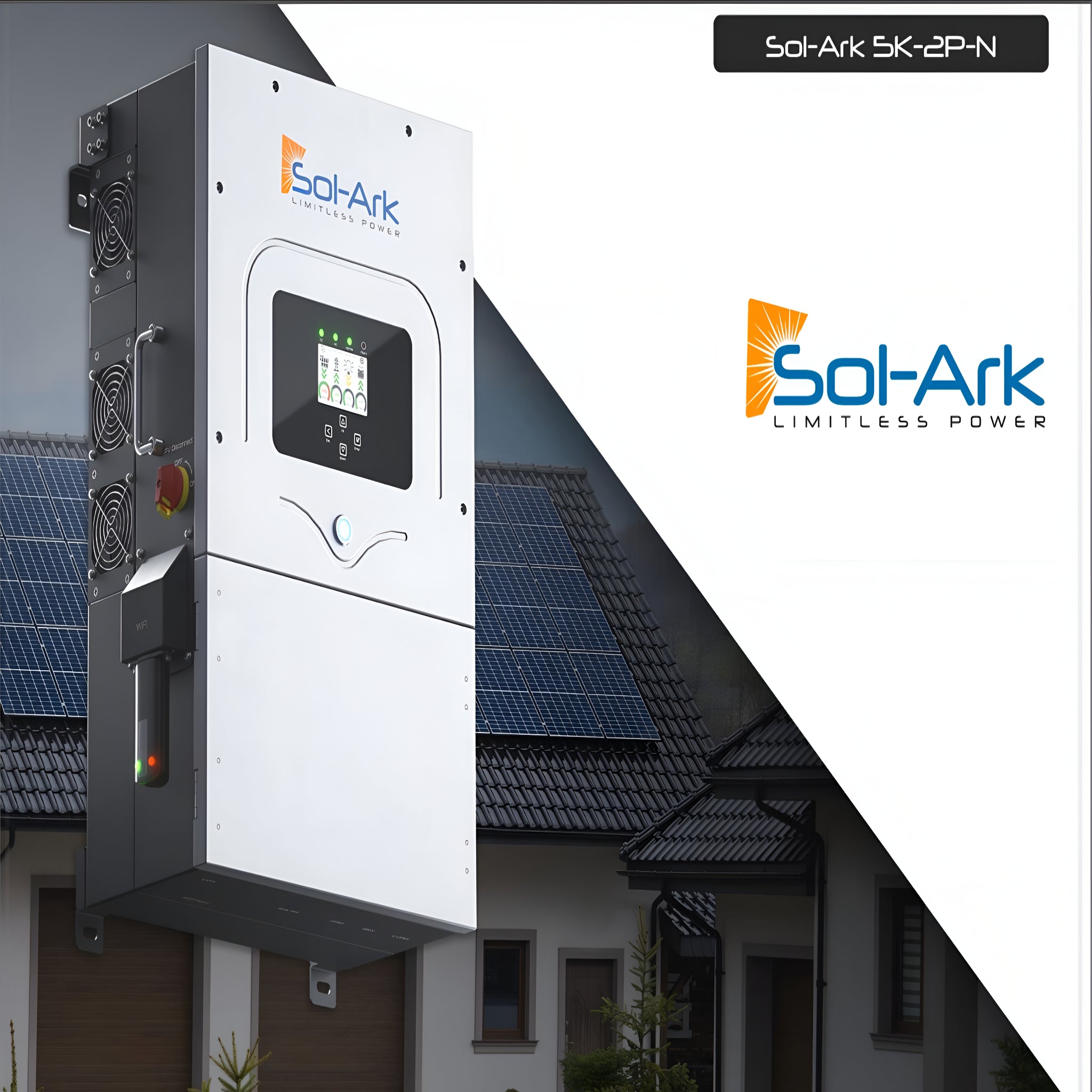

• Inverter: Sol-Ark 5K-2P-N split-phase; grid-tie compatible and supports generator input

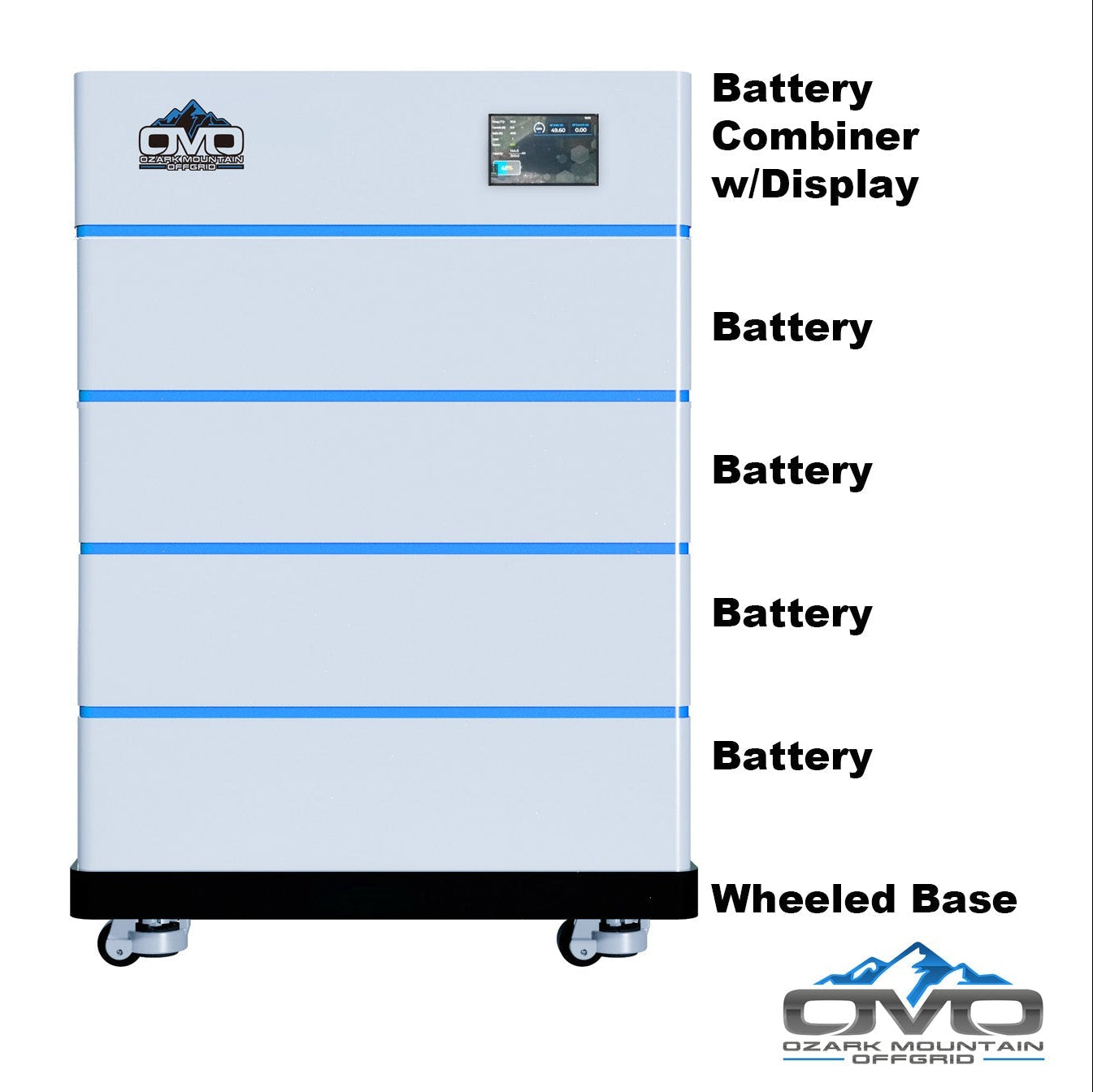

• Battery Bank: 4 × OMO 51.2V 5.12kWh heated stackable Bluetooth lithium batteries (20.48kWh total)

• Power Management: OMO stackable combiner with LCD readout; OMO wheeled base unit

• Mounting Hardware: IronRidge mounting rails, splices, legs, fasteners, and bolts

• Wiring & Components: Solar combiner box; 250' PV direct-burial wire; 100' 6 AWG AC output/input/generator cable; MC4 crimp kit; installation manual

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side gain; strong output in cloudy/low-light conditions

• Split-Phase 120/240V Output: Runs wells, refrigerators, tools, pumps, and standard home circuits

• Heated Smart Lithium Batteries: Bluetooth monitoring, stackable design, temperature-protected charging

• Weather-Rated Panels: 5400 Pa snow load / 2400 Pa wind load for harsh environments

• Expandable System: Add batteries or panels as energy demand grows

• DIY-Friendly: Suitable for homeowners with basic wiring knowledge; electrician recommended for final connections

Maintenance

• Daily: Verify inverter status; keep panels clear of shade/debris

• Weekly: Check battery indicators and production logs; inspect wiring and conduit

• Annually: Re-torque racking hardware, clean combiner box, review performance data

Warranty

• Solar Panels: 30-year power performance warranty

• Sol-Ark Inverter: Manufacturer warranty included

• OMO Batteries: Backed by OMO product warranty
