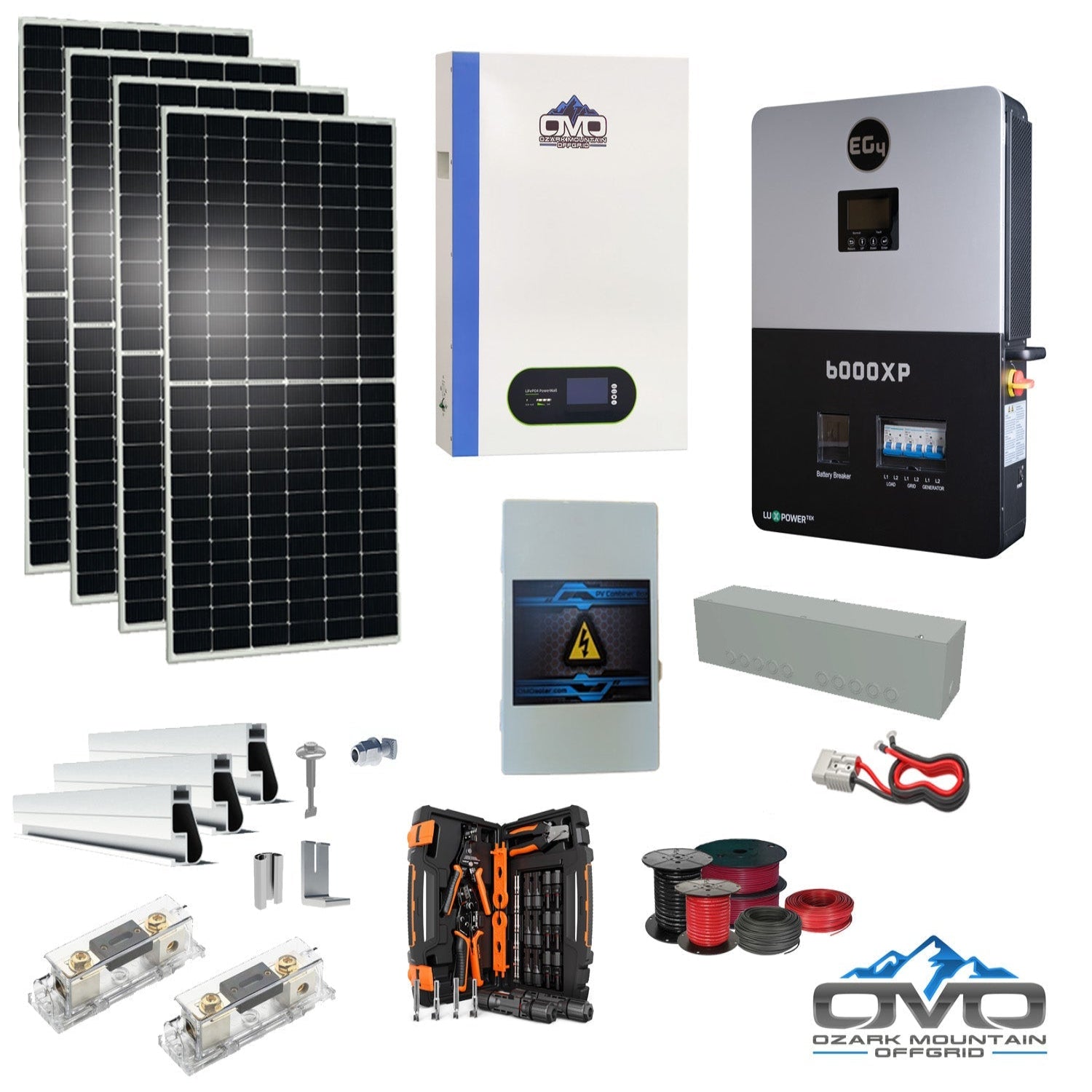

2.2KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 2.2KW Solar with Roof Mounting Rails and Wiring

The 2.2KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 2.2KW Solar with Roof Mounting Rails and Wiring is designed for reliable off-grid power in cabins, shops, RVs, and more. It pairs an EG4 6000XP split-phase 208/240VAC, 48VDC off-grid inverter/charger with a 5.12kWh OMO 48V Patriot Lithium Battery, delivering 5,120W of usable energy. The bifacial 2.2kW solar array can produce up to 9,900W/day with ~4.5 peak sun hours and the system is expandable for future panels or batteries.

Specifications

• Solar Array: 4 × 550W bifacial double-glass panels (2,200W total)

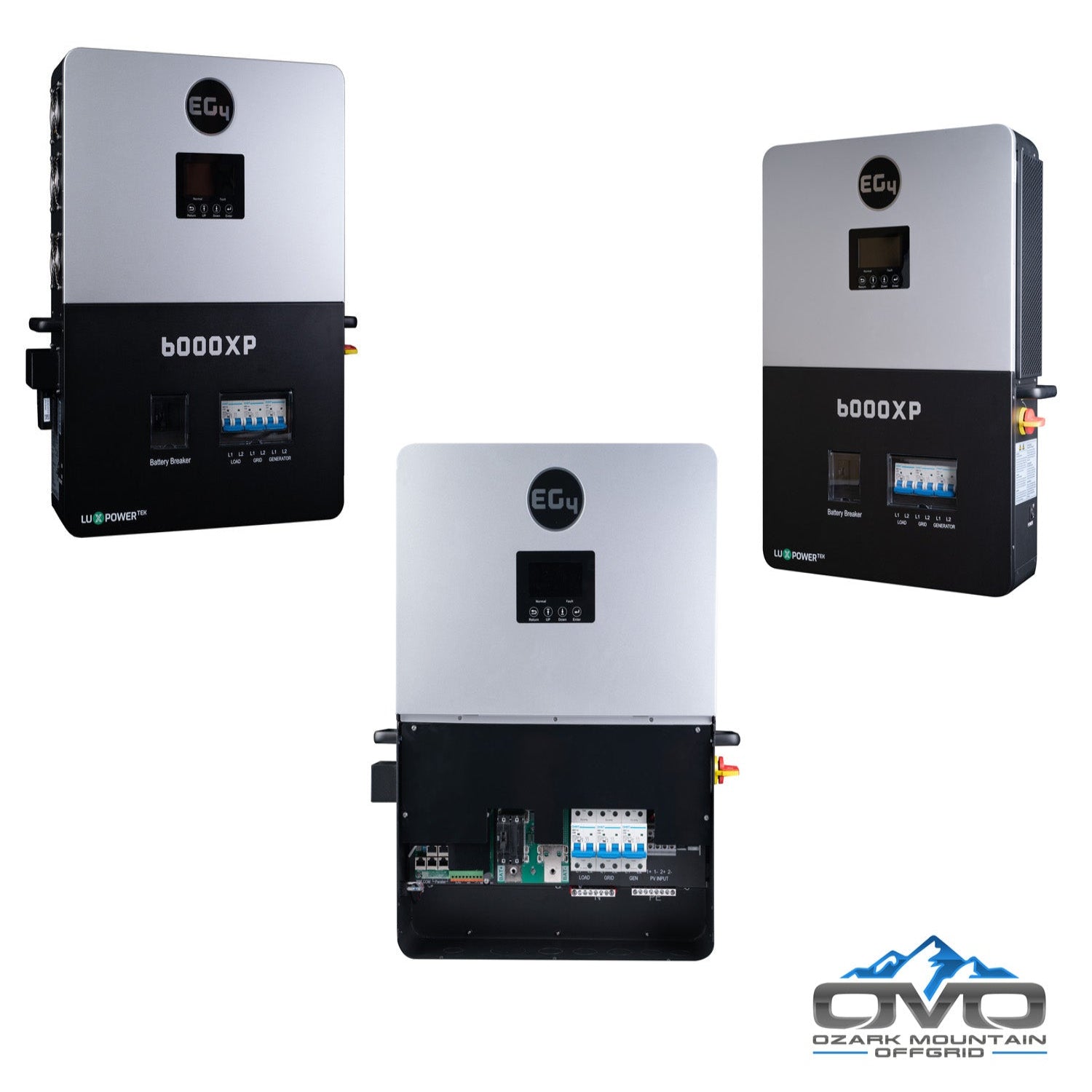

• Inverter: EG4 6000XP — 208/240VAC split-phase, 48VDC off-grid inverter/charger

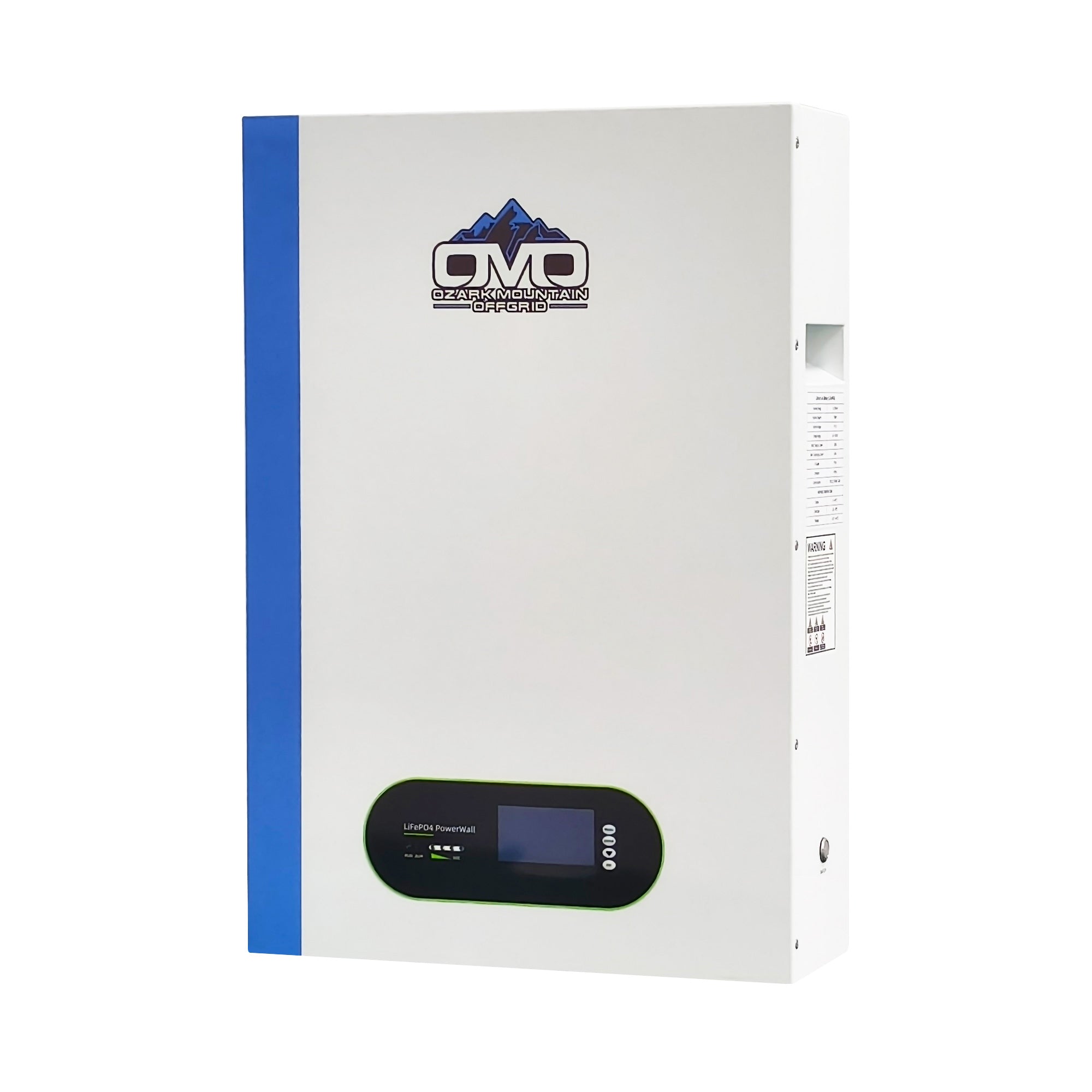

• Battery Bank: 1 × 5.12kWh OMO 48V Patriot Lithium (wall bracket included)

• Mounting Hardware: Complete IronRidge roof-mount rails, splices, legs, fasteners, bolts

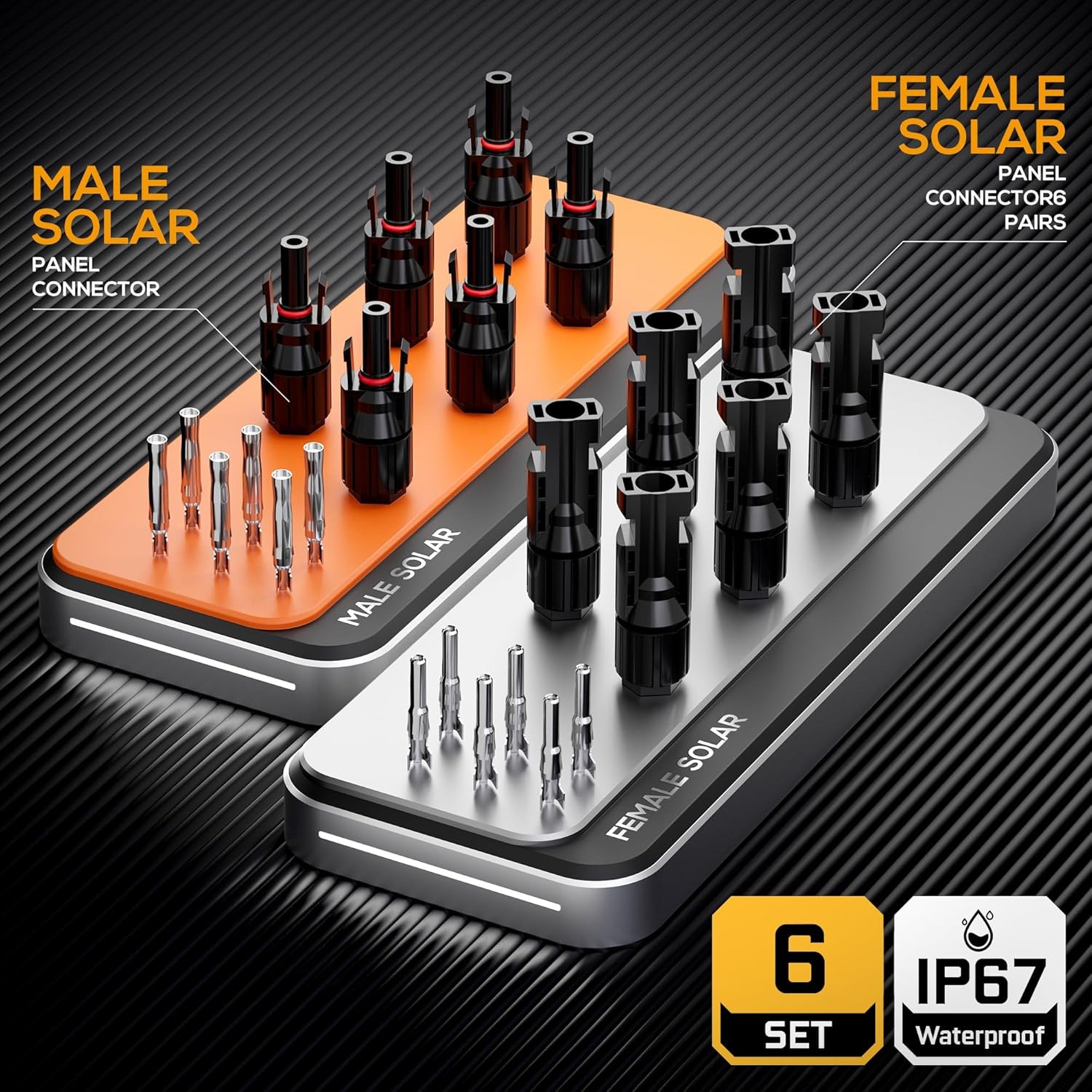

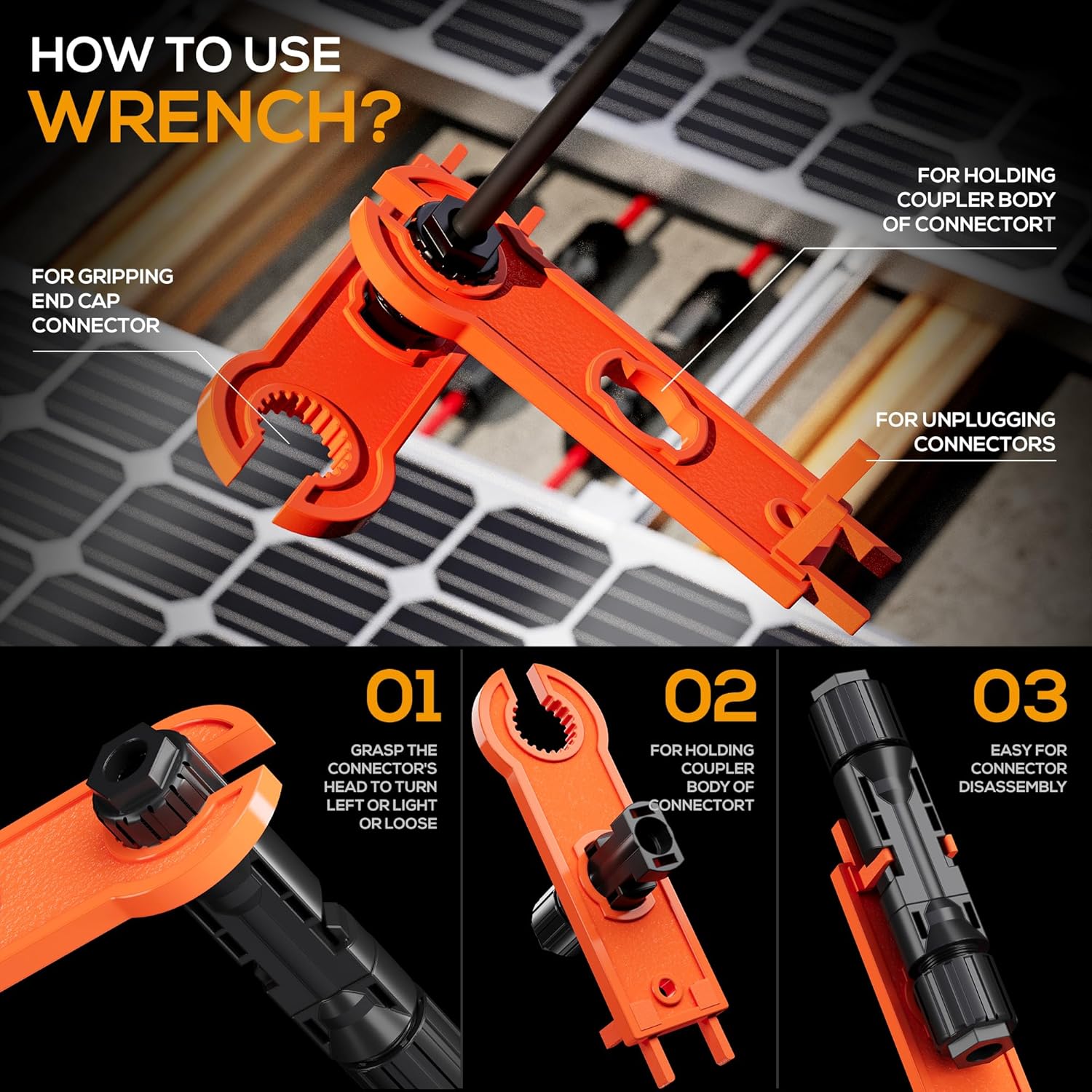

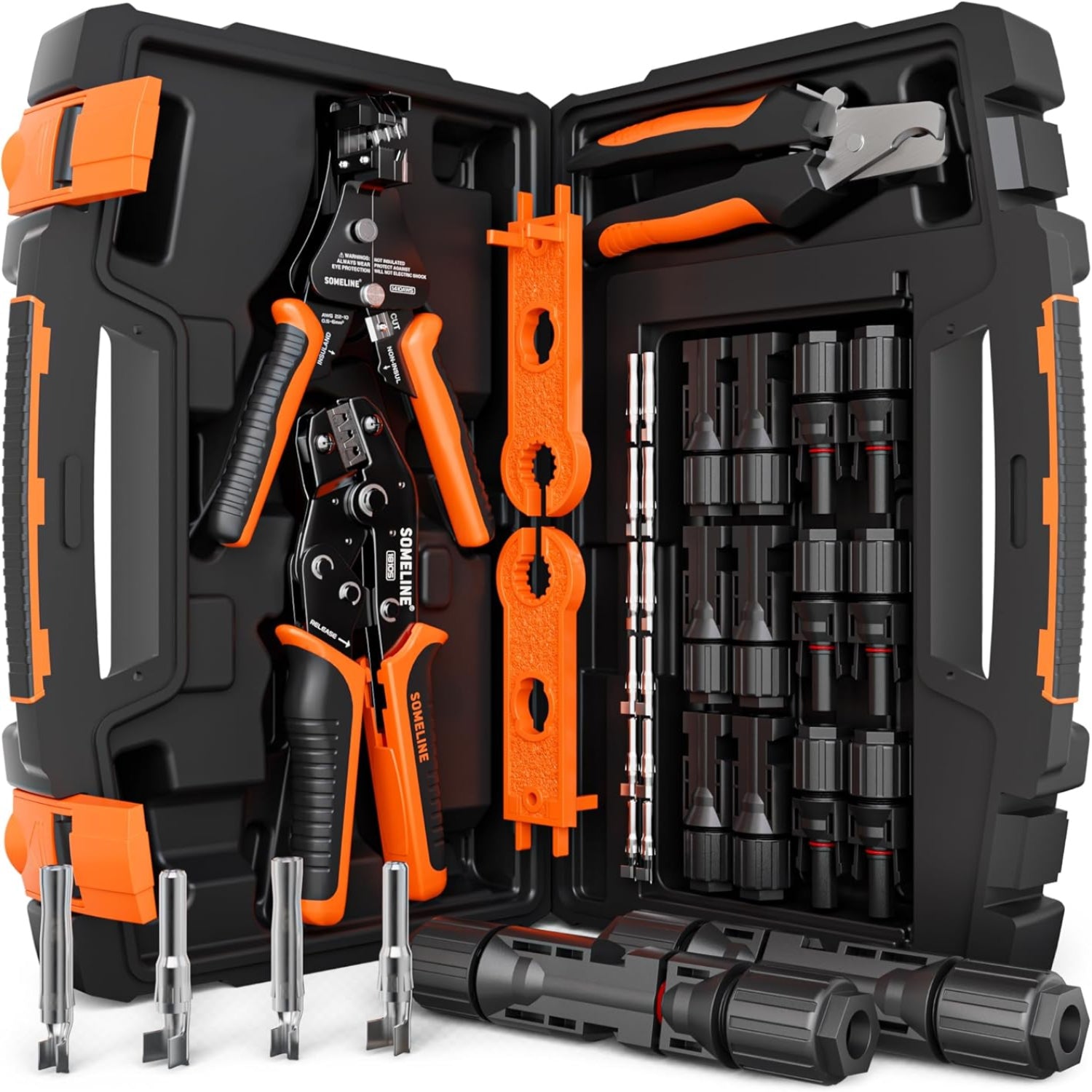

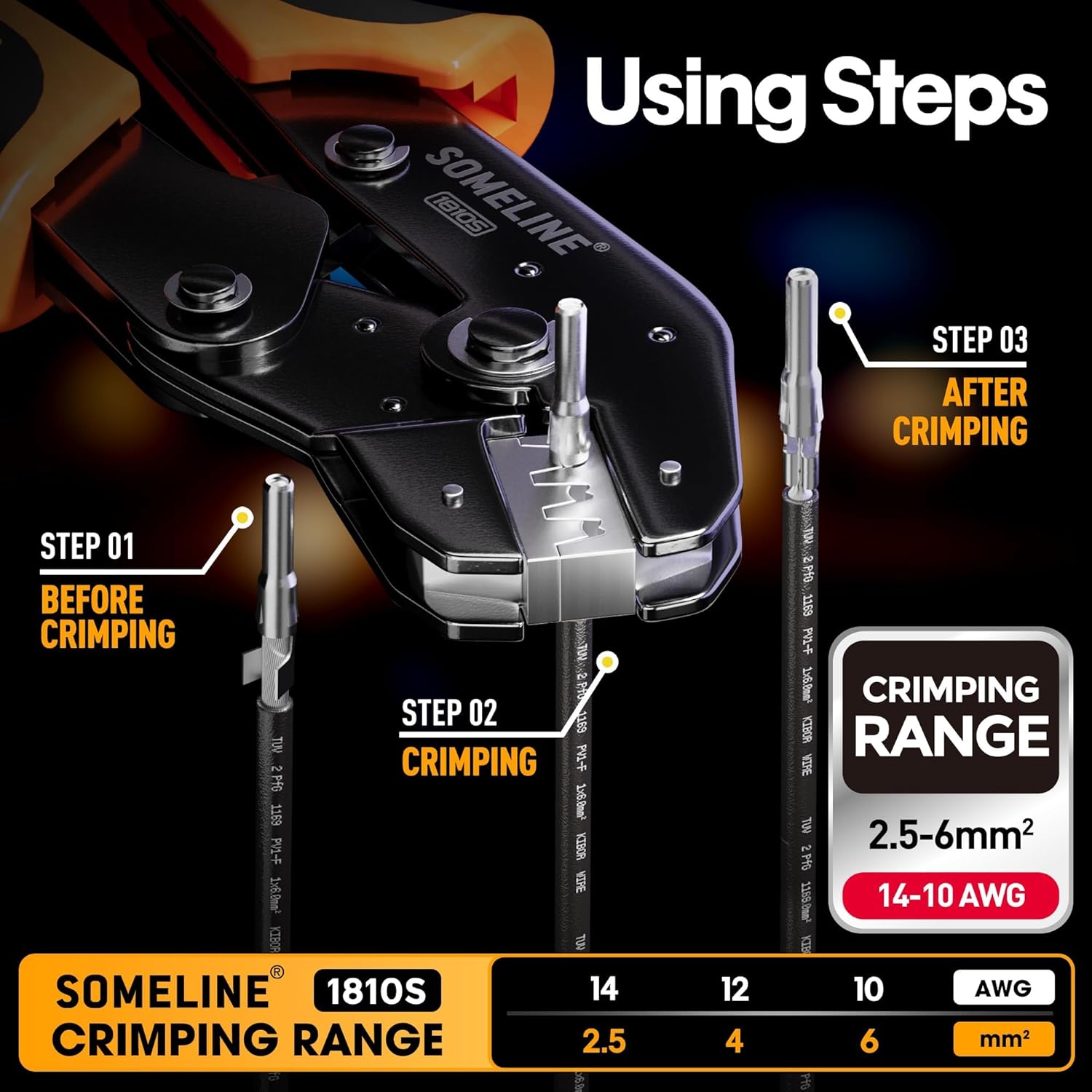

• Included Components: Solar combiner box, gutter box, Anderson plug battery cable set, 250' PV direct-burial wire, 100' 6 AWG AC cable, MC4 crimp kit, installation manual

Features

• High-Efficiency Bifacial Panels: Up to ~25% rear-side gain and strong low-light performance

• Split-Phase Output (120/240V): Runs common 120V and 240V loads via EG4 6000XP

• Patriot LiFePO₄ Battery: Reliable 48V storage with wall mount and high cycle life

• Weather-Ready Panels: Rated 5400 Pa snow / 2400 Pa wind for durability

• Expandable Design: Add more solar or storage as energy needs grow

• DIY-Friendly: Suitable for homeowners with basic wiring knowledge (electrician recommended)

Maintenance

• Daily: Verify inverter status and ensure panels are unobstructed

• Weekly: Check wiring, battery state-of-charge, and review system logs

• Annually: Deep-clean modules, torque-check racking, and inspect electrical connections

Warranty

• Solar Panels: 30-year power output warranty

• EG4 Inverter & Battery: Manufacturer warranties included
