2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 2.2KW Solar Roof Mount

The 2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 2.2KW Solar Roof Mount is engineered for those seeking a reliable and expandable off-grid power solution. Ideal for cabins, shops, and RVs, this system delivers 10,240W of usable lithium battery energy and approximately 9,900W of daily solar production based on 4.5 hours of sun. Designed as a complete starter package, it supports users averaging around 297kWh per month and offers seamless scalability for future expansion with additional batteries or solar panels.

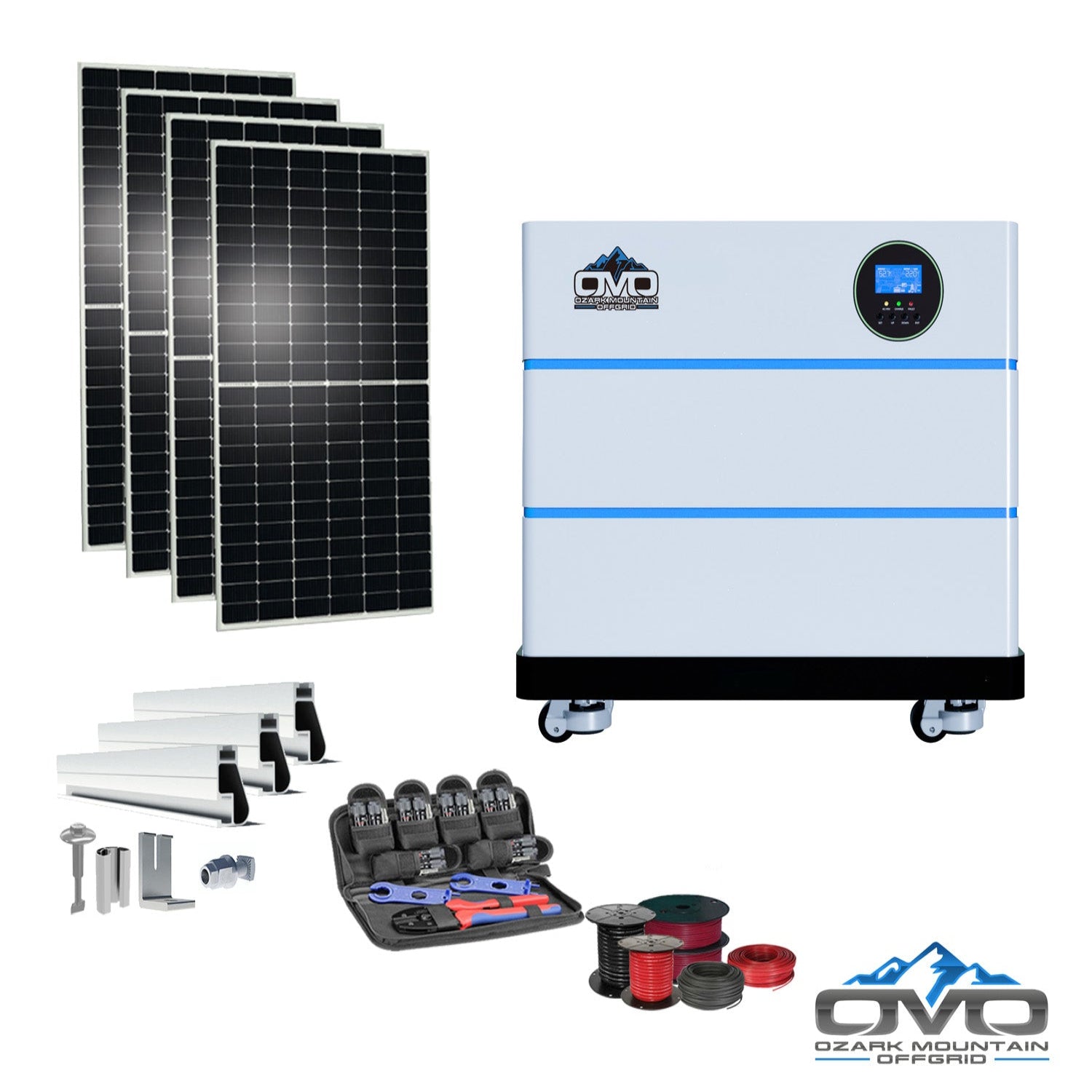

Specifications

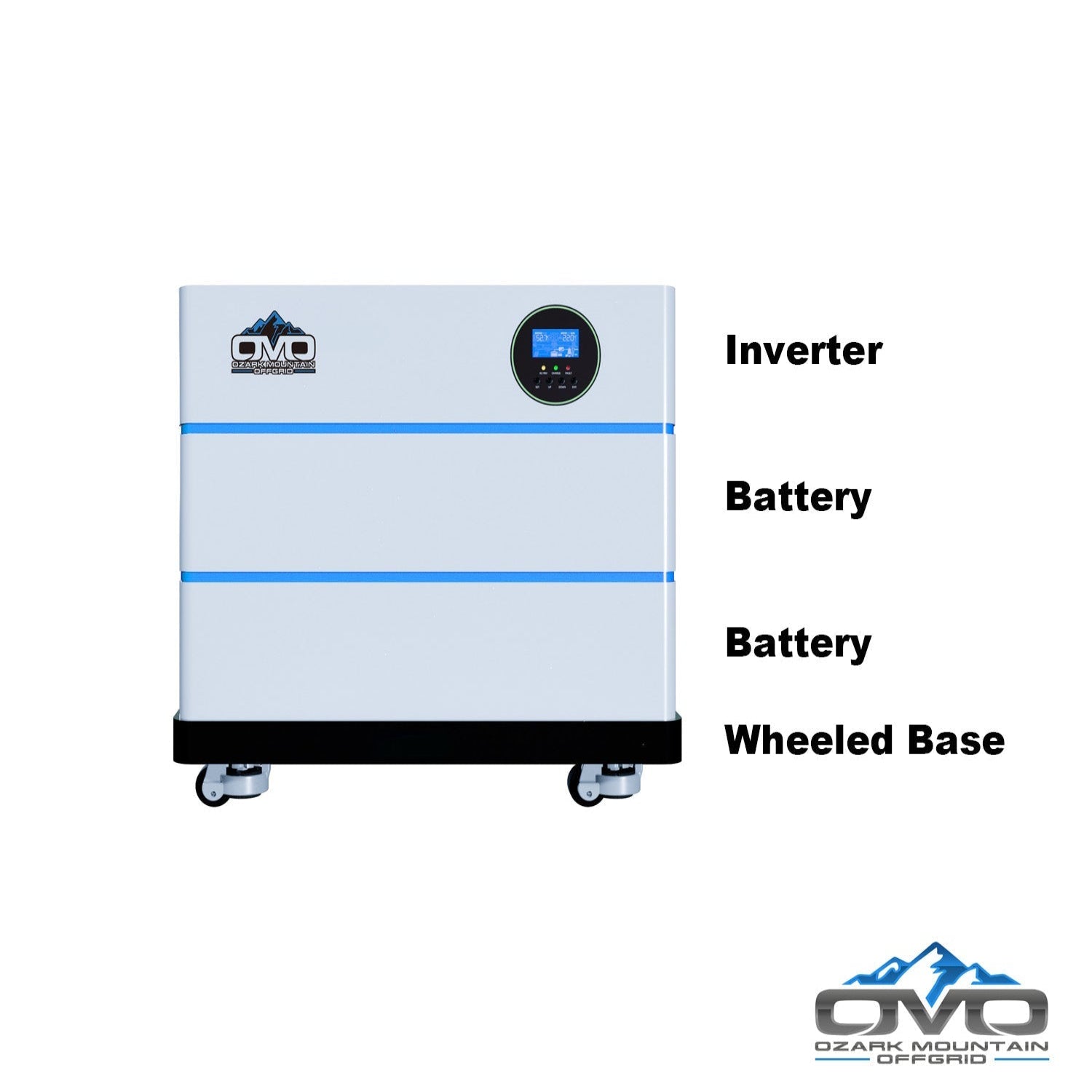

  • Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

  • Battery Bank: 2× 51.2V 5.12kWh Stackable Heated Lithium Batteries w/ Bluetooth (Expandable up to 6 per inverter)

  • Base: 1× OMO Stack System Wheeled Base

  • Solar Panels: 4× 550W Bifacial Mono Panels (2200W array) – Expandable up to 10 total panels per inverter

  • Mounting Hardware: Complete Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, and Bolts

  • Tools: 1× MC4 Crimper Tool Set

  • Wiring: 500' PV Direct Burial 10AWG Solar Wire, 100' 6AWG AC Output/Input/Generator Cabling

Features

  • Bifacial Double-Glass Panels: Produce up to 25% more energy with rear-side reflection and enhanced low-light performance

  • Weather Durability: 5400PA snow load & 2400PA wind load resistance

  • Long-Term Reliability: 30-year power warranty

  • Scalable System: Easily expand with extra batteries or solar panels to match growing power demands

  • Optimized Output: Suitable for off-grid applications using ~297kWh/month

Inverter Specs

  • Solar Controller: Built-in MPPT, 5500W PV rated input

  • PV Input Current: 22A max

  • MPPT Voltage Range: 125–450V DC

  • AC Output: 5500W pure sine wave

  • Parallel Operation: Supports up to 6 units

  • Grid/Generator Input: 90–140VAC with 63A bypass current

  • Monitoring: WiFi & Bluetooth connectivity

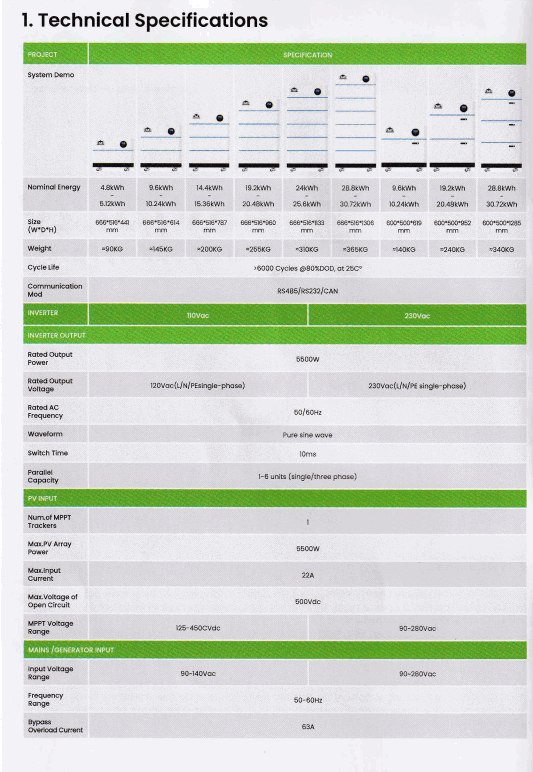

Inverter Specification Sheet

Battery Specification Sheet

NOT SURE IF THIS FITS YOUR NEEDS? BOOK A FREE CONSULTATION
