2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 2.2KW Solar Roof Mount

The 2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 2.2KW Solar Roof Mount is a complete, high-capacity off-grid energy solution designed for cabins, shops, RVs, and other remote setups. This premium package includes a robust lithium battery bank delivering 30,720W of usable energy, paired with a solar array capable of producing approximately 9,900W per day based on 4.5 hours of sunlight. Ideal for users consuming around 297kWh per month, this system provides long-term energy independence with the ability to scale up by adding more solar panels or batteries.

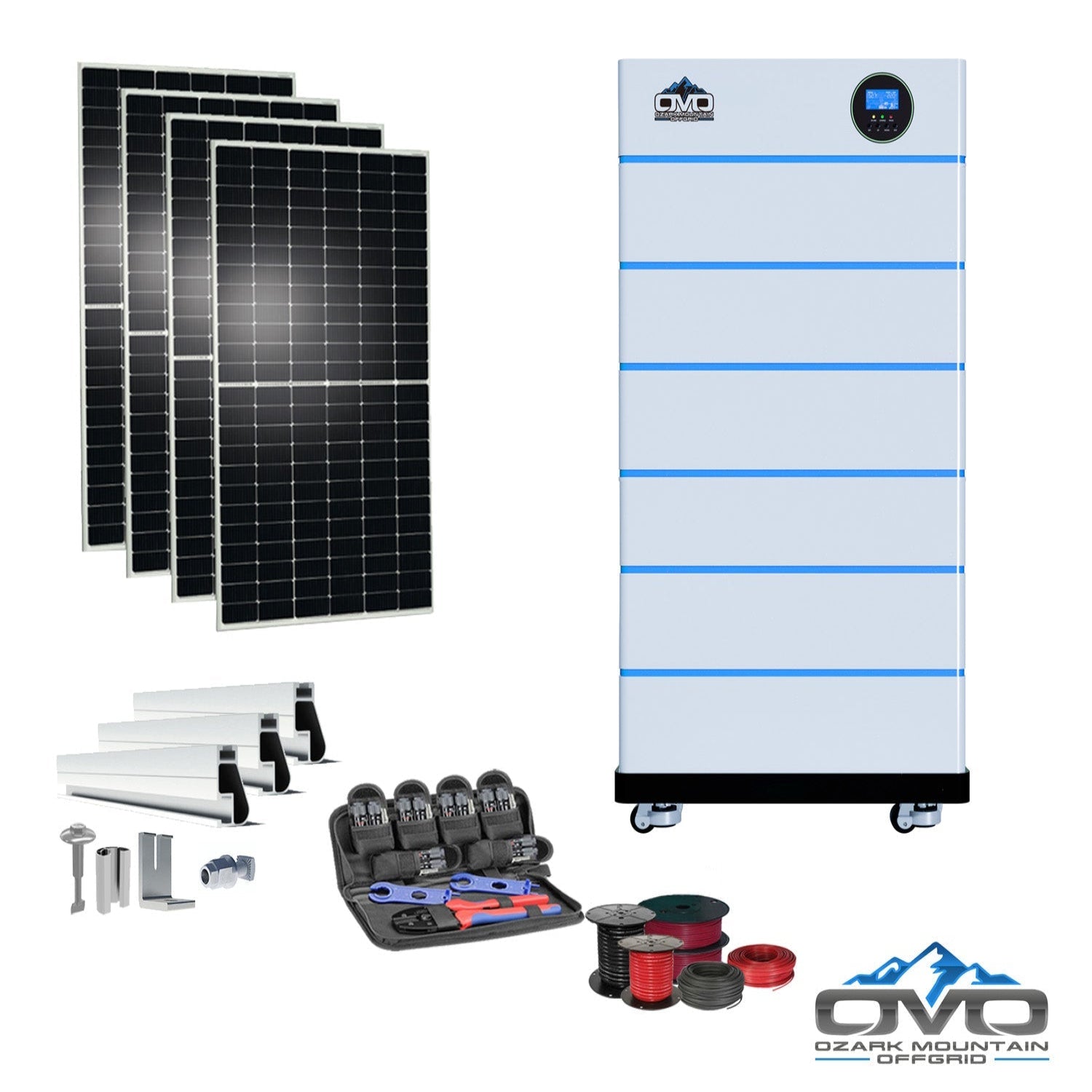

Specifications

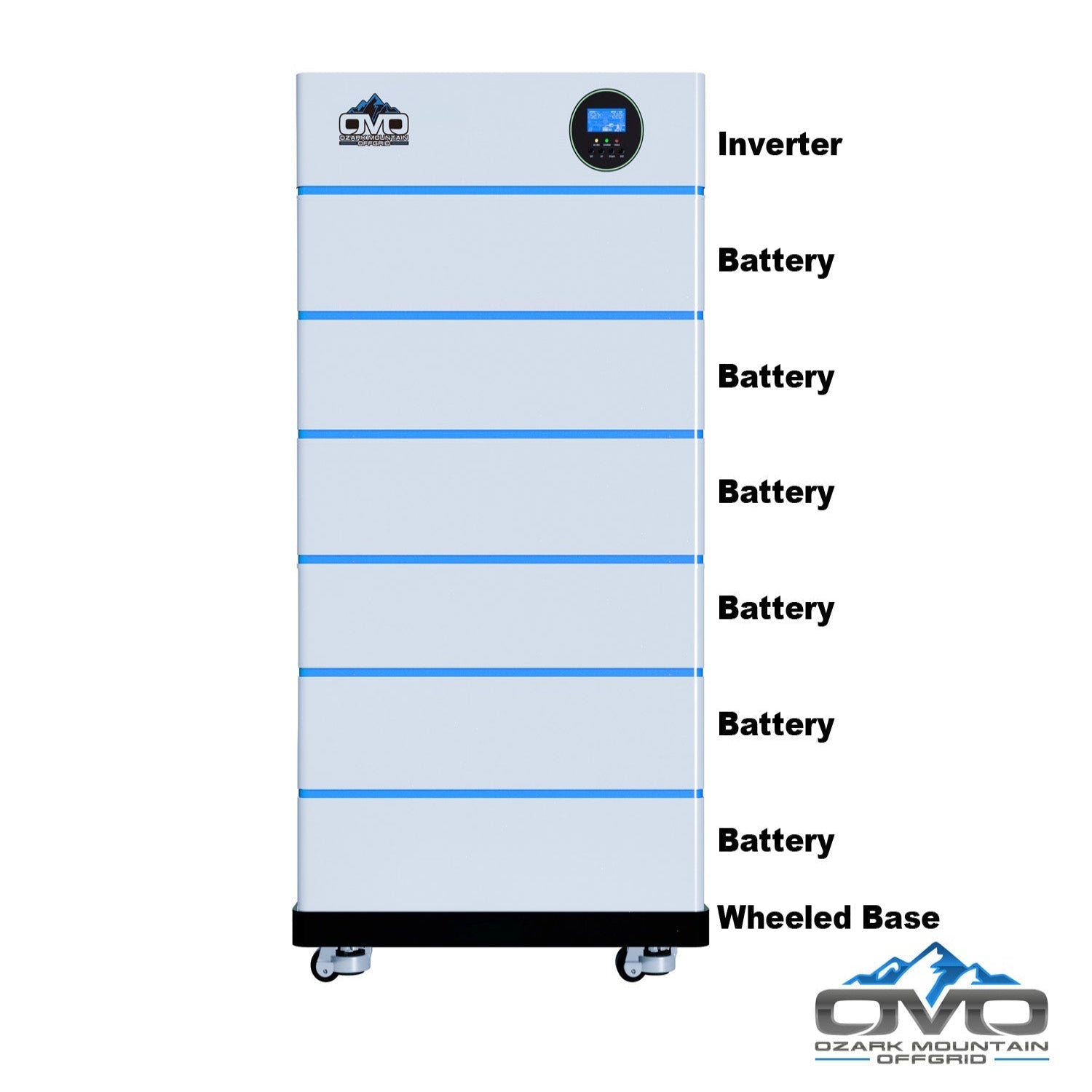

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

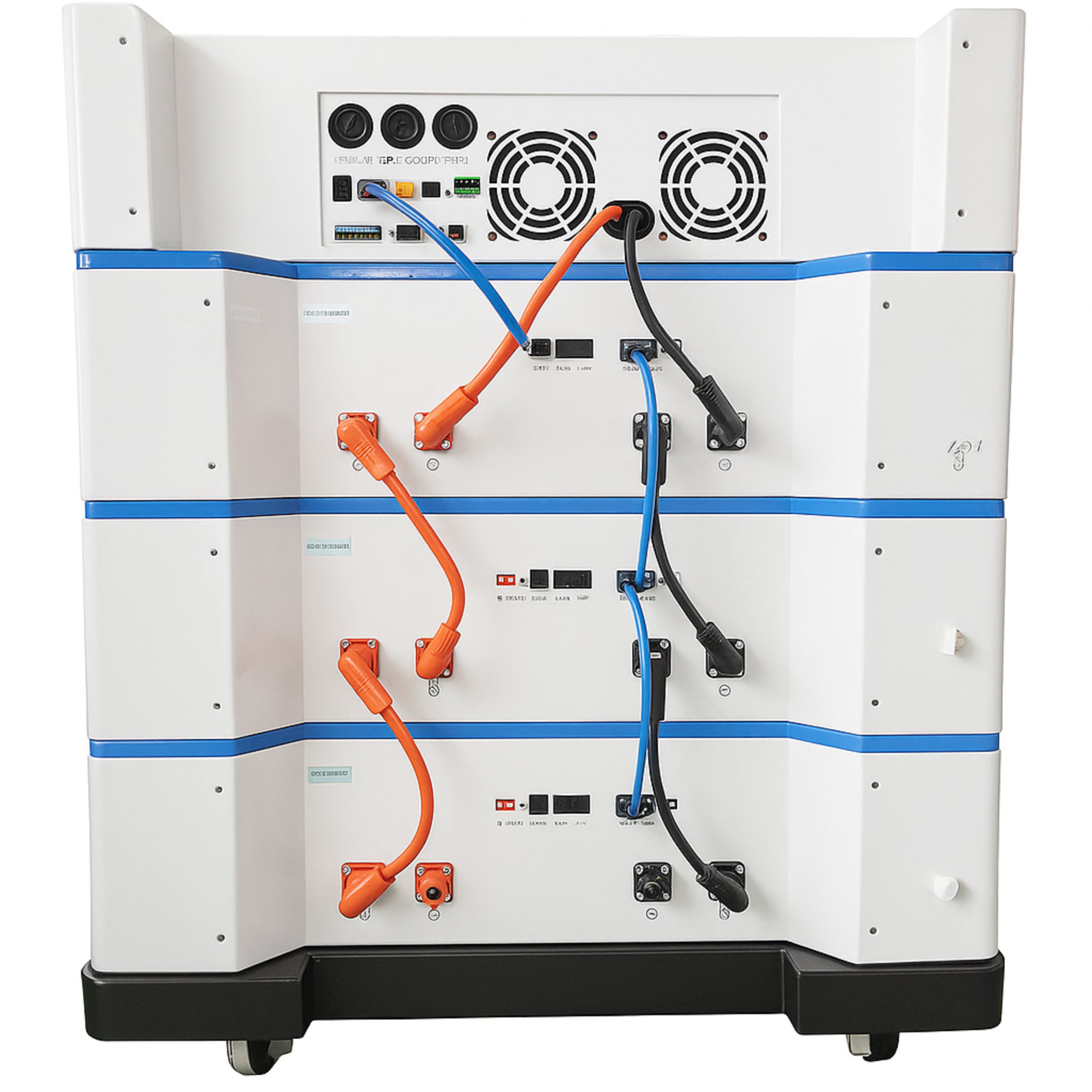

• Battery Bank: 6× 51.2V 5.12kWh Stackable Heated Lithium Batteries w/ Bluetooth (Maximum capacity per inverter)

• Base: 1× OMO Stack System Wheeled Base

• Solar Panels: 4× 550W Bifacial Mono Solar Panels (2200W Array) — Expandable up to 10 per inverter

• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, and Bolts

• Tools: 1× MC4 Crimper Tool Set

• Wiring: 500′ PV Direct Burial 10AWG Solar Wire, 100′ 6AWG AC Output/Input/Generator Cabling

Features

• Bifacial Double-Glass Panels: Increase energy production by up to 25% through rear-side reflection and enhanced low-light performance

• High Weather Resistance: Rated for 5400PA snow load and 2400PA wind load

• Durability: 30-year power warranty for long-term reliability

• Expandable System: Easily upgrade with additional solar panels or batteries as your energy needs increase

• Off-Grid Ready: Ideal for energy usage around 297kWh per month

Inverter Specs

• MPPT Controller: Built-in MPPT solar charge controller, 5500W PV rated input

• Max PV Current: 22A

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave

• Parallel Support: Up to 6 units

• Grid/Generator Input: 90–140VAC with 63A bypass current

• Monitoring: WiFi & Bluetooth connectivity

Inverter Specification Sheet

Battery Specification Sheet
