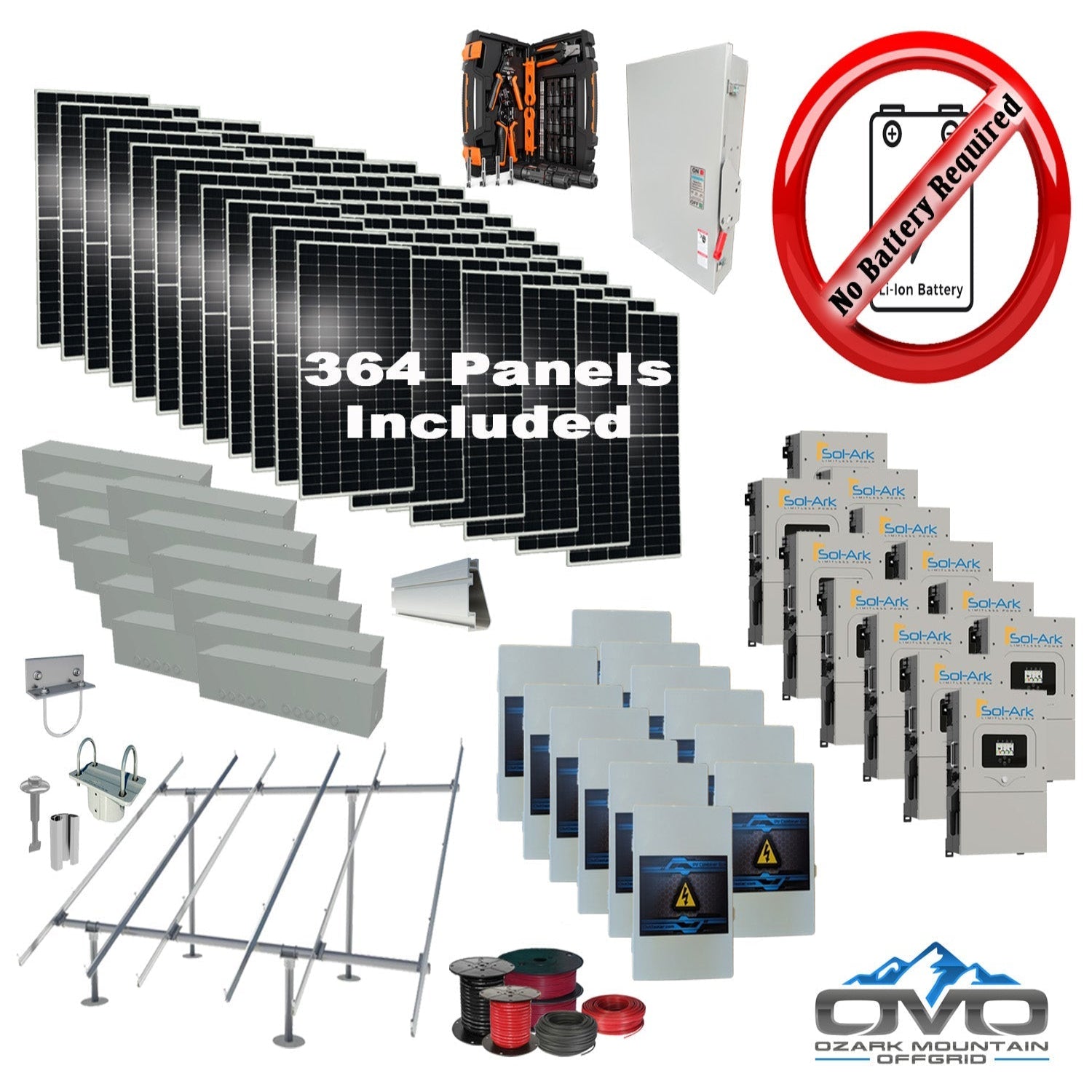

200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +200.2KW Solar with Ground Mount and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +200.2KW Solar with Ground Mount and Wiring is a professional-grade, high-output solar power solution engineered for full energy independence. Featuring a 200.2KW bifacial solar array, twelve Sol-Ark 15K hybrid/off-grid inverters, and a full ground-mount rail system, this setup is ideal for large homes, farms, and commercial applications requiring up to 27,027 kWh per month.

This system generates approximately 900,900 watts per day based on 4.5 hours of peak sun. It is designed for expandability—allowing future additions of both solar panels and batteries. The kit can operate with or without a battery, and a 48V battery may be added at any time for backup or storage.

Specifications

• Solar Array: 364× 550W Bifacial Mono Panels (200,200W array)

• Inverters: 12× Sol-Ark 15K Hybrid/Off-Grid 48V (MPPT charge controllers built in)

• Ground Mount System: Full Iron Ridge ground mount package (rails, top caps, connectors, fasteners)

• Combiner Boxes: 12× Solar PV Combiner Boxes + 1× AC Combiner Kit

• Cabling Included: 4× 500' 10AWG MC4 Solar Cable, 4× 100' 6AWG AC/Generator Cable, 4× 20' 2/0 AC Main Line, 1× MC4 Crimper Tool Kit

Features

• Bifacial Double-Glass Panels: Rear-side gain up to 25% and exceptional weak-light performance

• Extreme Durability: 5400 PA snow load / 2400 PA wind load + 30-year power warranty

• Battery Optional: System operates with or without a 48V battery; easily add storage anytime

• Sol-Ark Intelligence: Split-phase 120/240V, 3× MPPT inputs, WiFi, generator support, LCD touchscreen

• High Efficiency: 97.5% inverter efficiency, DC transformerless, NEMA 3R outdoor-rated

• Scalable Design: Parallel stacking up to 8 units; expandable solar + battery capacity for future growth

Maintenance

• Daily: Ensure panels are unobstructed and monitor inverter display/WiFi app

• Weekly: Inspect cabling, combiner boxes, and review power production levels

• Annually: Full system inspection including rails, grounding, connectors, and inverter firmware updates

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

NOTE: Installation is available. Contact us before ordering for custom installation pricing for your location.

Ground mount system uses a 3" Schedule 40 pipe structure (customer-supplied). All other ground mount components are included.
