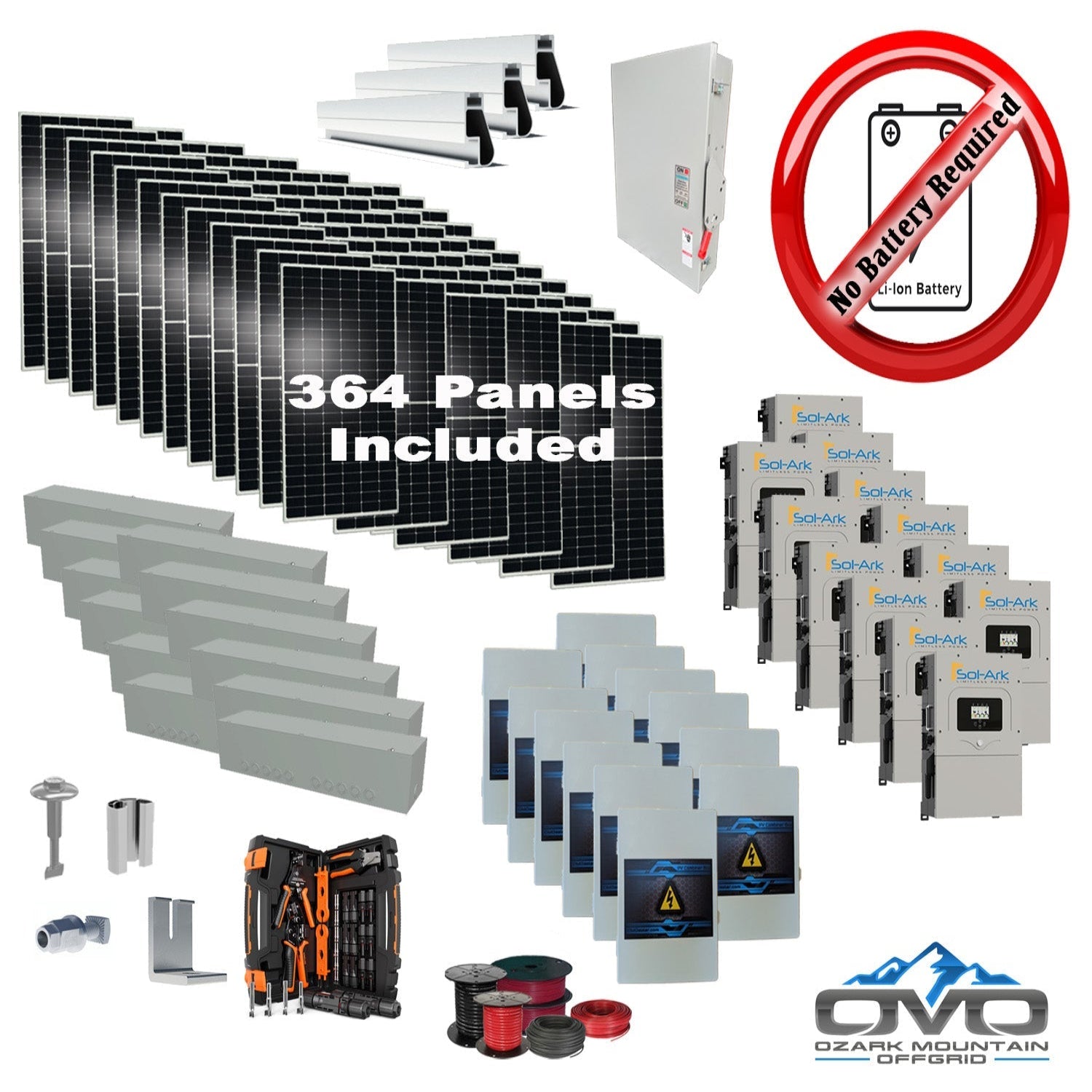

200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +200.2KW Solar with Mounting Rails and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +200.2KW Solar with Mounting Rails and Wiring is a premium, full-scale off-grid power system engineered for high-demand homes, farms, and commercial properties. Producing approximately 900,900 watts per day based on 4.5 peak-sun hours, this system supports energy usage up to 27,027 kWh per month.

This package is fully expandable—additional panels or battery storage can be added at any time. The Sol-Ark inverter system can operate with or without batteries, allowing users to add a 48V battery whenever desired.

Specifications

• Solar Array: 364× 550W Bifacial Mono Panels (200,200W array)

• Inverters: 12× Sol-Ark 15K Hybrid/Off-Grid 48V Inverters (with built-in MPPT charge controllers)

• Mounting Hardware: Complete Iron Ridge Mounting Rail System (Rails, Splices, Legs, Fasteners & Bolts – Mill Finish)

• Combiner Boxes: 12× Solar PV Combiner Boxes + 1× AC Combiner Kit (2+ Sol-Ark compatible)

• Cabling Included: 4× 500' 10AWG MC4 Solar Cable, 4× 100' 6AWG AC/Generator Cable, 4× 20' 2/0 AC Main Line, 1× MC4 Crimper Tool Kit

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side energy gain; superior performance in weak light

• High Durability: 5400 PA snow load / 2400 PA wind load + 30-year power warranty

• Battery Optional: System operates fully without a battery; add 48V lithium anytime

• Advanced Sol-Ark Controls: 120/240V split phase output, generator support, 3× MPPT inputs, LCD touchscreen, WiFi monitoring

• High Efficiency: 97.5% inverter efficiency, DC transformerless, NEMA 3R outdoor-rated enclosure

• Scalable Design: Parallel stacking up to 8 Sol-Ark units for expanded power capability

Maintenance

• Daily: Monitor inverter status and ensure panels are clear from debris or shading

• Weekly: Inspect wiring, combiner boxes, mounting hardware, and verify system output

• Annually: Perform a full system inspection including rails, grounding, connectors, and apply inverter firmware updates

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

NOTE: Installation option available. Contact us before ordering for custom installation pricing in your area.
