200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + 2x 30KW Lithium Kong Battery +200.2KW Solar with Ground Mount and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + 2x 30KW Lithium Kong Battery +200.2KW Solar with Ground Mount and Wiring is a fully engineered, large-scale solar power solution designed for complete home, farm, and commercial off-grid independence. Producing approximately 900,900W of power per day (based on 4.5 hours of sunlight), this system is ideal for large properties consuming around 27,027kWh per month. Built for long-term scalability, it supports future expansion with additional panels or batteries as needed.

Specifications

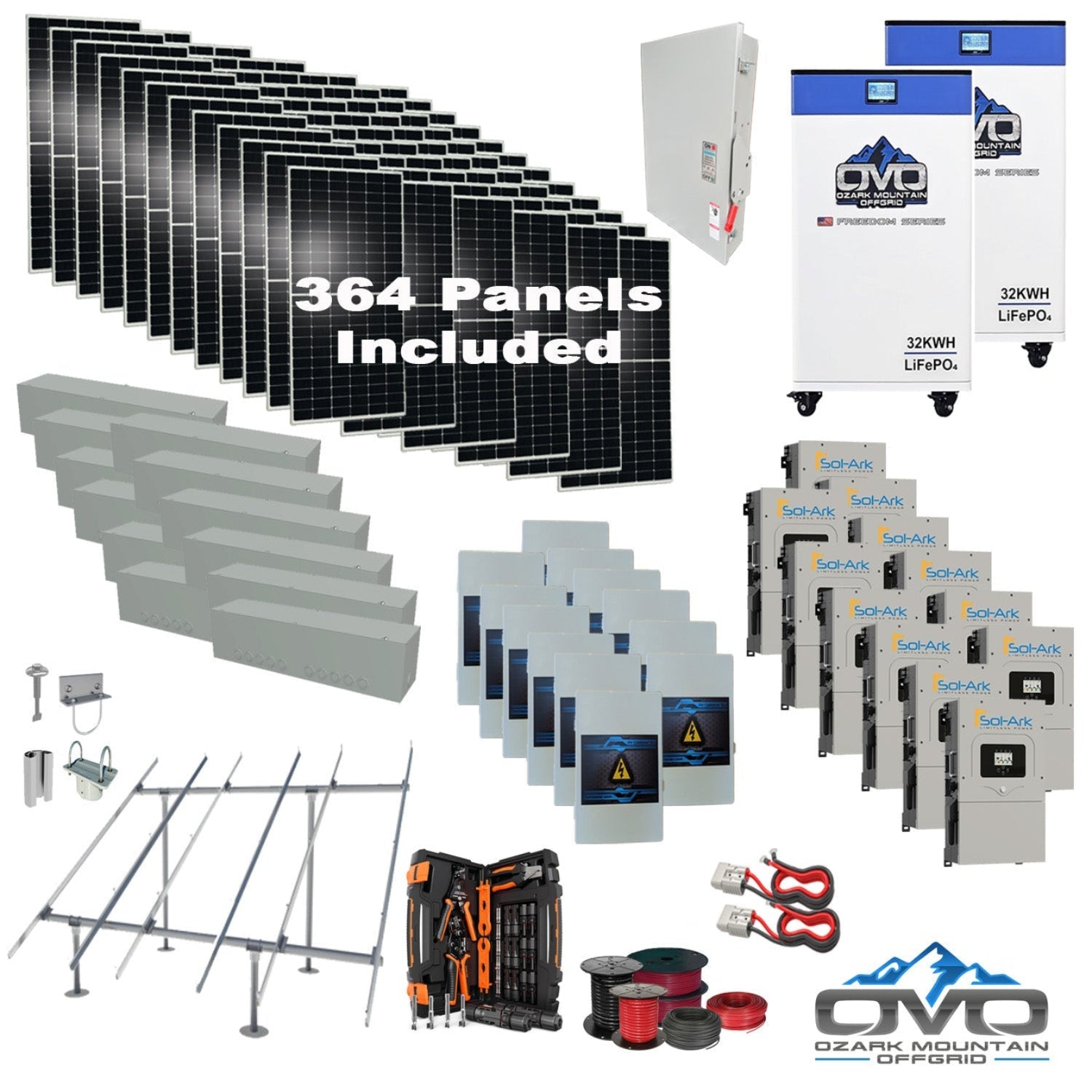

• Solar Panels: 364× 550W Bifacial Mono Solar Panels (200.2KW array)

• Inverters: 12× Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (48V, built-in MPPT charge controllers)

• Battery Bank: 2× OMO 32kWh 48V Freedom Series Heated Lithium Batteries with Bluetooth & LCD (64kWh total storage)

• Ground Mount System: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, and Bolts (customer supplies 3” SCH40 pipe locally)

• Combiner Boxes: 12× Solar PV Combiner Boxes

• Solar Wiring: 4× 500' Spools of 10AWG MC4 Solar Array Cable

• AC Wiring: 4× 100' Spools of 6AWG AC Output/Input/Generator Cable

• Main Line Cable: 4× 20' Spools of 2/0 AC Main Line

• Gutter Boxes: 12× Wire Gutter Boxes

• AC Combiner Kit: 1× AC Combiner Box Kit (for combining 2+ Sol-Ark inverters)

• Battery Cables: 2× Anderson Plug Battery Cable Sets

• Tools: MC4 Crimper Tool Set

• Documentation: Installation Manual

Features

• Bifacial Double-Glass Solar Panels: Capture up to 25% more energy with rear-side reflection while offering superior low-light performance

• High Durability: Built to endure 5400PA snow load and 2400PA wind load

• Long-Life Warranty: 30-year power warranty on modules

• Ground Mount Design: Built around local 3" SCH40 pipe; hardware provided for a strong structural foundation

• Scalable Architecture: Expand battery storage or solar array capacity as your power needs grow

Sol-Ark 15K Inverter Specs

• Output: 120/240V split phase

• Battery Compatibility: Operates with or without batteries (48V lithium or lead-acid)

• System Mode: Grid-tie or off-grid

• Charge Controller: Built-in MPPT controller with 3× MPPT inputs

• Generator Support: Fully compatible with backup generators

• Display: Integrated LCD touchscreen

• Connectivity: Built-in WiFi monitoring

• Design: DC transformerless architecture

• Efficiency: 97.5% inverter efficiency

• Outdoor Rating: NEMA 3R (approved for outdoor installation)

• Warranty: 10-year manufacturer warranty

• Parallel Capabilities: Stack up to 8 units in parallel

• Transfer Speed: 4ms transfer time from grid to batteries

Battery Specification Sheet
