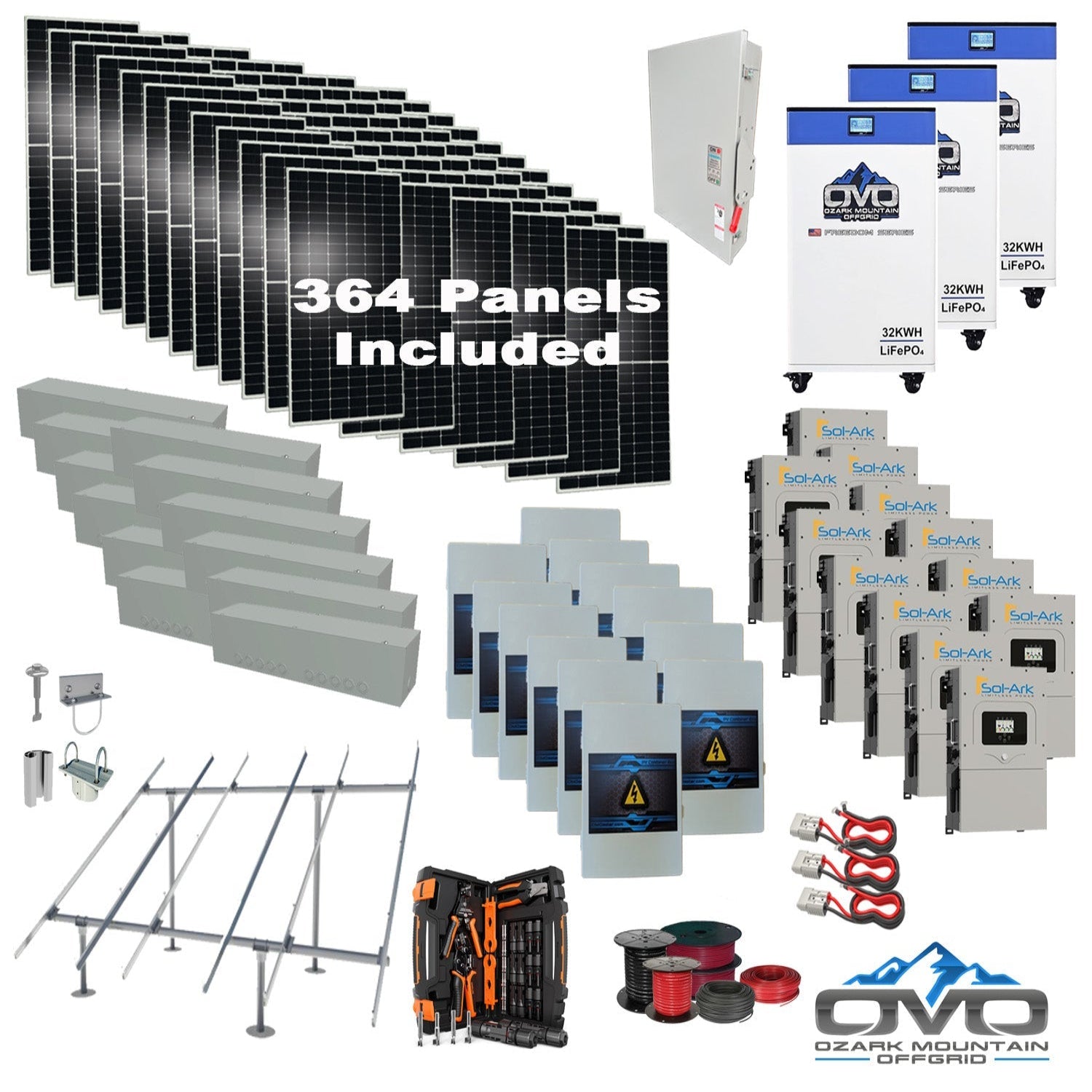

200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Ground Mount and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Ground Mount and Wiring is engineered for full home or agricultural off-grid independence. Generating approximately 900,900 watts of solar power per day (based on 4.5 hours of sunlight), this system is designed for large homes, farms, and operations using around 27,027 kWh monthly. It is fully scalable for future expansion with additional solar panels or battery banks.

Specifications

• Solar Panels: 364 × 550W Bifacial Mono Solar Panels (200.2KW array)

• Inverters: 12 × Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (with integrated MPPT charge controllers)

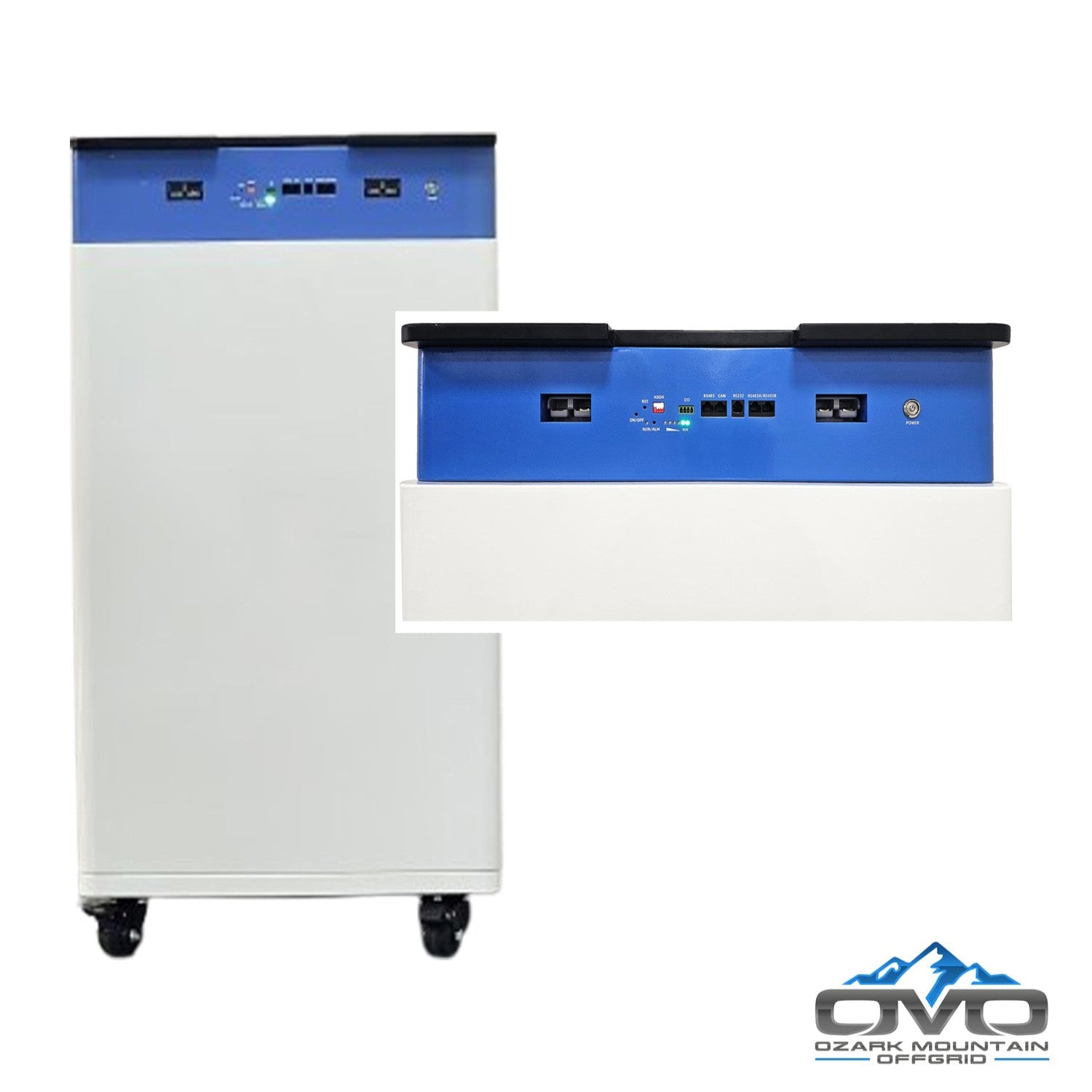

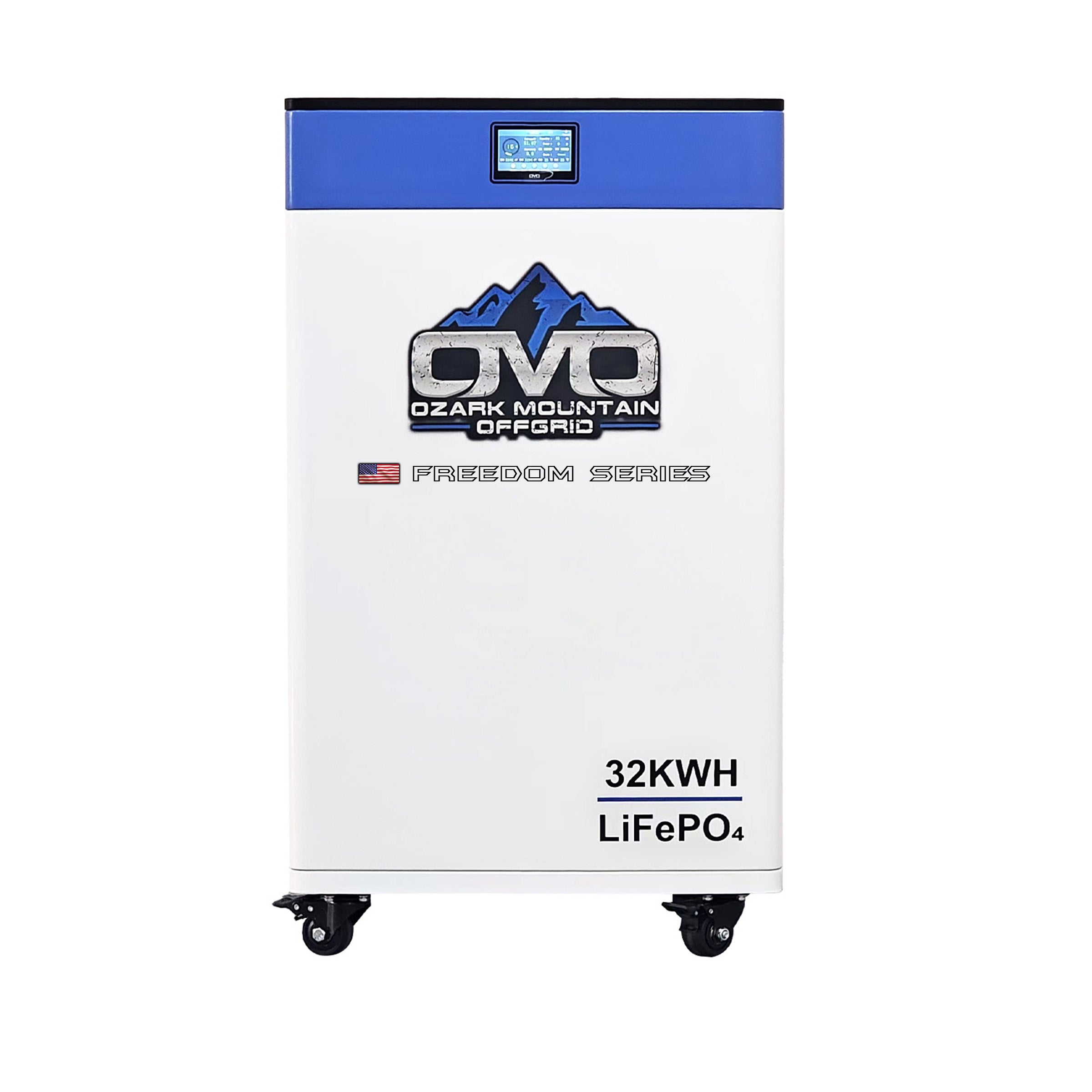

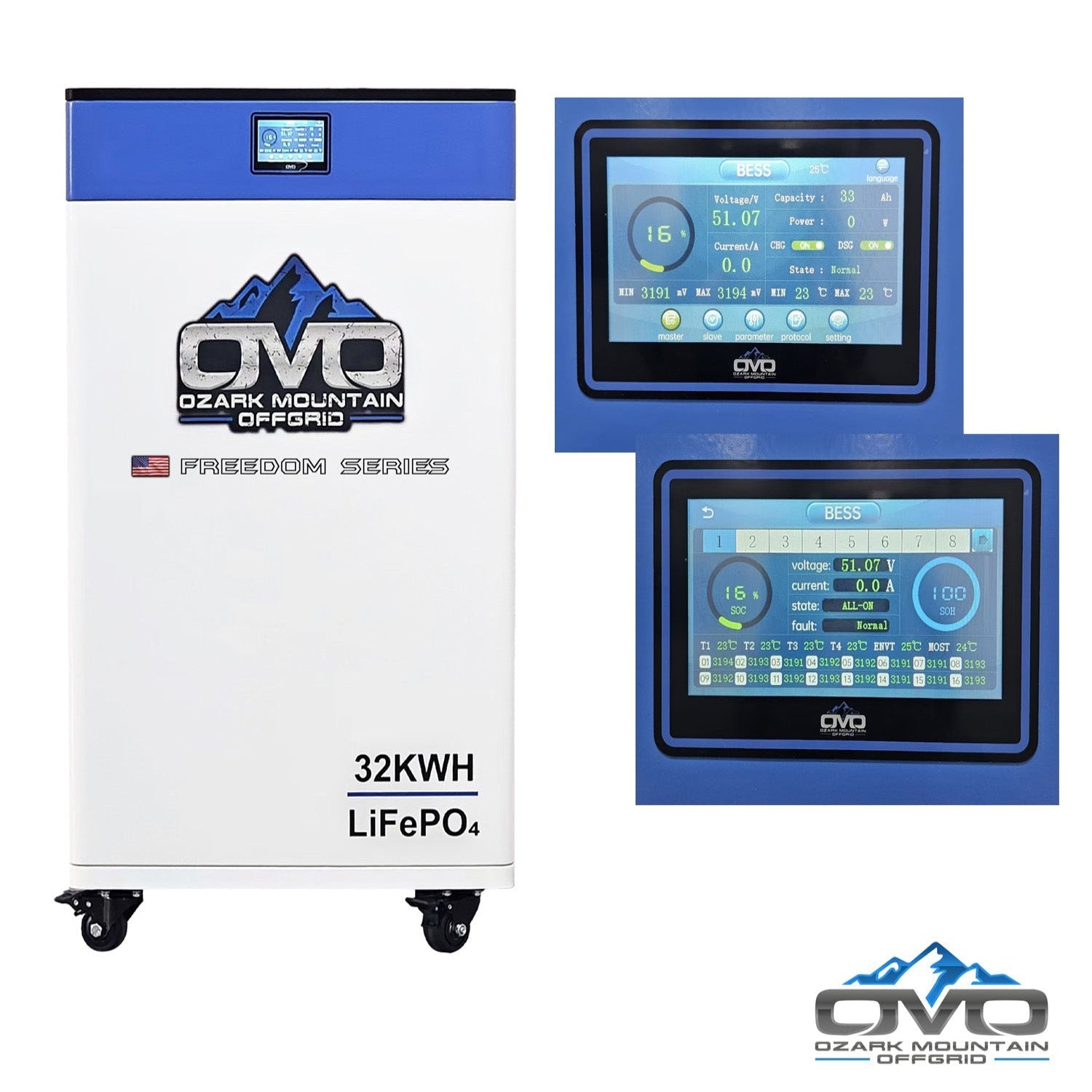

• Battery Bank: 3 × OMO 32kWh 48V Freedom Series Lithium Batteries (96kWh total storage)

• Ground Mount Hardware: Complete Iron Ridge Ground-Mount Rail System (top caps, connectors, fasteners, bolts)

• Combiner Boxes: 12 × Solar PV Combiner Boxes

• Solar Wiring: 4 × 500' spools of 10AWG MC4 solar array cabling

• AC Wiring: 4 × 100' spools of 6AWG AC output/input/generator wire

• Main Line Cable: 4 × 20' spools of 2/0 AC main line

• Gutter Boxes: 12 × Wire Gutter Boxes

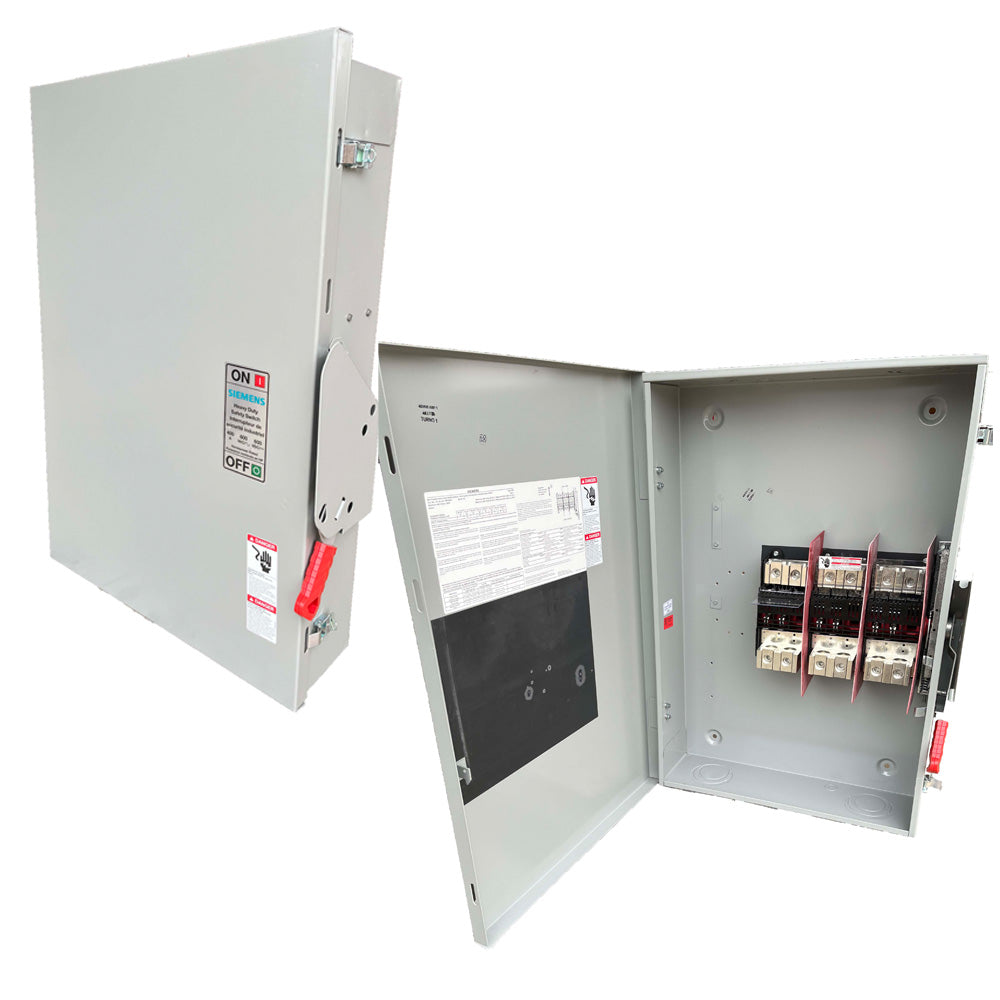

• AC Combiner: 1 × AC Combiner Box Kit (supports 2+ Sol-Ark units)

• Battery Connections: 3 × Anderson Plug Battery Cable Sets

• Tools: MC4 Crimper Tool Set

• Documentation: Installation Manual

Features

• Bifacial Double-Glass Solar Panels: Capture up to 25% additional rear-side energy, ideal for cloudy or low-light environments

• Durability: Rated for 5400PA snow load and 2400PA wind load

• Longevity: Backed by a 30-year power warranty

• Ground Mount Structure: Built for 3" Schedule 40 pipe (customer sources pipe locally)

• Scalable Design: Expandable with additional panels or battery modules

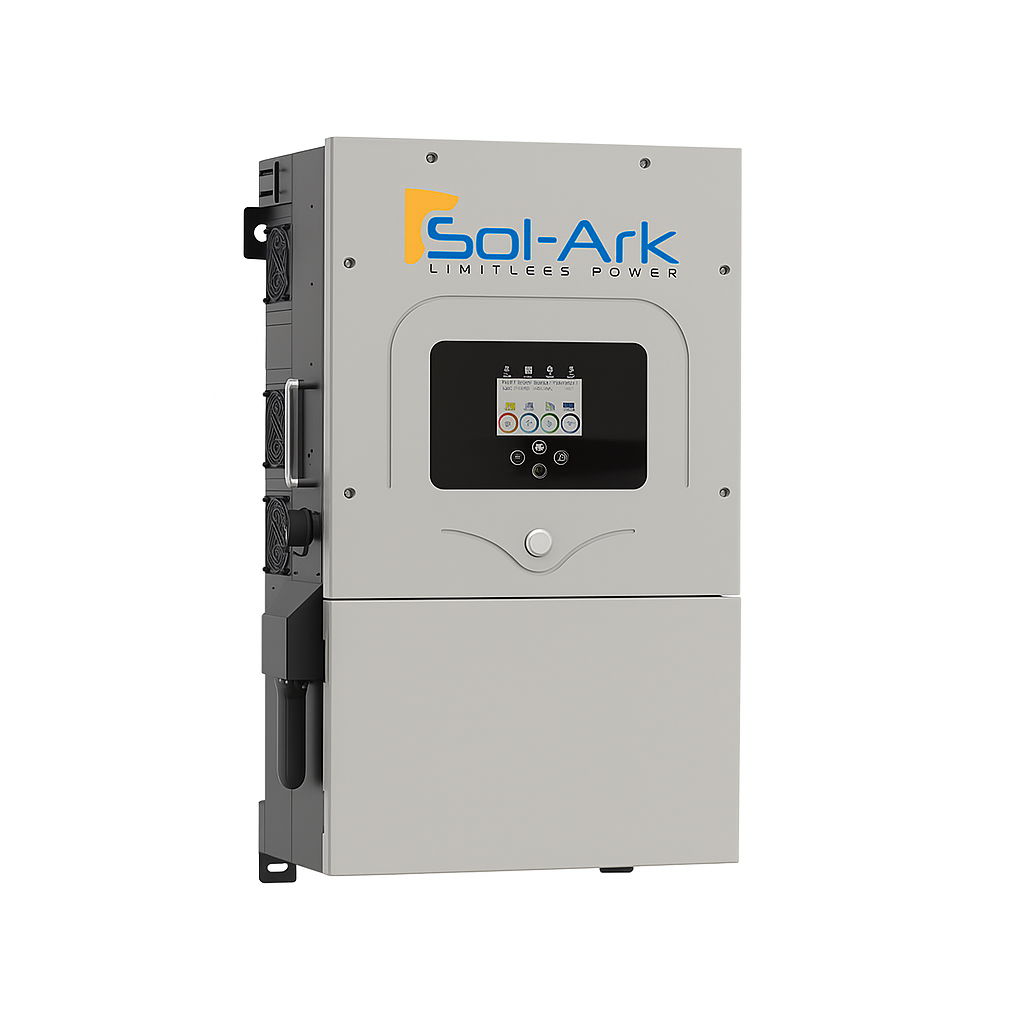

Sol-Ark 15K Inverter Specs

• Output: 120/240V Split Phase

• Battery Compatibility: Works with or without batteries (48V lithium or lead acid)

• Operational Modes: Grid-tie or off-grid

• MPPT Inputs: 3 independent MPPT trackers built in

• Generator Ready: Full generator support

• Interface: LCD touchscreen

• Connectivity: Built-in WiFi monitoring

• Design: DC transformerless for higher efficiency

• Efficiency: 97.5%

• Rating: NEMA 3R (Outdoor rated)

• Warranty: 10-year manufacturer warranty

• Parallel Stacking: Supports up to 8 units in parallel

• Transfer Time: 4ms transfer from battery to grid

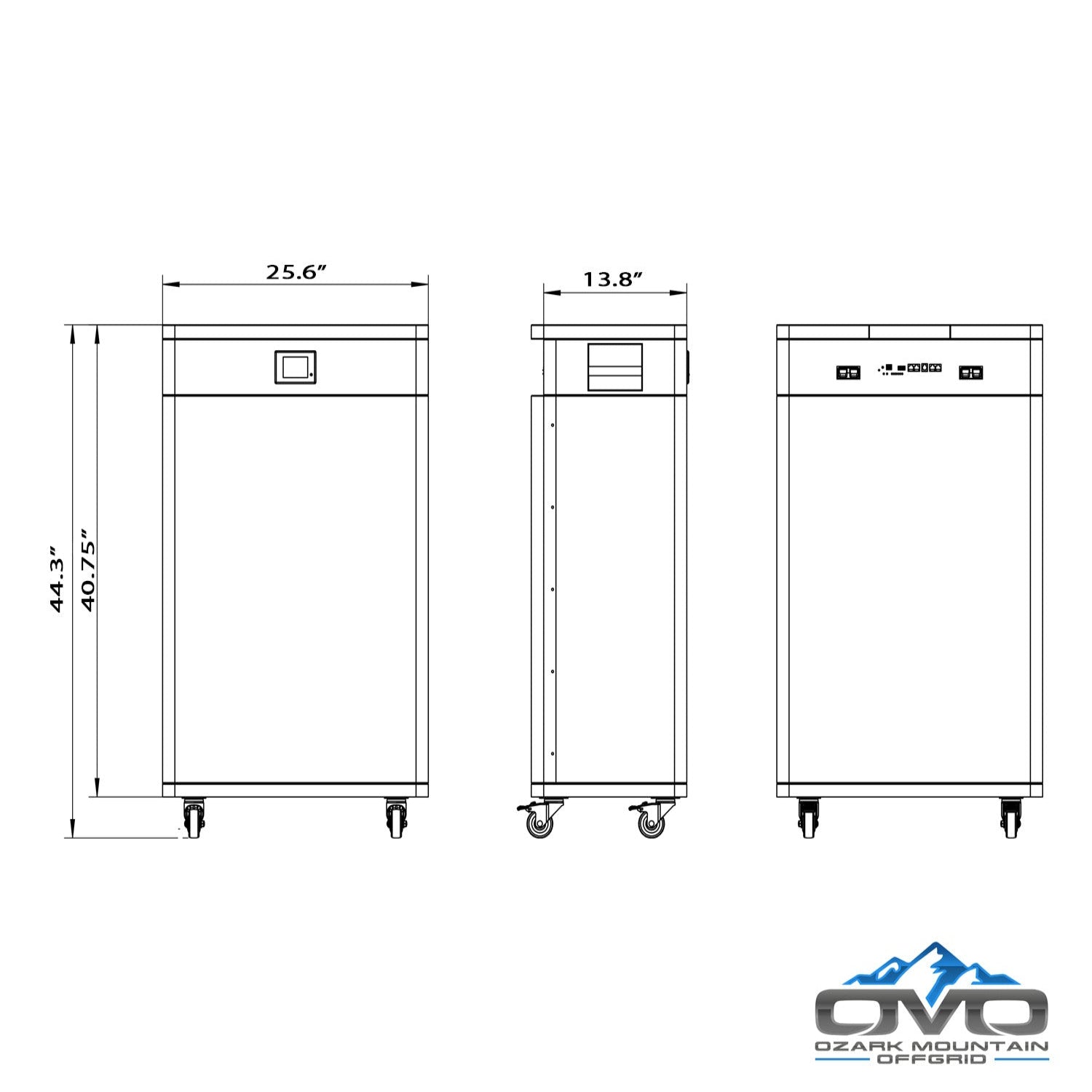

Battery Specification Sheet
