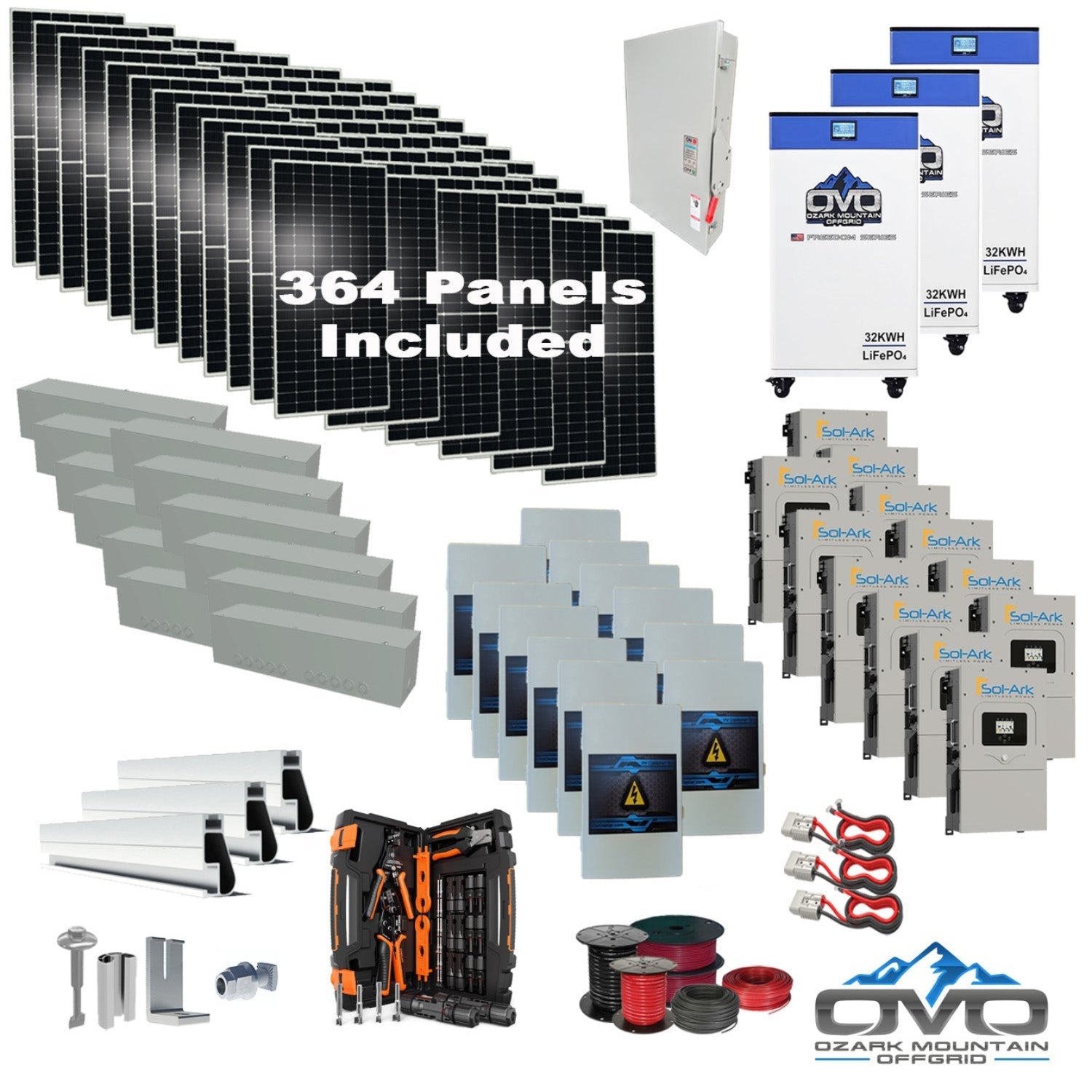

200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +  3x 32kWh OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Roof Mount and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter +  3x 32kWh OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Roof Mount and Wiring is a premium whole-home and agricultural-scale solar power system designed for complete off-grid independence. This massive system produces approximately 900,900W of solar power per day (based on 4.5 hours of sunlight) and supports large homes, farms, and heavy-duty off-grid applications requiring around 27,027kWh per month. Built for extreme scalability, this kit allows for future additions of panels and batteries as your power needs grow.

Specifications

• Solar Panels: 364× 550W Bifacial Mono Solar Panels (200.2KW total array)

• Inverters: 12× Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (48V, MPPT Charge Controller Built-In)

• Battery Bank: 3× OMO 32kWh 48V Freedom Series Heated Lithium Batteries with Bluetooth & LCD (96kWh storage)

• Roof Mount System: Complete Iron Ridge rail system including rails, splices, L-feet, fasteners, and bolts

• Combiner Boxes: 12× Solar PV Combiner Boxes

• Solar Wiring: 4× 500' Spools of 10AWG MC4 Solar Array Cable

• AC Wiring: 4× 100' Spools of 6AWG AC Output/Input/Generator Cable

• Main Line Cable: 4× 20' Spools of 2/0 AC Main Line

• Gutter Boxes: 12× Wire Gutter Boxes

• AC Combiner Kit: 1× AC Combiner Box Kit (for 2 or more Sol-Ark units)

• Battery Cable Set: 3× Anderson Plug Battery Cable Sets for inverter-to-battery connection

• Tools & Manuals: MC4 Crimper Tool Set + Installation Manual

Features

• Bifacial Double-Glass Solar Panels: Generate up to 25% more power with rear-illumination capture and improved low-light performance

• Heavy-Duty Design: Built to withstand 5400PA snow load and 2400PA wind load

• Industry-Leading Warranty: 30-year power warranty on solar panels

• Scalable System: Expandable array and battery options allow long-term system growth

• Massive Output: Ideal for large homes, agricultural operations, commercial installations, and off-grid estates

Sol-Ark 15K Inverter Specs

• Output: 120/240V split phase

• Battery Compatibility: Operates with or without batteries (48V, lead acid or lithium options)

• System Type: Grid-tie or off-grid capable

• Charge Controller: Built-in MPPT charge controller with 3× MPPT inputs

• Generator Support: Generator input for backup charging

• Interface: LCD touchscreen display

• Monitoring: Built-in WiFi connectivity

• Design: DC transformerless architecture

• Efficiency: 97.5% inverter efficiency

• Durability: NEMA 3R outdoor-rated enclosure

• Warranty: 10-year manufacturer warranty

• Parallel Stacking: Up to 8 units stackable

• Transfer Time: 4ms transfer from battery to grid

Battery Specification Sheet
