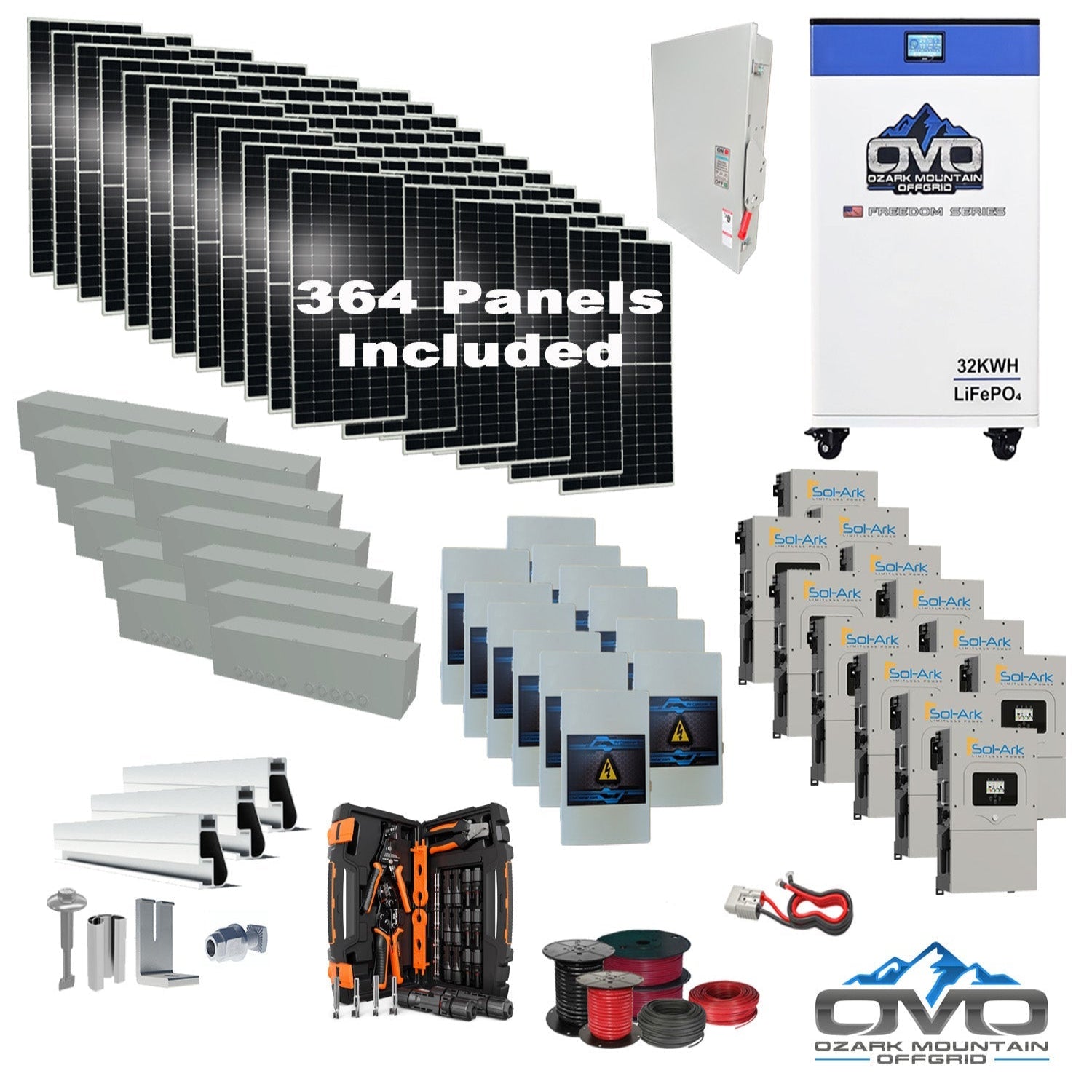

200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Roof Mount and Wiring

The 200KW Complete Offgrid Solar Kit + 12x 15K Sol-Ark Inverter + OMO 48V Freedom Series Lithium Battery +200.2KW Solar with Roof Mount and Wiring is an elite, fully integrated solar power system designed for large homes, farms, commercial sites, and high-demand off-grid applications. This package includes a massive 200.2KW bifacial solar array, twelve Sol-Ark 15K hybrid/off-grid inverters, and a 32KW OMO Freedom Series lithium battery bank.

Engineered for serious energy independence, this system produces approximately 900,900 watts per day based on 4.5 hours of peak sunlight—ideal for properties consuming around 27,027 kWh per month. The infrastructure is built for long-term expandability, allowing future additions of both batteries and solar panels.

Specifications

• Solar Array: 364× 550W Bifacial Mono Solar Panels (200,200W array)

• Inverters: 12× Sol-Ark 15K Hybrid/Off-Grid (48V) with built-in MPPT controllers

• Battery Bank: 1× OMO 32KW 48V Freedom Series Heated Lithium Battery (Bluetooth + LCD)

• Mounting Hardware: Complete Iron Ridge Roof Mount System (Rails, L-feet, Splices, Hardware)

• Combiner & Cabling: 12× PV Combiner Boxes, 4× 500' 10AWG MC4 Solar Cable, AC/Generator Cabling, 2/0 Main Line

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side energy gain & superior weak-light performance

• Extreme Durability: 5400 PA snow load / 2400 PA wind load + 30-year power warranty

• Sol-Ark Performance: 97.5% efficiency, split-phase 120/240V, grid-tie or off-grid functionality

• Smart Controls: LCD touchscreen, WiFi connectivity, 3× MPPT inputs per inverter

• Scalable Power: Parallel stacking of up to 8 Sol-Ark units; expandable solar & battery capacity

• Complete Hardware Kit: AC combiner box, gutter boxes, Anderson battery cabling, full installation manual

Maintenance

• Daily: Monitor inverter screen or Bluetooth app; ensure panels remain unobstructed

• Weekly: Check battery temperature, inspect cables, confirm system output levels

• Annually: Full inspection of connectors, mounting hardware, roof rails, grounding, and inverter firmware

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

Battery Specification Sheet
