24' Enclosed SOLAR POWERED Offgrid Self-Sufficient Trailer - SOL-ARK 15K with OMO 32K Freedom Lithium Battery

The 24' Enclosed SOLAR POWERED Offgrid Self-Sufficient Trailer - SOL-ARK 15K with OMO 32K Freedom Lithium Battery is designed for those who demand reliable, mobile power anywhere. This fully self-sufficient 24' x 8.5' enclosed facility integrates a Sol-Ark 15K 120/240V inverter, 32kWh of heated lithium storage, and a roof-mounted solar array. It can power an entire home or serve mission-critical roles—emergency response, base camps, events, and off-grid construction—while accepting shore power or generator input when needed. Scalable design supports future PV and battery expansion.

Specifications

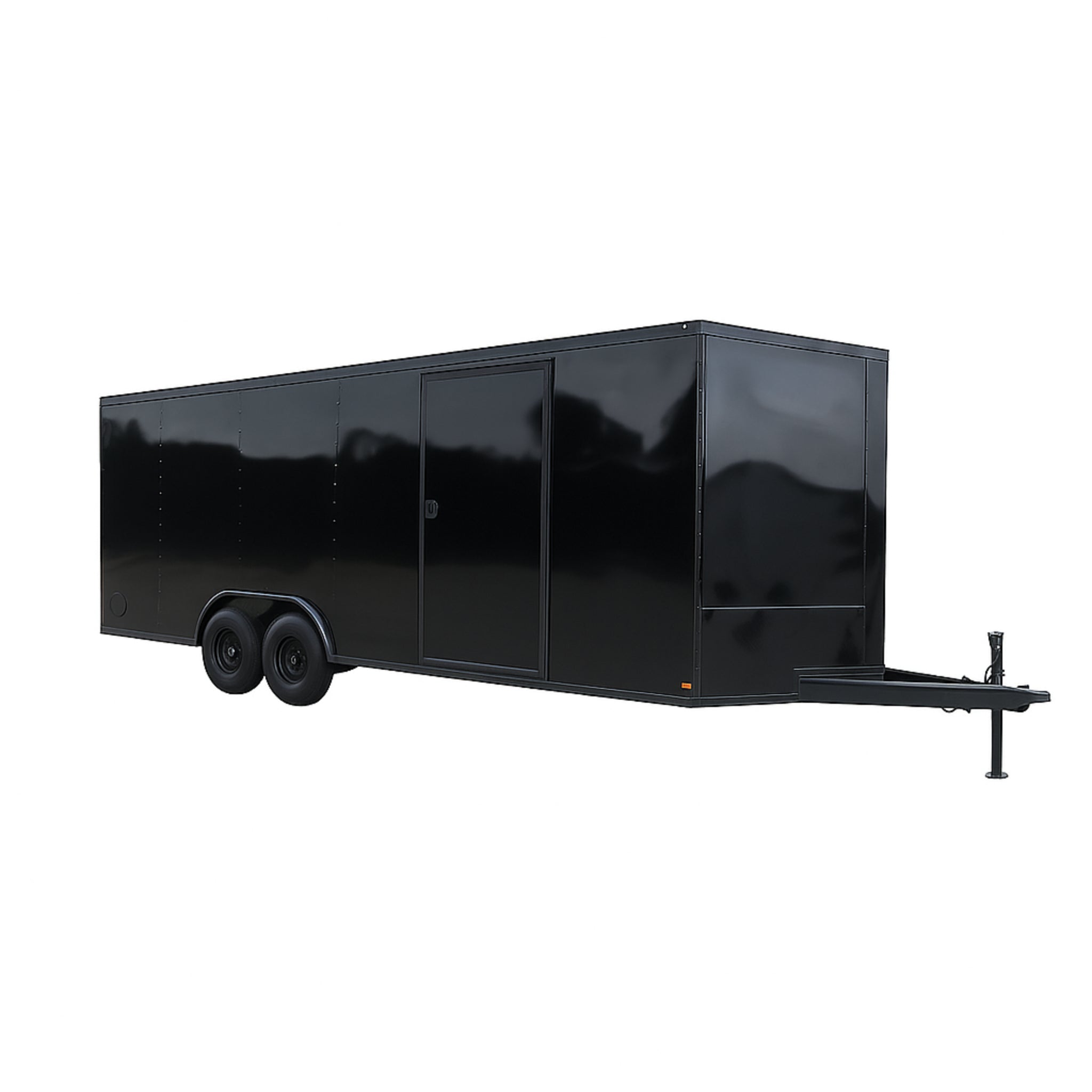

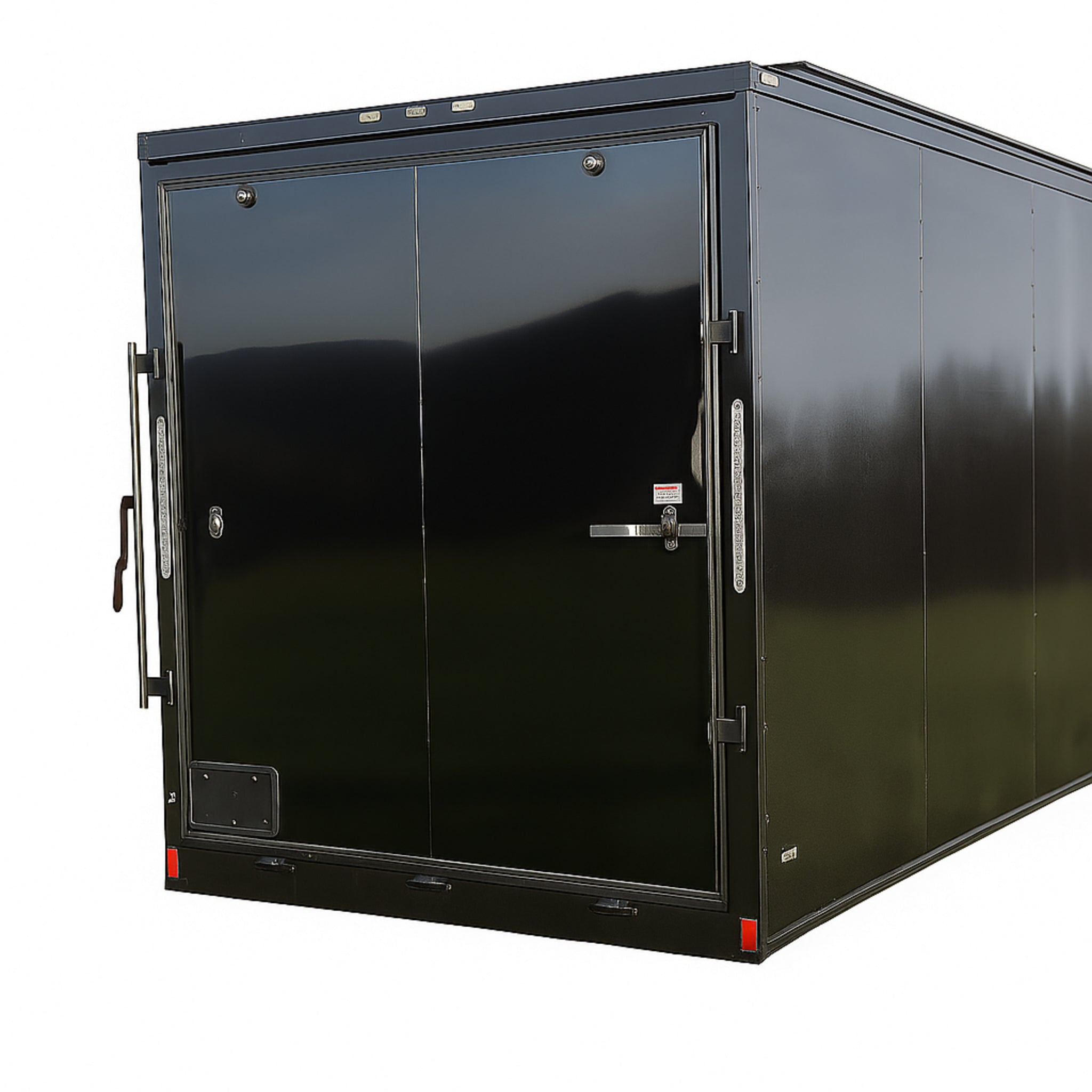

• Trailer: 24' tandem axle V-nose, RV-style walkthrough door and rear ramp

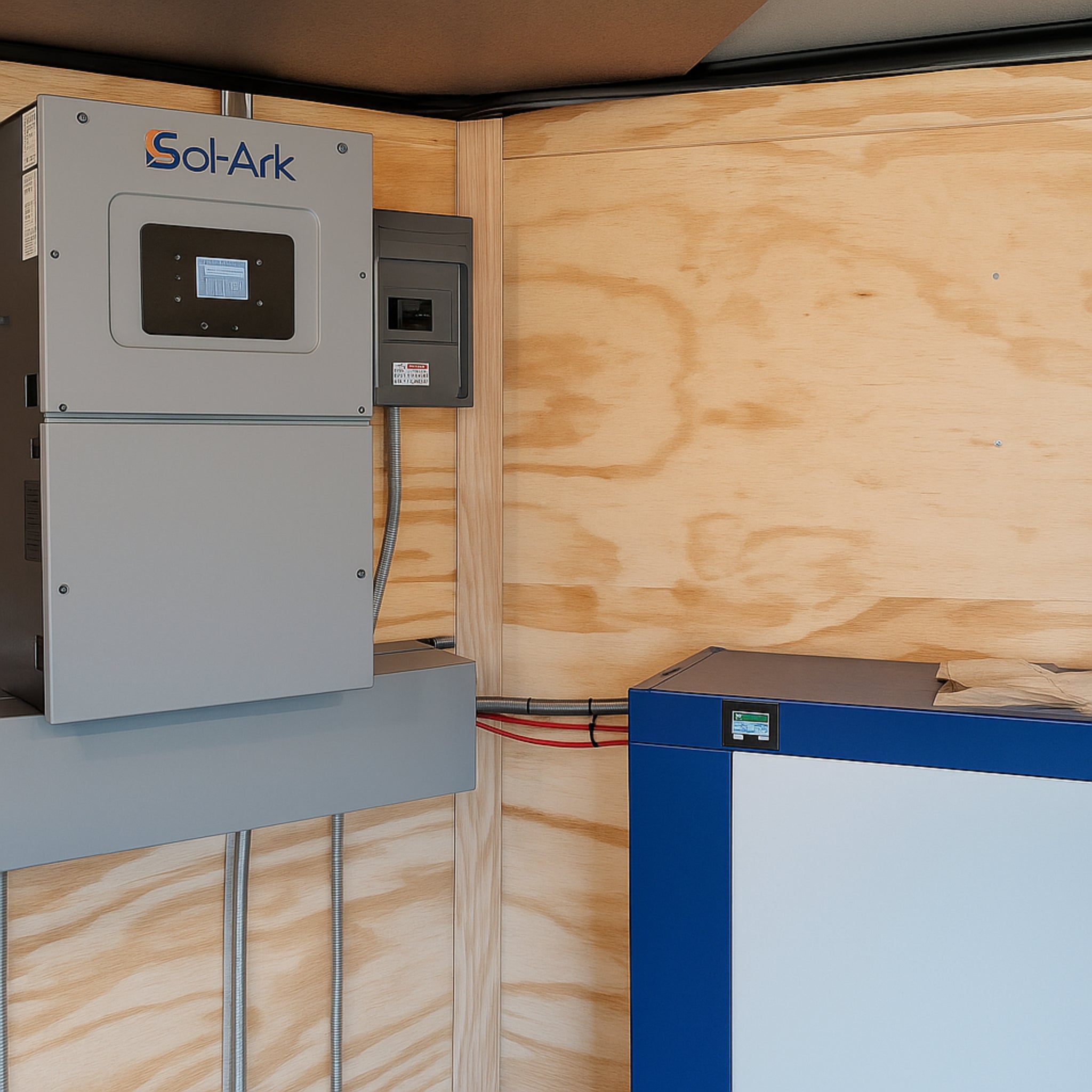

• Inverter: Sol-Ark 15K all-in-one off-grid inverter (120/240V split phase)

• Battery Storage: 1× OMO 32kWh 48V Freedom Series (heated, Bluetooth, LCD)

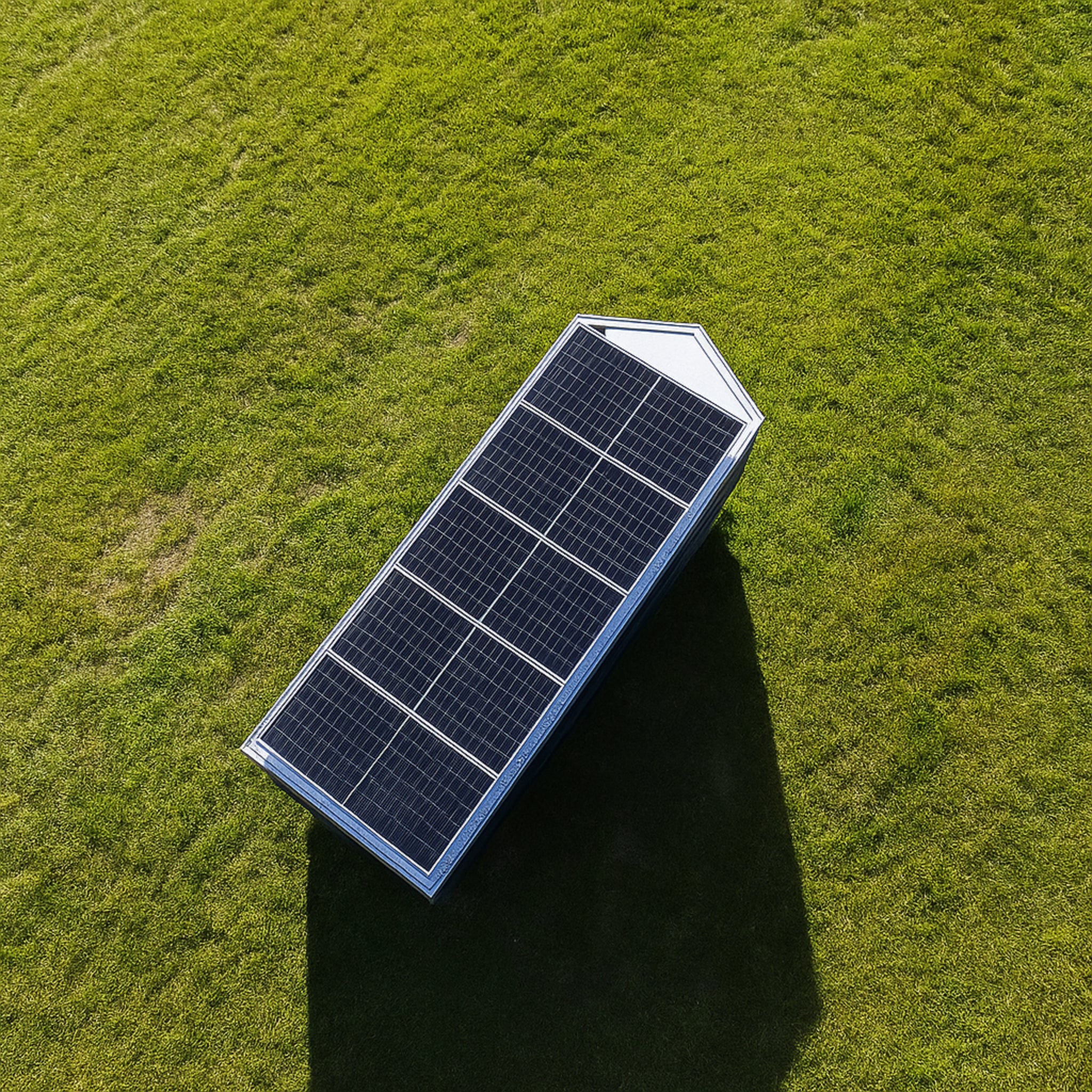

• Solar Array: 6× 550W roof-mounted panels (3,300W array) + 2 exterior PV input ports

• Power I/O & AC: 50A grid/generator input port; 100A AC breaker box; 6× 110V interior outlets; 1× 240V 50A exterior outlet; epoxy-coated floor

Features

• Self-Sufficient Power: Solar-first operation with shore power/generator charging as needed

• Scalable & Expandable: Exterior PV ports for additional arrays; battery bank expandable up to 8 units (256kWh)

• Mission-Ready: Ideal for home backup, emergency response, base camps, events, and off-grid construction

• Custom Options: Lift kit & larger tires, portable PV kits, mini-split HVAC, hot water, air compressors, cabinetry, paint booths & hydro processing

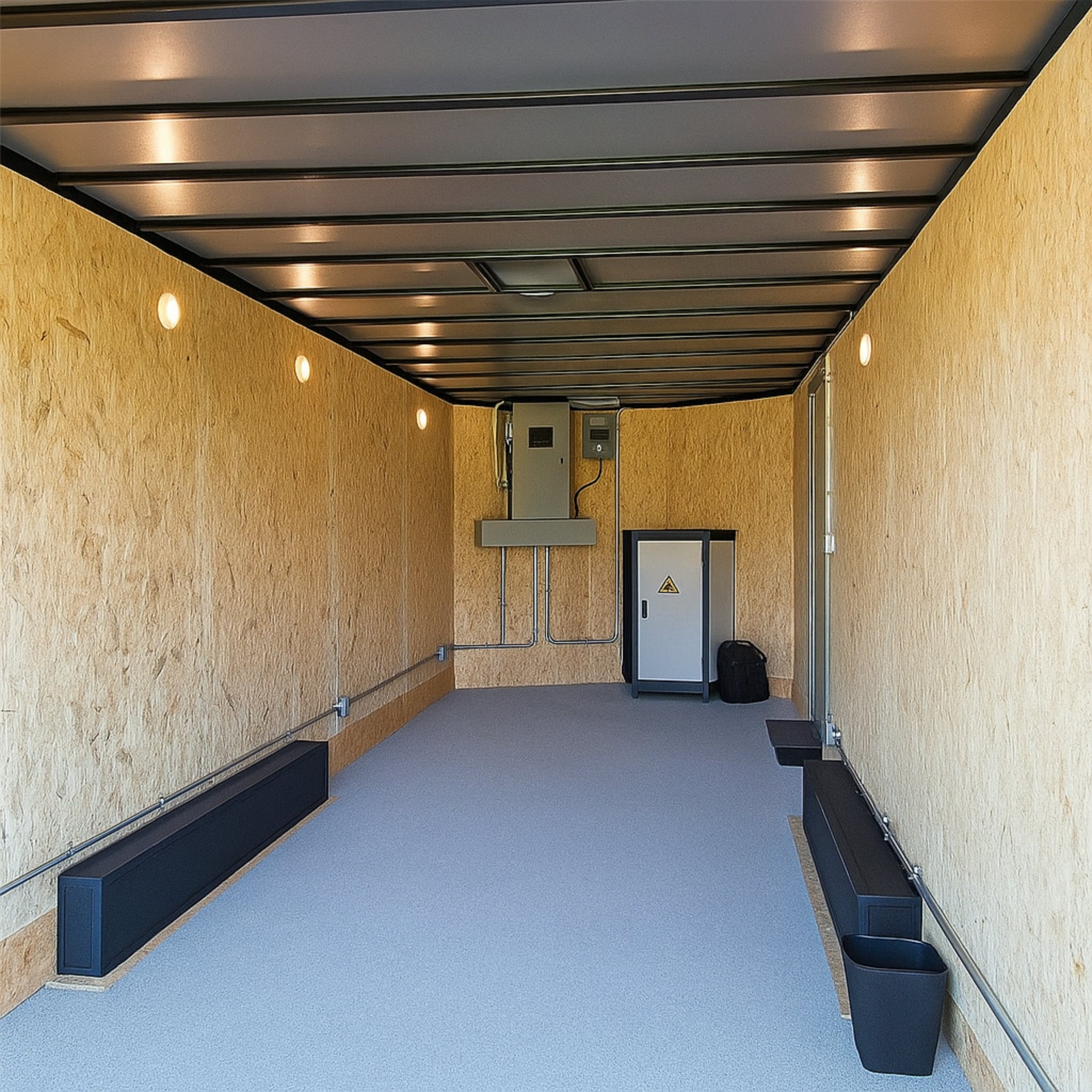

• Integrated AC: Fully wired interior with standard outlets; exterior 240V 50A service

• Durable Build: Enclosed design, epoxy floor, black-with-black trim; other colors available

Maintenance

• Daily: Verify inverter status and SOC; ensure roof panels are unobstructed

• Weekly: Inspect PV/AC connections, cord sets, and outlet function; review production logs

• Annually: Check roof mounts & seals, torque electrical lugs, clean panels, and update inverter firmware

Warranty

• Solar Panels: 30-year performance warranty

• Sol-Ark Inverter: 10-year manufacturer warranty

Battery Specification Sheet  |  Download the 24' Custom Solar Trailer Build Sheet
