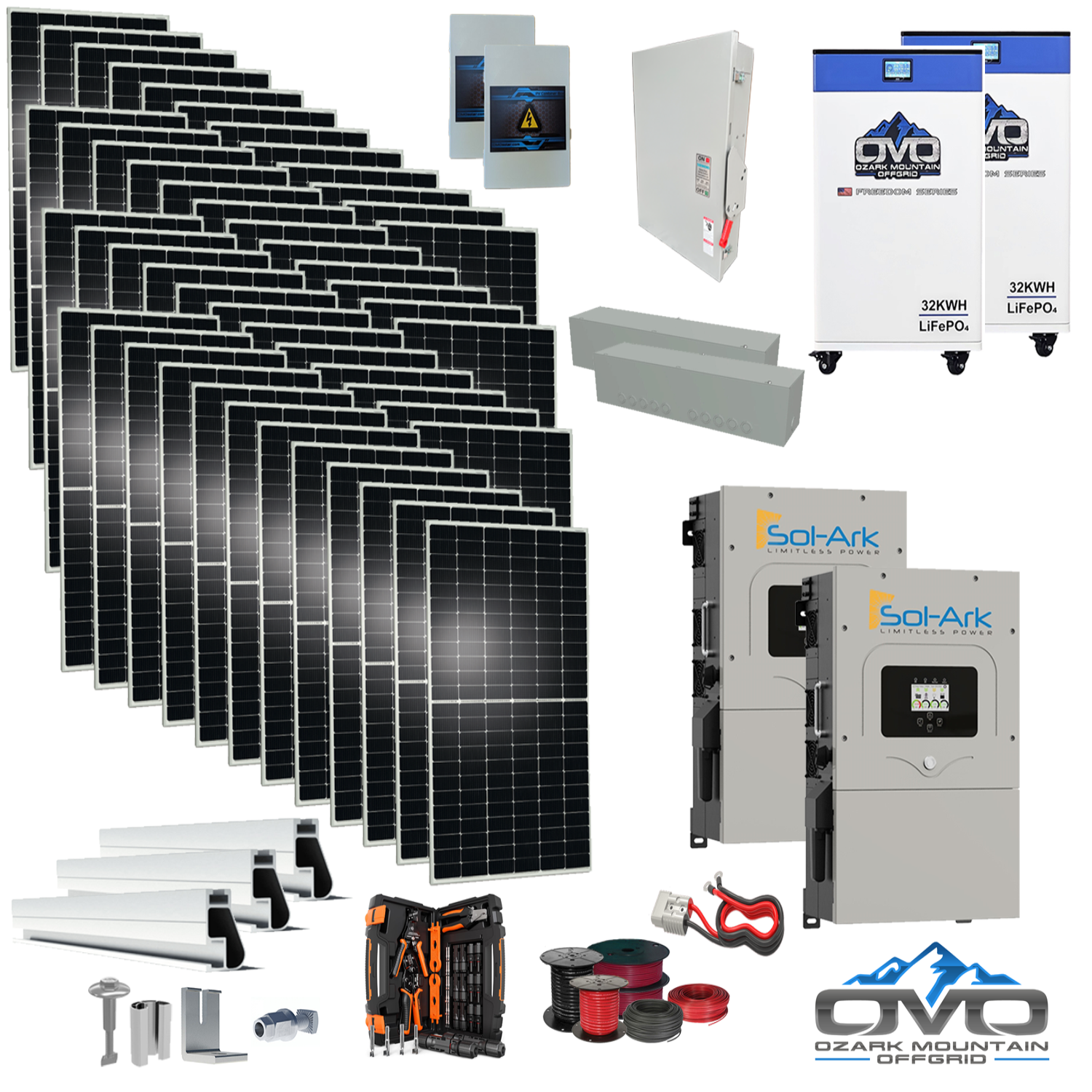

25KW Complete Offgrid Solar Kit - 2x32kWh OMO 48V Freedom Series Lithium Battery + 2x 15K Sol-Ark Inverter +26.4KW Solar with Mounting Rails and Wiring

The 25KW Complete Offgrid Solar Kit - 2x32kWh OMO 48V Freedom Series Lithium Battery + 2x 15K Sol-Ark Inverter +26.4KW Solar with Mounting Rails and Wiring is designed for full off-grid home power. This system includes two 15K Sol-Ark hybrid inverters, a massive 64,000-watt (64 kWh) lithium battery bank, and a high-output 26.4 kW bifacial solar array. Producing approximately 118,800 watts per day based on 4.5 hours of peak sunlight, it is ideal for larger homes using around 3,500 kWh per month. The system is fully expandable, allowing future additions of both batteries and solar panels.

Specifications

• Solar Array: 48 × 550W Bifacial Mono Solar Panels (26,400W total)

• Inverters: 2 × 15K Sol-Ark Hybrid/Off-Grid All-In-One Inverters (48V, built-in MPPT)

• Battery Bank: 2 × OMO 32kWh 48V Freedom Series Heated Lithium Batteries with Bluetooth & LCD Readout (64 kWh total)

• Mounting Rails: Complete IronRidge roof/ground mounting kit—rails, splices, legs, fasteners, bolts

• Combiner Boxes: 2 × Solar Combiner Boxes (future-expansion ready), 1 × AC Combiner Box Kit (for dual Sol-Ark setups)

• Wiring: 500′ Direct-Burial 10AWG PV Wire, 100′ 6AWG AC Cable, 20′ 4/0 AC Main Line

• Additional Components: Anderson Plug Battery Cable Set, 2 × Gutter Boxes, MC4 Crimp Kit, Installation Manual

Features

• Bifacial Solar Panels: Double-glass design with up to 25% rear-side energy gain, enhanced low-light production & extreme durability — 5400 Pa snow load, 2400 Pa wind load, 30-year power warranty.

• Sol-Ark 15K Inverter: 120/240V split-phase, grid-tie or off-grid, 3 × MPPT inputs, generator support, WiFi, LCD touchscreen, DC transformerless, 97.5% efficiency, NEMA 3R outdoor rating.

• Performance: Parallel stack up to 8 inverters; 4 ms transfer time from grid to battery power.

• Energy Output: Produces ~118,800 watts/day based on 4.5 peak sun hours.

• Ideal For: Larger homes, cabins, shops, homesteads, or high-demand off-grid estates.

• Supported Loads: Wells, refrigerators, freezers, TVs, washers, fans, lights, computers, tablets, and smaller AC systems.

Maintenance

• Daily: Monitor inverter status & ensure airflow around equipment.

• Weekly: Inspect panels for dust or obstruction; check combiner boxes for tripped breakers.

• Annually: Perform full electrical inspection — wiring, breakers, terminations, mounting hardware.

Warranty

• Sol-Ark Inverters: 10 years

• Solar Panels: 30-year power warranty
