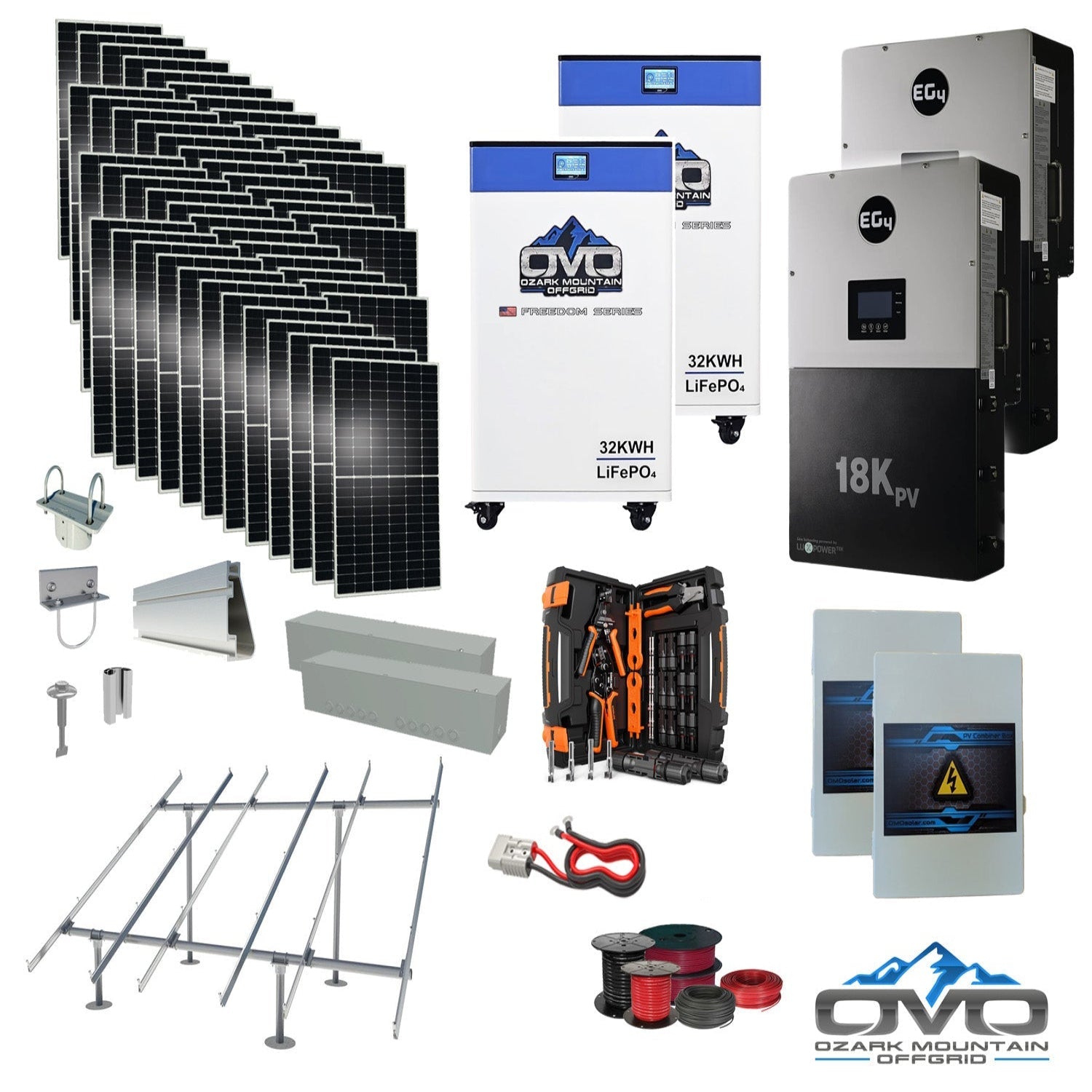

25KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 32KW OMO 48V Freedom Series Lithium Battery + 26.4KW Solar with Ground Mount and Wiring

The 25KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 32KW OMO 48V Freedom Series Lithium Battery + 26.4KW Solar with Ground Mount and Wiring is designed for complete off-grid homes that need serious, reliable power. With 64,000W of usable lithium battery capacity and a 26,400W bifacial solar array, this system can produce around 118,800W of energy per day based on 4.5 hours of peak sun. It’s an excellent choice for larger homes using about 3,500 kWh per month and is built to be easily scaled with additional panels or batteries as your energy needs grow.

Specifications

• Solar Panels: 48× 550W Bifacial Mono Double-Glass Solar Panels (26,400W array)

• Inverters: 2× EG4 18kPV 48V split-phase hybrid inverter/chargers

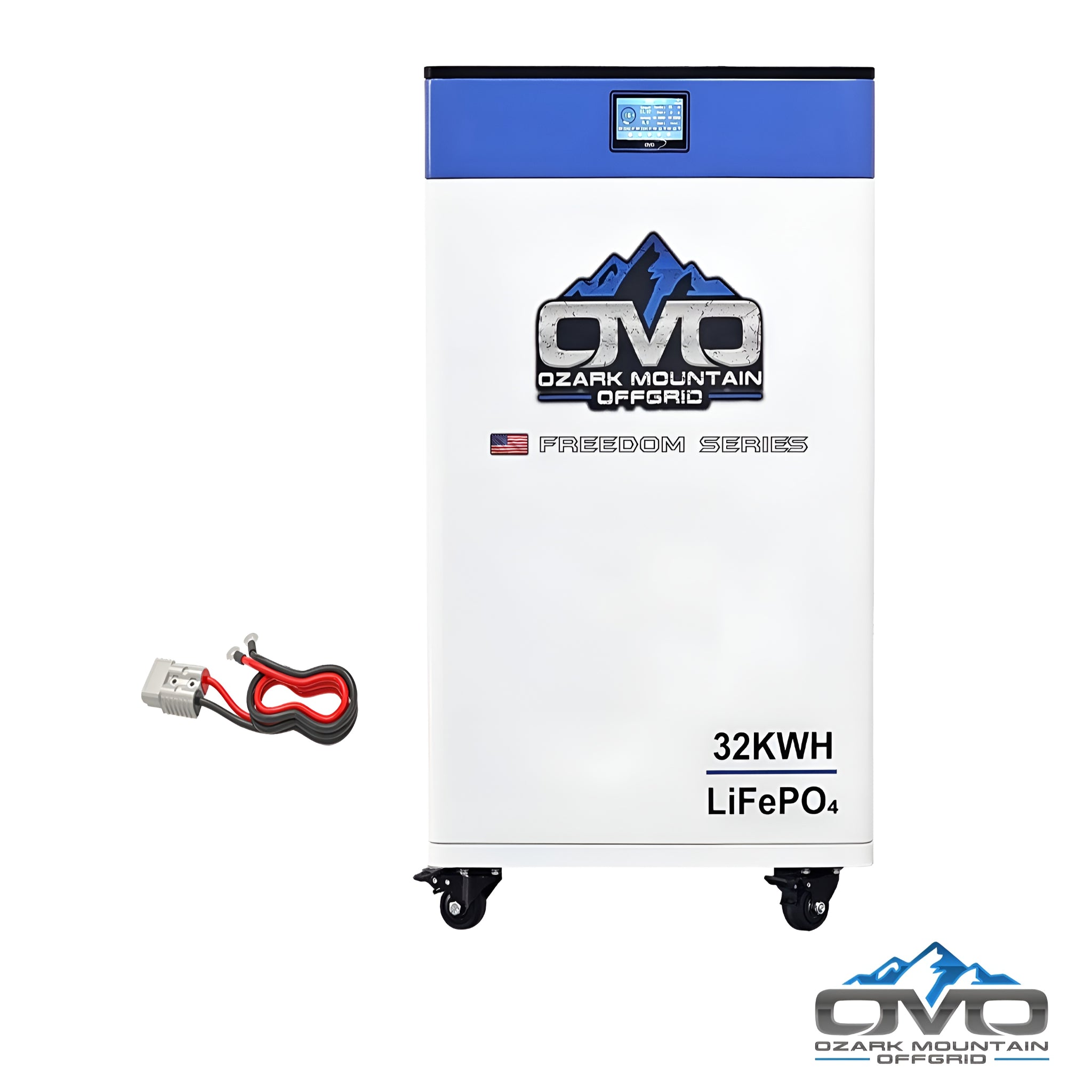

• Batteries: 2× 32KW OMO 48V Freedom Series Heated Lithium Batteries with Bluetooth and LCD readout (64,000W usable)

• Ground Mount System: Complete Iron Ridge ground mount with rails, top caps, rail connectors, fasteners, and bolts (built around locally sourced 3" sch 40 pipe)

• Combiner & Distribution: 2× Solar Combiner Boxes, 2× Gutter Boxes, 2× AC Combiner Box Kits

• Wiring: 500' PV direct burial solar wire (array/combiner to MPPT), 100' AC output/input/generator cabling (6 AWG), 20' spool 2/0 AC main line

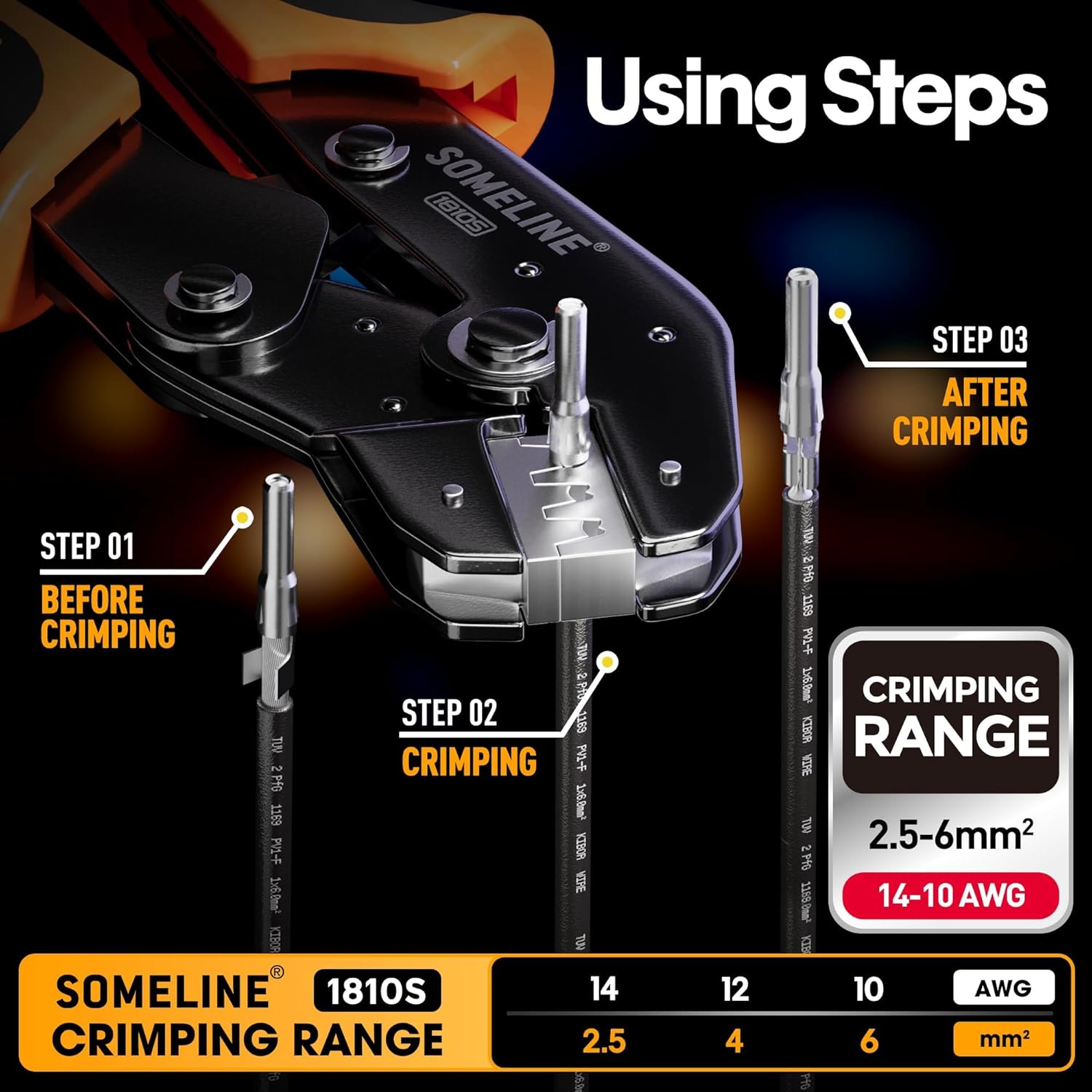

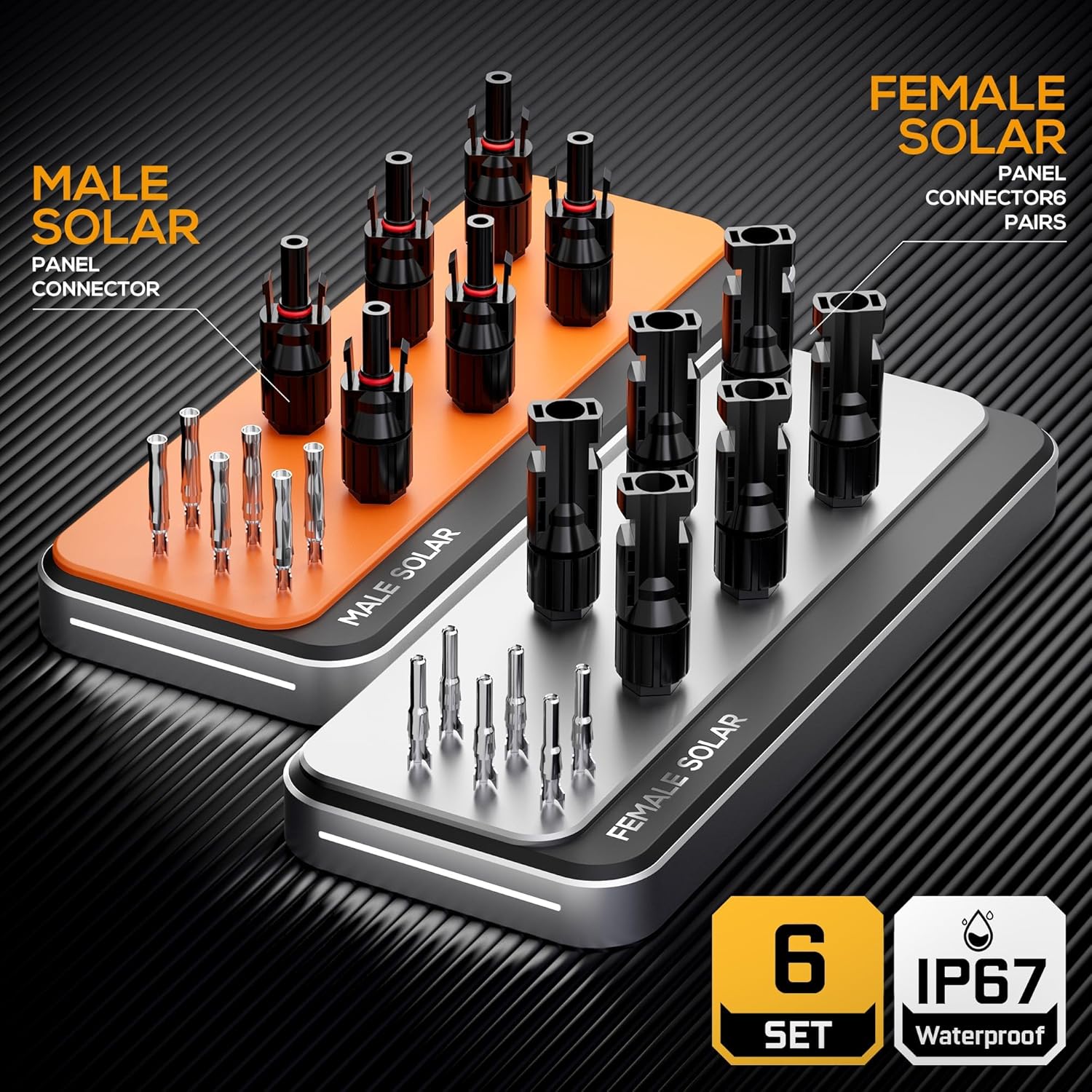

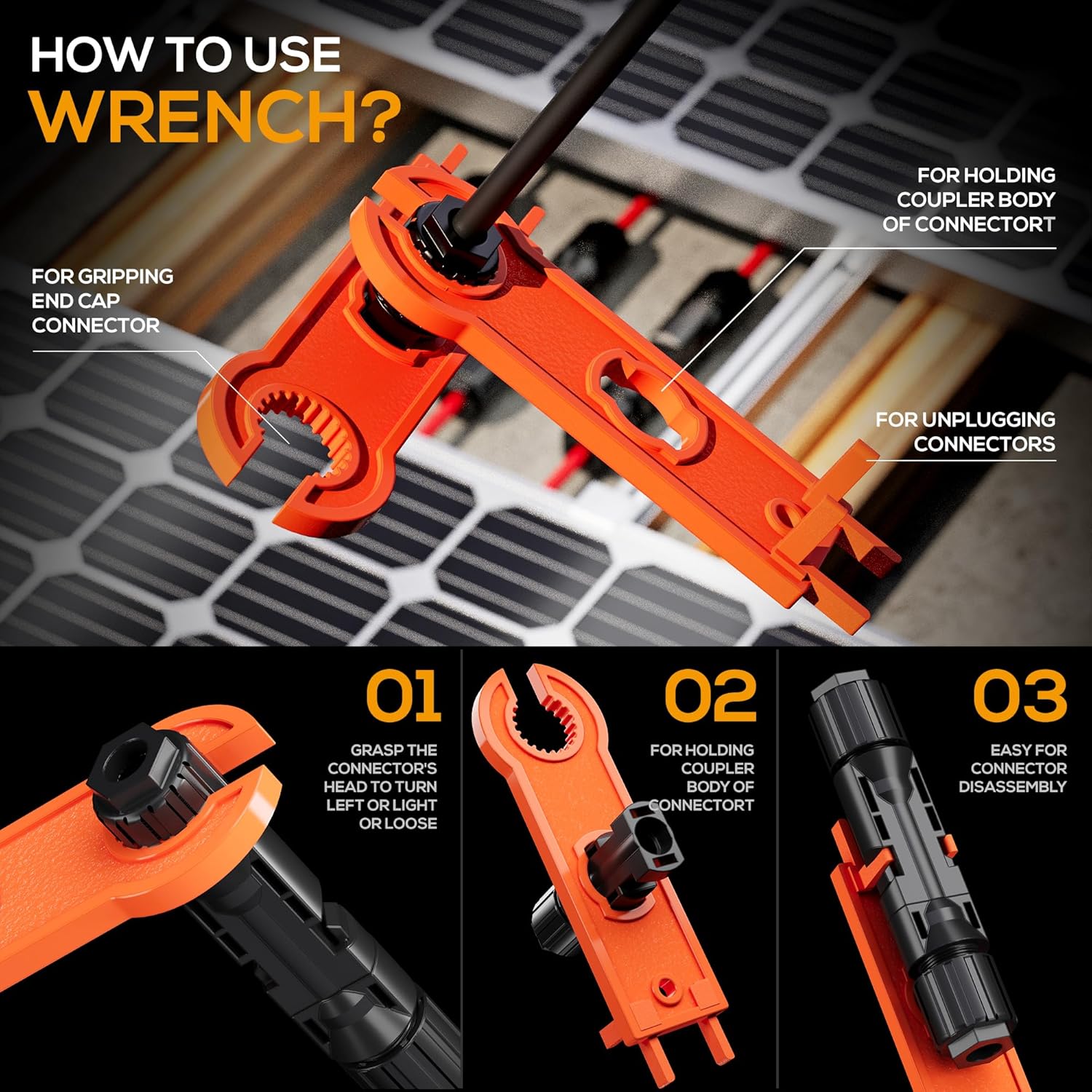

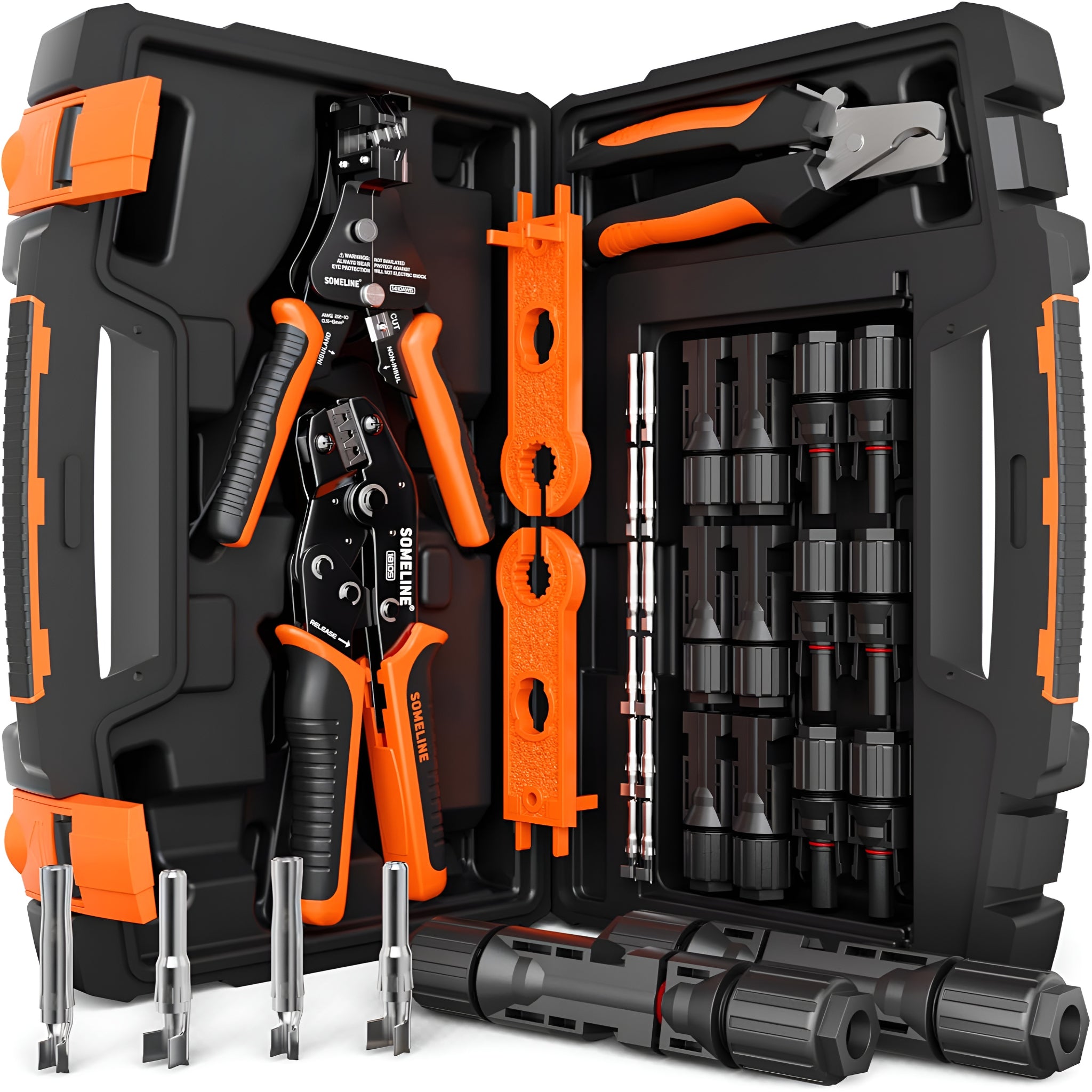

• Accessories: Anderson plug battery cable set, MC4 crimp kit, complete installation manual

Features

• Bifacial Double-Glass Panels: Capture up to 25% additional energy from the rear side for higher overall production

• High Load Ratings: 5400 PA snow load and 2400 PA wind load for robust performance in harsh conditions

• Energy Production: Approx. 118,800W per day at 4.5 peak sun hours, ideal for homes using around 3,500 kWh per month

• Ideal Applications: Larger off-grid homes as well as cabins, RVs, garages, and pole barns

• Appliance Support: Capable of running wells, washing machines, fans, TVs, lights, refrigerators, freezers, cell phones, PCs, tablets, and smaller AC systems

• Expandable System: Easily add more panels or batteries in the future thanks to a scalable design

Maintenance

• Daily: Check inverter status and ensure panels are free from heavy shading or debris

• Weekly: Inspect visible wiring, verify battery and system status, and visually check ground mount structure

• Annually: Inspect all electrical connections, tighten racking hardware, confirm output vs. expected production, and perform a detailed system check

Warranty

• Solar Panels: 30-year power output warranty

• Inverters & Batteries: Covered under manufacturer warranties (see included specification sheets)

Battery Specification Sheet
