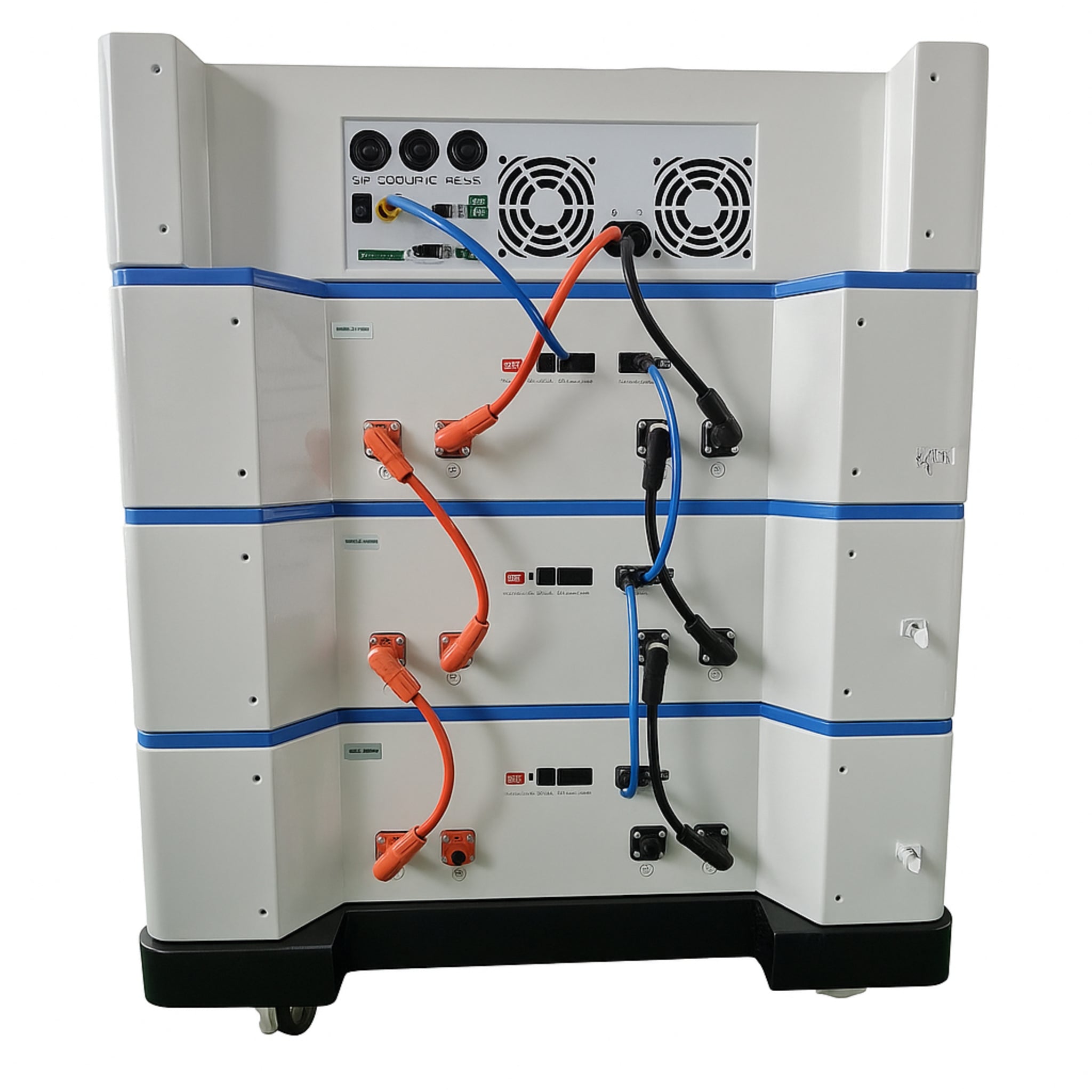

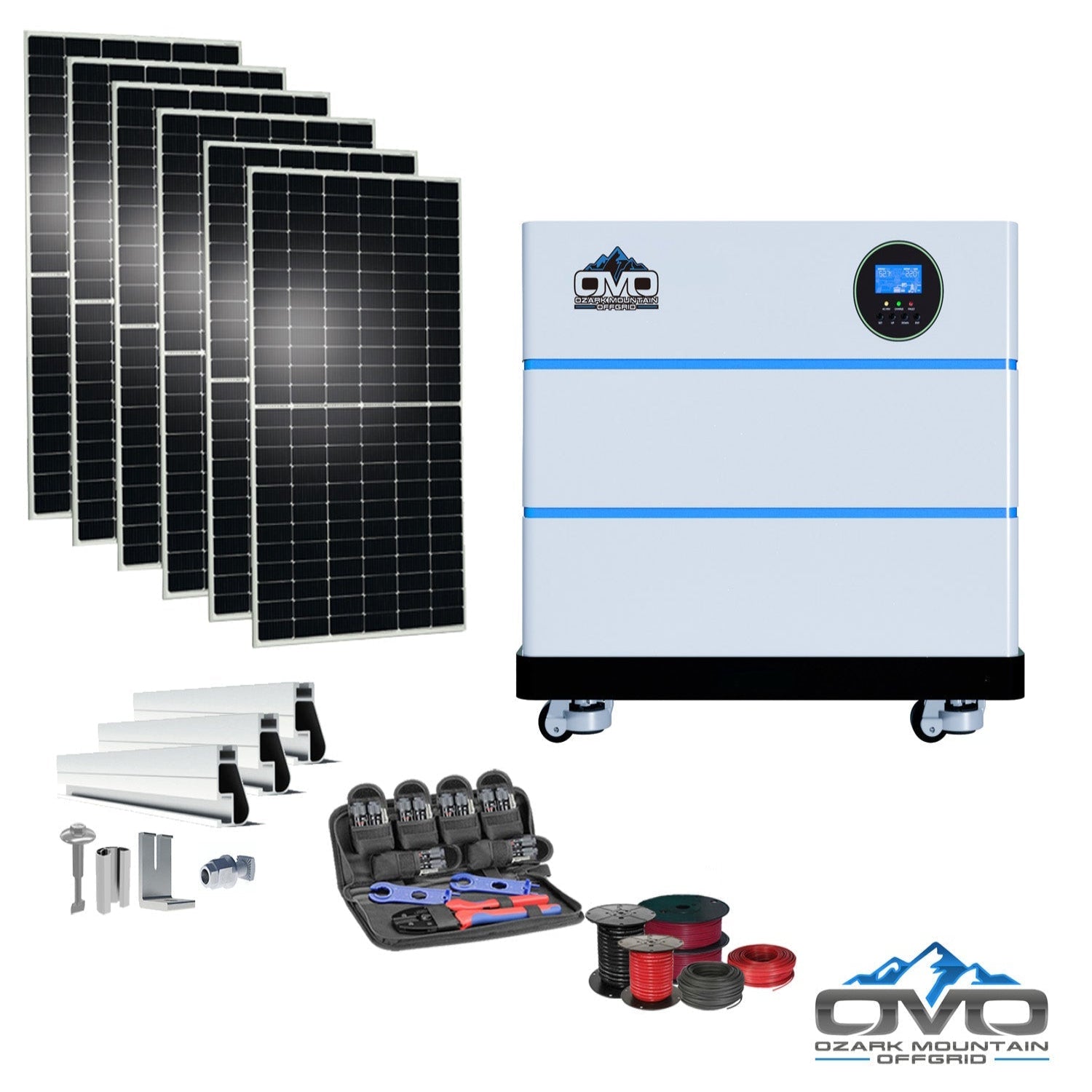

3.3KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 3.3KW Solar Roof Mount

The 3.3KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 3.3KW Solar Roof Mount is a complete, customizable power solution designed for cabins, shops, RVs, and small homes. This system provides 10,240W of usable lithium storage and produces approximately 14,850W per day with 3.3KW of bifacial solar, based on 4.5 hours of peak sun. Fully expandable, this kit grows with your needs — add more batteries or solar panels at any time for increased capacity.

Specifications

• Inverter: 1 × OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery Bank: 2 × 51.2V 5.12kWh OMO Heated Stackable Batteries with Bluetooth (expandable to 6 per inverter)

• Solar Array: 6 × 550W bifacial mono panels (3,300W total; expandable to 10 panels per inverter)

• Mounting: Complete IronRidge roof-mount system (rails, splices, L-feet, fasteners, bolts)

• Wiring: 500′ PV 10AWG direct-burial solar wire, 100′ 6AWG AC cable, MC4 crimper set

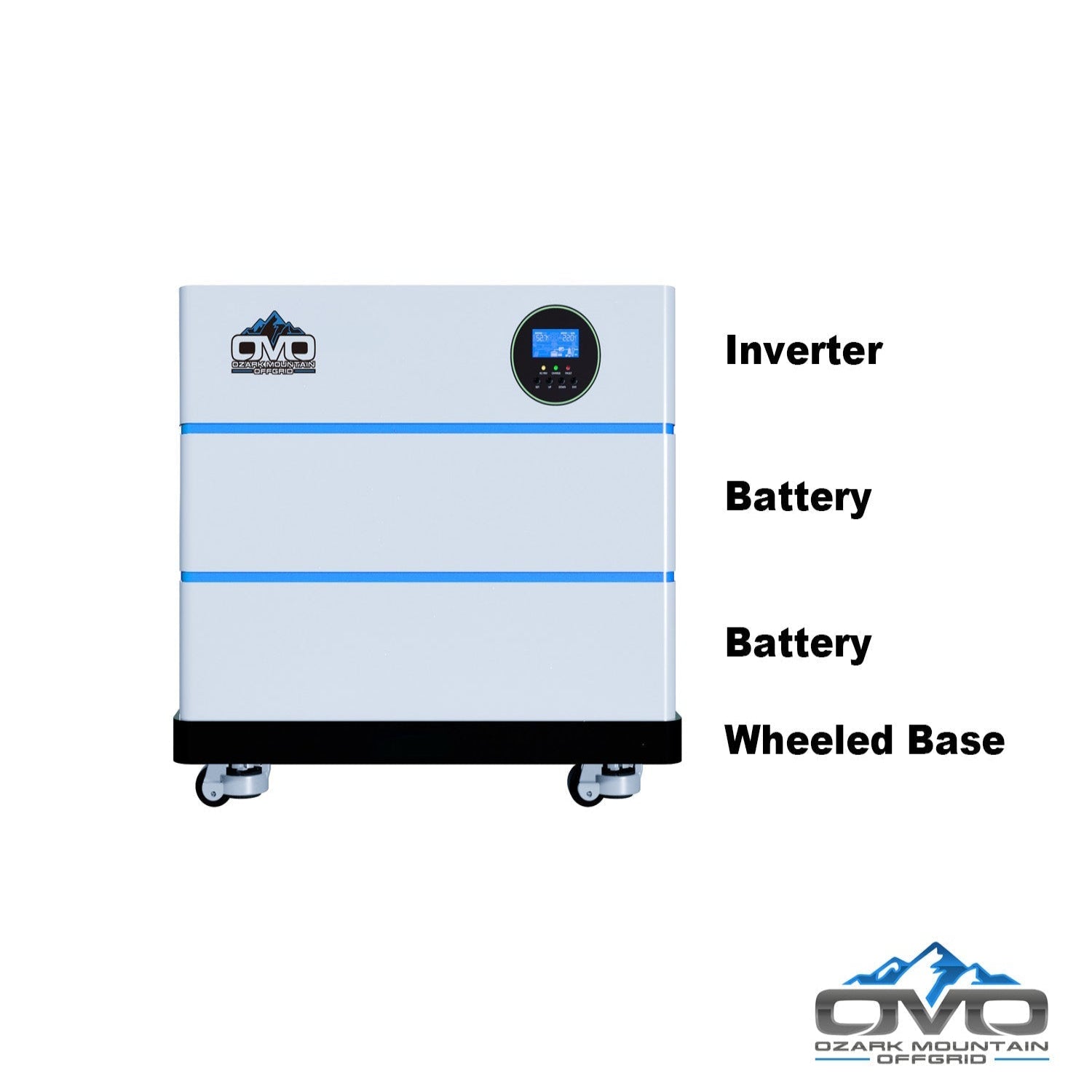

• Additional Components: OMO Stack wheeled base, AC/DC cabling, installation guide

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side gain, excellent low-light performance, 5400 Pa snow + 2400 Pa wind load rating, 30-year power warranty

• Stackable 120V System: Expandable solar + battery architecture for long-term growth

• Appliance Support: Runs lights, refrigerators, freezers, fans, TVs, well pumps, electronics, and small A/C units

• Customizable Design: Add-on options available for larger arrays, storage upgrades, and system tailoring

• Inverter Features: Built-in MPPT (5500W PV input), 22A PV input current, 125–450V DC MPPT range, 5500W AC output, parallel up to 6 units, shore/generator input, Wi-Fi + Bluetooth monitoring

• Documentation: Inverter Specification Sheet  |  Battery Specification Sheet

Maintenance

• Daily: Monitor inverter & battery indicators; check for alerts or warnings

• Weekly: Wipe panels as needed; ensure cables, MC4 connectors, and mounting hardware remain secure

• Annually: Full inspection of wiring, grounding, inverter ventilation, and battery health

Warranty

• Solar Panels: 30-year power warranty

• Inverter & Batteries: See manufacturer specification sheets for full warranty details
