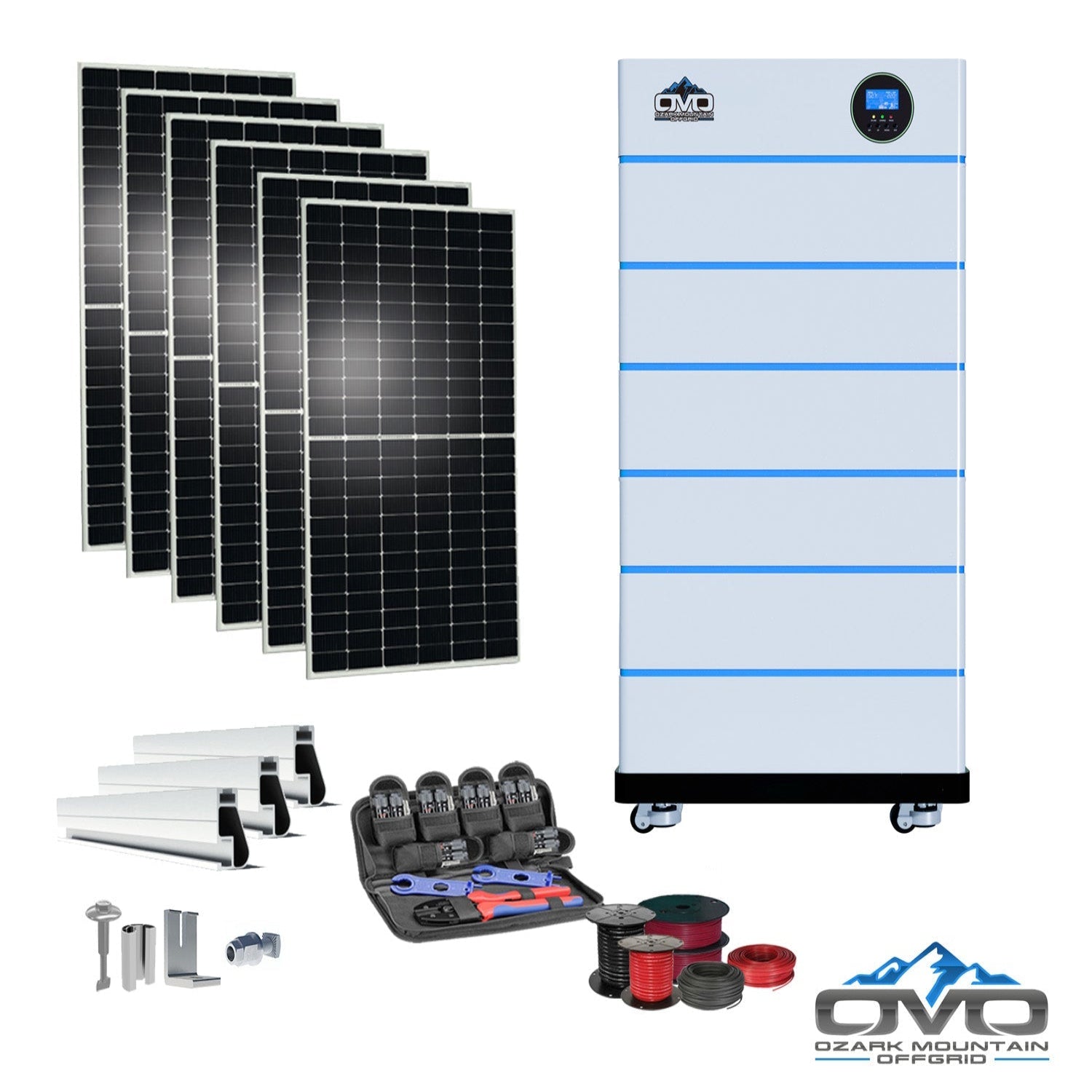

3.3KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 3.3KW Solar Roof Mount

The 3.3KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 3.3KW Solar Roof Mount is a complete customizable package designed to meet all your off-grid energy needs. This premium setup includes a powerful lithium battery bank delivering 30,720 watts of usable energy, paired with a high-output solar array capable of generating approximately 14,850 watts per day based on 4.5 hours of sunlight. Ideal for cabins, shops, RVs, and similar applications using around 445 kWh per month, this system is engineered for long-term performance and seamless expandability with additional batteries or solar panels.

Specifications

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

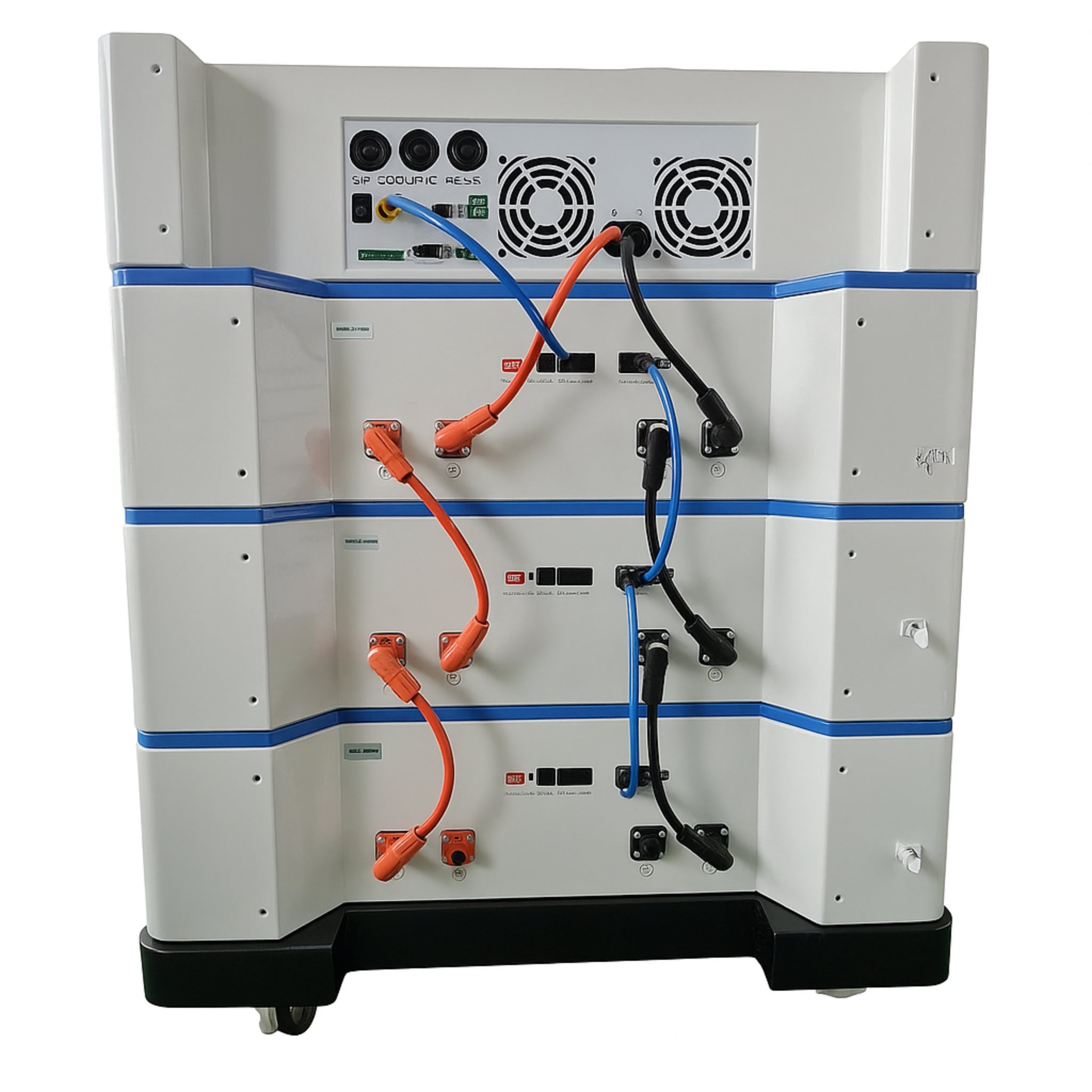

• Batteries: 6× 51.2V 5.12kWh Stackable Heated Batteries w/ Bluetooth (Max 6 per inverter)

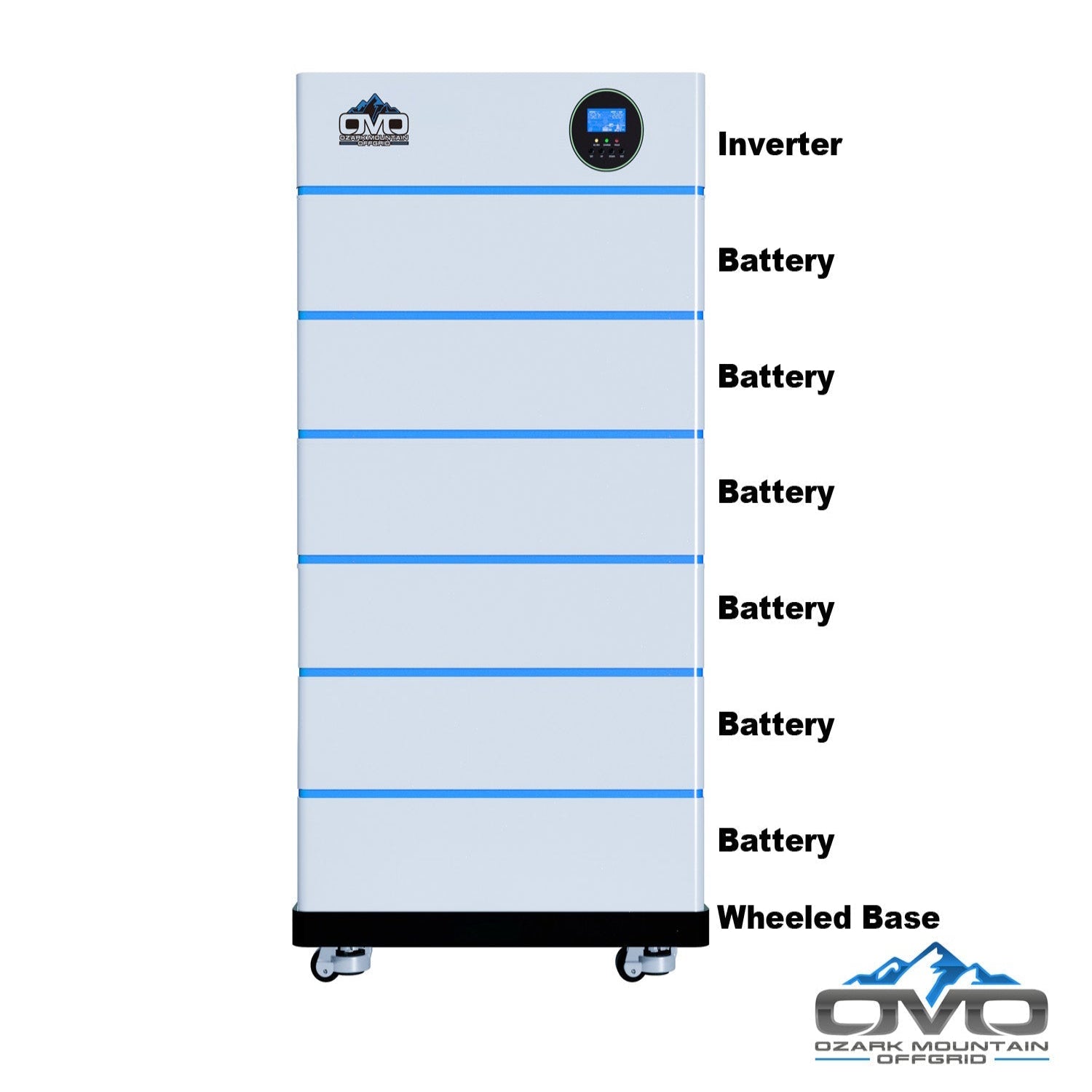

• Base: 1× OMO Stack System Wheeled Base

• Solar Panels: 6× 550W Bifacial Mono Panels (3300W array; expandable to 10 panels per inverter)

• Roof Mounting: Complete Iron Ridge Roof Mount Kit (Rails, Splices, L-Feet, Fasteners, Bolts)

• Tools: MC4 Crimper Tool Set

• Solar Wire: 500' PV Direct Burial 10AWG Wire

• AC Cabling: 100' AC Output/Input/Generator Cable – 6 AWG

Features

• Bifacial Double-Glass Panels: Capture up to 25% more energy via rear-side illumination

• Enhanced Low-Light Output: Increased performance on cloudy, hazy, or early-morning days

• Heavy-Duty Build: Rated for 5400 Pa snow load and 2400 Pa wind load

• Long-Term Warranty: 30-year power warranty on solar panels

• Fully Expandable: Add extra batteries or solar panels as your energy demands grow

• Off-Grid Optimization: Perfect for remote sites, cabins, shops, and RV installations

Inverter Specifications

• MPPT Charge Controller: Built-in, 5500W PV rated input

• Max PV Current: 22A

• MPPT Range: 125–450V DC

• AC Output: 5500W Pure Sine Wave

• Parallel Capability: Supports up to 6 units

• Input Compatibility: Grid/Generator 90–140VAC, 63A bypass

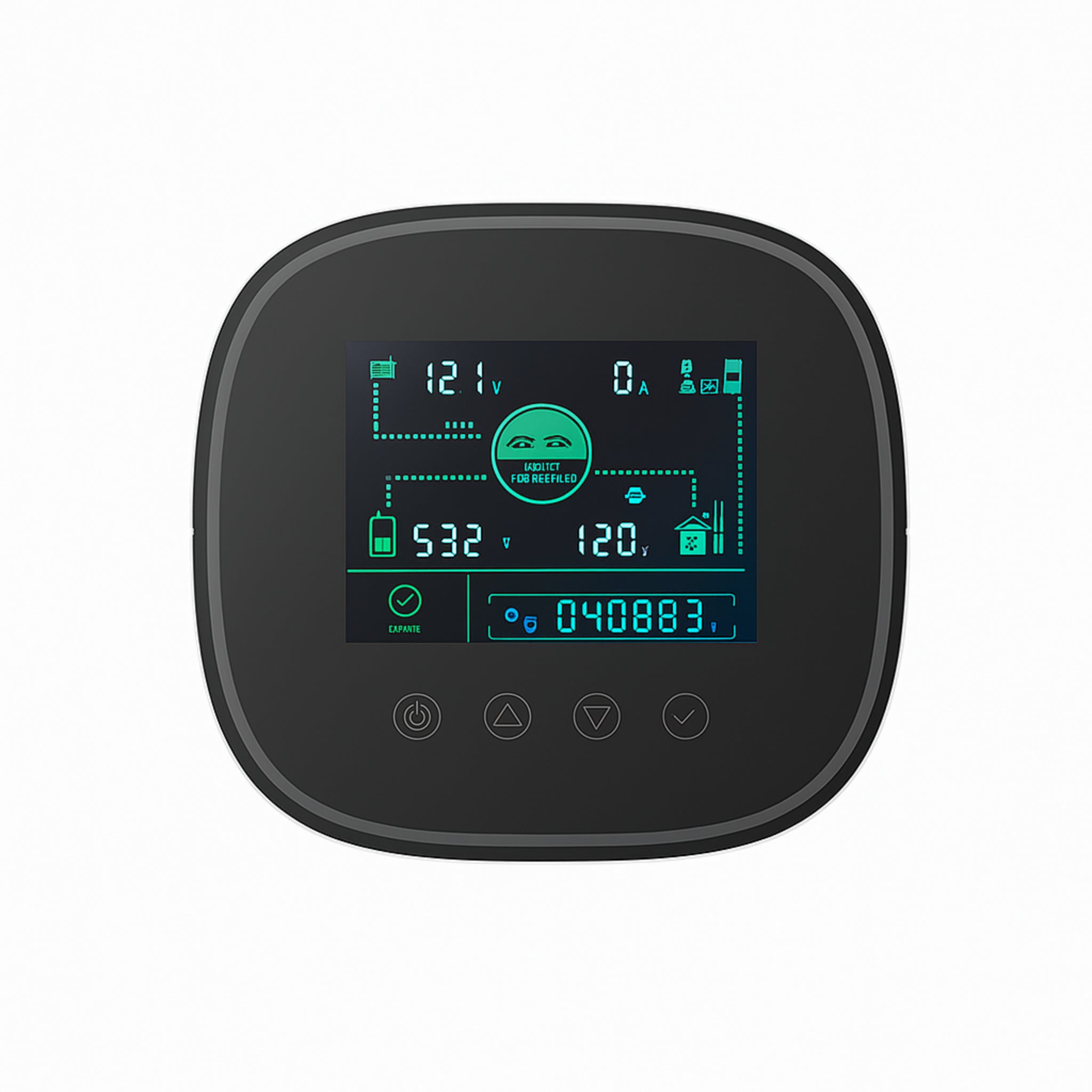

• Monitoring: WiFi & Bluetooth connectivity

Inverter Specification Sheet

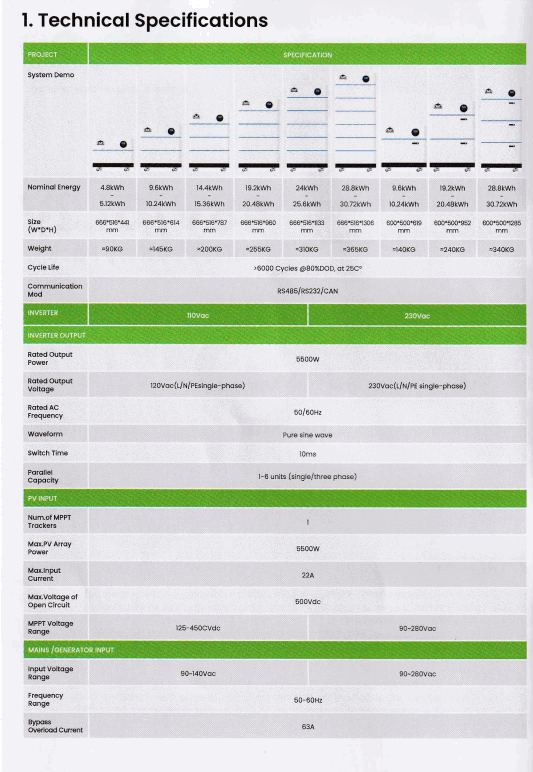

Battery Specification Sheet

Maintenance

• Daily: Review inverter status and ensure proper charge flow

• Monthly: Clean panel surfaces and inspect cables

• Annually: Check all wiring, connections, mounts, and system integrity

Warranty

• Solar Panels: 30-year power warranty

• Inverter & Batteries: Refer to product specification sheets for full warranty details
