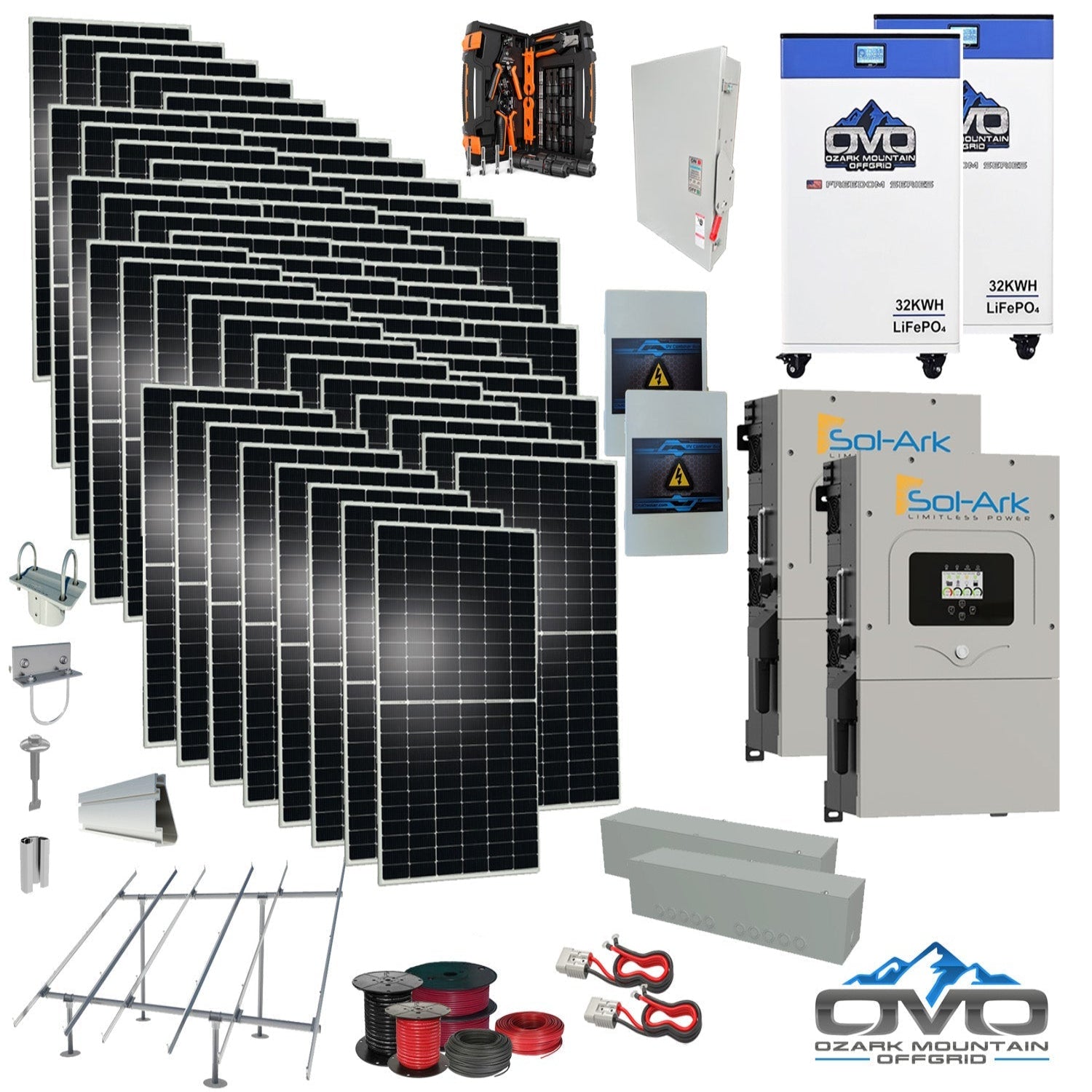

30KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +30.8KW Solar with Ground Mount and Wiring includes dual Sol-Ark 15K inverters, two 32kWh OMO 48V Freedom Series lithium batteries, and a massive 30.8KW bifacial solar array with ground mount. Designed for full off-grid homes, farms, and large properties, this system produces approximately 138,600 watts per day based on 4.5 hours of sunlight. It supports energy usage of around 4,158 kWh per month and is fully scalable for future expansion with additional batteries or solar panels. The included lithium battery bank offers 64kWh of reliable, long-lasting storage capacity.

Specifications

• Solar Panels: 56× 550W Bifacial Mono Panels (30,800W array)

• Inverters: 2× Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (48V with built-in MPPT controllers)

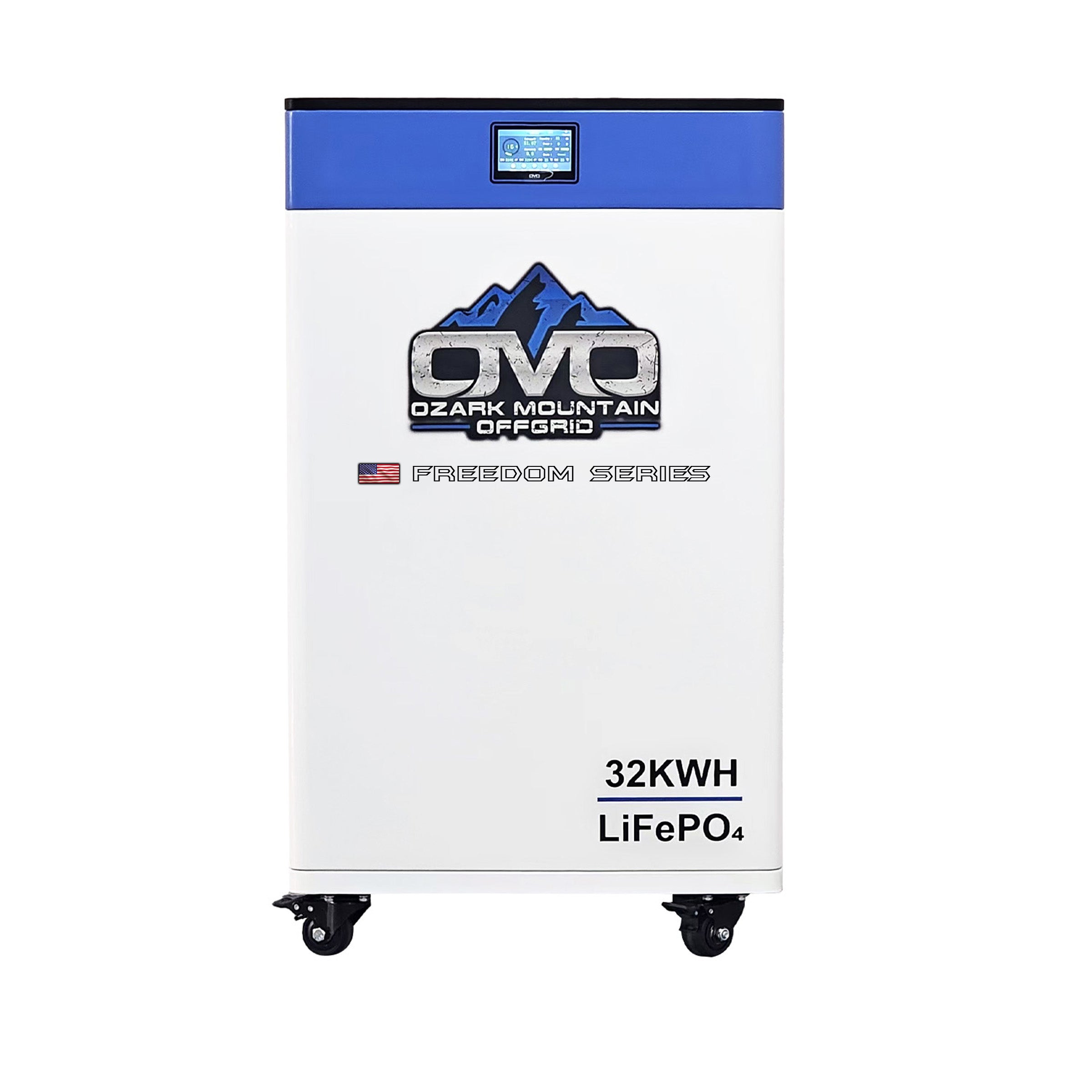

• Batteries: 2× OMO 32kWh 48V Freedom Series Heated Lithium Batteries w/ Bluetooth + LCD

• Ground Mount: Complete Iron Ridge Ground Mount Kit (Rails, Top Caps, Rail Connectors, Fasteners, Bolts)

• Combiner Boxes: 2× Solar PV Combiner Boxes

• Solar Array Cabling: 500' Spool of 10AWG MC4 Solar Wire

• Tools: MC4 Crimper Tool Set

• AC Cabling: 100' Spool of 6AWG AC Output/Input/Generator Cable

• Main Line Cable: 20' Spool of 2/0 AC Main Line

• Gutter Boxes: 2× Wire Gutter Boxes

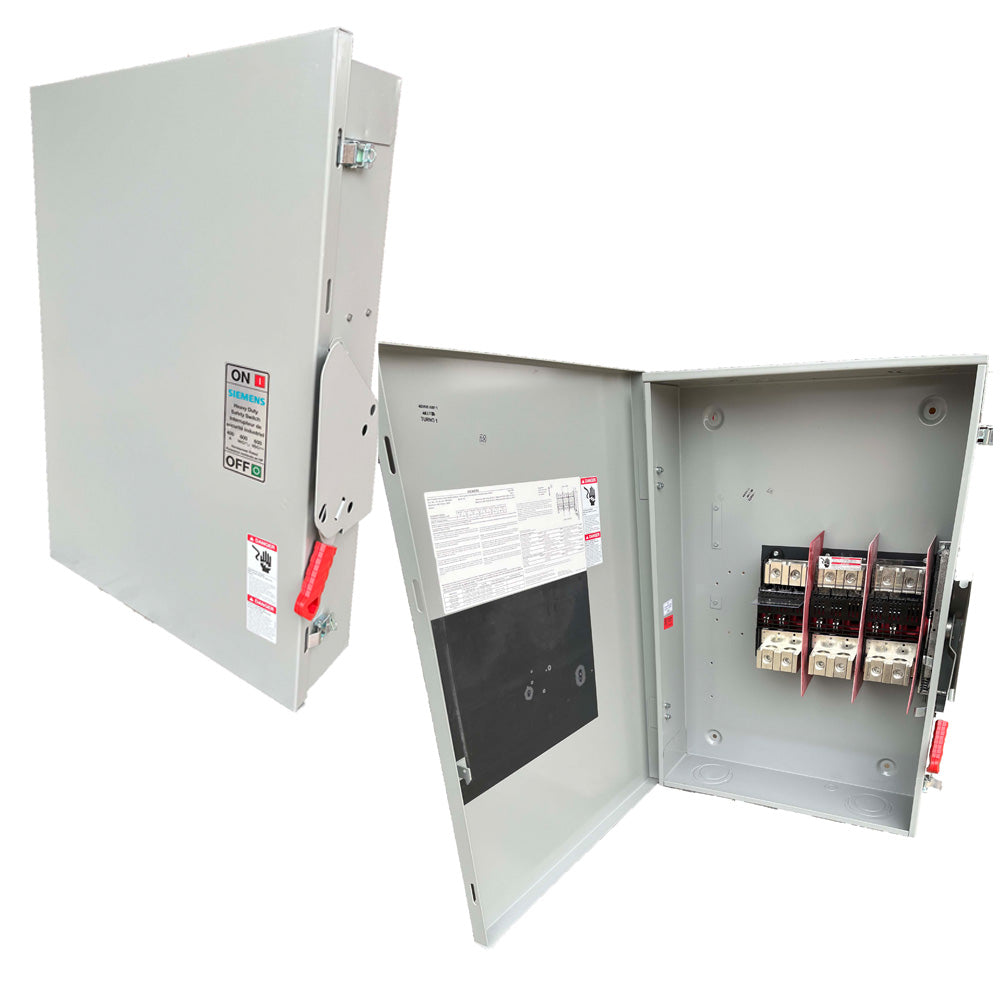

• AC Combiner Kit: AC Combiner Box Kit for 2+ Sol-Ark units

• Battery Connection: 2× Anderson Plug Battery Cable Sets

• Documentation: Installation Manual Included

Features

• High-Output Solar Array: 30.8KW array generating ~138.6kWh/day

• Bifacial Double-Glass Panels: Up to 25% rear-side energy gain for superior performance

• Enhanced Durability: Rated 5400 Pa snow load & 2400 Pa wind load

• Large-Scale Storage: 64kWh total lithium storage capacity

• Scalable System: Easily expand with additional batteries or solar panels

• Ground Mount Architecture: Built on 3" Schedule-40 pipe (customer sources pipe locally)

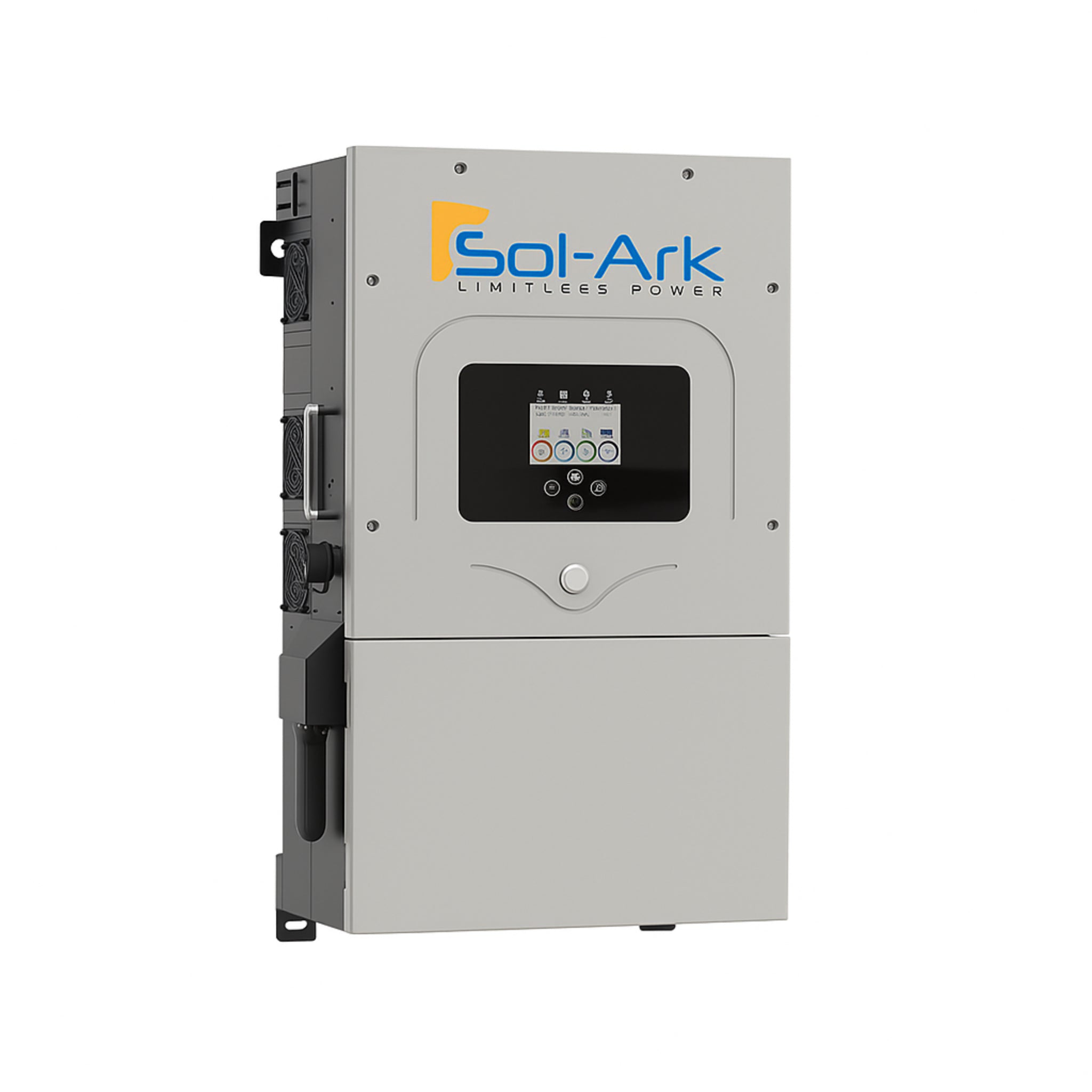

Sol-Ark 15K Inverter Specifications

• Output: 120/240V Split Phase

• Battery Compatibility: Supports 48V Lithium or Flooded Lead Acid

• Operating Modes: Grid-Tie or Off-Grid

• Charge Controller: Built-in MPPT with 3× MPPT Inputs

• Generator Support: Integrated

• Display: LCD Touch Screen

• Connectivity: Built-in WiFi

• Design: DC Transformerless Architecture

• Efficiency: 97.5% Inverter Efficiency

• Outdoor Rating: NEMA 3R (Outdoor Approved)

• Warranty: 10-Year Manufacturer Warranty

• Parallel Capability: Stack up to 8 Units

• Transfer Time: 4ms Battery-to-Grid Transfer

Battery Specification Sheet

These bifacial solar panels deliver high output even in weak light such as cloudy or early-morning conditions. They include a 30-year power warranty and are engineered for harsh weather.
