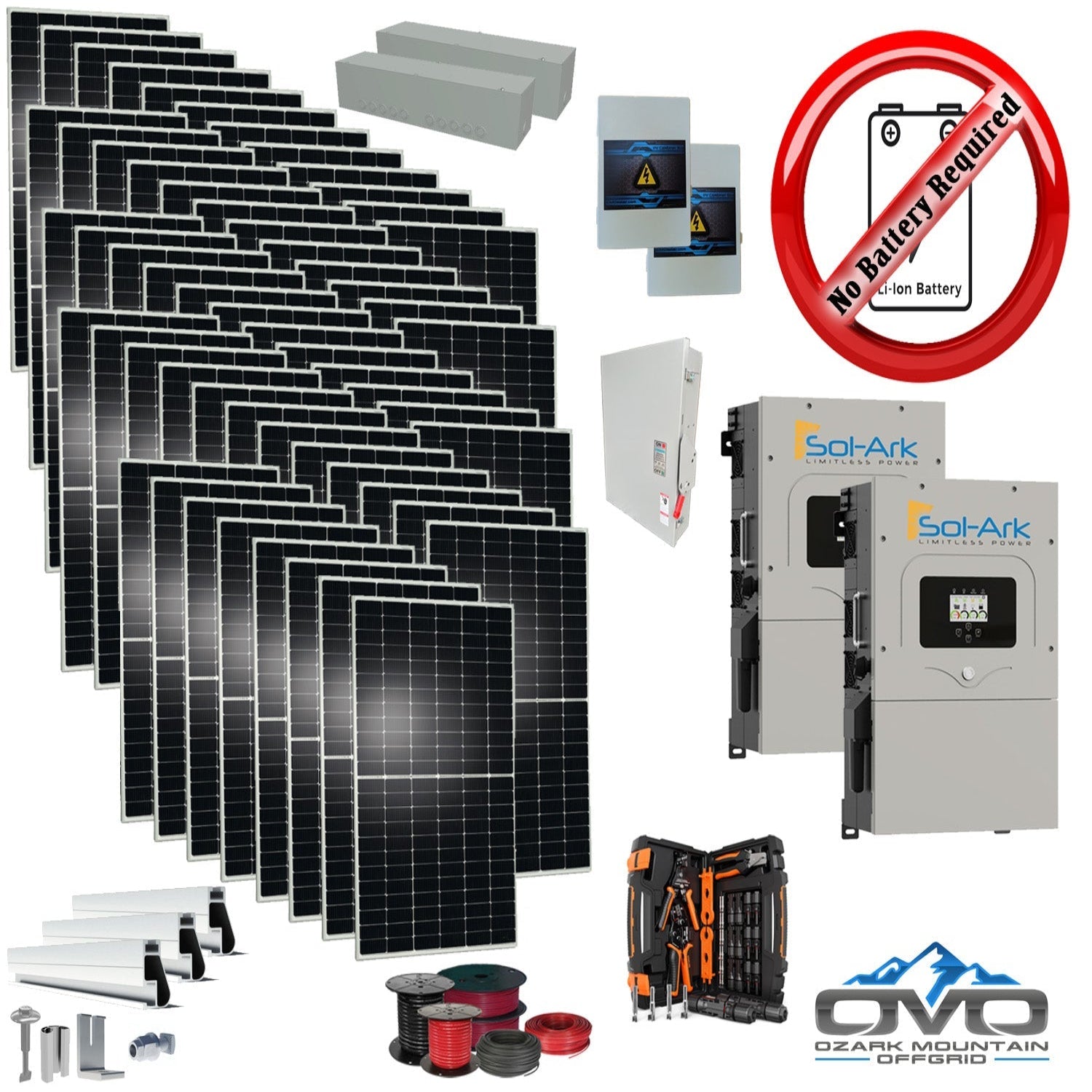

30KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter +30.8KW Solar with Mounting Rails and Wiring

The 30KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter +30.8KW Solar with Mounting Rails and Wiring is engineered for large homes, farms, and high-demand off-grid properties requiring powerful, reliable, and expandable energy production. Delivering approximately 138,600 watts per day based on 4.5 sunlight hours, this system supports properties consuming around 4,158 kWh per month.

The system can run without a battery, with the option to add a 48V battery bank anytime thanks to the Sol-Ark’s flexible hybrid design. This makes the kit ideal for long-term expansion, resilience, and future energy upgrades.

Specifications

• Solar Panels: 56× 550W Bifacial Mono Panels (30,800W array)

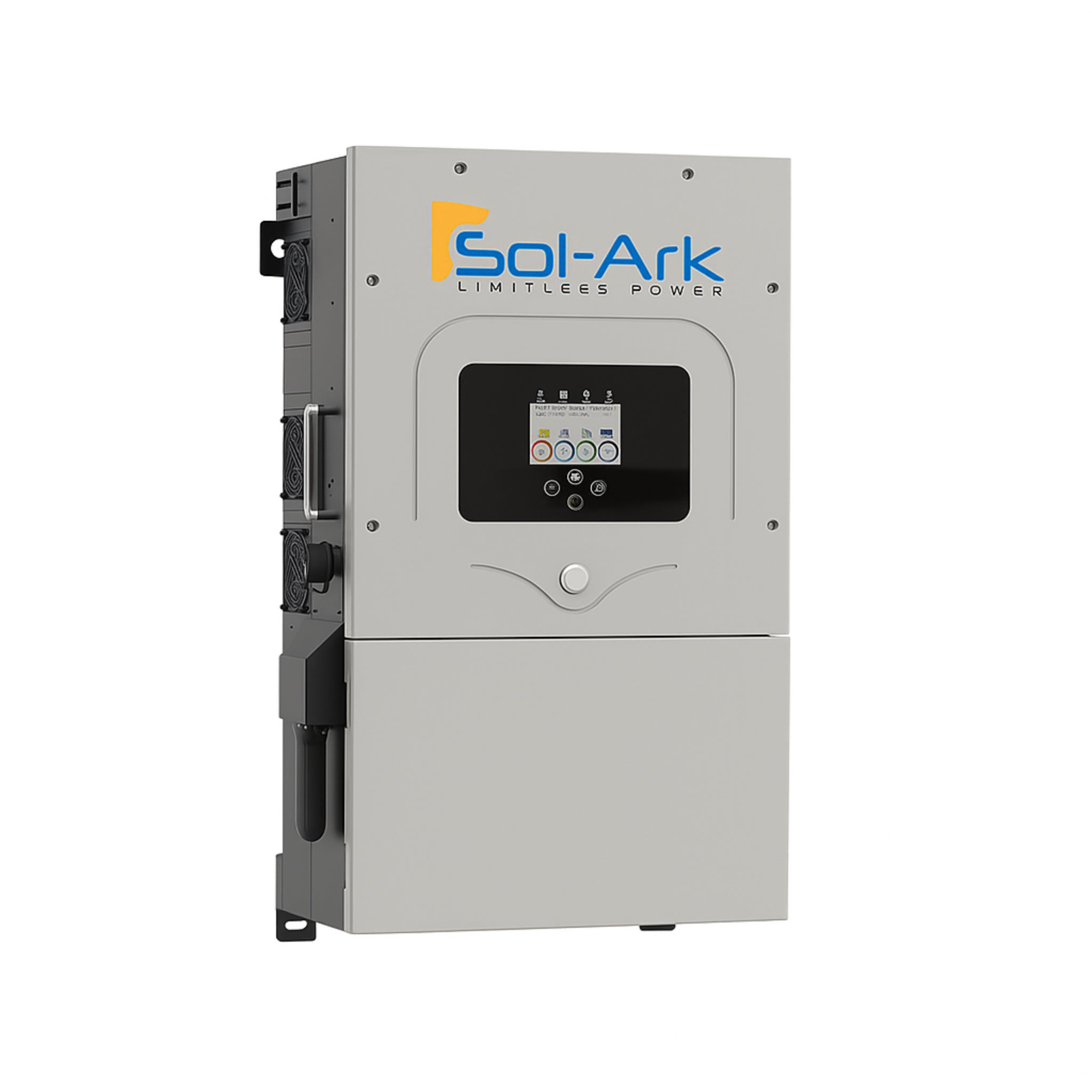

• Inverters: 2× Sol-Ark 15K Hybrid/Off-Grid All-In-One Inverters (48V with built-in MPPT controllers)

• Mounting Hardware: Iron Ridge Mounting Rails, Splices, Legs, Fasteners & Bolts (Mill Finish)

• Combiner Boxes: 2× Solar PV Combiner Boxes

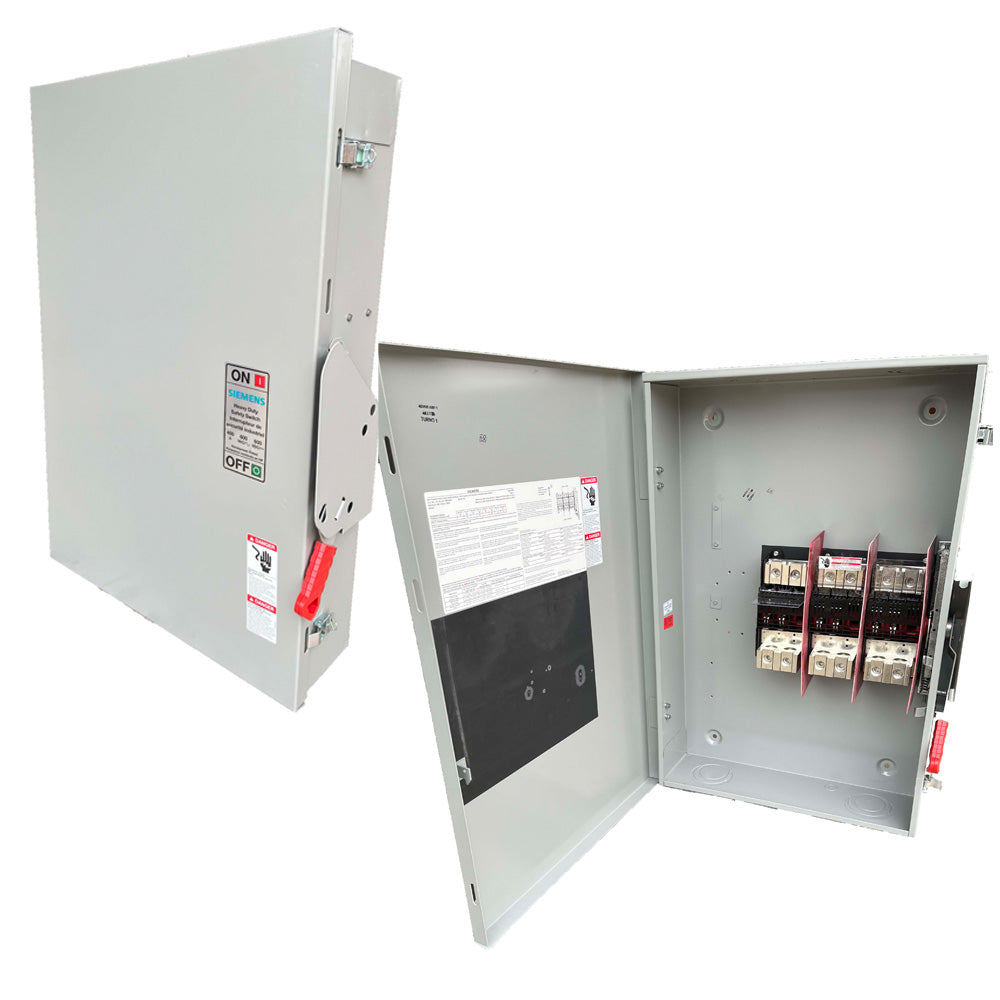

• Wiring & Tools: • 500' Spool 10AWG MC4 Solar Cabling • MC4 Crimper Tool • 100' Spool 6AWG AC Output/Input/Generator Cable • 20' Spool 2/0 AC Main Line • 2× Wire Gutter Boxes • AC Combiner Box Kit (for 2+ Sol-Ark units) • Installation Manual

Features

• Bifacial Double-Glass Panels: Up to 25% additional energy harvested from rear-side reflection

• Enhanced Low-Light Output: Superior performance during cloudy, hazy, or early-morning conditions

• Extreme Weather Rated: 5400 Pa snow load & 2400 Pa wind load for harsh environments

• Long Warranty: 30-year solar panel power warranty

• Battery-Ready: System runs with or without batteries; add 48V storage anytime

• Installation Option: Professional installation available—contact for custom pricing

Maintenance

• Daily: General panel and equipment inspection once installed

• Weekly: Check wiring runs and mounting hardware for debris or obstruction

• Annually: Inspect rails, panels, grounding, wire tension, and inverter firmware updates

Warranty

• Panels: 30-Year Power Warranty

• Sol-Ark Inverters: 10-Year Warranty
