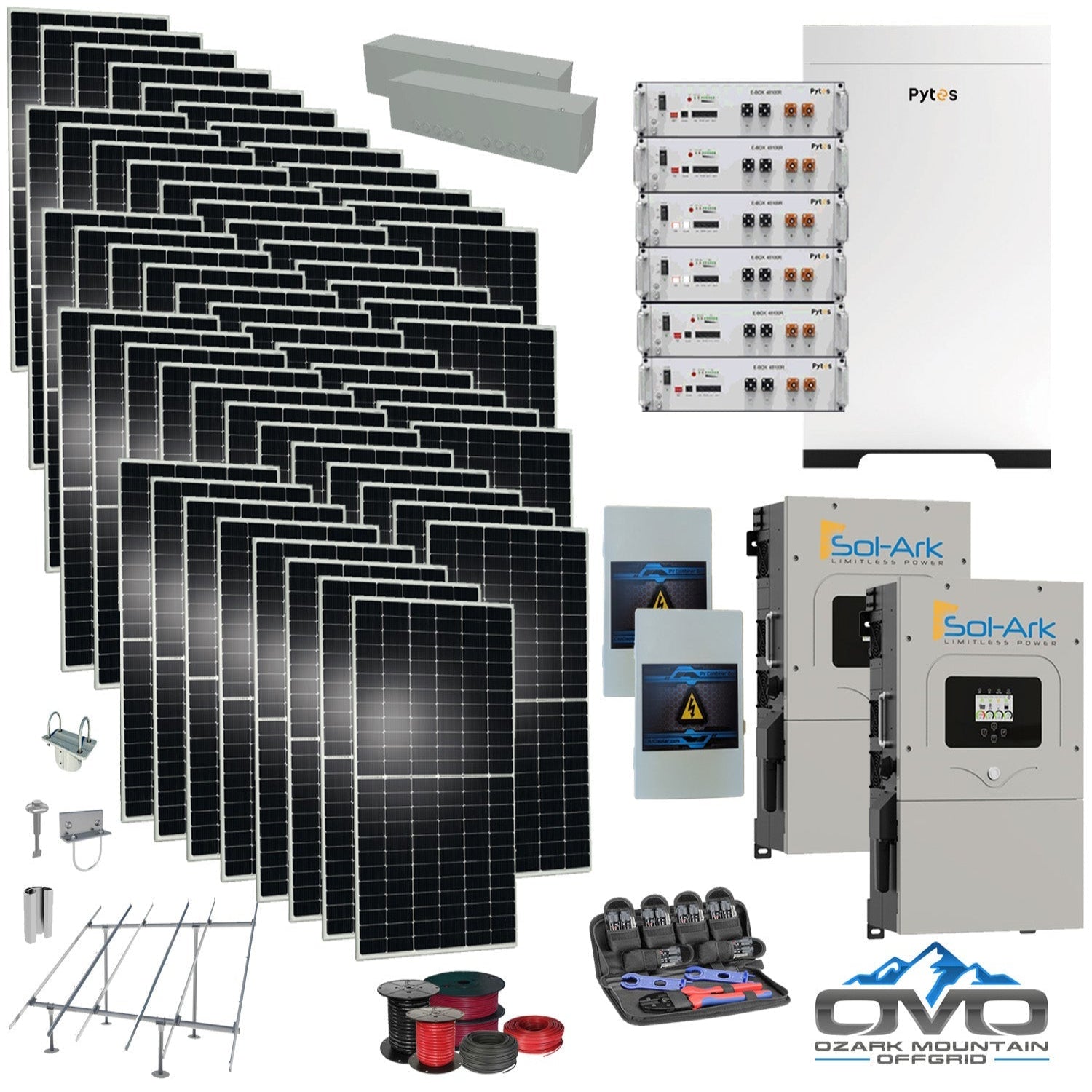

30KW Complete Offgrid Solar Kit - 30.72KW Pytes Lithium Battery +2x 15K Sol Ark Inverter +30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit - 30.72KW Pytes Lithium Battery +2x 15K Sol Ark Inverter +30.8KW Solar with Ground Mount and Wiring is designed for full off-grid living in large homes, farms, and high-demand properties. This system includes a robust 30.72kWh Pytes lithium battery bank, a powerful 30.8KW bifacial solar array, and dual Sol-Ark 15K hybrid/off-grid inverters. Producing up to 138,600 watts per day based on 4.5 peak sun hours, this kit is ideal for properties using around 4,158kWh per month. The system is fully expandable, allowing future additions of batteries or solar panels.

Specifications

• Solar Array: 56 × 550W bifacial mono panels (30,800W total)

• Inverters: 2 × Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (with built-in MPPT charge controllers)

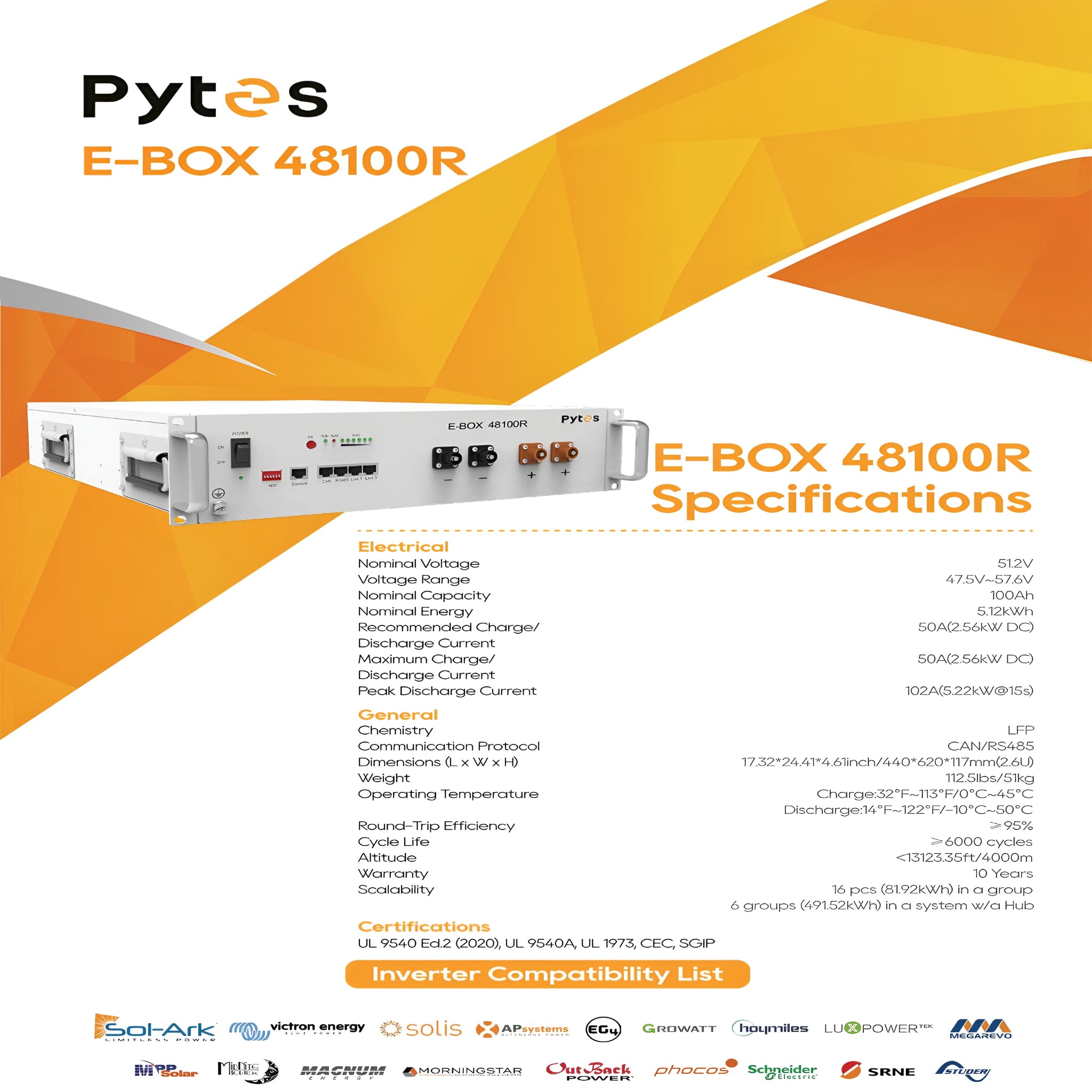

• Battery Bank: 6 × 5.12kWh Pytes E-Box 48100 Lithium Batteries (30.72kWh total) + Pytes Forest-RB enclosure

• Mounting System: Complete IronRidge GROUND mount rails, top caps, connectors, fasteners, and bolts (3" pipe supplied locally)

• Balance of System: 2 × PV combiner boxes, 500' 10AWG solar cable, 100' 6AWG AC cable, 20' 2/0 AC main line, 2 gutter boxes, Sol-Ark AC combiner kit, battery cable set, MC4 crimp kit, installation manual

Features

• Bifacial Solar Panels: Double-glass panels harvest up to 25% more rear-side energy and perform exceptionally well in cloudy or low-light conditions

• Durability: Rated for 5400 Pa snow load and 2400 Pa wind load; backed by a 30-year power warranty

• Sol-Ark Features: 120/240V split-phase output, generator support, 3× MPPT inputs, WiFi monitoring, LCD touchscreen, and 97.5% efficiency

• System Expandability: Inverters parallel stack up to 8 units; battery capacity can expand with additional Pytes modules

• Supports Major Household Loads: Ideal for wells, refrigerators, freezers, lighting, electronics, washers, fans, TVs, and small AC systems

• Fast Transfer Time: 4ms switch-over from batteries to grid or generator

Maintenance

• Daily: Ensure solar panels remain unobstructed; check inverter status screen

• Weekly: Inspect battery readings and verify system cabling

• Annually: Clean panels, tighten hardware, inspect wiring, and run a full system performance test

Warranty

• Sol-Ark Inverters: 10 years

• Solar Panels: 30-year power warranty
