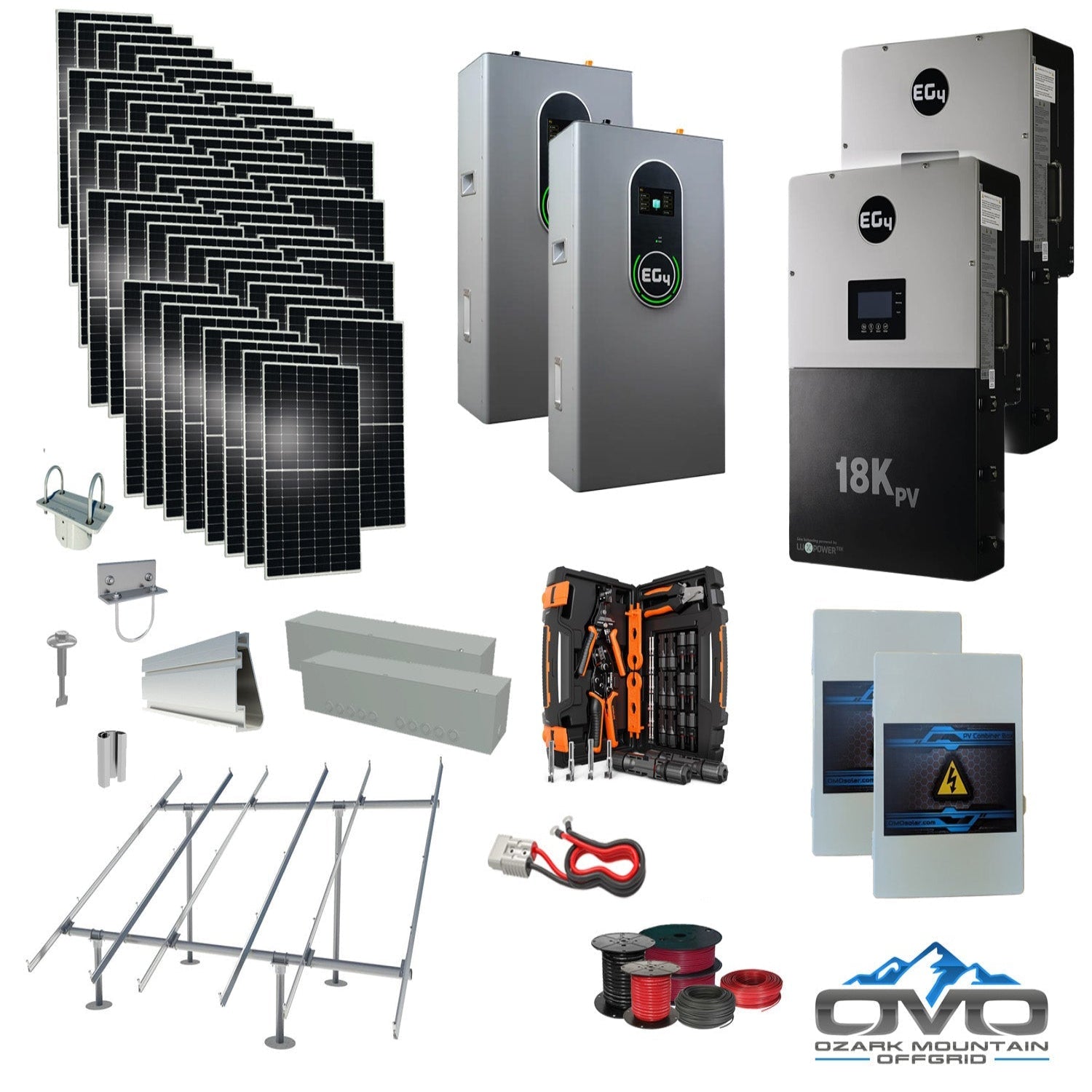

30KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 14.3KW 48V EG4 Lithium Indoor Wall Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 14.3KW 48V EG4 Lithium Indoor Wall Battery + 30.8KW Solar with Ground Mount and Wiring pairs dual EG4 18kPV hybrid inverters with two 14.3kWh 48V EG4 Lithium Indoor Wall Batteries (28.6kWh total) and a high-output 30.8KW bifacial solar array on an IronRidge ground-mount. Designed for full off-grid homes and farms, it produces about 138,600 watts (≈138.6 kWh) per day based on 4.5 peak-sun hours and supports usage around 4,158 kWh per month. The system is expandable, and the EG4 platform lets you grow with additional panels or storage over time.

Specifications

• Solar Panels: 56× 550W bifacial mono modules (30,800W array)

• Inverters: 2× EG4 18kPV 48V split-phase hybrid inverter/chargers (built-in MPPT)

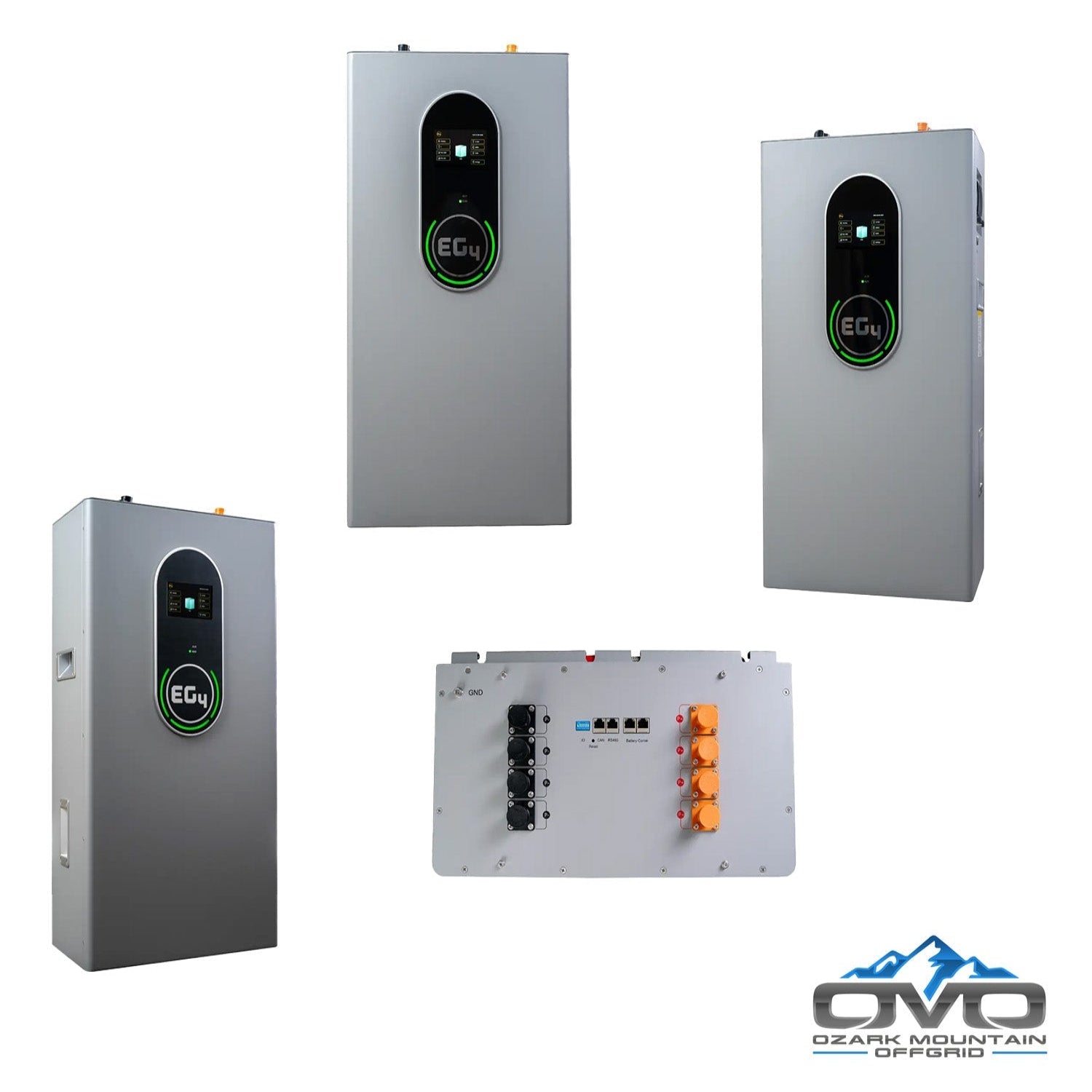

• Batteries: 2× 14.3kWh 48V EG4 Lithium Indoor Wall Batteries (28.6kWh total)

• Ground Mount: IronRidge rails, top caps, rail connectors, fasteners & bolts (3" SCH 40 pipe sourced locally)

• Balance of System: 2× solar combiner boxes; 2× gutter boxes; 2× AC combiner box kits; 1× Anderson plug battery cable set; 500' PV direct-burial solar wire; 100' 6AWG AC output/input/generator cable; 20' 2/0 AC main line; MC4 crimp kit; Installation manual

Features

• Bifacial Double-Glass Panels: Rear-side energy harvest up to 25% for higher yield

• Low-Light Performance: Improved output in cloudy, hazy, and early-morning conditions

• Durability: 5400 Pa snow load & 2400 Pa wind load ratings

• Expandable System: Add panels or 48V storage as needs grow

• Appliance-Ready: Supports common household loads (well pump, washer, fans, TVs, lights, refrigerator/freezer, small A/C)

• Ground-Mount Build: Engineered around a 3" pipe system; customer supplies pipe locally

Maintenance

• Daily: Check inverter status and glance at battery/SOC and array production

• Monthly: Rinse panels if dirty; inspect visible wiring, combiner boxes, and terminations

• Annually: Re-torque mechanical mounts, test breakers/fuses, and review firmware updates

Warranty

• Panels: 30-year power warranty

• Inverters & Batteries: See component documentation/spec sheets for full warranty terms
