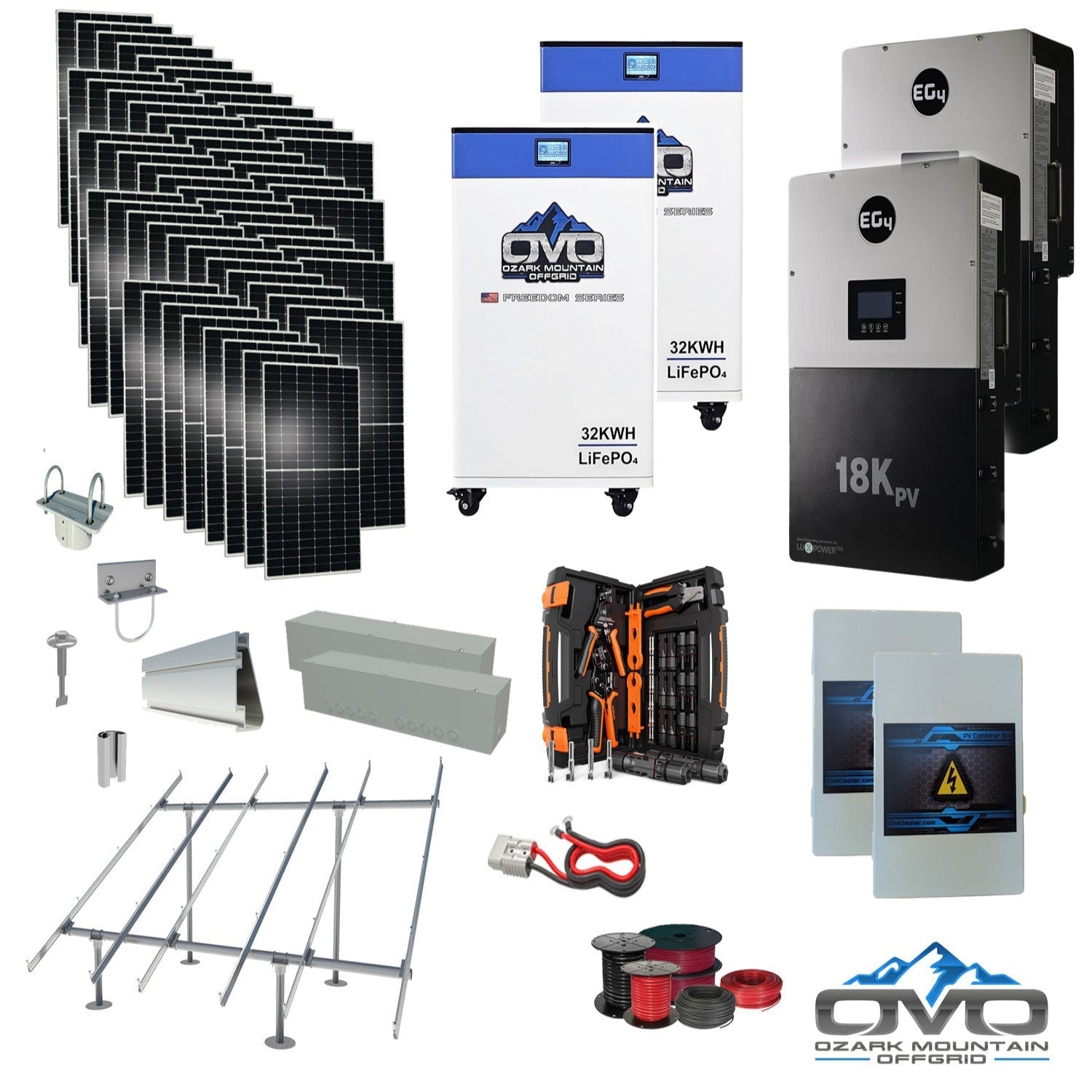

30KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 18kPV + 2x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring combines powerful EG4 18kPV hybrid inverter/chargers, two massive 32kWh OMO 48V Freedom Series heated lithium batteries (64kWh total usable storage), and a high-production 30.8KW bifacial solar array. Designed for full off-grid living, this system generates approximately 138,600 watts (≈138.6kWh) per day based on 4.5 peak-sun hours—ideal for large homes, farms, and properties using around 4,158 kWh per month. The system is fully scalable for future expansion with additional panels or batteries.

Specifications

• Solar Array: 56× 550W bifacial mono solar panels (30,800W total array)

• Inverters: 2× EG4 18kPV 48V split-phase hybrid inverter/chargers

• Battery Bank: 2× OMO 32kWh 48V Freedom Series heated batteries with Bluetooth and LCD monitoring (64kWh usable)

• Mounting System: IronRidge ground-mount rails, top caps, connectors, fasteners & bolts (3" SCH 40 pipe supplied by customer)

• Balance of System: 2× solar combiner boxes, 2× gutter boxes, 1× Anderson plug battery cable set, 500' PV direct-burial solar wire, 100' 6AWG AC cable, 20' 2/0 AC main line, 2× AC combiner box kits, MC4 crimp kit, Installation manual

Features

• Bifacial Solar Panels: Double-glass panels generate up to 25% additional rear-side power

• Enhanced Low-Light Output: Superior production during cloudy, hazy, and early-morning sunlight

• Extreme Durability: 5400 Pa snow load & 2400 Pa wind load; 30-year panel performance warranty

• Appliance Support: Runs wells, washers, fans, TVs, lighting, refrigerators, freezers, electronics, and small AC systems

• System Sizing Guidance: Avg. U.S. home uses 877kWh/month—kits expand easily to meet higher needs

• DIY Installation: Homeowners with basic wiring knowledge can install; racking is typically the most labor-intensive step

Maintenance

• Daily: Check inverter screens, battery levels, and system status

• Monthly: Inspect wiring, tighten mounts, and clean panel surfaces as needed

• Annually: Full system inspection, re-torque hardware, update inverter firmware, and verify battery health readings

Warranty

• Solar Panels: 30-year performance warranty

• Batteries & Inverters: Covered under EG4 and OMO manufacturer warranties (spec sheets included)
