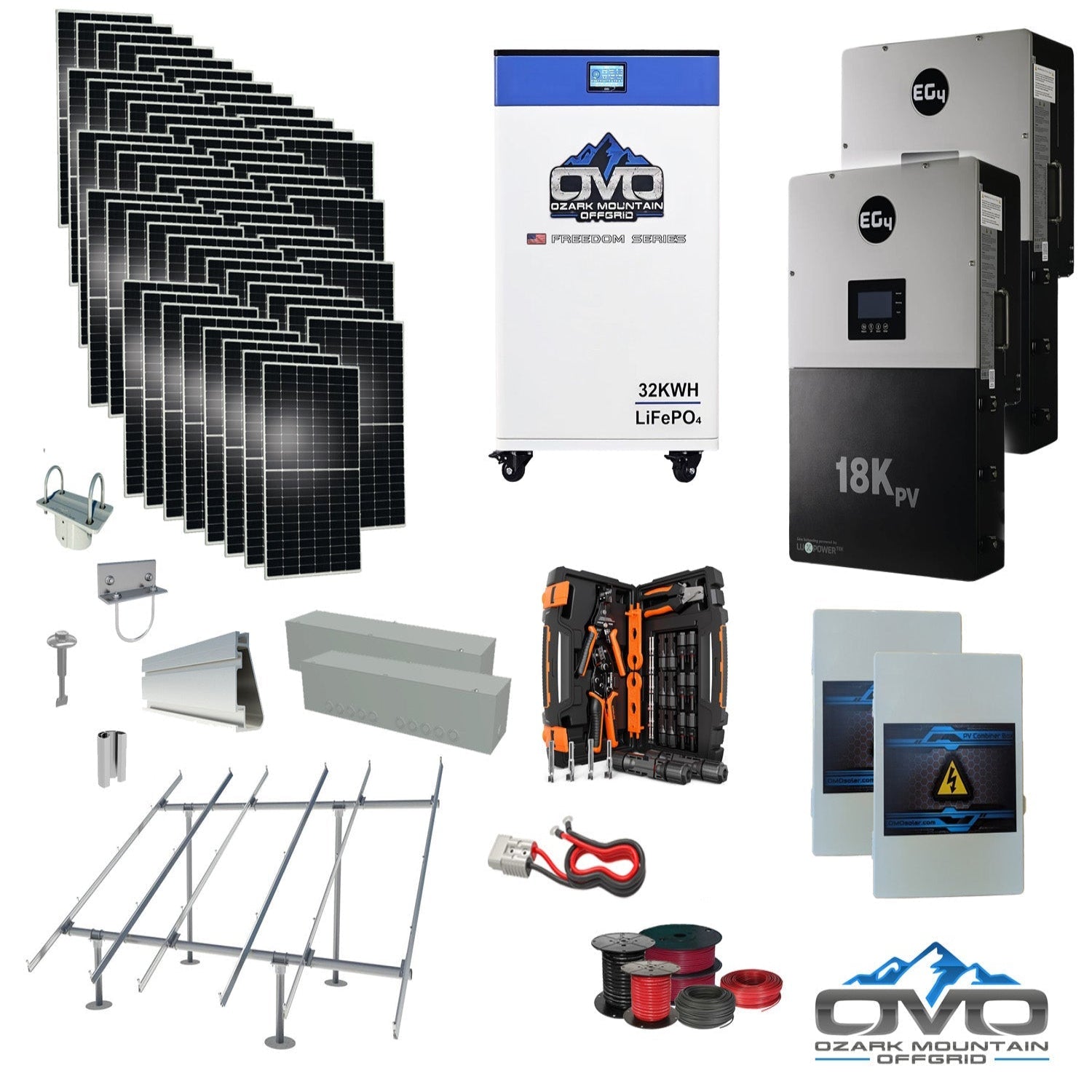

30KW Complete Offgrid Solar Kit + EG4 18kPV + 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 18kPV + 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring is engineered for full off-grid living. It pairs dual EG4 18kPV hybrid inverter/chargers with one 32kWh OMO 48V Freedom Series heated lithium battery and a 30.8KW bifacial solar array. Expect about 138,600 watts (≈138.6kWh) per day based on 4.5 peak-sun hours—well-suited for large homes and farms using around 4,158 kWh per month. The system is designed to scale with additional panels or batteries as your needs grow.

Specifications

• Solar Array: 56× 550W bifacial mono panels (30,800W total)

• Inverters: 2× EG4 18kPV, 48V split-phase hybrid inverter/chargers

• Battery Bank: 1× OMO 32kWh 48V Freedom Series heated battery with Bluetooth & LCD (32kWh usable)

• Ground Mount: IronRidge rails, top caps, connectors, fasteners & bolts (customer supplies 3" SCH 40 pipe locally)

• Balance of System: 2× solar combiner boxes; 2× gutter boxes; Anderson battery cable set; 500' PV direct-burial wire; 100' 6 AWG AC cable; 20' 2/0 AC main line; 2× AC combiner box kits; MC4 crimp kit; installation manual

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side energy gain with excellent performance in diffuse light

• High Weather Ratings: 5400 Pa snow load & 2400 Pa wind load; 30-year panel power warranty

• Appliance Coverage: Runs wells, washers, fans, TVs, lights, refrigerators, freezers, electronics & small AC systems

• Energy Planning: U.S. average is ~877 kWh/month; this kit is expandable to meet higher demands

• DIY Friendly: Suitable for homeowners with basic wiring skills; racking is typically the most labor-intensive step

Maintenance

• Daily: Monitor inverter status and battery readings

• Monthly: Inspect mounts and visible wiring; clean panel surfaces as needed

• Annually: Full system check, hardware re-torque, firmware updates, and battery health verification

Warranty

• Solar Panels: 30-year performance warranty

• Battery & Inverters: Manufacturer warranties per EG4 and OMO documentation (Battery Specification Sheet)
