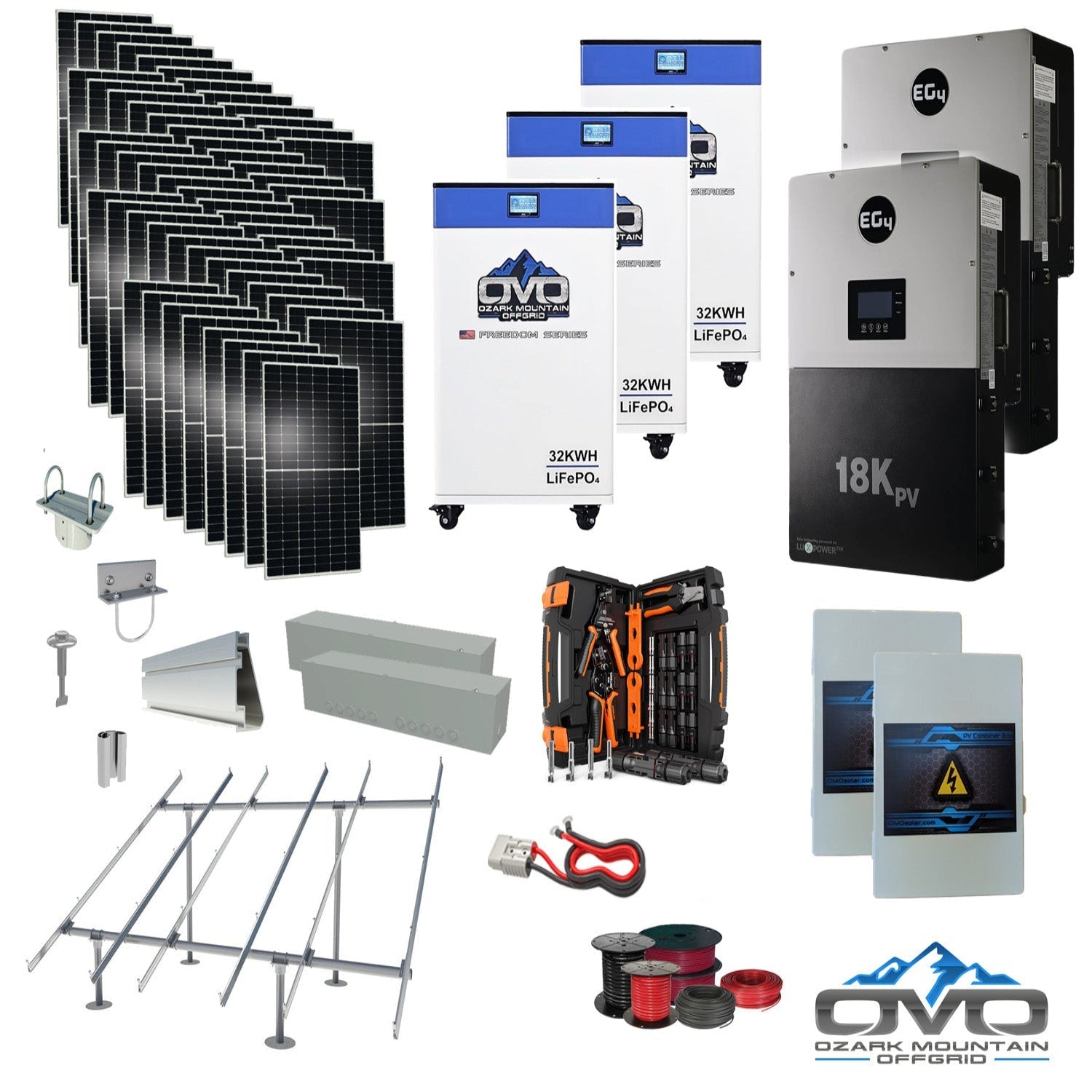

30KW Complete Offgrid Solar Kit + EG4 18kPV + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 18kPV + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring is engineered for full off-grid homes that demand maximum energy storage and high output. This upgraded configuration includes 96,000 watts (96 kWh) of usable lithium storage and a powerful 30.8KW bifacial solar array, capable of producing approximately 138,600 watts (≈138.6 kWh) per day based on 4.5 sun hours. This system is ideal for large homes, farms, or properties consuming around 4,158 kWh per month and is fully expandable for future battery or solar additions.

Specifications

• Solar Array: 56× 550W bifacial mono panels (30,800W total)

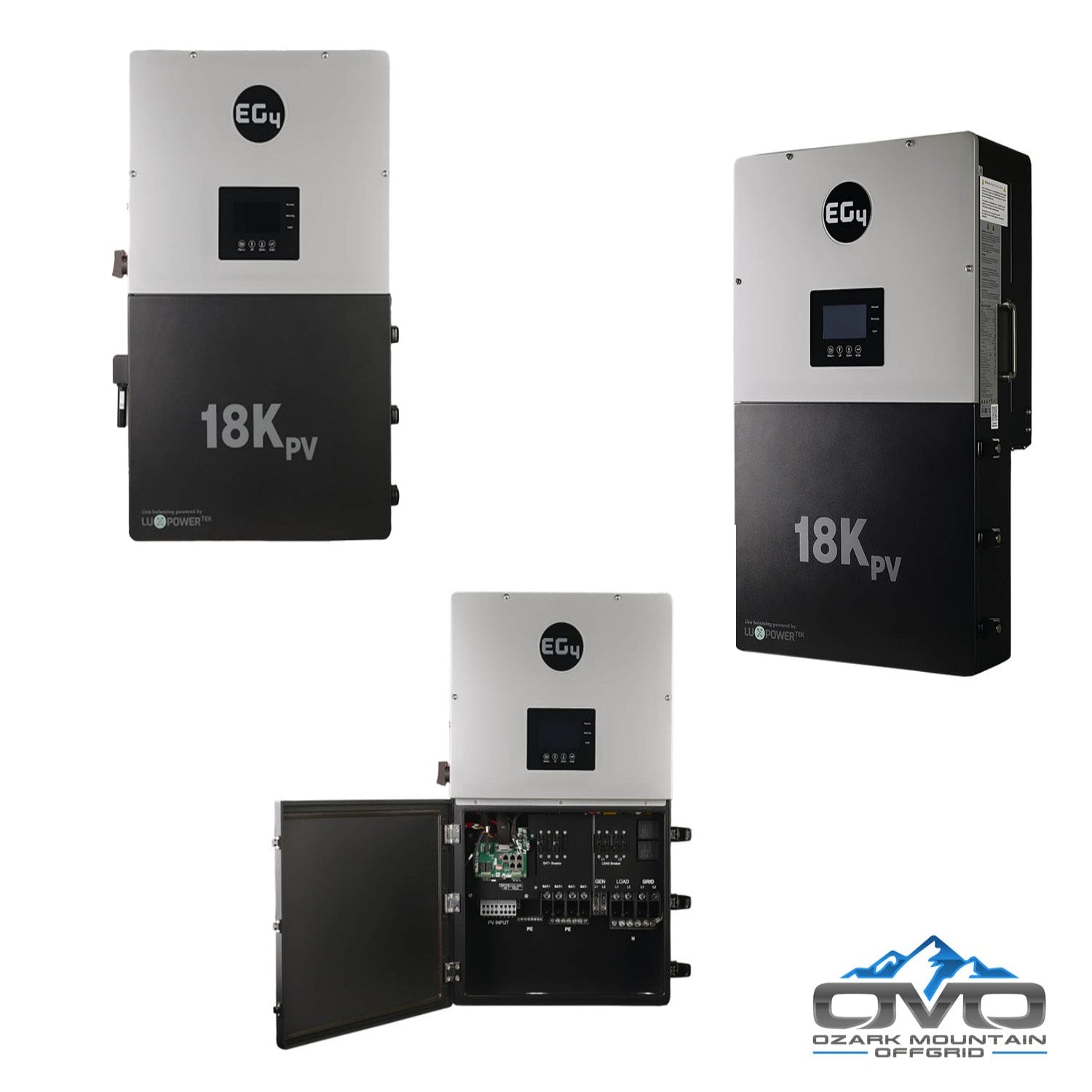

• Inverters: 2× EG4 18kPV 48V split-phase hybrid inverter/chargers

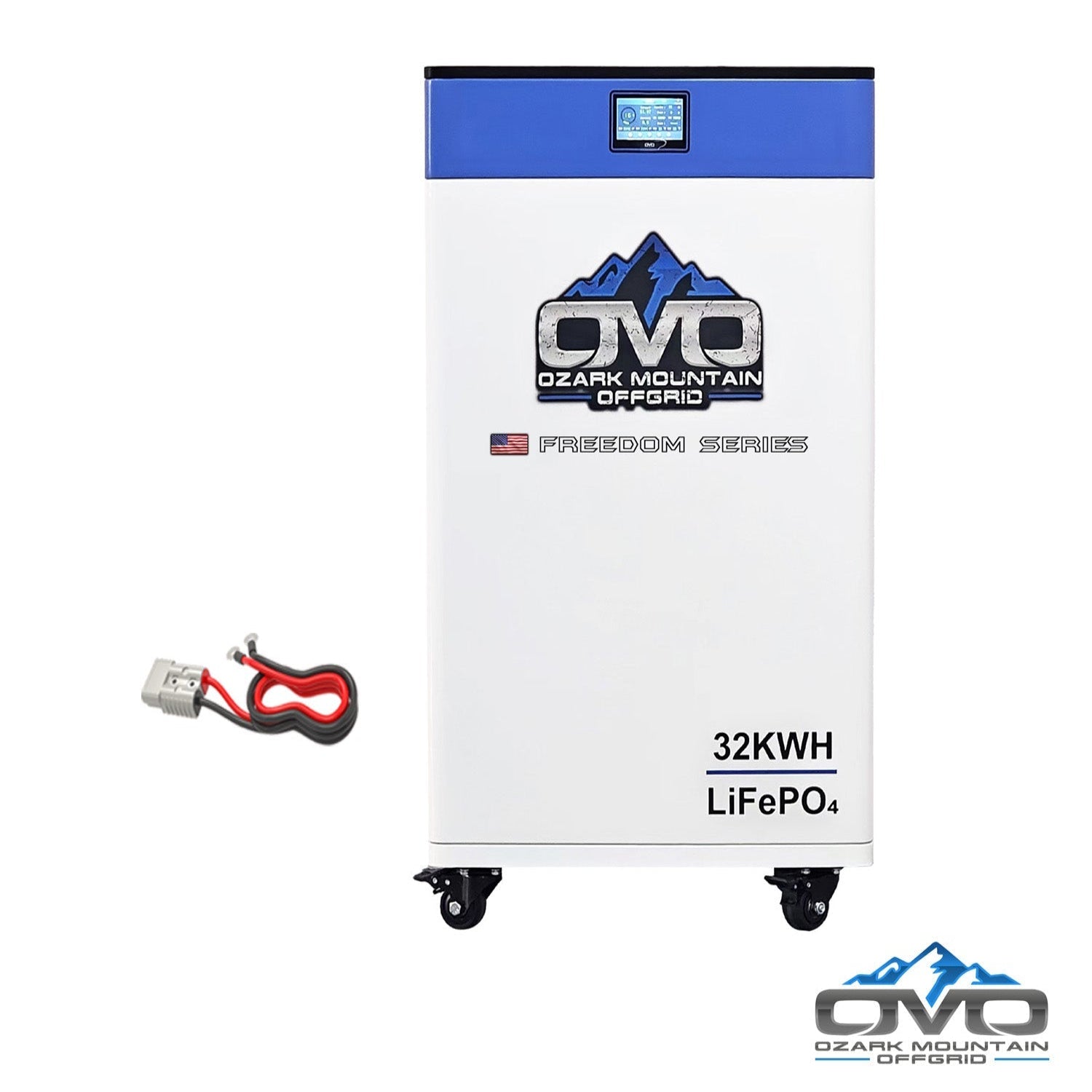

• Battery Bank: 3× OMO 32kWh Freedom Series heated lithium batteries with Bluetooth monitoring & LCD display (96 kWh total)

• Ground Mount: Complete IronRidge ground-mount system (rails, top caps, connectors, fasteners). Customer sources 3" SCH40 pipe locally.

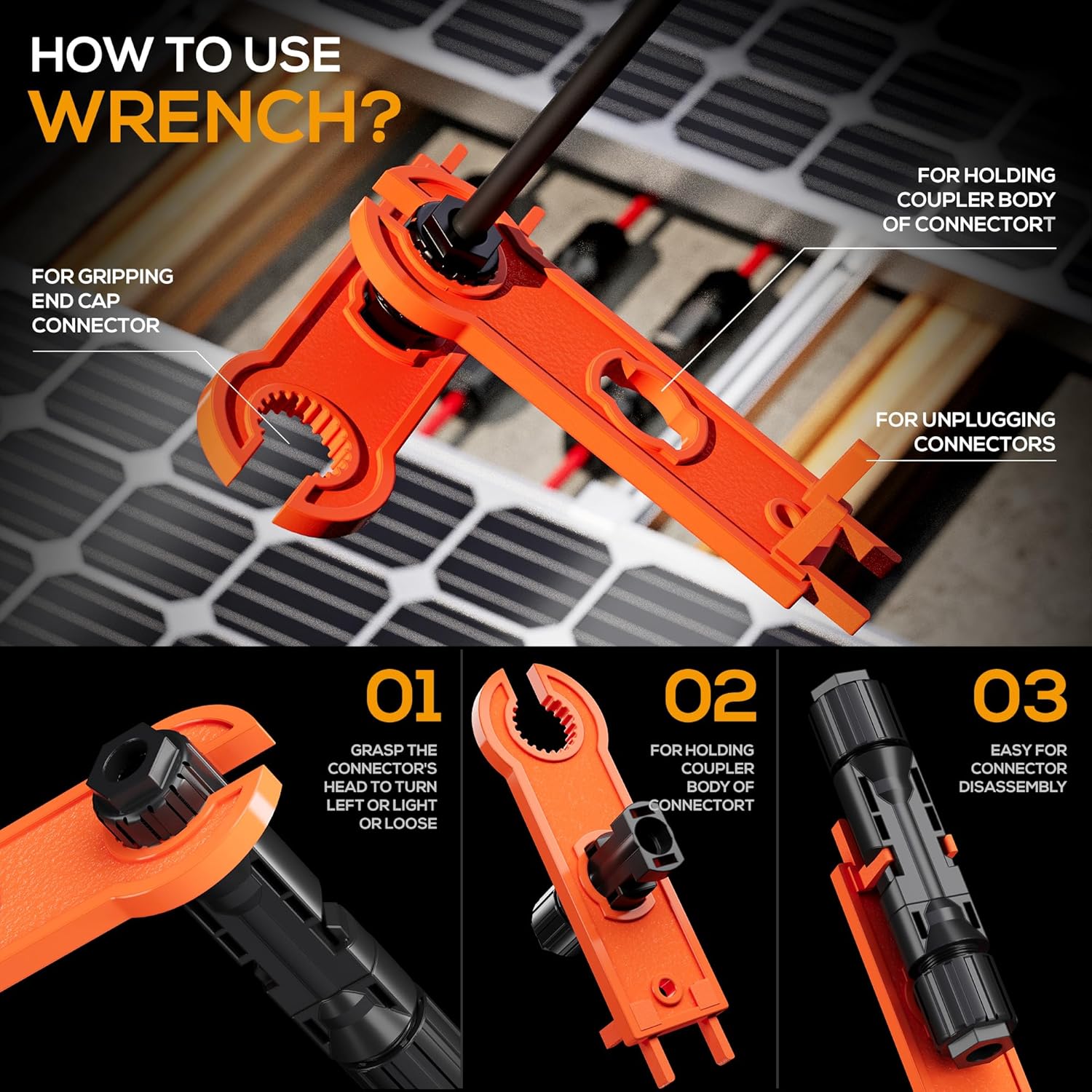

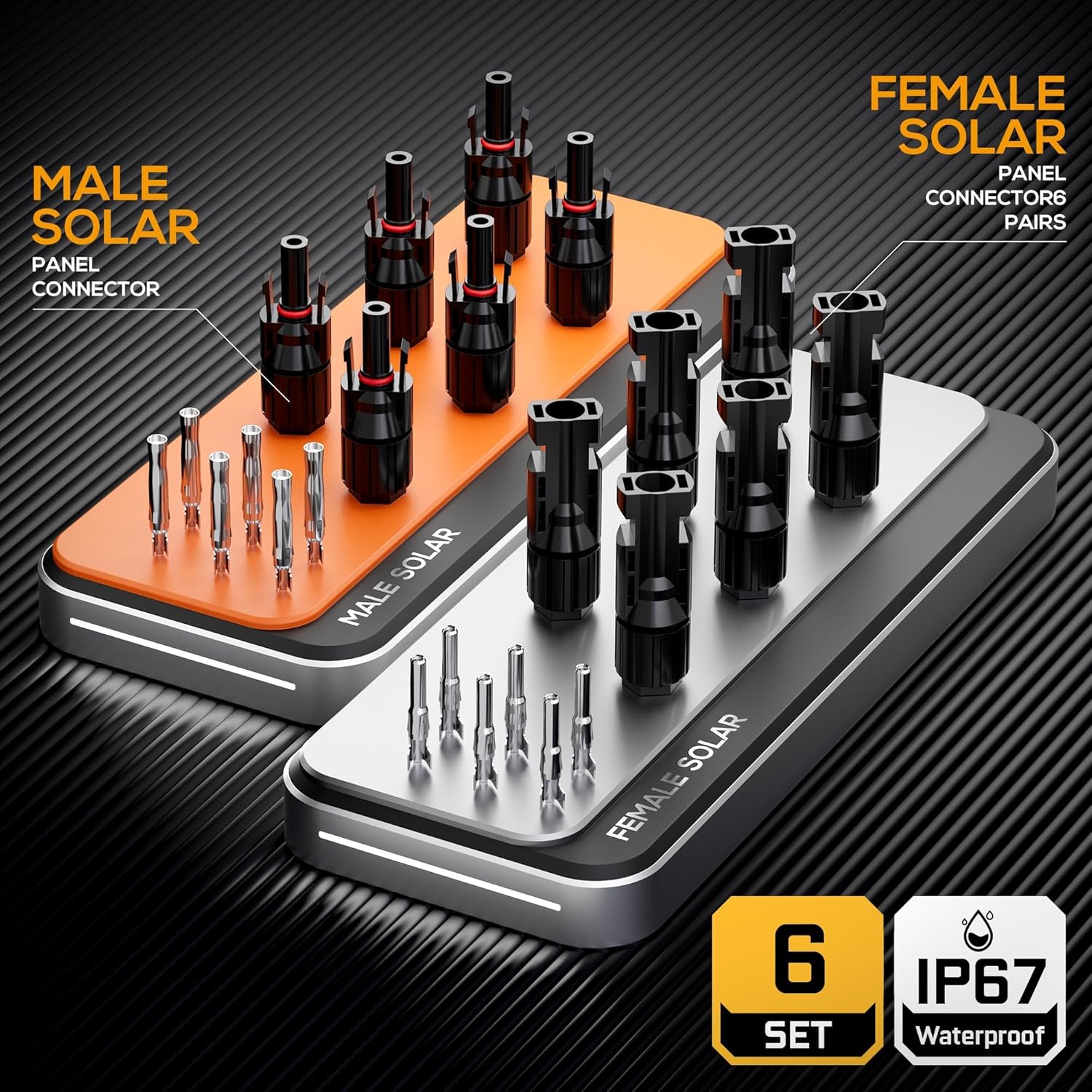

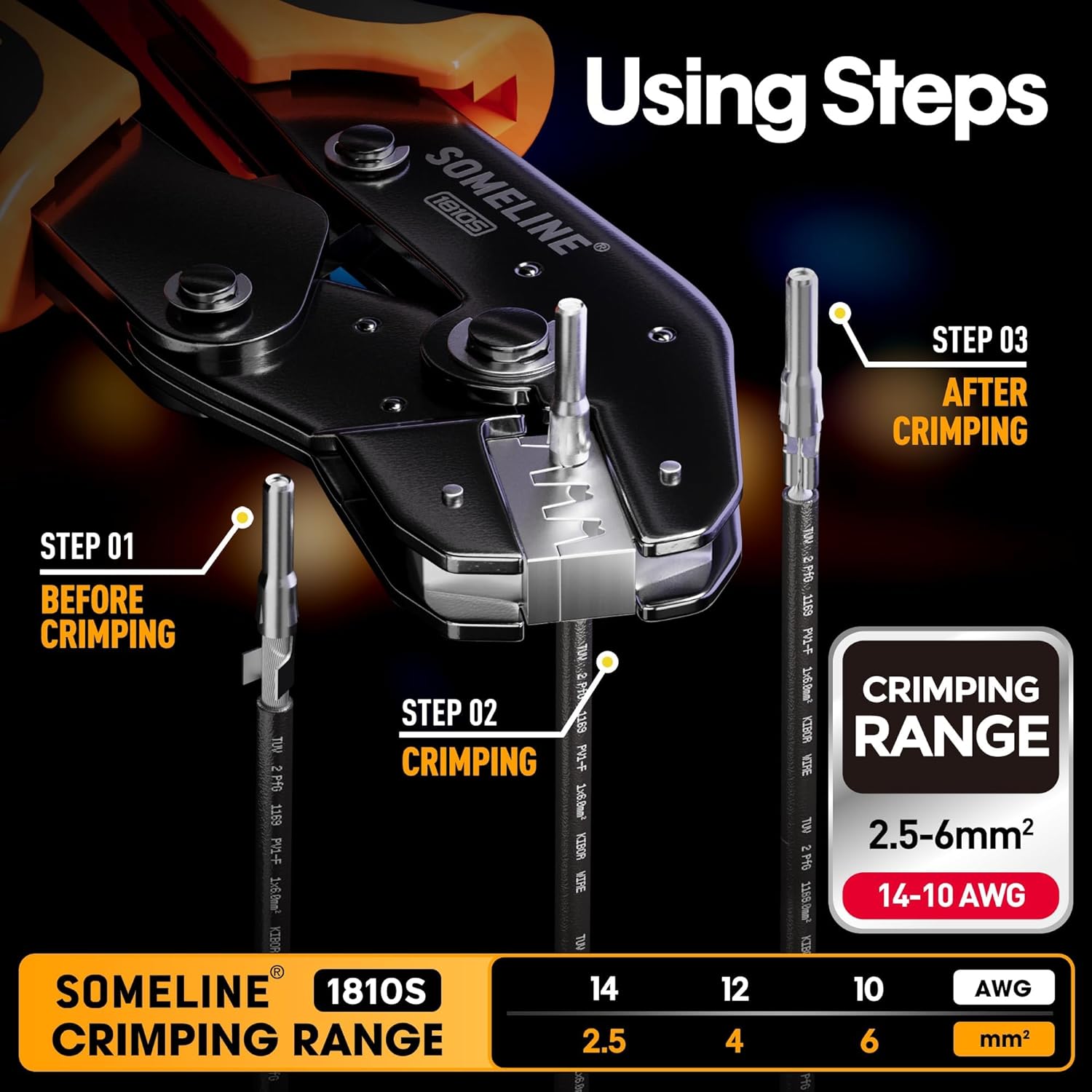

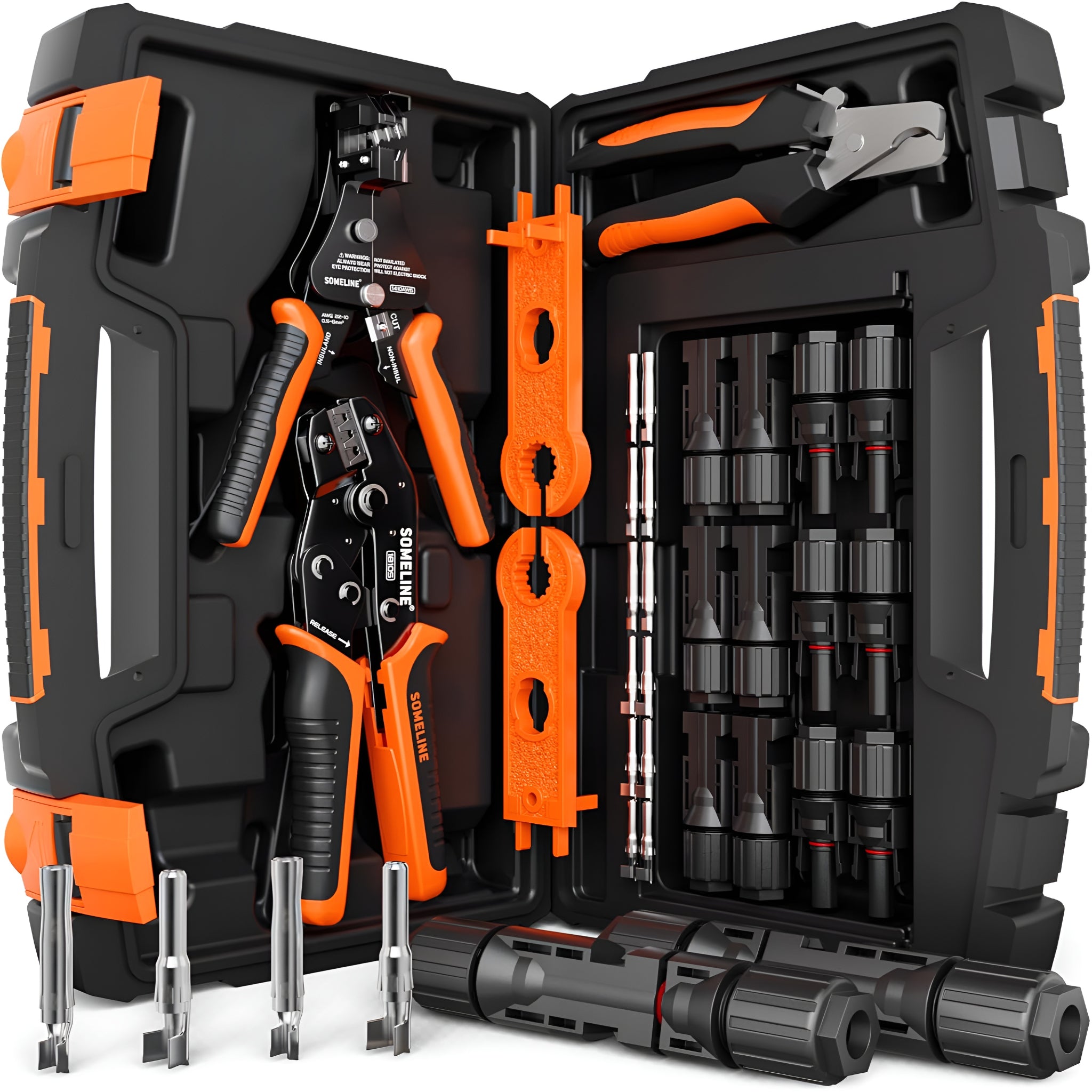

• Balance of System: 2× solar combiner boxes, 2× gutter boxes, Anderson battery cable set, 500' PV direct-burial cable, 100' 6 AWG AC cable, 20' 2/0 AC main line, 2× AC combiner kits, MC4 crimp kit, installation manual

Features

• Bifacial Double-Glass Panels: Up to 25% extra backside power generation; excellent in cloudy or low-light conditions

• Extreme Weather Durability: Rated for 5400 Pa snow load and 2400 Pa wind load with a 30-year power warranty

• Appliance Support: Runs wells, washers, fans, TVs, lights, refrigerators, freezers, electronics, and small AC systems

• Energy Planning: U.S. homes average ~877 kWh monthly; system is fully expandable for growing energy needs

• DIY Installation Ready: Basic wiring knowledge is sufficient. Racking requires the most labor. Professional electrician recommended for connections.

Maintenance

• Daily: Visually confirm inverter and battery performance

• Weekly: Wipe panels if in dusty areas; check app-based battery monitoring

• Annually: Inspect wiring, racking, fasteners, combiner boxes, and update firmware as needed

Warranty

• Solar Panels: 30-year performance warranty

• Battery & Inverters: Manufacturer warranties per documentation (Battery Specification Sheet)
