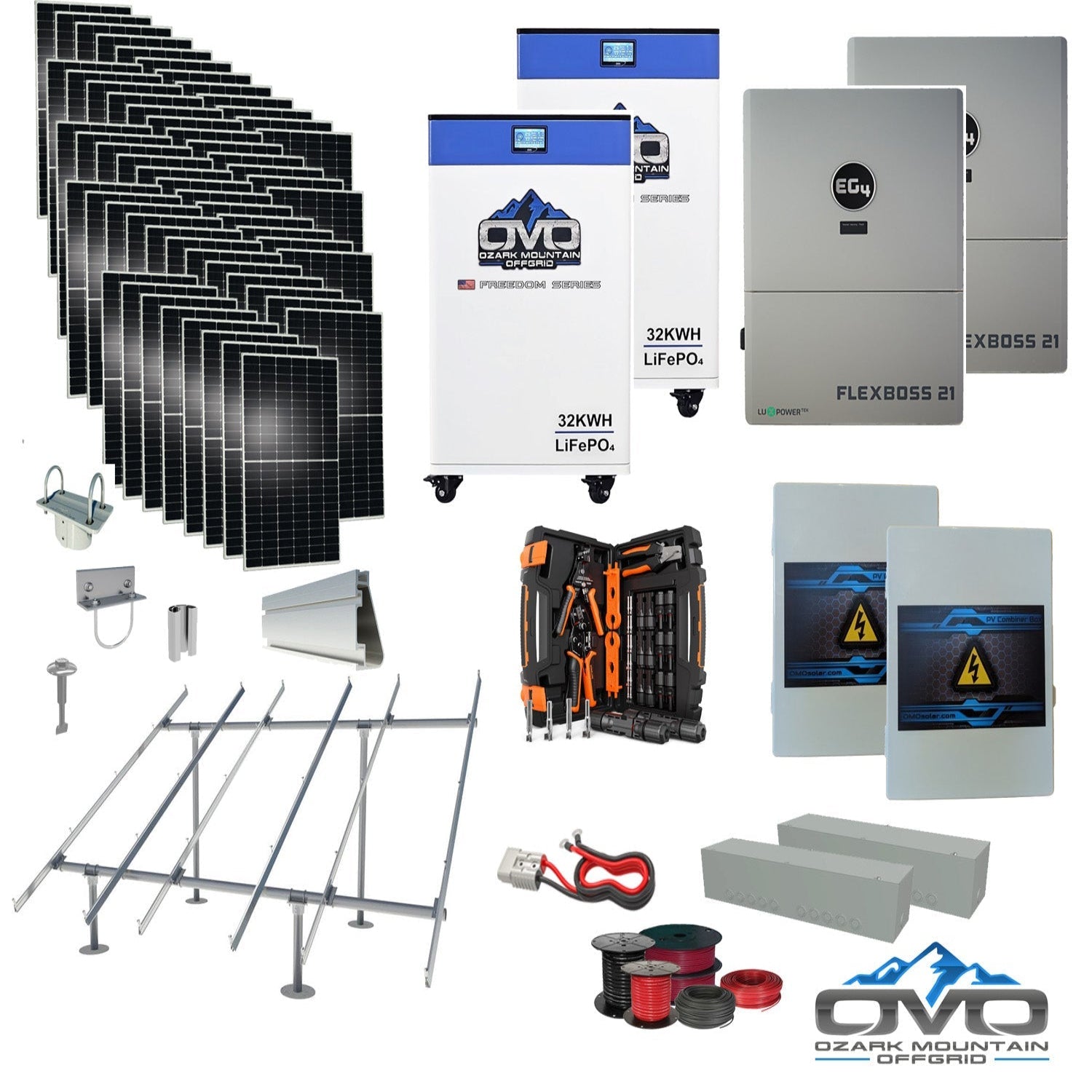

30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 2x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 2x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring is engineered for full off-grid living, delivering 64,000 watts (64 kWh) of usable lithium storage paired with a powerful 30.8KW bifacial solar array. With approximately 138,600 watts (≈138.6 kWh) of daily solar production based on 4.5 peak sun hours, this system is ideal for large homes, farms, and properties using around 4,158 kWh per month. Designed for long-term scalability, this system can easily be expanded with additional batteries or panels as your energy needs grow.

Specifications

• Solar Array: 56× 550W Bifacial Mono Panels (30,800W)

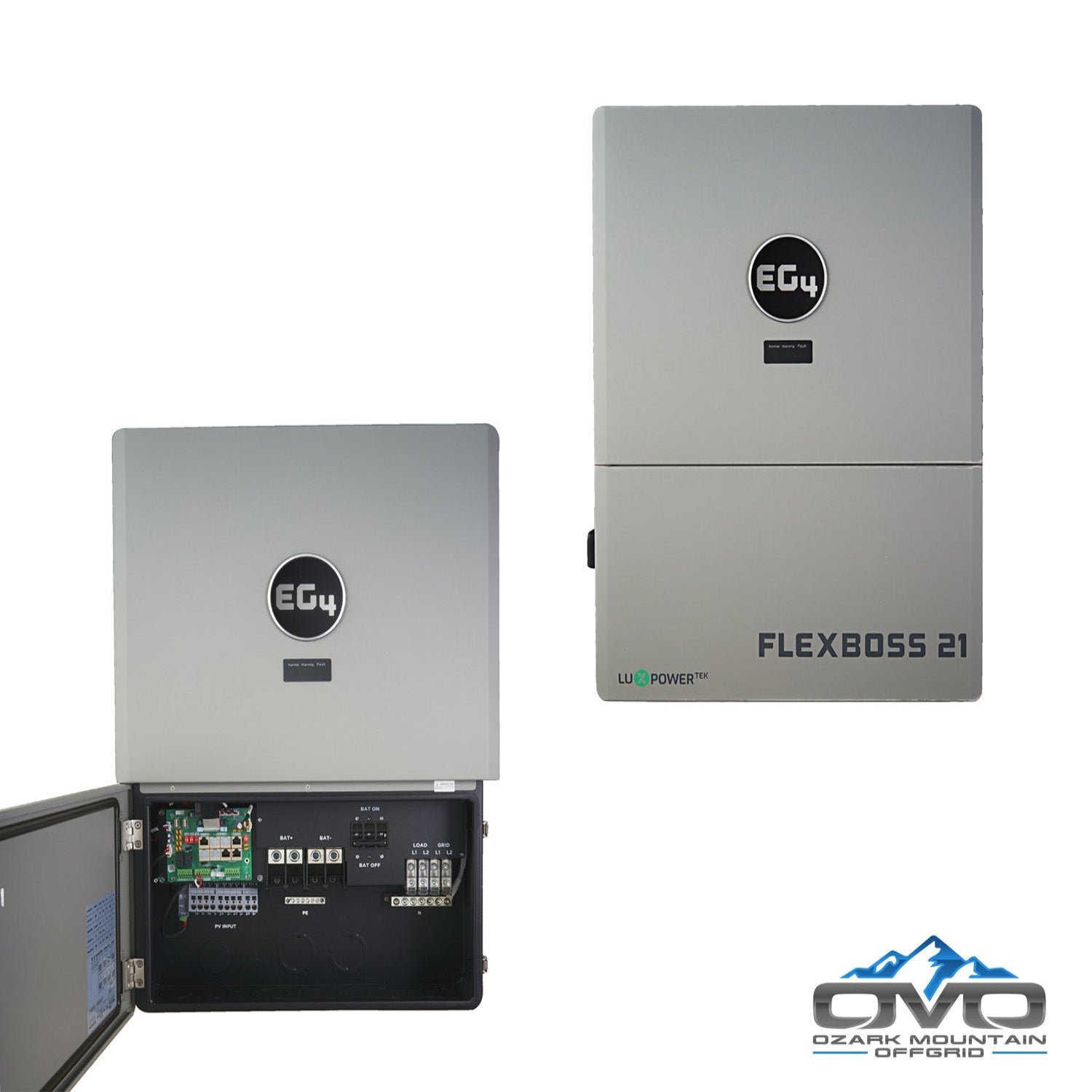

• Inverters: 2× EG4 FlexBOSS21 48V split-phase hybrid inverter/chargers

• Battery Bank: 2× 32kWh OMO 48V Freedom Series Heated Lithium Batteries (64 kWh total)

• Ground Mount System: Complete Iron Ridge ground-mount kit, including rails, top caps, connectors, fasteners, and bolts — designed for 3" Schedule 40 pipe (pipe sourced locally by customer)

• Balance of System: 2× solar combiner boxes, 2× gutter boxes, Anderson plug battery cable set, 500' PV direct-burial wire, 100' 6 AWG AC cable, 20' 2/0 AC main line, 2× AC combiner box kits, MC4 crimp kit, installation manual

Features

• Bifacial Double-Glass Panels: Capture up to 25% additional rear-side energy; excellent performance in cloudy, hazy, or low-light environments

• High Structural Durability: Rated 5400 Pa snow load and 2400 Pa wind load; includes 30-year panel power warranty

• Appliance Capability: Runs well pumps, washing machines, fans, TVs, lighting, refrigerators, freezers, electronics, and small AC systems

• Energy Planning: U.S. homes average 877 kWh/month — this kit is expandable for higher-use homes

• DIY Installation Friendly: Basic wiring knowledge is sufficient; racking/ground-mount work is the most labor-intensive phase. Electrician recommended for final connections.

Maintenance

• Daily: Monitor inverter output, battery state, and system performance

• Weekly: Inspect wiring, combiner boxes, and clean panels if needed

• Annually: Check mounting hardware torque, structural integrity of ground-mount pipes, and keep inverter firmware updated

Warranty

• Solar Panels: 30-year power output warranty

• Inverters & Batteries: See EG4 & OMO specification sheets for full warranty details
