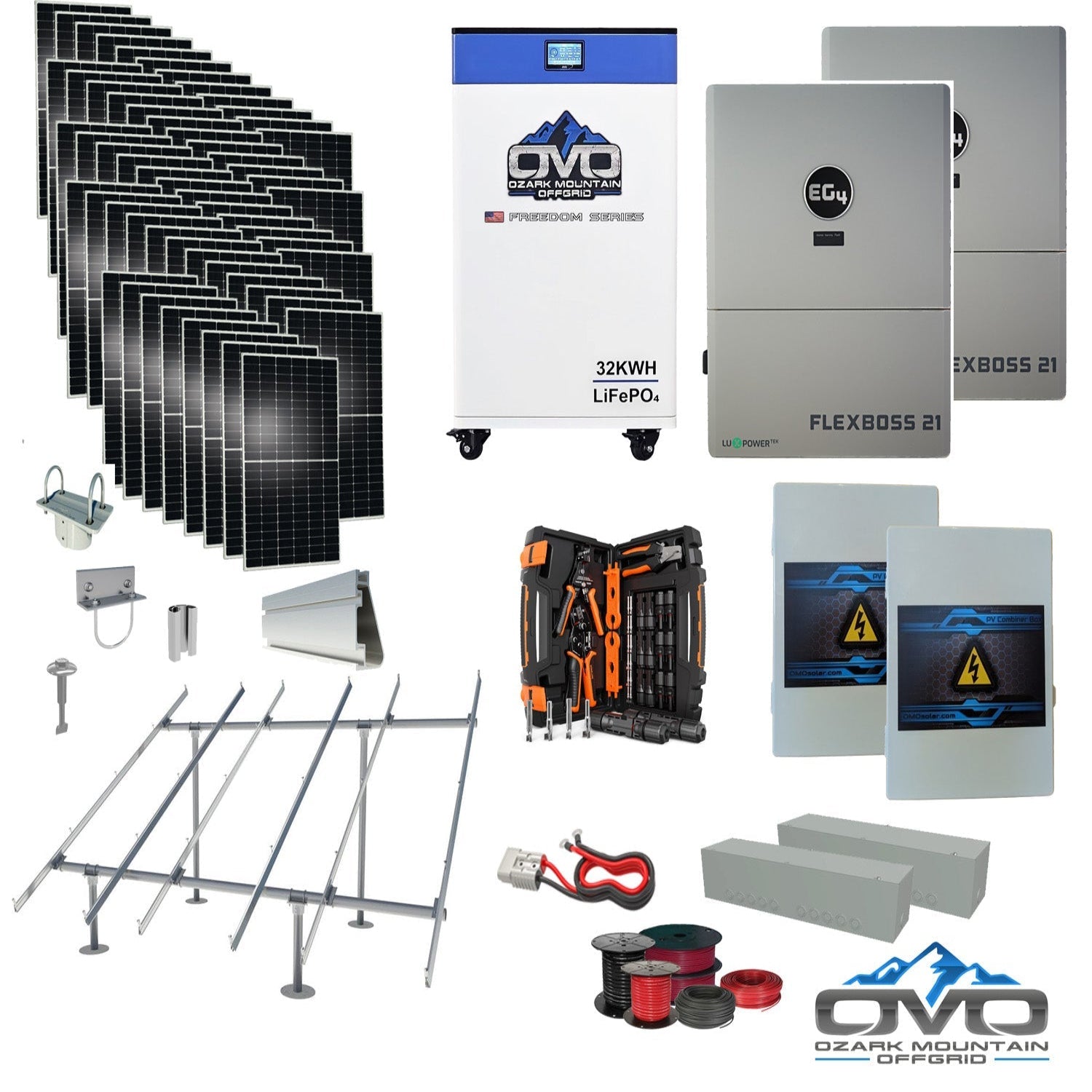

30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring is engineered for full off-grid living in large homes, farms, workshops, and remote properties. With a 32,000-watt (32 kWh) heated lithium battery bank and a 30.8KW bifacial solar array, this system produces approximately 138,600 watts (~138.6 kWh) per day at 4.5 peak sun hours. Designed for properties using around 4,158 kWh per month, the entire system is fully expandable for future battery or panel additions.

Specifications

• Solar Array: 56 × 550W bifacial mono panels (30,800W), double-glass construction

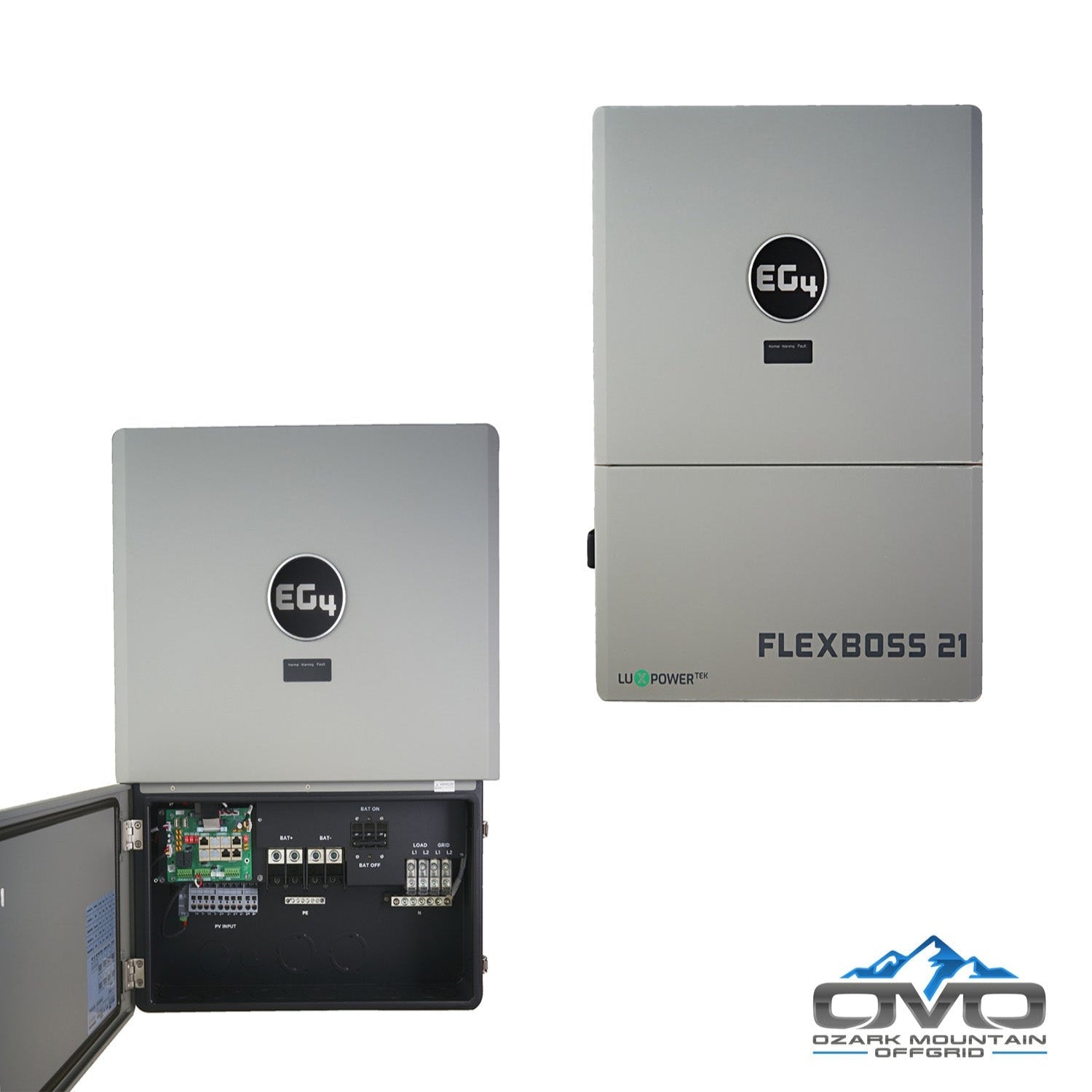

• Inverters: 2 × EG4 FlexBOSS21 hybrid 48V split-phase inverter/chargers

• Battery Bank: 1 × OMO 32kWh 48V Freedom Series (heated, Bluetooth, LCD readout)

• Mounting: IronRidge ground-mount system with rails, top caps, connectors, bolts, and fasteners

• Balance of System: 2 × solar combiner boxes, 2 × gutter boxes, Anderson battery cables, 500' direct-burial PV wire, 100' 6 AWG AC cable, 20' 2/0 AC main line, 2 × AC combiner kits, MC4 crimp kit, installation manual

Features

• High-Efficiency Bifacial Panels: Up to 25% additional rear-side energy capture; superior low-light performance

• Rugged Construction: 5400 Pa snow load / 2400 Pa wind load; 30-year panel power warranty

• Hybrid Power Capability: EG4 FlexBOSS21 supports grid-tie, off-grid, generator input, and flexible charging profiles

• Smart Lithium Storage: Heated 32kWh battery with Bluetooth monitoring and LCD diagnostics

• Appliance Compatibility: Supports wells, washers, fans, TVs, lighting, refrigeration, freezers, electronics, and smaller AC systems

• Expandable Design: Add more panels or batteries as energy demands increase

Maintenance

• Daily: Review inverter status, battery charge levels, and solar production

• Weekly: Perform visual wiring checks; clean panels as needed

• Annually: Verify mount torque, inspect connections, and complete full system tune-ups

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Battery: See FlexBOSS21 and OMO Freedom Series spec sheets for complete warranty details
