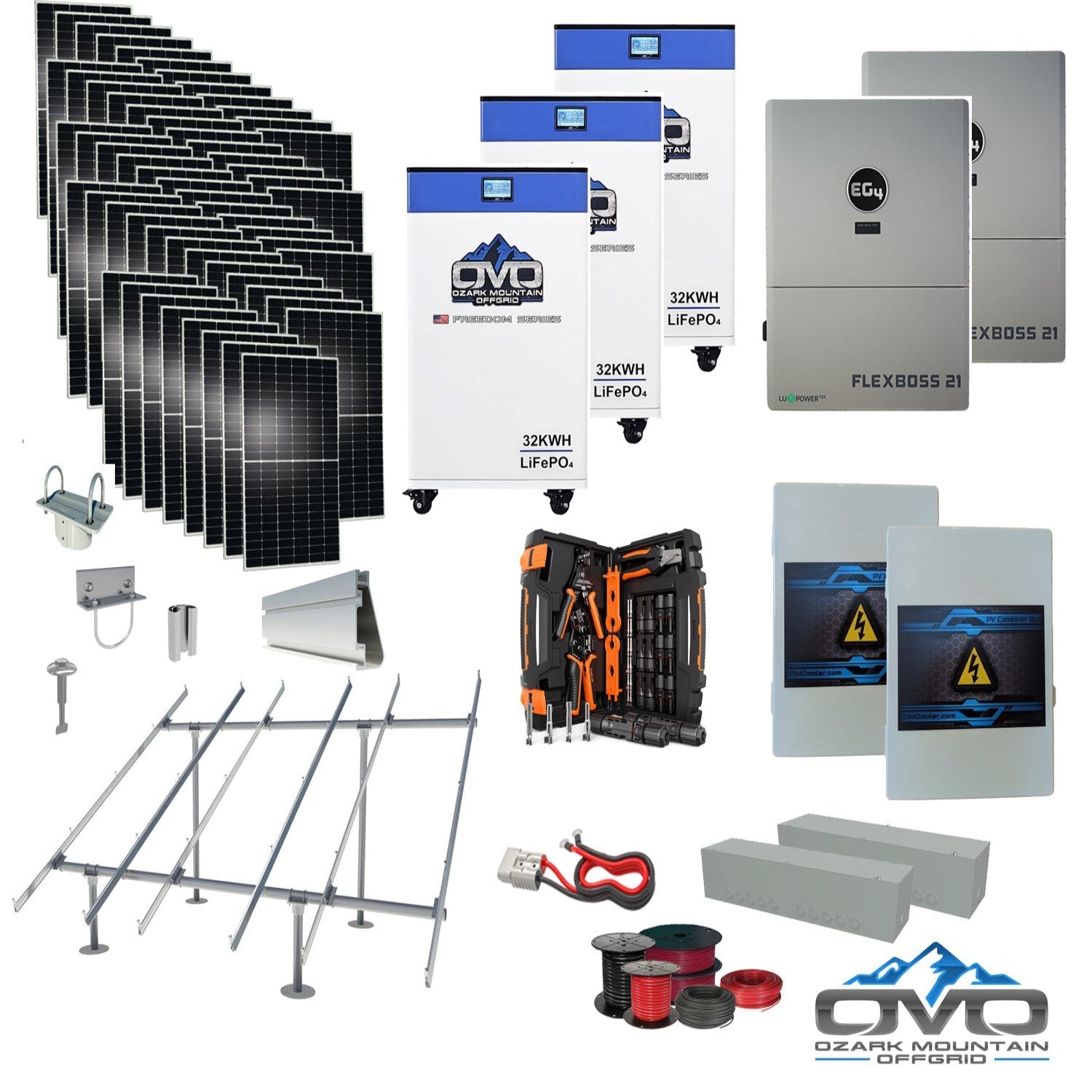

30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Ground Mount and Wiring is engineered for large homes, farms, and fully off-grid properties requiring high energy autonomy. Featuring a massive 96,000 watts (96 kWh) of usable lithium storage and a powerful 30.8KW bifacial solar array, this system produces approximately 138,600 watts (~138.6 kWh) per day with 4.5 peak sun hours. Fully expandable, the system allows seamless addition of solar panels or batteries for future growth.

Specifications

• Solar Array: 56 × 550W bifacial mono panels (30,800W total), double-glass bifacial technology

• Inverters: 2 × EG4 FlexBOSS21 48V split-phase hybrid inverter/chargers

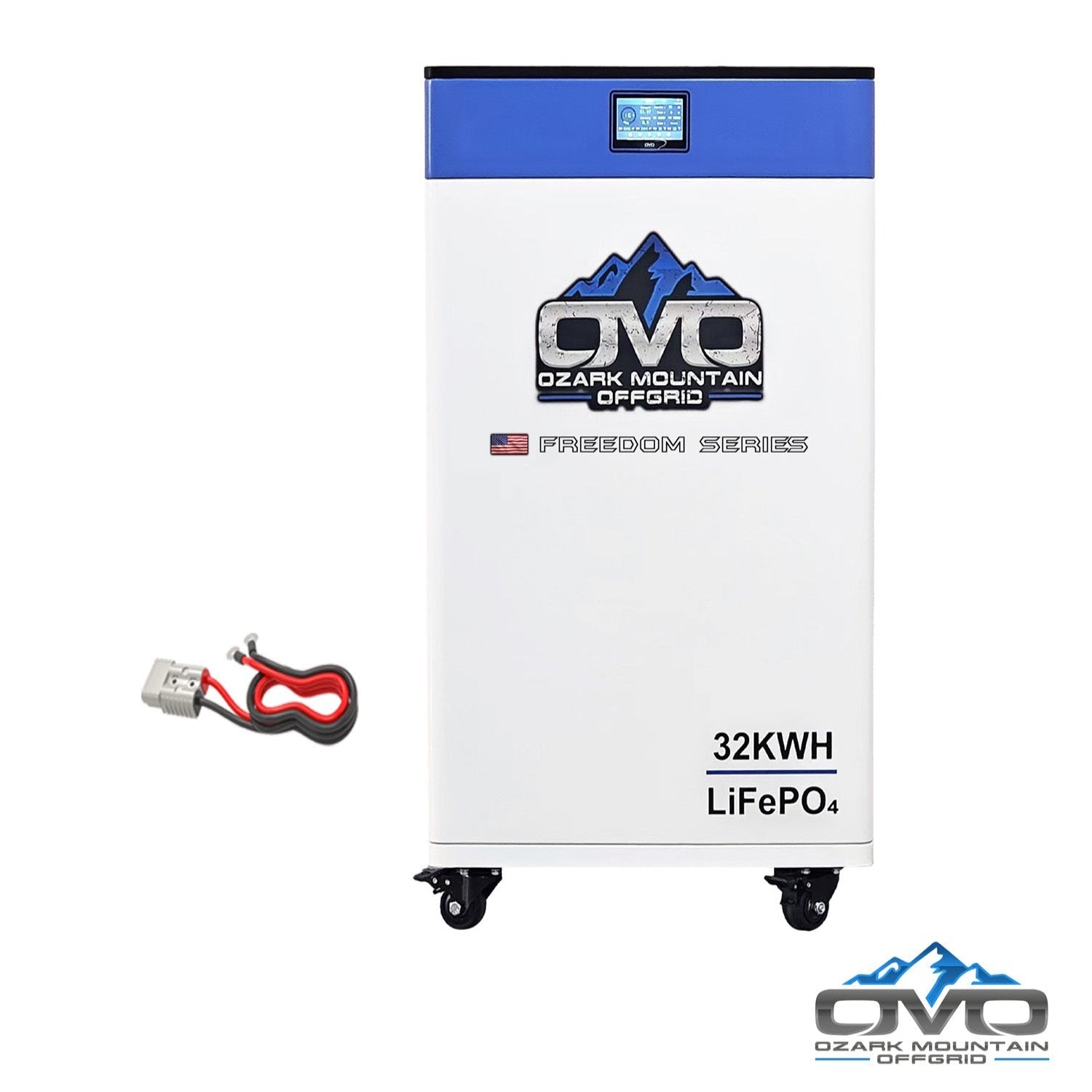

• Battery Bank: 3 × OMO 32KW 48V Freedom Series heated lithium batteries with Bluetooth monitoring and LCD screens (96kWh usable)

• Ground Mount: Full IronRidge ground-mount system, including rails, top caps, connectors, fasteners, and hardware

• Balance of System: 2 × solar combiner boxes, 2 × gutter boxes, 500 ft PV wire, Anderson battery cabling, 100 ft 6 AWG AC cable, 20 ft 2/0 AC main line, 2 × AC combiner box kits, MC4 crimp kit, installation manual

Features

• High-Efficiency Bifacial Panels: Rear-side power gain up to 25% with outstanding low-light and cloudy-day output

• Extreme Durability: 5400 Pa snow load, 2400 Pa wind load, long-term double-glass panel reliability, 30-year power warranty

• Hybrid Inverter Technology: FlexBOSS21 supports off-grid, grid-tie, and generator inputs with advanced charge control

• Smart Heated Batteries: Built-in heating for cold climates, Bluetooth app monitoring, LCD diagnostics, and long cycle life

• Appliance Support: Powers wells, washers, fans, televisions, lighting, refrigerators, freezers, electronics, and smaller AC units

• Scalable Design: Ideal for future expansion of batteries or solar modules as energy needs grow

Maintenance

• Daily: Monitor inverter operation and check battery state of charge

• Weekly: Inspect panel surfaces, confirm wiring integrity, remove dust or debris from panels

• Annually: Complete system inspection including bolt torque checks, electrical connection testing, and performance evaluation

Warranty

• Solar Panels: 30-year power performance warranty

• Batteries & Inverters: Refer to FlexBOSS21 and OMO Freedom Series specification sheets for full warranty terms
