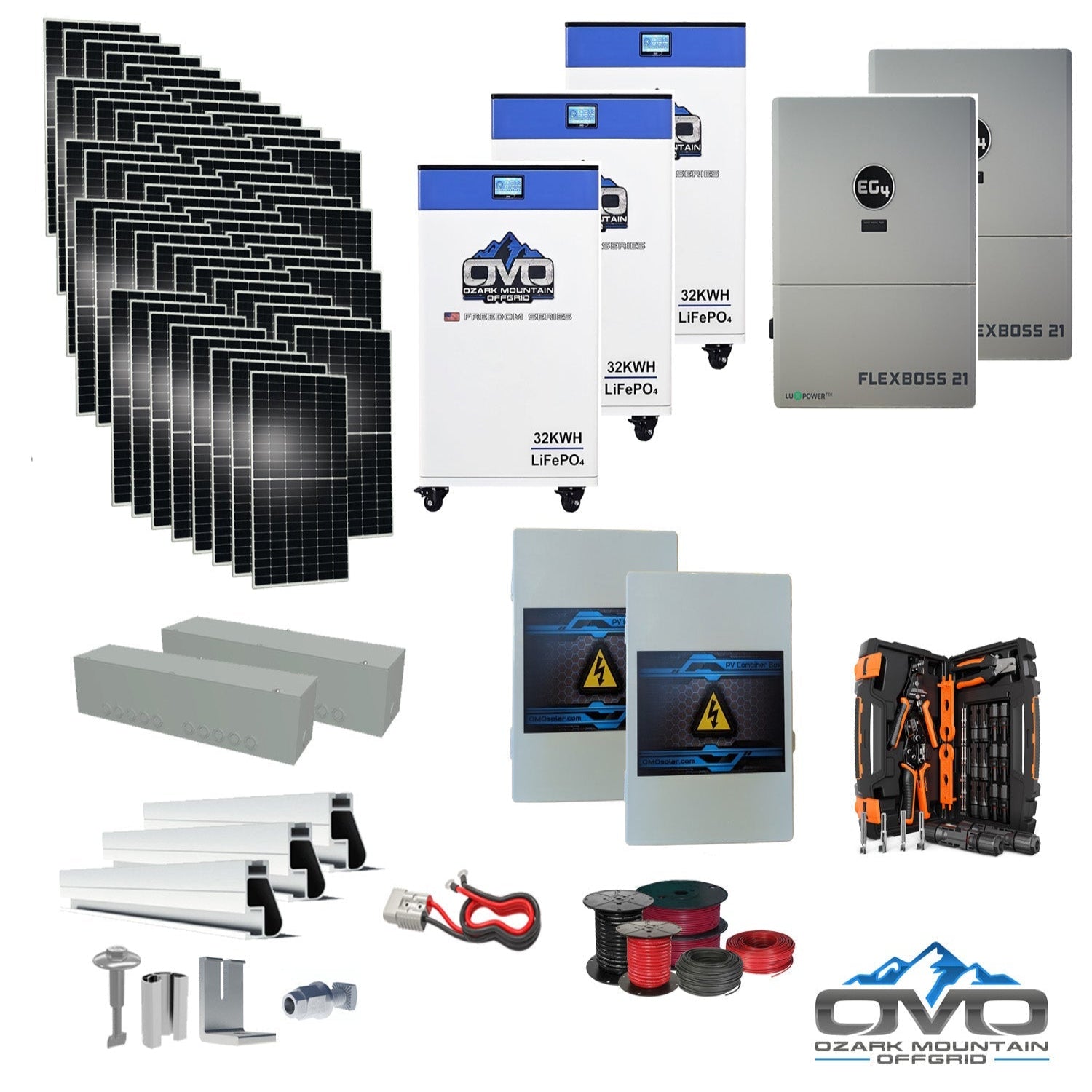

30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Roof Mounting Rails and Wiring

The 30KW Complete Offgrid Solar Kit + EG4 FlexBOSS21 + 3x 32KW OMO 48V Freedom Series Lithium Battery + 30.8KW Solar with Roof Mounting Rails and Wiring is built for large homes and farms seeking full energy independence. It pairs a 30.8KW bifacial solar array with 96,000 watts (96 kWh) of usable lithium storage to deliver about 138,600 watts (~138.6 kWh) of production per day at 4.5 peak sun hours. The scalable design lets you expand with additional panels or batteries as your needs grow.

Specifications

• Solar Array: 56 × 550W bifacial mono panels (30,800W total), double-glass construction

• Inverters: 2 × EG4 FlexBOSS21, 48V split-phase hybrid inverter/chargers

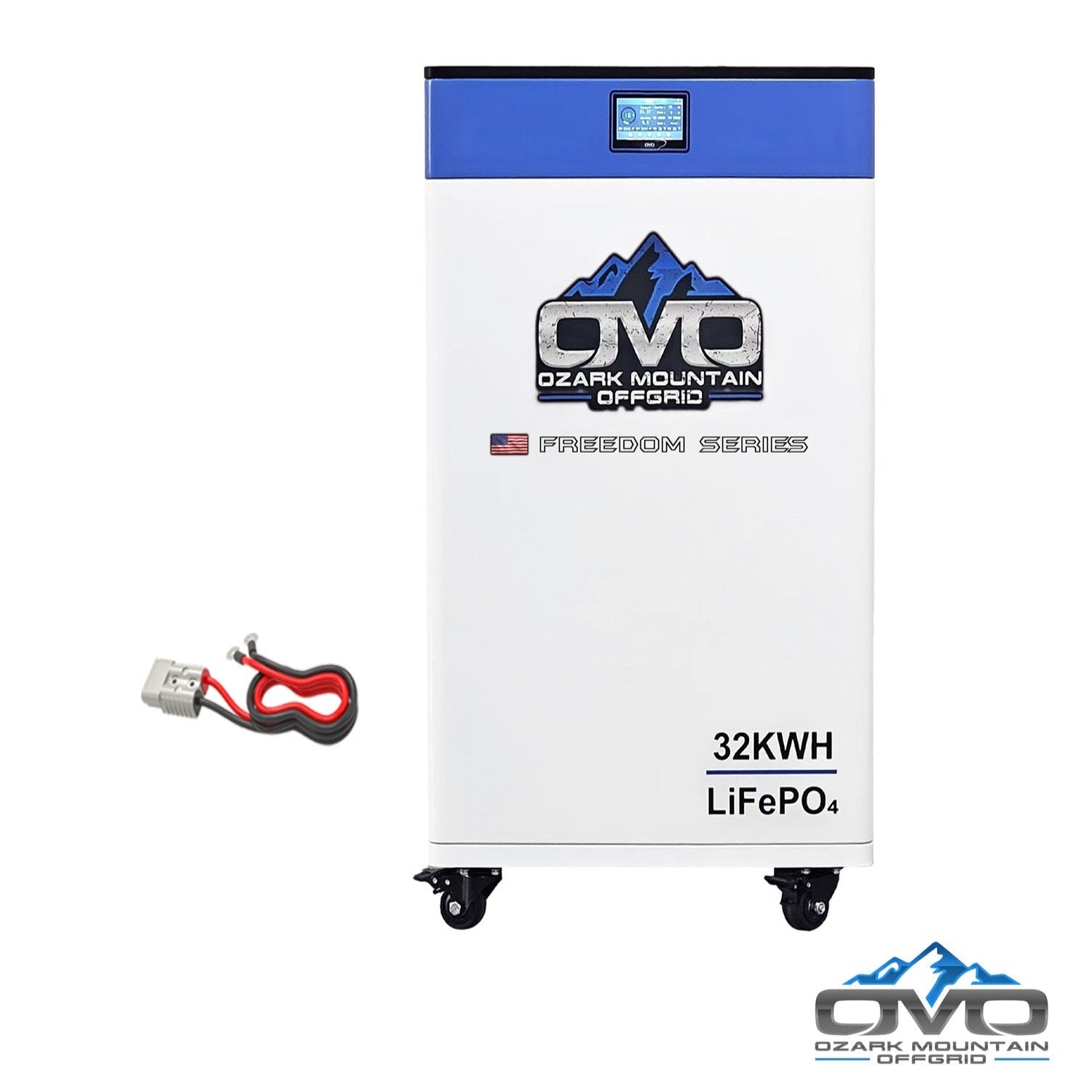

• Battery Bank: 3 × OMO 32KW 48V Freedom Series heated lithium batteries with Bluetooth & LCD (≈96 kWh usable)

• Roof Mounting: Complete IronRidge roof mounting rails, splices, legs, fasteners, and bolts

• Balance of System: 2 × solar combiner boxes; 2 × gutter boxes; Anderson plug battery cable set; 500' PV direct-burial solar wire; 100' 6 AWG AC output/input/generator cable; 20' 2/0 AC main line; 2 × AC combiner box kits; MC4 crimp kit; installation manual

Features

• Bifacial Energy Gain: Up to 25% rear-side harvesting; superior output in low-light, cloudy, or hazy conditions

• Rugged Panel Build: 5400 Pa snow load & 2400 Pa wind load with double-glass durability and 30-year power warranty

• Hybrid Power Control: FlexBOSS21 supports off-grid, grid-assist, and generator charging with advanced MPPT

• Smart Heated Batteries: Cold-weather heating, Bluetooth monitoring, on-unit LCD diagnostics, long cycle life

• Appliance Coverage: Runs wells, washing machines, fans, TVs, lights, refrigerators/freezers, electronics, and smaller AC systems

• Documentation: Battery Specification Sheet included for full technical details

Maintenance

• Daily: Verify inverter status and battery state of charge

• Weekly: Inspect panels and visible wiring; clear dust/debris from modules

• Annually: Check mechanical fasteners/torque, test electrical connections, and review system performance

Warranty

• Solar Panels: 30-year power performance warranty

• Batteries & Inverters: Refer to EG4 FlexBOSS21 and OMO Freedom Series documentation for full terms
