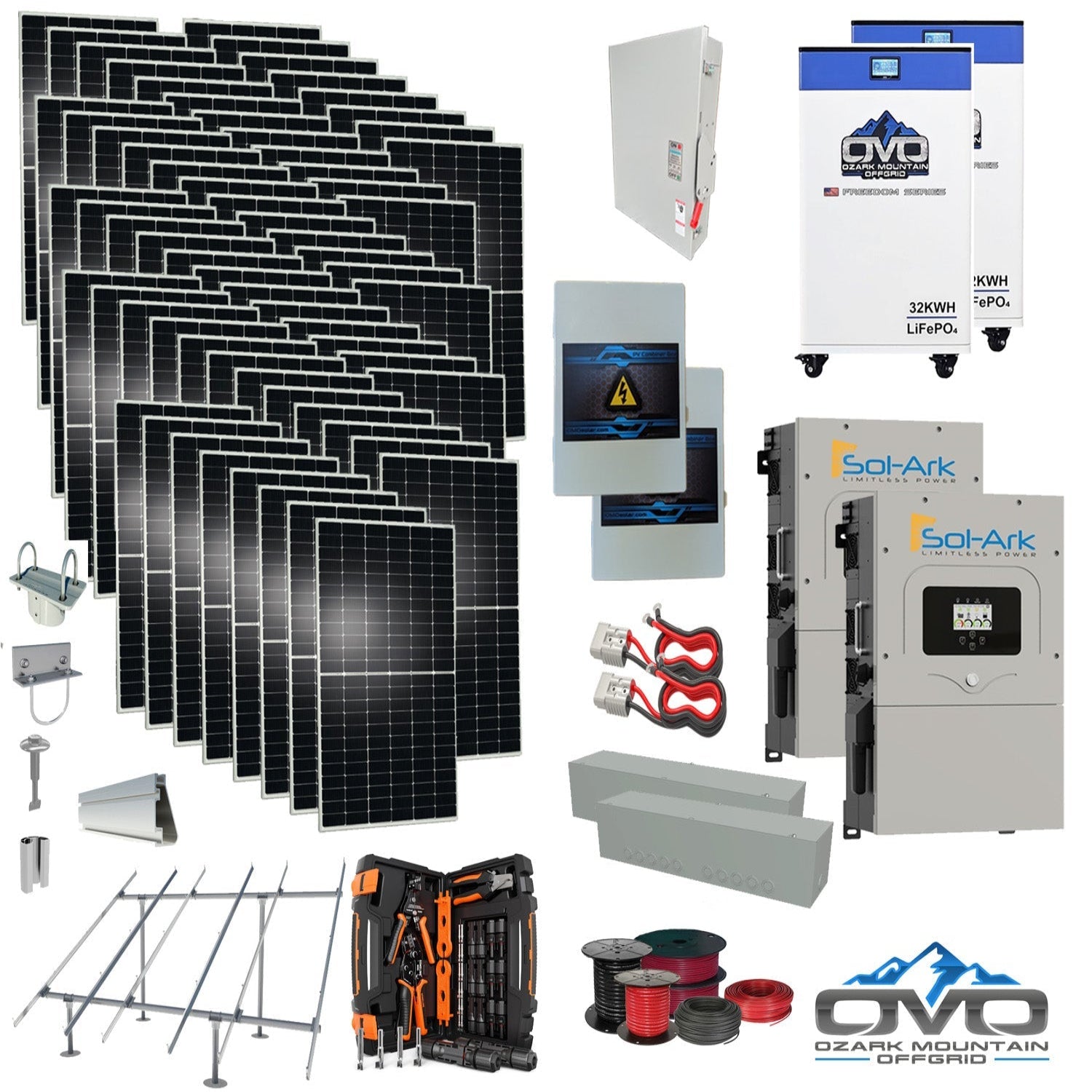

35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +35.2KW Solar with Ground Mount and Wiring

The 35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +35.2KW Solar with Ground Mount and Wiring is engineered for large off-grid homes, farms, and high-demand properties. Designed for full energy independence, this system features a massive 35.2KW bifacial solar array, two Sol-Ark 15K hybrid inverters, and 64kWh of premium OMO lithium storage. With up to 158,400 watts of daily solar production (based on 4.5 sun hours), it supports properties consuming approximately 4,752kWh per month. This kit is fully expandable for future solar or battery upgrades.

Specifications

• Solar Array: 64 × 550W bifacial mono panels (35,200W total)

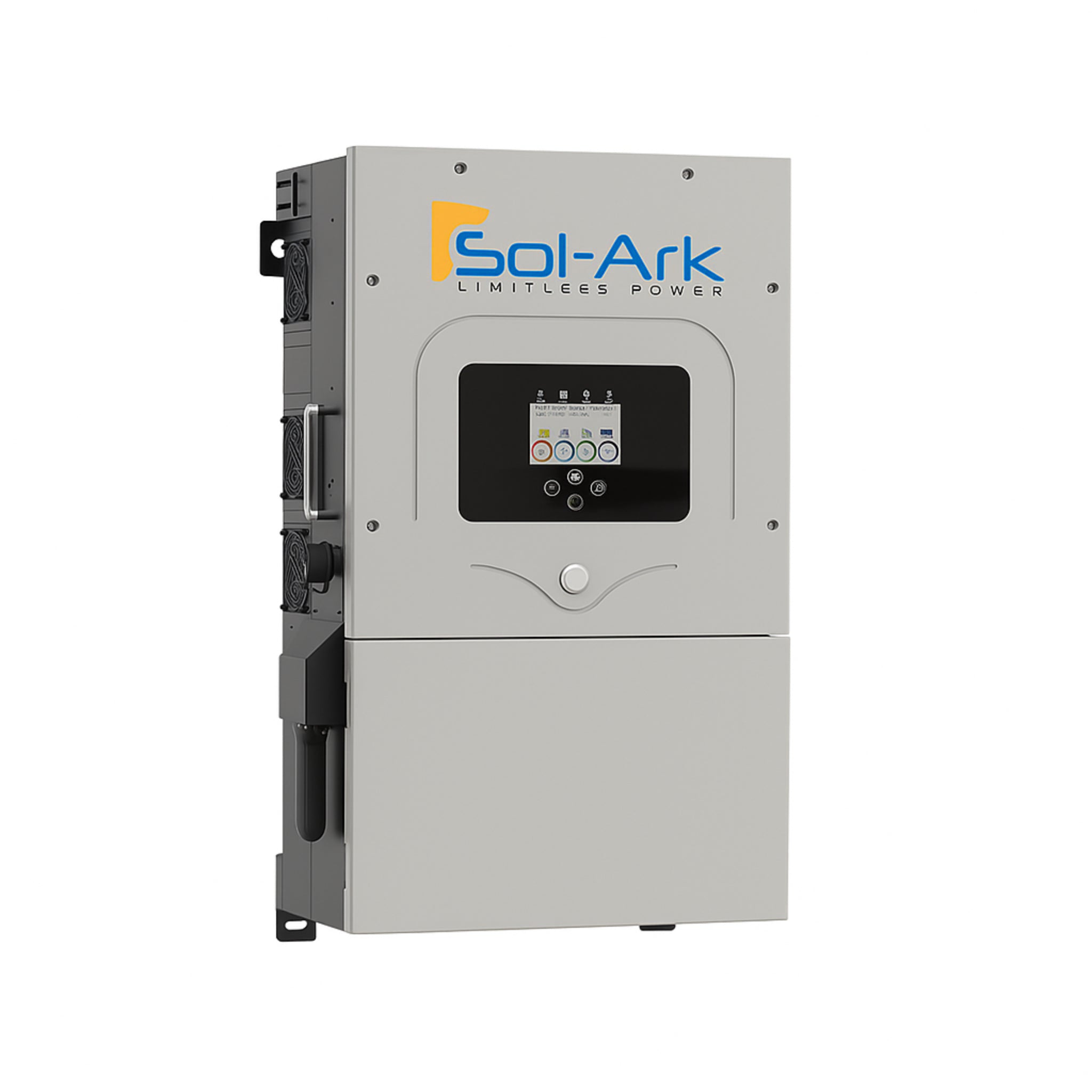

• Inverters: 2 × Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters with built-in MPPT charge controllers

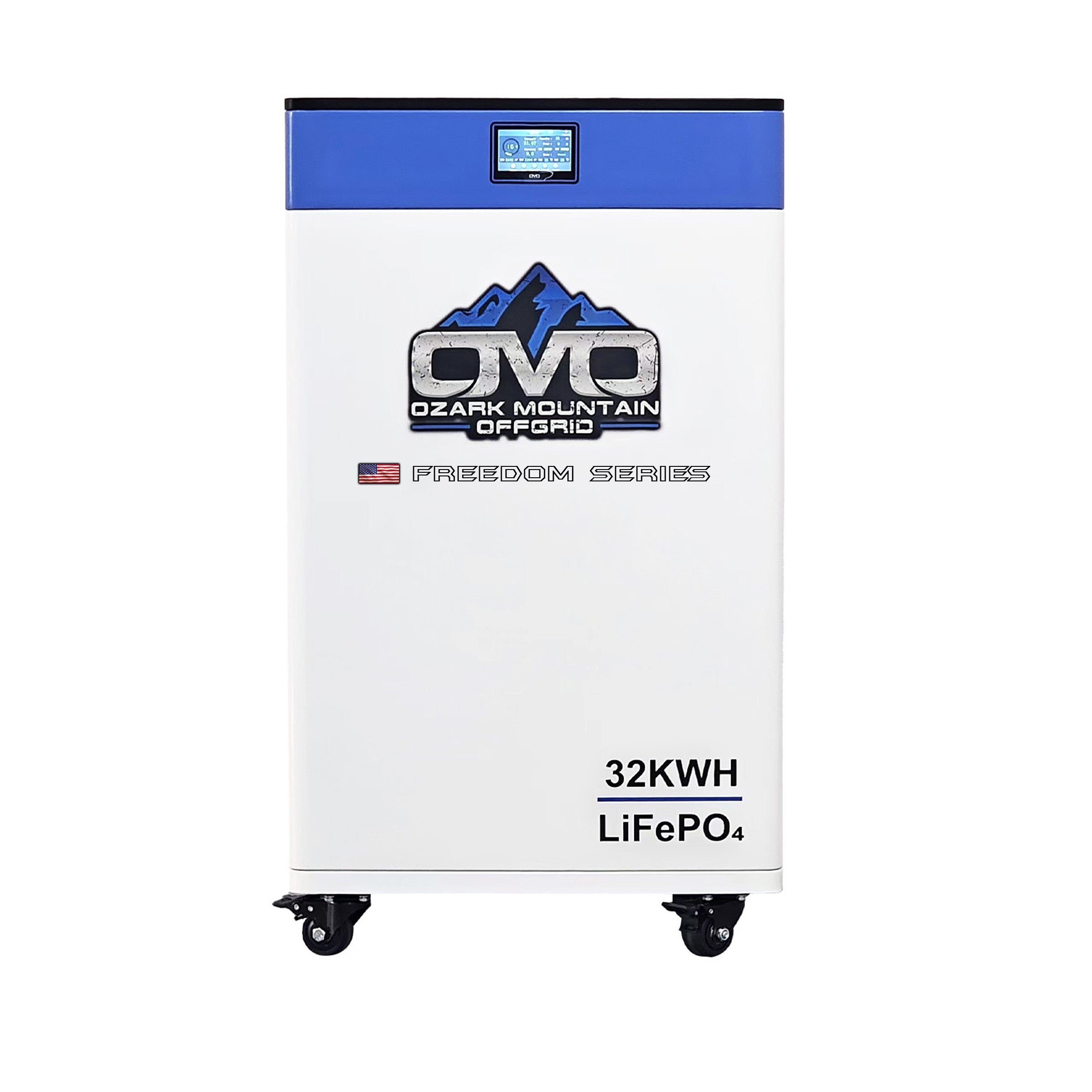

• Battery Bank: 2 × 32kWh OMO 48V Freedom Series Heated Batteries with Bluetooth + LCD display (64kWh total)

• Mounting System: Complete IronRidge GROUND-mount rails, top caps, connectors, fasteners, and bolts (3" schedule 40 pipe sourced locally)

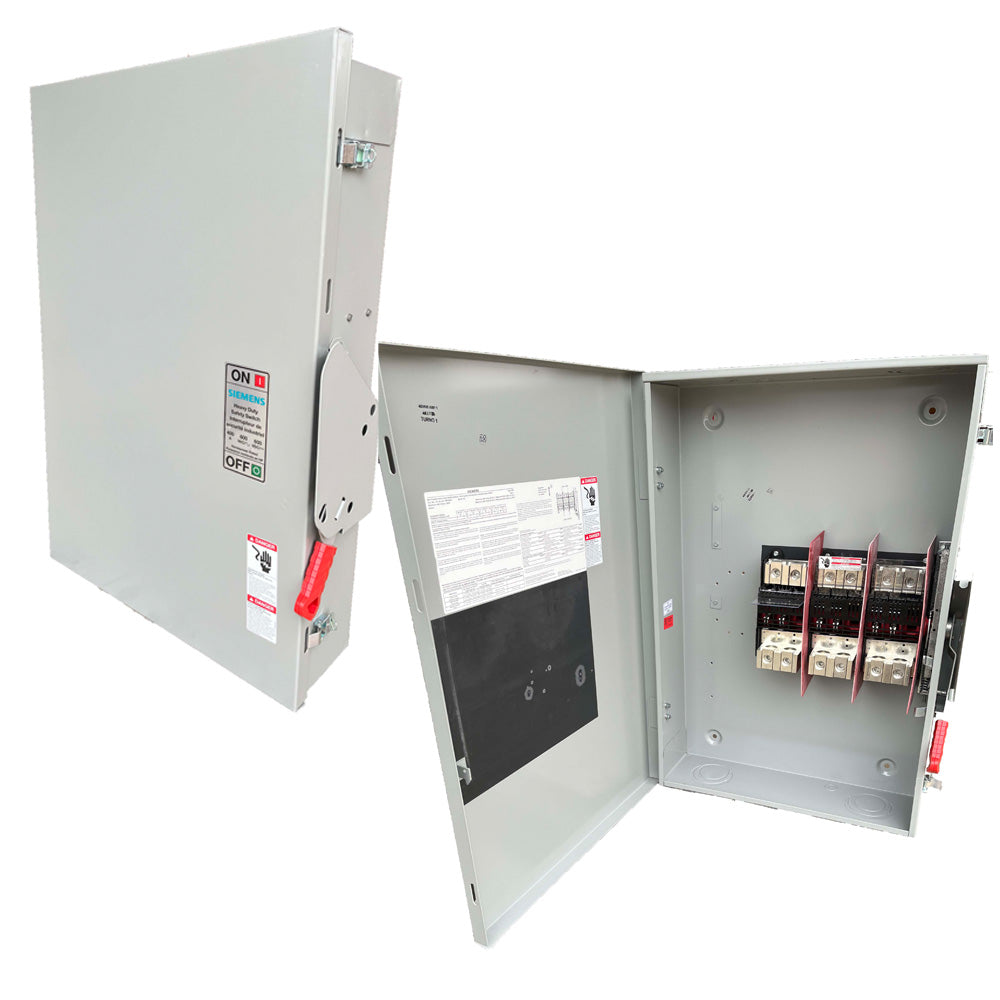

• Balance of System: 2 × PV combiner boxes, 500' 10AWG MC4 solar wiring, MC4 crimp kit, 100' 6AWG AC generator/line cable, 20' 2/0 AC main line, 2 gutter boxes, Sol-Ark AC combiner kit, 2 Anderson plug battery cable sets, installation manual

Features

• Bifacial Double-Glass Panels: Capture up to 25% more energy from rear-side reflection and excel in cloudy or low-light environments

• Extreme Durability: Rated for 5400 Pa snow load and 2400 Pa wind load; backed by a 30-year power warranty

• Sol-Ark Performance: 120/240V split phase, generator support, 3 × MPPTs, WiFi monitoring, LCD touchscreen, 97.5% efficiency, outdoor-rated (NEMA 3R)

• High-Capacity Storage: 64kWh heated lithium battery bank ideal for full home backup and large energy demands

• Expandable System: Supports parallel stacking of up to 8 Sol-Ark units; batteries and solar capacity can be increased anytime

• Fast Grid Transfer: 4ms automatic transfer between battery and grid/generator

Maintenance

• Daily: Monitor inverter status screen and ensure solar panels remain clear of debris

• Weekly: Inspect battery readings, wiring, and verify combiner box status

• Annually: Clean solar panels, tighten mounting hardware, check electrical connections, and test full system performance

Warranty

• Sol-Ark Inverters: 10 years

• Solar Panels: 30-year power warranty
