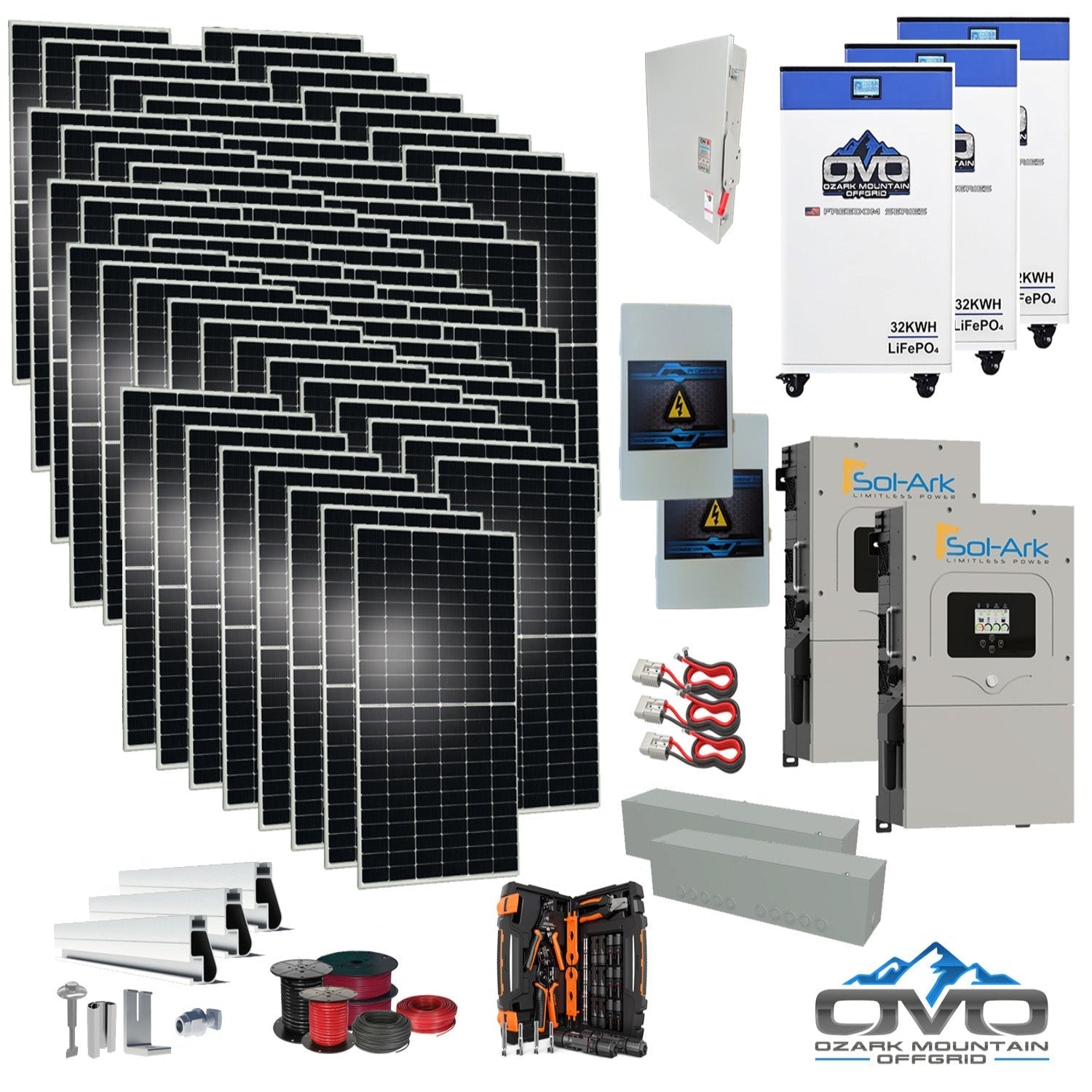

35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 3x 30KW Lithium Kong Battery +35.2KW Solar with Roof Mount and Wiring

The 35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 3x 30KW Lithium Kong Battery +35.2KW Solar with Roof Mount and Wiring is engineered for full home, farm, and commercial-level energy independence. Producing up to 158,400 watts of solar energy per day (based on 4.5 peak sun hours), this system is ideal for large homes or properties consuming around 4,752 kWh monthly. This enhanced configuration includes three 32kWh OMO Freedom Series heated lithium batteries, delivering a massive 96kWh of total storage capacity. The system is fully expandable for future additions of solar panels or batteries, ensuring long-term scalability and performance.

Specifications

• Solar Array: 64 × 550W Bifacial Mono Solar Panels (35,200W array)

• Daily Production: Approx. 158,400W/day (based on 4.5 sun hours)

• Battery Bank: 3 × OMO 32kWh 48V Freedom Series Heated Lithium Batteries (96kWh total)

• Inverters: 2 × Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters (with built-in MPPT controllers)

• Mounting System: IronRidge Roof-Mount Rails, Splices, L-Feet, Fasteners, and Bolts

• Wiring Package: 500' 10AWG MC4 solar array cable, 100' 6AWG AC cable, 20' 2/0 AC main line

• Electrical Components: 2 × PV combiner boxes, AC combiner kit (supports 2+ Sol-Ark units), wire gutter boxes

• Tools & Accessories: MC4 crimper tool set, 3 × Anderson plug battery cable sets

• Documentation: Complete installation manual included

• Battery Specification Sheet: View PDF

Features

• Bifacial Double-Glass Solar Panels: Up to 25% additional rear-side energy harvest, excellent weak-light performance, 5400 PA snow load, 2400 PA wind load, and a 30-year power warranty

• Sol-Ark 15K Inverter: 120/240V split phase, grid-tie or off-grid operation, 3× MPPT inputs, generator-ready, LCD touchscreen, WiFi connectivity, 97.5% efficiency, NEMA 3R outdoor rating

• Battery Compatibility: Supports lithium or flooded lead-acid 48V configurations

• Ultra-Scalable: Parallel stacking capability for up to 8 Sol-Ark units for large estates, farms, and industrial setups

• Fast Transfer: 4ms switch time between battery and grid/generator power

• Roof-Mount Structure: Heavy-duty IronRidge system engineered for long-term rooftop durability

Maintenance

• Daily: Monitor inverter operation, battery levels, and production output

• Weekly: Check rooftop array visibility, wiring integrity, and combiner box indicators

• Annually: Tighten roof-mount hardware, inspect panel surfaces, update inverter firmware, and perform full system checks

Warranty

• Solar Panels: 30-year performance warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

• OMO Battery System: Warranty coverage per Freedom Series specifications
