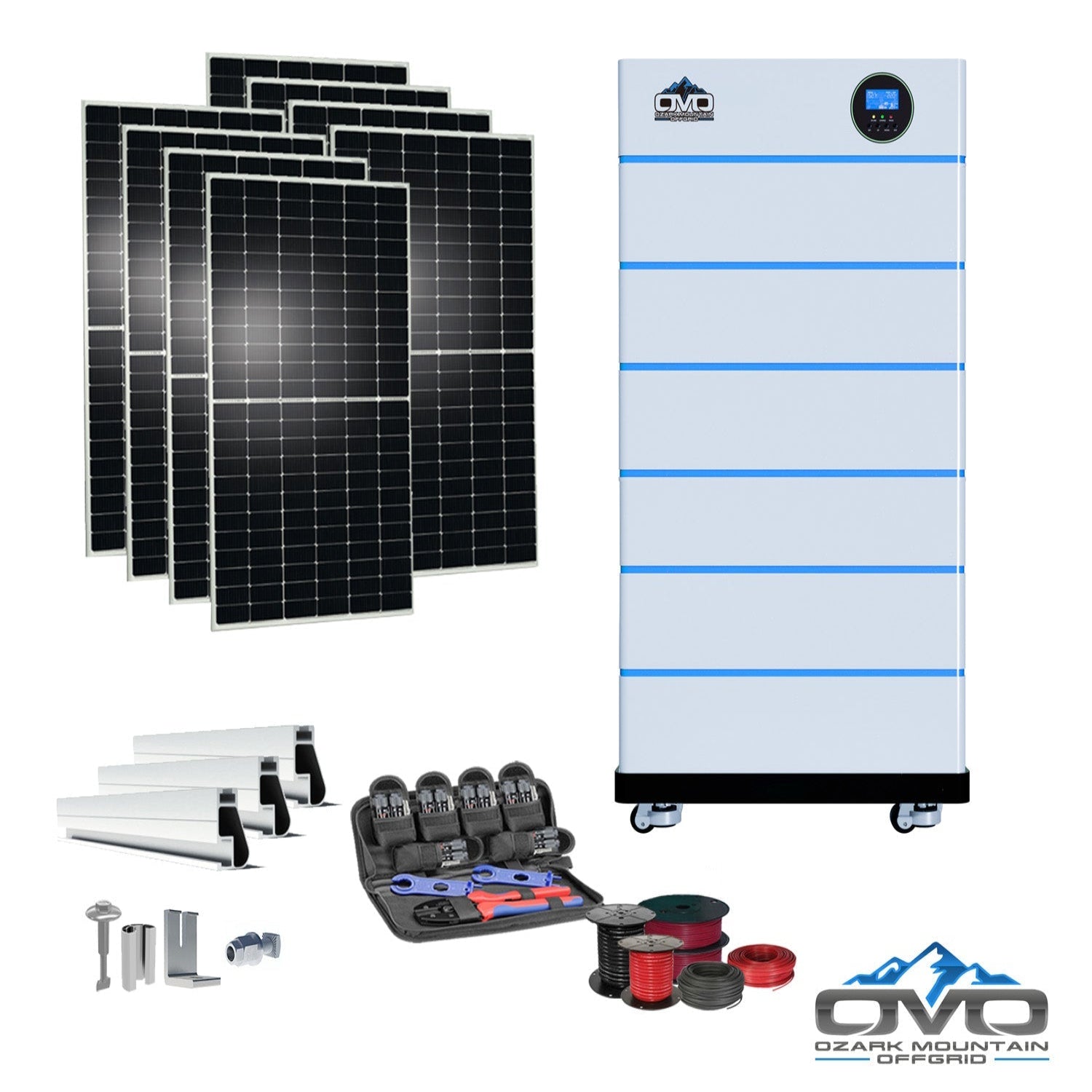

4.4KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 4.4KW Solar Roof Mount

The 4.4KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 4.4KW Solar Roof Mount is a complete, expandable, and high-performance off-grid power package built for cabins, RVs, shops, remote homes, and more. This configuration features a 5500W pure sine wave inverter, a massive 30.72kWh heated lithium battery bank, and a 4.4KW bifacial solar array engineered for exceptional energy harvest—even in cloudy or low-light conditions.

Specifications

• Inverter: 1 × OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Batteries: 6 × 51.2V 5.12kWh Heated Stackable Bluetooth Lithium Batteries (maximum capacity per inverter)

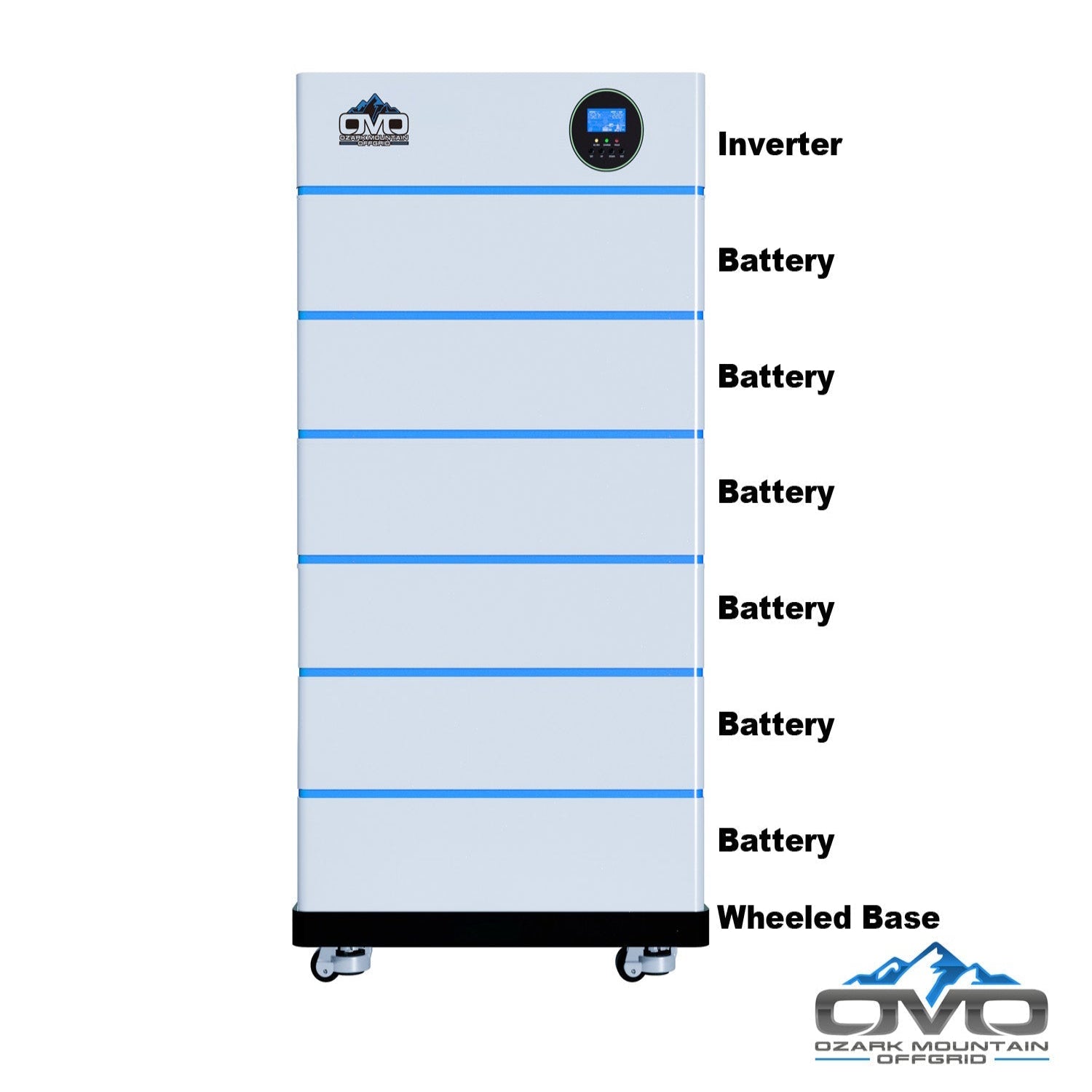

• System Base: OMO Stack System Wheeled Base

• Solar Array: 8 × 550W Bifacial Mono Solar Panels (4400W total; expandable to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge Roof-Mount Kit including Rails, Splices, L-Feet, Fasteners, Bolts

• Tools Included: MC4 Crimper Tool Set

• Wiring:
  • 500' 10AWG Direct-Burial PV Wire
  • 100' 6AWG AC Output / Input / Generator Cable

• Solar Panel Warranty: 30-Year Power Warranty

Features

• Bifacial Double-Glass Panels: Capture up to 25% additional backside energy for superior daily output

• Excellent Low-Light Performance: Enhanced production on cloudy, hazy, or early-morning days

• Extreme Weather Durability: 5400 PA snow load and 2400 PA wind load for harsh environments

• Maximum Battery Storage: Fully maxed at 30.72kWh—ideal for high-demand off-grid living

• Expandable System: Add more solar panels or stack additional inverters as your needs grow

• Smart Monitoring: Built-in WiFi & Bluetooth connectivity for real-time system oversight

Inverter Specifications

• MPPT Solar Input: 5500W PV Rated Input

• Max PV Current: 22A

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W Pure Sine Wave

• Parallel Capability: Supports up to 6 inverters

• Grid/Generator Input: 90–140VAC with 63A Bypass

• Monitoring: WiFi & Bluetooth

Inverter Specification Sheet

Battery Specification Sheet

Maintenance

• Daily: Check battery levels and verify inverter system status

• Weekly: Inspect wiring, confirm charging performance, and clear debris from panels

• Annually: Perform a full system inspection, tighten all hardware, and clean panels thoroughly

Warranty

• Solar Panels: 30-Year Performance Warranty

• Inverter & Batteries: Manufacturer-backed warranty (see spec sheets)
