5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 5.5KW Solar Roof Mount

The 5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 10.24K Lithium Battery + 5.5KW Solar Roof Mount is a fully customizable solar power solution engineered for simplicity, expandability, and powerful off-grid performance. This base package includes everything needed to begin producing clean, reliable energy — with the ability to scale both solar and battery capacity as your needs grow.

Specifications

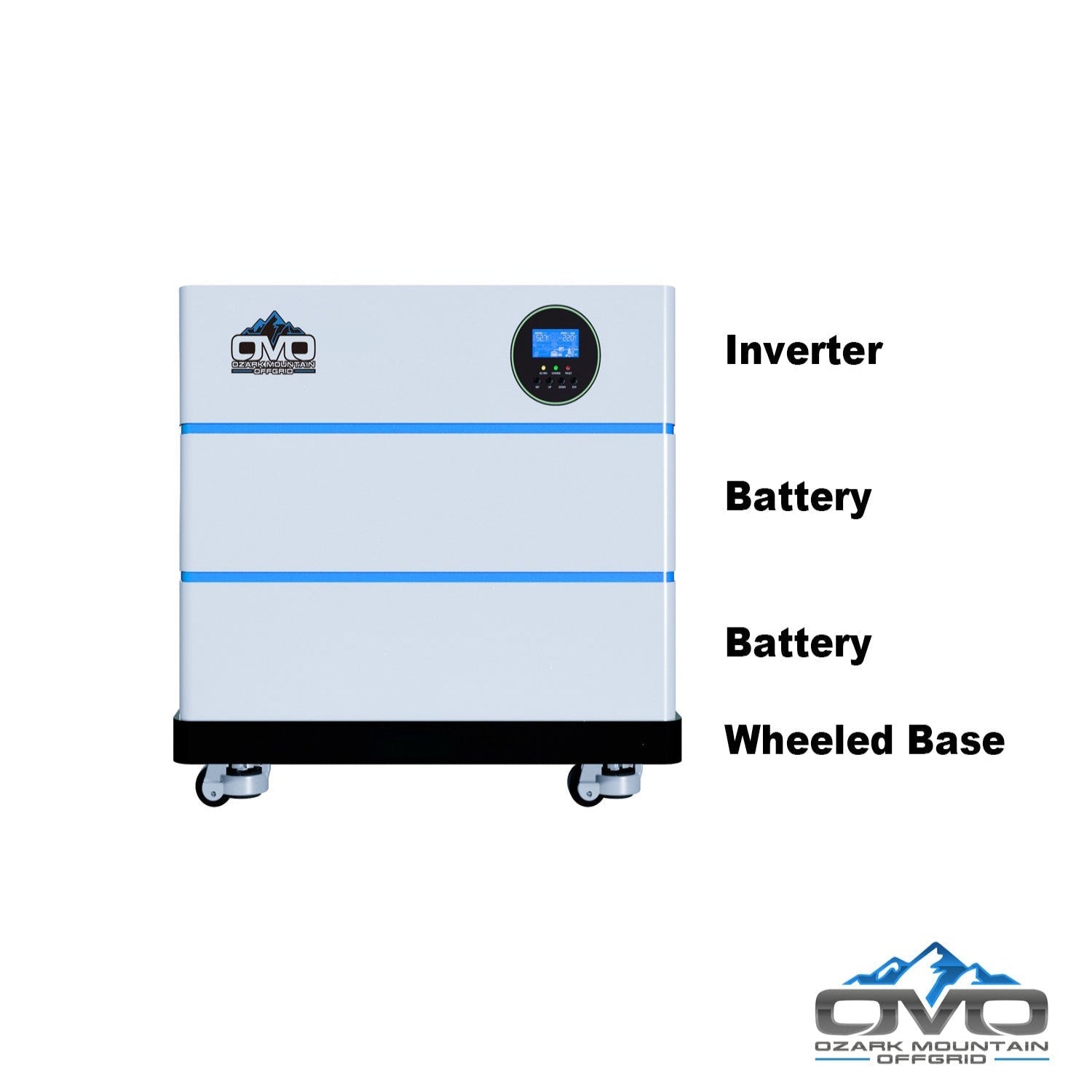

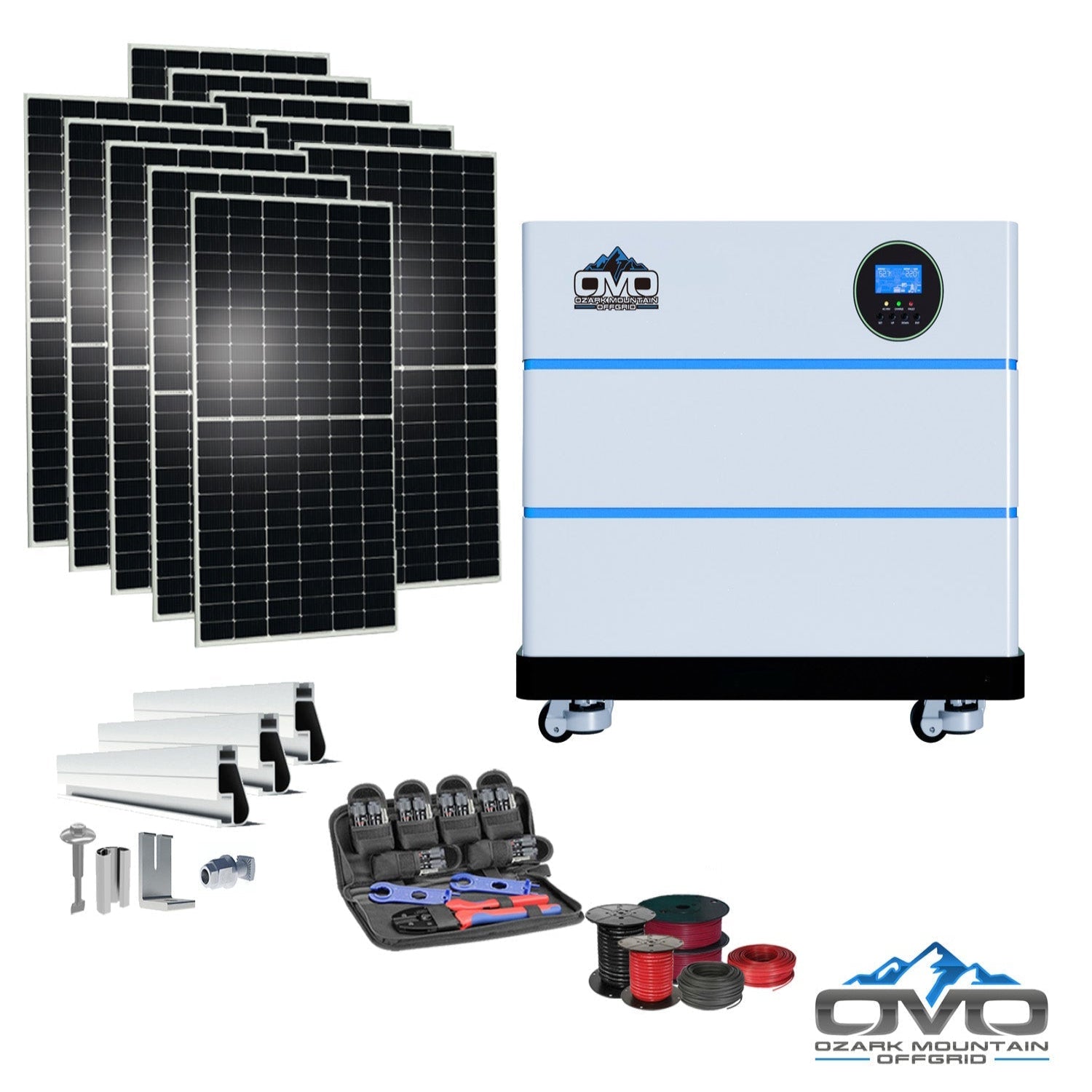

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery Bank: 2× 51.2V 5.12kWh Stackable Heated Lithium Batteries with Bluetooth (Expandable up to 6 batteries per inverter)

• Solar Array: 10× 550W Bifacial Mono Panels (5,500W array; expandable up to 10 panels per inverter)

• Mounting System: IronRidge Roof Mount Rails, Splices, L-Feet, Fasteners & Bolts

• Included Components: OMO Stack Wheeled Base • MC4 Crimper Tool Set • 500' Direct-Burial 10AWG PV Wire • 100' 6AWG AC/Generator Cable

Features

• Bifacial Double-Glass Solar Panels: Capture up to 25% additional rear-side power; superior cloudy-day and low-light output.

• Extreme Durability: 5400 PA snow load • 2400 PA wind load • 30-year power warranty.

• Stackable System: Expand panels and batteries up to system maximums for future-proof growth.

• Smart Monitoring: Full WiFi & Bluetooth connectivity for live system data and control.

• Expandable Architecture: Add-on kits available for increasing solar or battery capacity — custom design assistance available.

• MPPT Solar Optimization: 5500W rated solar input • 22A max • 125–450V DC MPPT range.

Maintenance

• Daily: Verify inverter operation and ensure panels remain unobstructed.

• Weekly: Check wiring connections and inspect mounting hardware.

• Annually: Perform a complete system inspection, clean panels, and check Bluetooth/WiFi diagnostics.

Warranty

• Solar Panels: 30-year performance warranty

• Inverter & Batteries: See linked specification sheets for full warranty terms
