5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 15.36K Lithium Battery + 5.5KW Solar Roof Mount

The 5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 15.36K Lithium Battery + 5.5KW Solar Roof Mount is a customizable, expandable, and highly efficient off-grid solar solution designed to meet a wide range of residential or mobile power needs. This enhanced configuration includes upgraded battery capacity, premium bifacial solar panels, and all wiring and mounting components needed for a complete setup. Built for simplicity and scalability, this system is ideal for cabins, tiny homes, RVs, small houses, and off-grid workshops.

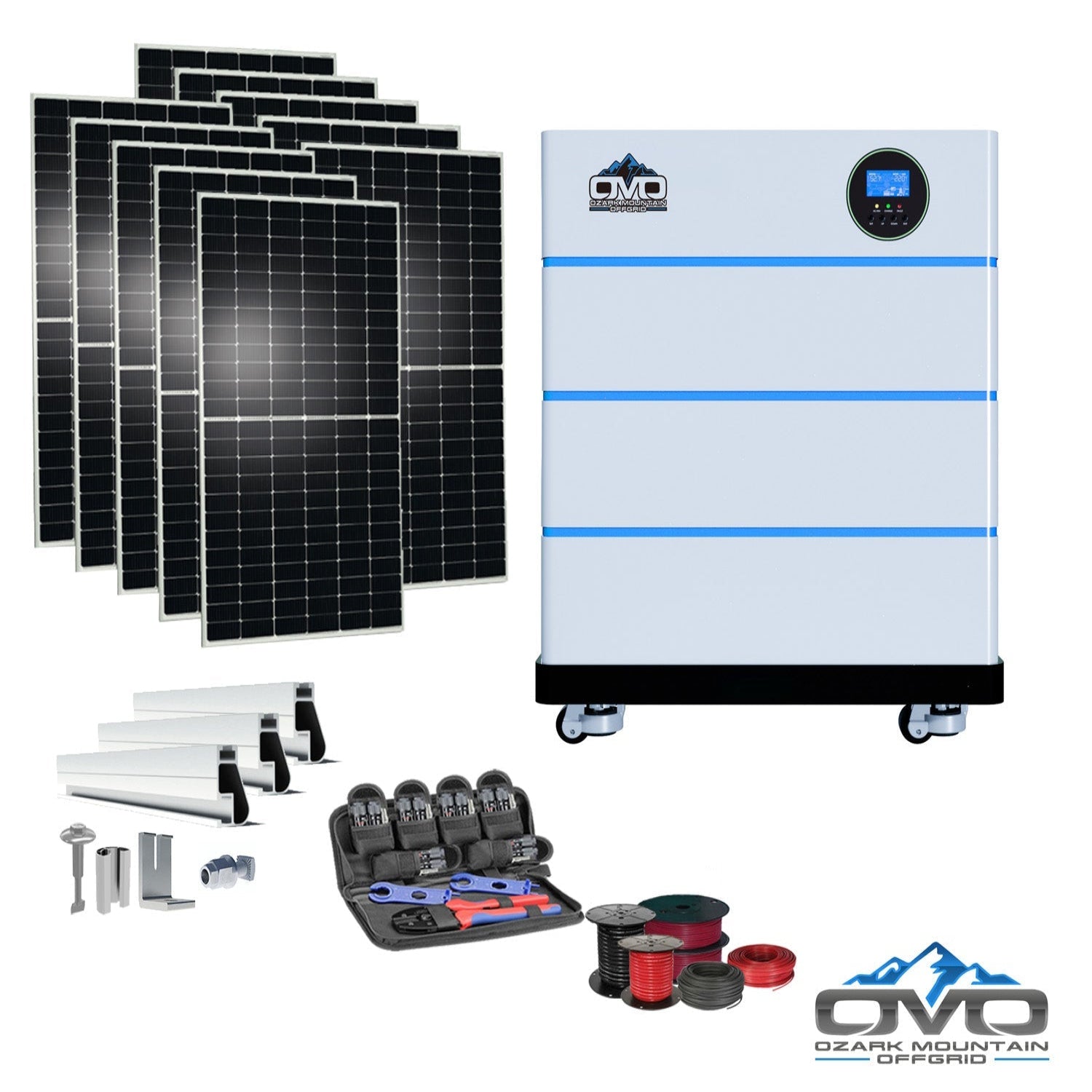

Specifications

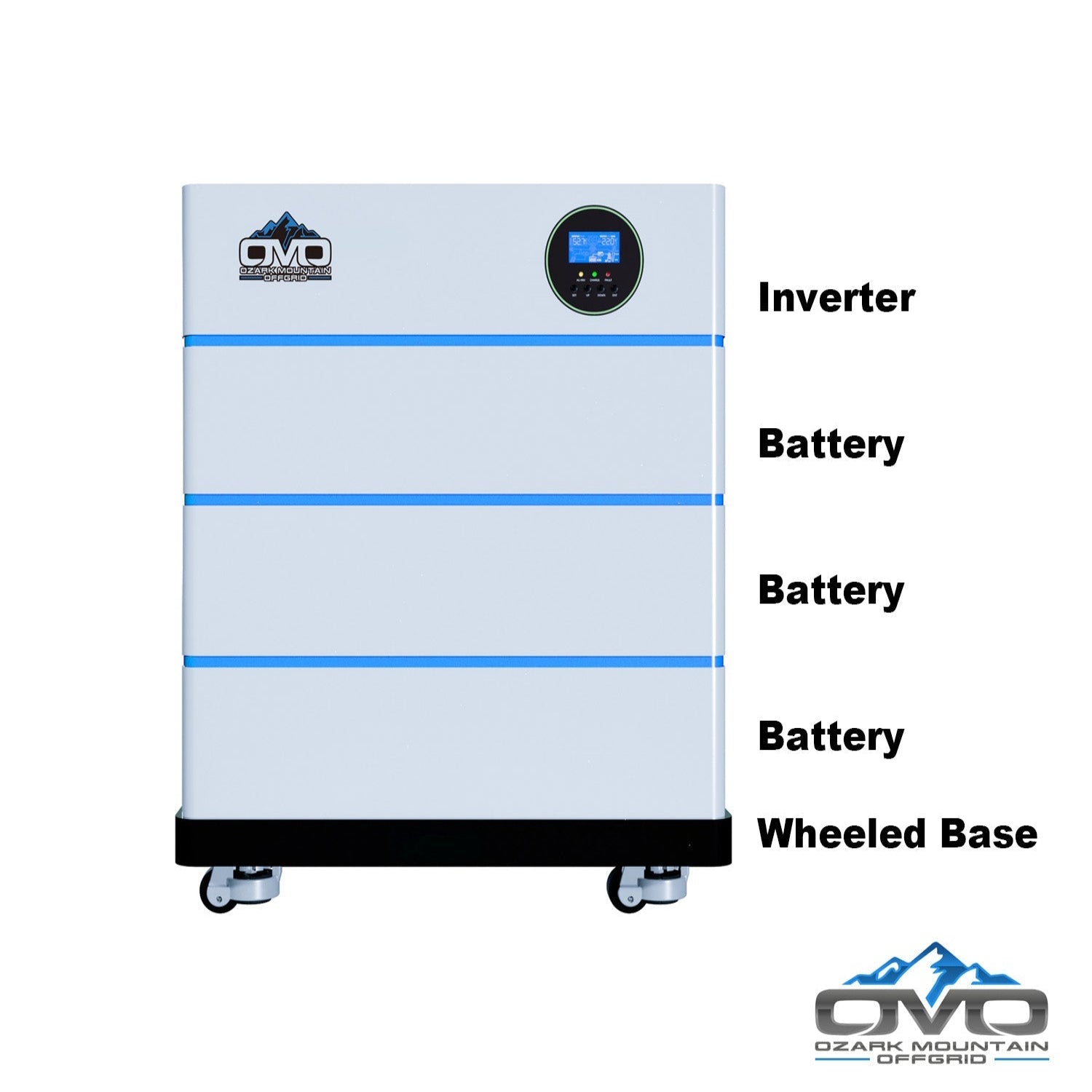

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery Bank: 3× 51.2V 5.12kWh Stackable Heated Lithium Batteries (Bluetooth-enabled; expandable up to 6 per inverter)

• Solar Array: 10× 550W Bifacial Mono Panels (5,500W total; expandable to 10 per inverter)

• Mounting System: IronRidge Roof-Mount Rails, Splices, L-Feet, Fasteners & Bolts

• Included Components: OMO Stack Wheeled Base • MC4 Crimper Tool Set • 500' Direct-Burial 10AWG PV Wire • 100' 6AWG AC/Generator Cable

Features

• Bifacial Double-Glass Panels: Generate up to 25% additional backside energy and outperform standard panels in cloudy or low-light environments.

• High Durability: Rated for 5400 PA snow load and 2400 PA wind load, backed by a 30-year solar power warranty.

• Fully Expandable: Increase solar capacity and battery storage up to system maximums for greater energy independence.

• Advanced Monitoring: Built-in WiFi & Bluetooth for live tracking of power production, battery levels, and system health.

• Easy Mobility: OMO wheeled base allows convenient positioning, access, and operation.

• MPPT Optimization: Built-in 5500W MPPT controller with a 125–450V DC input range and 22A max PV current.

Maintenance

• Daily: Confirm inverter operation and inspect battery levels using Bluetooth or WiFi monitoring.

• Weekly: Check cabling, ensure solar panels are unobstructed, and verify secure mounting.

• Annually: Perform a complete inspection, clean solar panels, and update monitoring settings if needed.

Warranty

• Solar Panels: 30-year performance warranty

• Inverter & Batteries: Warranty details available in specification sheets
