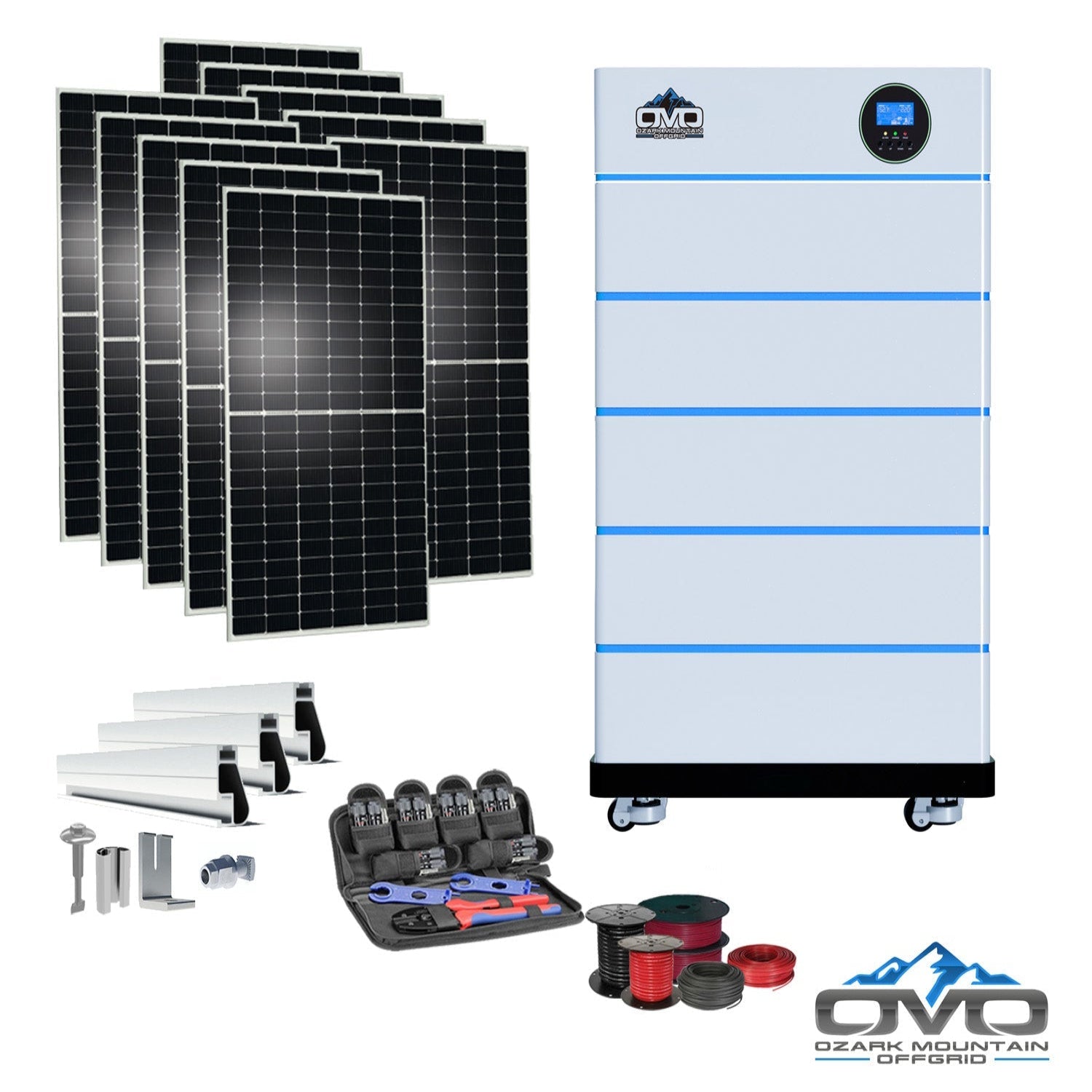

5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 25.6K Lithium Battery + 5.5KW Solar Roof Mount

The 5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 25.6K Lithium Battery + 5.5KW Solar Roof Mount is a fully customizable and expandable off-grid power solution designed to deliver reliable 120V output for cabins, homes, shops, garages, and mobile applications. This premium base package includes a 5.5kW stackable inverter, five heated lithium batteries, a 5.5kW bifacial solar panel array, full IronRidge roof mounting hardware, and complete wiring for a clean, turnkey installation.

Specifications

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter

• Battery Bank: 5× 51.2V 5.12kWh Stackable Heated Batteries (Bluetooth; expandable to maximum 6 per inverter)

• Solar Array: 10× 550W Bifacial Mono Solar Panels (5,500W array; expandable to maximum 10 panels per inverter)

• Mounting Hardware: Complete IronRidge Roof-Mount Rails, Splices, L-Feet, Fasteners & Bolts

• Included Components: OMO Wheeled Stack Base • MC4 Crimper Tool Set • 500' 10AWG Direct-Burial PV Wire • 100' 6AWG AC/Generator Cable

Features

• Bifacial Double-Glass Panels: Gain up to 25% extra production from backside reflection; superior output in cloudy or low-light conditions.

• Extreme Durability: 5400 PA snow load / 2400 PA wind load with a 30-year performance warranty.

• Scalable System: Expand the array and battery bank as energy needs grow; supports up to 6 batteries per inverter.

• Smart Monitoring: Built-in WiFi & Bluetooth for real-time system visibility and performance tracking.

• MPPT Performance: 5500W PV rated input • 22A max PV input • 125–450V DC MPPT voltage range.

• Flexible Integration: Supports up to 6 inverters in parallel; generator/grid input 90–140VAC with 63A bypass capability.

Maintenance

• Daily: Check inverter output, battery SOC, and ensure panels remain unobstructed.

• Weekly: Inspect AC/DC wiring, mounting hardware, and verify communication/monitoring functionality.

• Annually: Deep-clean solar panels; verify torque on roof-mount hardware; review inverter logs and update firmware as needed.

Warranty

• Solar Panels: 30-year performance warranty

• Inverter & Batteries: Full warranty details available in the Inverter Specification Sheet and Battery Specification Sheet
