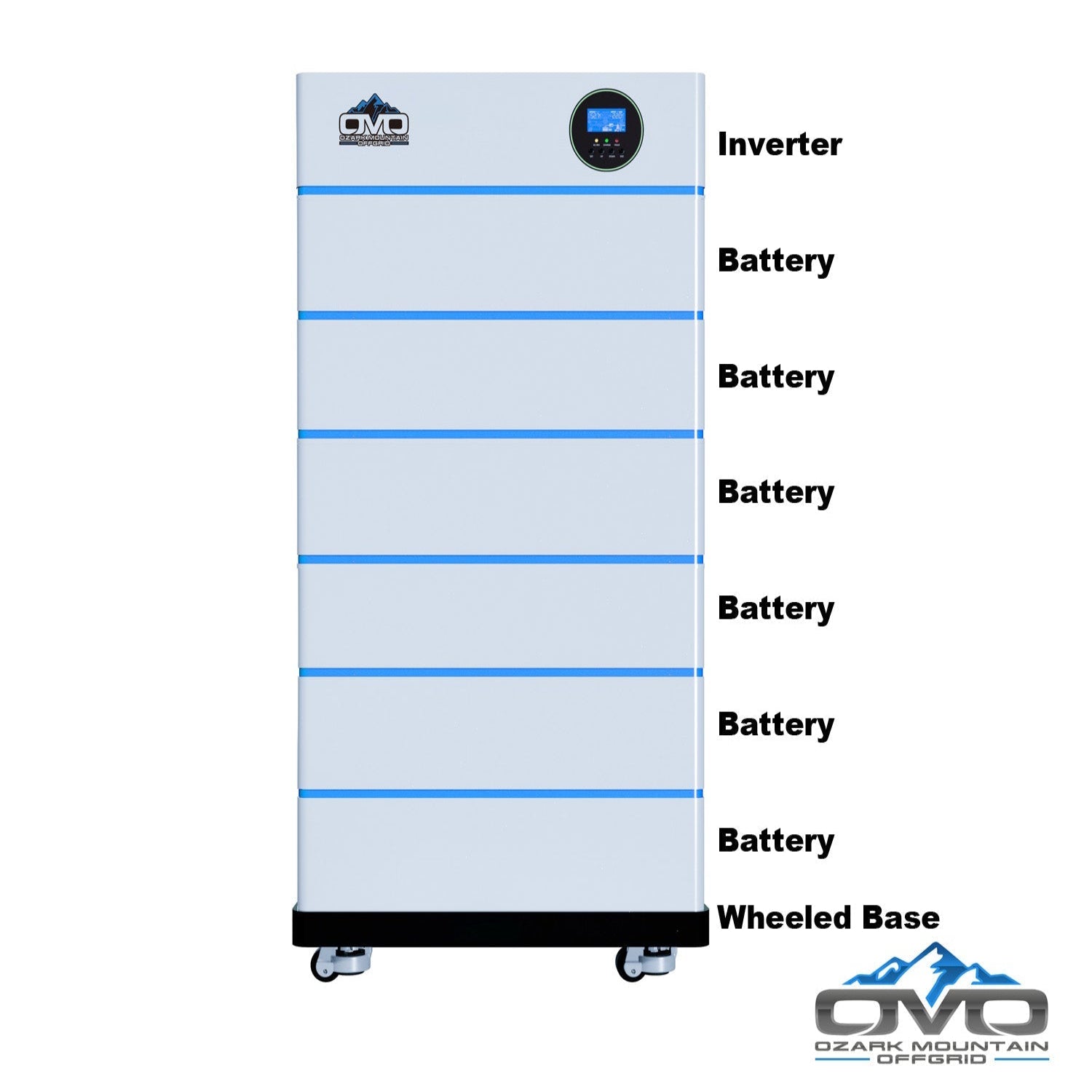

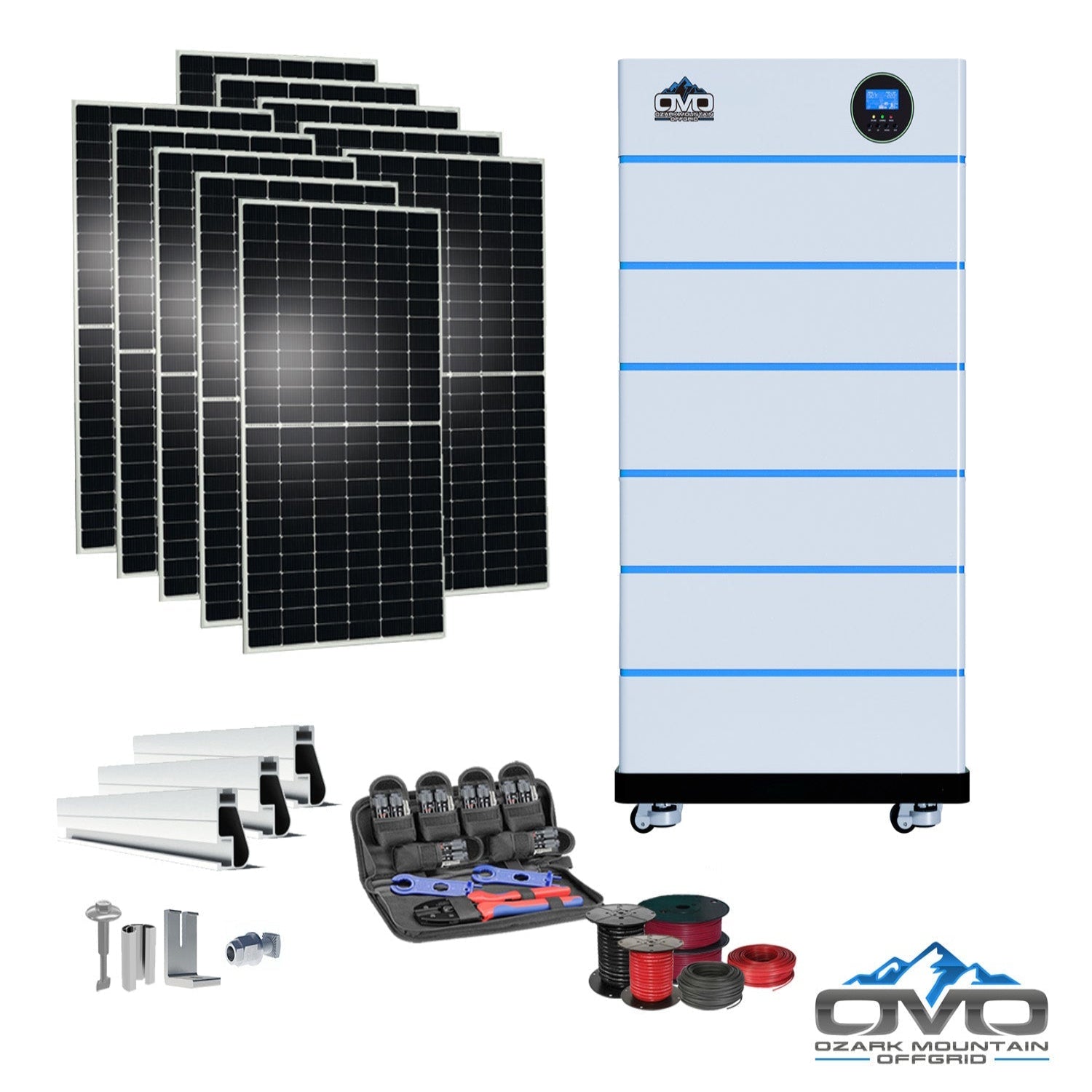

5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 5.5KW Solar Roof Mount

The 5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 30.72K Lithium Battery + 5.5KW Solar Roof Mount is a complete, customizable solar power solution designed to deliver reliable off-grid energy for homes, cabins, RV setups, and remote sites. This turnkey package includes a 5500W pure sine inverter, six heated stackable batteries with Bluetooth, a wheeled base, a 5500W bifacial solar array, and all required mounting hardware and wiring. With high-efficiency bifacial panels, expandable storage, and rugged construction, this system is built for long-term performance in all environments.

Specifications

• Inverter: 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter (Up to 6 in Parallel)

• Batteries: 6× 51.2V 5.12kWh Stackable Heated LiFePO4 Batteries w/ Bluetooth (Max 6 Per Inverter)

• Solar Array: 10× 550W Bifacial Mono Panels (5,500W Array, Expandable to 10 Total)

• Mounting Kit: Complete Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners & Bolts

• Wiring: 500' PV Direct Burial 10AWG Solar Wire + 100' 6AWG AC Output/Input/Generator Cable

• Tools Included: MC4 Crimper Tool Set

• Panel Ratings: 5400 Pa Snow Load / 2400 Pa Wind Load, 30-Year Power Warranty

Features

• Bifacial Double-Glass Solar Panels: Generate up to 25% more power using rear-side light collection

• Advanced MPPT Charge Controller: 5500W PV Input, 22A Max PV Current, 125–450V DC MPPT Range

• Heated Battery System: Ensures safe winter charging and long-term performance

• Scalable Architecture: Expandable to 6 batteries and 10 panels per inverter

• Smart Monitoring: Built-in WiFi & Bluetooth for app-based system tracking

• Grid & Generator Ready: 90–140VAC Input with 63A Bypass Capability

Maintenance

• Daily: Check system monitoring app for battery health and solar input

• Weekly: Inspect solar panels for dust or debris and wipe as needed

• Annually: Verify all wiring connections, inspect roof mounts, and review battery performance logs

Warranty

• Solar Panels: 30-Year Power Warranty

• Inverter & Electronics: Per Manufacturer Warranty (see linked specification sheets)

• Batteries: Manufacturer Warranty Included (see specification sheet)
