5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 5.5KW Solar Roof Mount

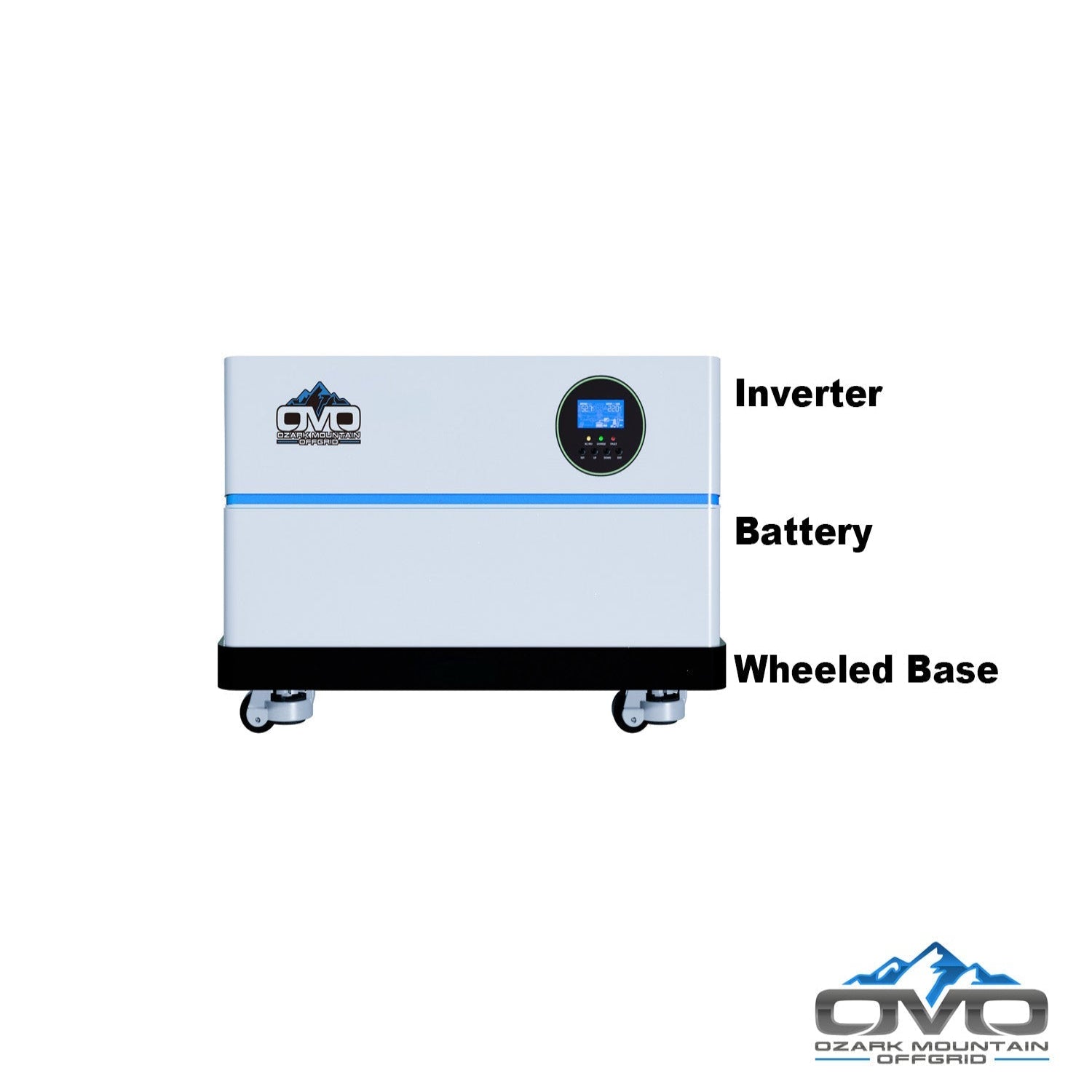

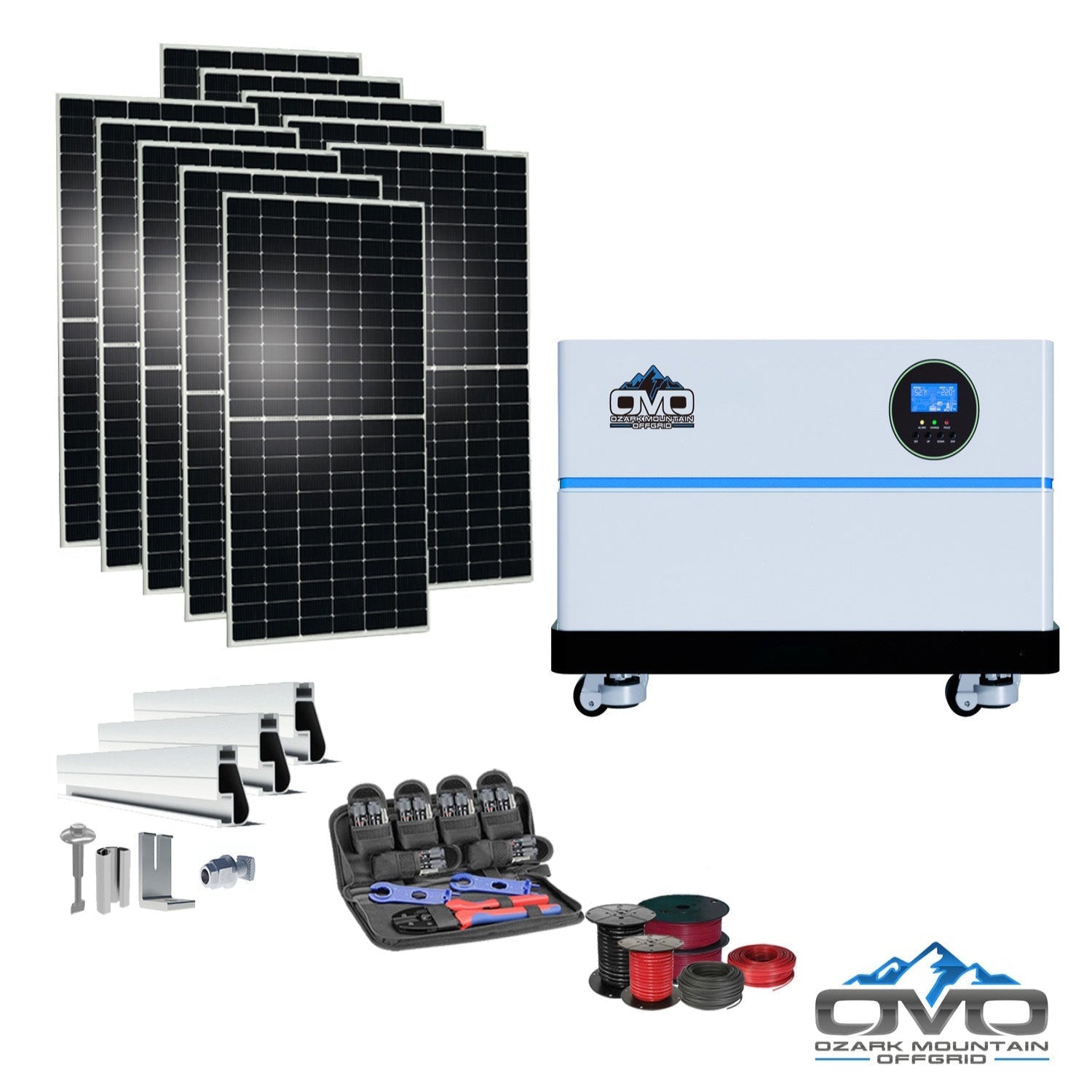

The 5.5KW OMO All-In-One Customizable Stacking Inverter/Battery System 5500W Inverter + 5.12K Lithium Battery + 5.5KW Solar Roof Mount is a complete, customizable off-grid power solution designed to meet a wide range of residential, mobile, and remote energy needs. This turnkey system includes a 5500W pure sine inverter, a heated stackable battery, a heavy-duty wheeled base, a high-efficiency 5.5kW bifacial solar array, and all mounting hardware and wiring required for installation. Built for reliability, expandability, and year-round performance, this system provides dependable power in all light and weather conditions.

Specifications

• Inverter: 1× OMO 5500W 120VAC 60Hz Pure Sine Wave Stackable Inverter (Up to 6 in Parallel)

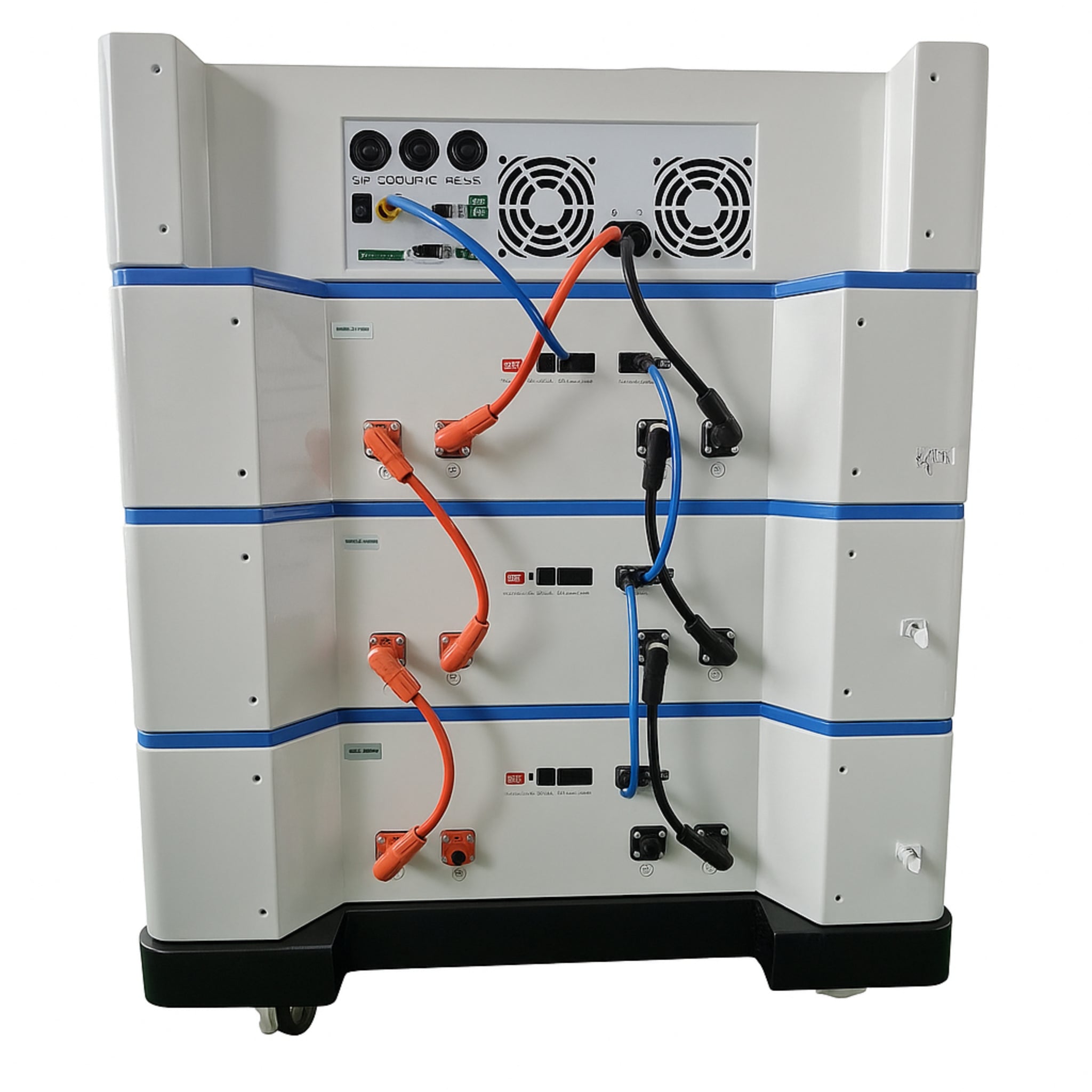

• Battery: 1× 51.2V 5.12kWh Stackable Heated LiFePO4 Battery w/ Bluetooth (Expandable to 6 Total)

• Solar Array: 10× 550W Bifacial Mono Solar Panels (5,500W Total, Expandable to 10 Per Inverter)

• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners & Bolts

• Tools Included: MC4 Crimper Tool Set

• Wiring: 500' PV Direct Burial 10AWG Solar Wire + 100' 6AWG AC Output/Input/Generator Cabling

• Panel Durability: 5400 Pa Snow Load / 2400 Pa Wind Load, 30-Year Power Warranty

Features

• Bifacial Double-Glass Solar Panels: Capture up to 25% additional energy from rear-side reflection and deliver superior output in cloudy or low-light conditions.

• Integrated MPPT Charge Controller: 5500W PV input rating, 22A max solar input, and 125–450V DC MPPT tracking range.

• High-Performance Battery System: Heated LiFePO4 chemistry ensures safe charging in winter environments and long-term cycle life.

• Fully Expandable: Add up to 6 batteries and 10 solar panels per inverter to scale with your power needs.

• Smart Connectivity: Built-in WiFi and Bluetooth monitoring for real-time system tracking and performance insight.

• Grid & Generator Compatible: Accepts 90–140VAC input with a 63A bypass rating.

Maintenance

• Daily: Review power production and battery health through the monitoring app.

• Weekly: Inspect solar panels for dust, pollen, or debris and clean as needed to maintain efficiency.

• Annually: Check all wiring connections, mounting hardware, and review battery performance logs. Inspect roof mounts for weathering or wear.

Warranty

• Solar Panels: 30-Year Power Warranty

• Inverter: Covered per manufacturer’s warranty (see spec sheet)

• Batteries: Manufacturer warranty included (see spec sheet)

Inverter Specification Sheet

Battery Specification Sheet
