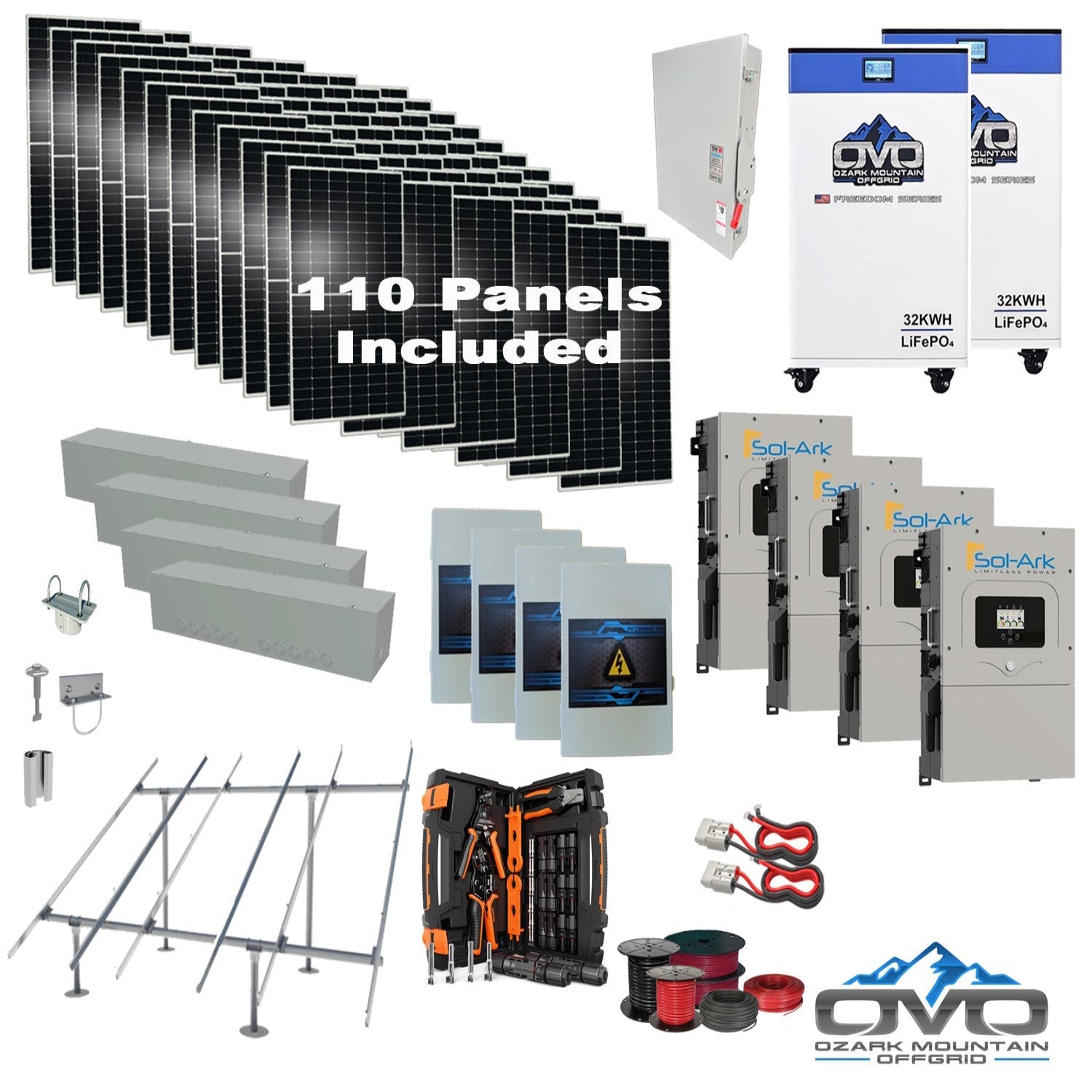

60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +60.5KW Solar with Ground Mount and Wiring

The 60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +60.5KW Solar with Ground Mount and Wiring includes four 15K Sol-Ark hybrid inverters, two 32kWh OMO 48V Freedom Series lithium batteries, and a massive 60.5KW bifacial solar array paired with a full ground-mount system and complete wiring package. Producing approximately 272,250 watts per day based on 4.5 peak sun hours, this system is ideal for large homes, farms, and properties consuming around 8,167 kWh per month. It is engineered for long-term scalability with room for additional panels or batteries.

Specifications

• Solar Array: 110× 550W Bifacial Mono Solar Panels (60,500 Watts)

• Inverters: 4× Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverters with built-in MPPT charge controllers

• Battery Bank: 2× OMO 32kWh 48V Freedom Series Heated Batteries with Bluetooth + LCD Display

• Ground Mount System: Complete Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, and Bolts (customer supplies 3” Schedule 40 pipe locally)

• Solar Wiring: 4× Solar PV combiner boxes, 2× 500' spools of 10AWG MC4 solar wiring, MC4 crimp tool set

• AC Cabling: 2× 100' spools of 6 AWG AC output/input/generator cabling, 2× 20' spools of 2/0 AC main line

• AC Hardware: 4× wire gutter boxes, 1× AC combiner box kit for Sol-Ark multi-unit setups

• Battery Cabling: 2× Anderson plug battery cable sets

• Documentation: Installation Manual + Battery Specification Sheet

Features

• High-Efficiency Bifacial Panels: Double-glass construction harvesting up to 25% additional rear-side energy; superior low-light performance; 5400 PA snow / 2400 PA wind load; 30-year power warranty

• Ground Mount System: Heavy-duty Iron Ridge configuration designed around customer-sourced 3" Schedule 40 pipe

• Sol-Ark 15K Inverter Capability: 120/240 split-phase output, built-in MPPT (3 inputs), generator support, WiFi connectivity, LCD touchscreen

• Battery Flexibility: Supports 48V lithium and flooded lead-acid configurations

• Scalable Architecture: Parallel stack up to 8 Sol-Ark units

• Fast Transfer: 4ms switchover from grid to battery

• Outdoor Rated Components: Inverter is NEMA 3R rated for fully outdoor installations

Maintenance

• Daily: Confirm unobstructed sunlight and monitor inverter/battery readouts

• Weekly: Inspect bifacial panels for dirt, dust, or shading; review Bluetooth battery health metrics

• Annually: Review mounting hardware, wiring runs, inverter terminals, and battery connections for secure operation

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year warranty

• Batteries: Manufacturer warranty (see specification sheet)

Battery Specification Sheet
