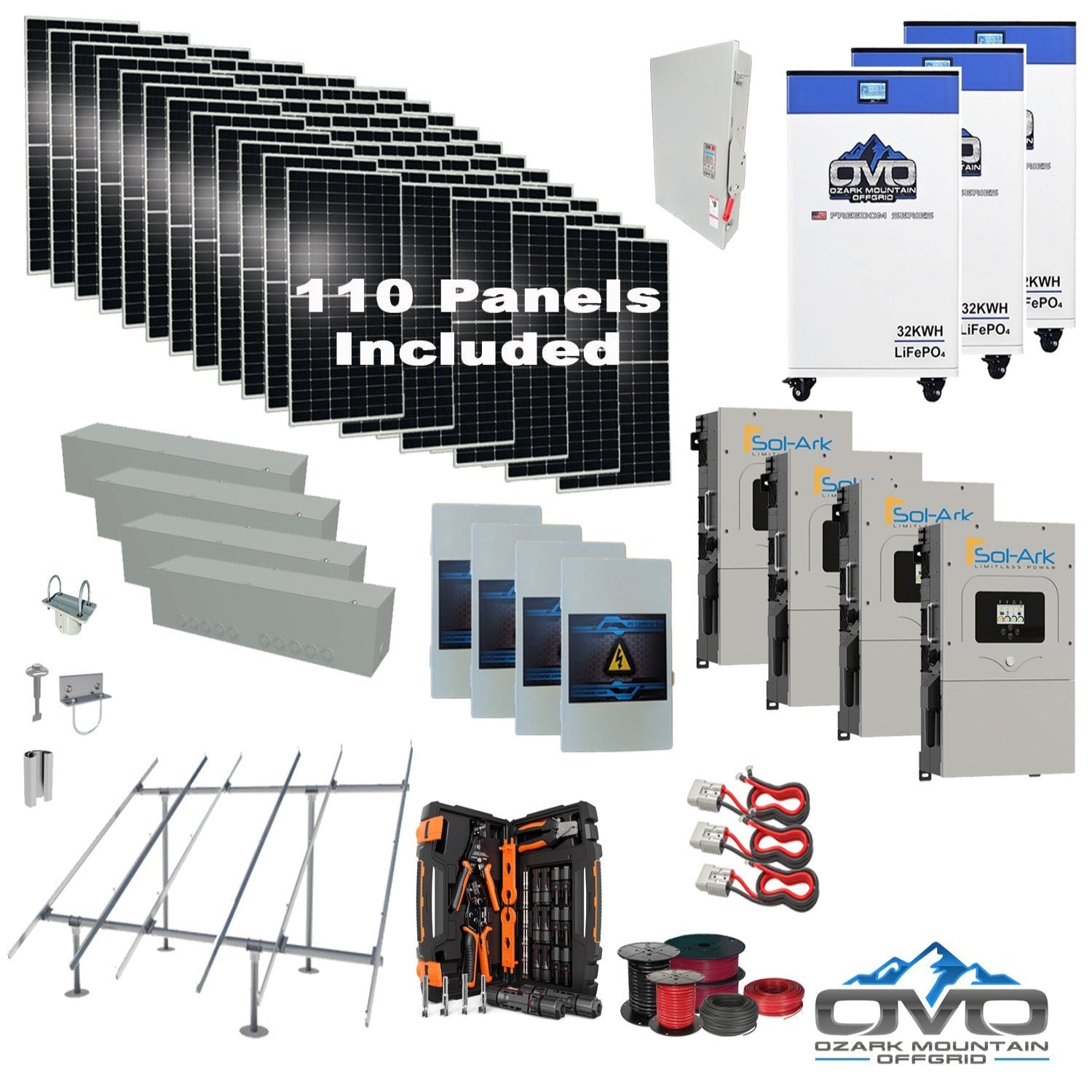

60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +60.5KW Solar with Ground Mount and Wiring

The 60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +60.5KW Solar with Ground Mount and Wiring includes four 15K Sol-Ark hybrid inverters, three 32kWh OMO 48V Freedom Series lithium batteries (96kWh total storage), and a powerful 60.5KW bifacial solar array paired with a complete ground-mount racking system and wiring package. Producing approximately 272,250 watts per day based on 4.5 sun hours, this system is ideal for large homes, farms, and high-demand off-grid properties using around 8,167 kWh per month. It is designed for long-term scalability, allowing homeowners to add additional batteries or solar panels as needed.

Specifications

• Solar Array: 110× 550W Bifacial Mono Solar Panels (60,500W total)

• Inverters: 4× Sol-Ark Hybrid/Off-Grid All-in-One 15K 48V Inverters with built-in MPPT charge controllers

• Battery Bank: 3× OMO 32kWh 48V Freedom Series Heated Lithium Batteries with Bluetooth & LCD Display (96kWh total)

• Ground Mount System: Iron Ridge rails, top caps, rail connectors, fasteners, and bolts (customer supplies 3" Schedule 40 pipe locally)

• Solar Wiring: 4× Solar PV combiner boxes, 2× 500' spools of 10AWG MC4 cable, 1× MC4 crimping tool set

• AC Cabling: 2× 100' spools of 6 AWG AC output/input/generator cable, 2× 20' spools of 2/0 AC main line cable

• AC Hardware: 4× wire gutter boxes, 1× AC combiner box kit (compatible with 2+ Sol-Ark inverters)

• Battery Wiring: 3× Anderson plug battery cable sets

• Documentation: Installation Manual + Battery Specification Sheet

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side gain, superior output in cloudy/low-light conditions, 5400 PA snow load, 2400 PA wind load, 30-year power warranty

• High Solar Output: Produces approximately 272,250W/day at 4.5 peak sun hours

• Sol-Ark 15K Inverter Features: 120/240 split phase, grid-tie or off-grid, generator support, 3× MPPT inputs, WiFi, LCD touchscreen, DC transformerless design, 97.5% efficiency

• Battery Compatibility: Supports lithium and flooded lead-acid 48V battery options

• Outdoor Rated: NEMA 3R enclosure for safe all-weather outdoor installation

• Scalable Architecture: Parallel stacking capability for up to 8 Sol-Ark inverters

• Ultra-Fast Transfer: 4ms transfer time between grid and battery power

• Ground Mount Flexibility: Built around sturdy 3" Schedule 40 pipe supplied by the customer for maximum installation strength

Maintenance

• Daily: Check inverter readings, battery metrics, and ensure panels receive unobstructed sunlight

• Weekly: Inspect bifacial panels for dirt, dust, or obstructions; review battery performance via Bluetooth

• Annually: Inspect ground-mount hardware, wiring runs, inverter terminals, and battery cabling for secure installation

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year warranty

• Batteries: Manufacturer warranty (see specification sheet)

Battery Specification Sheet
