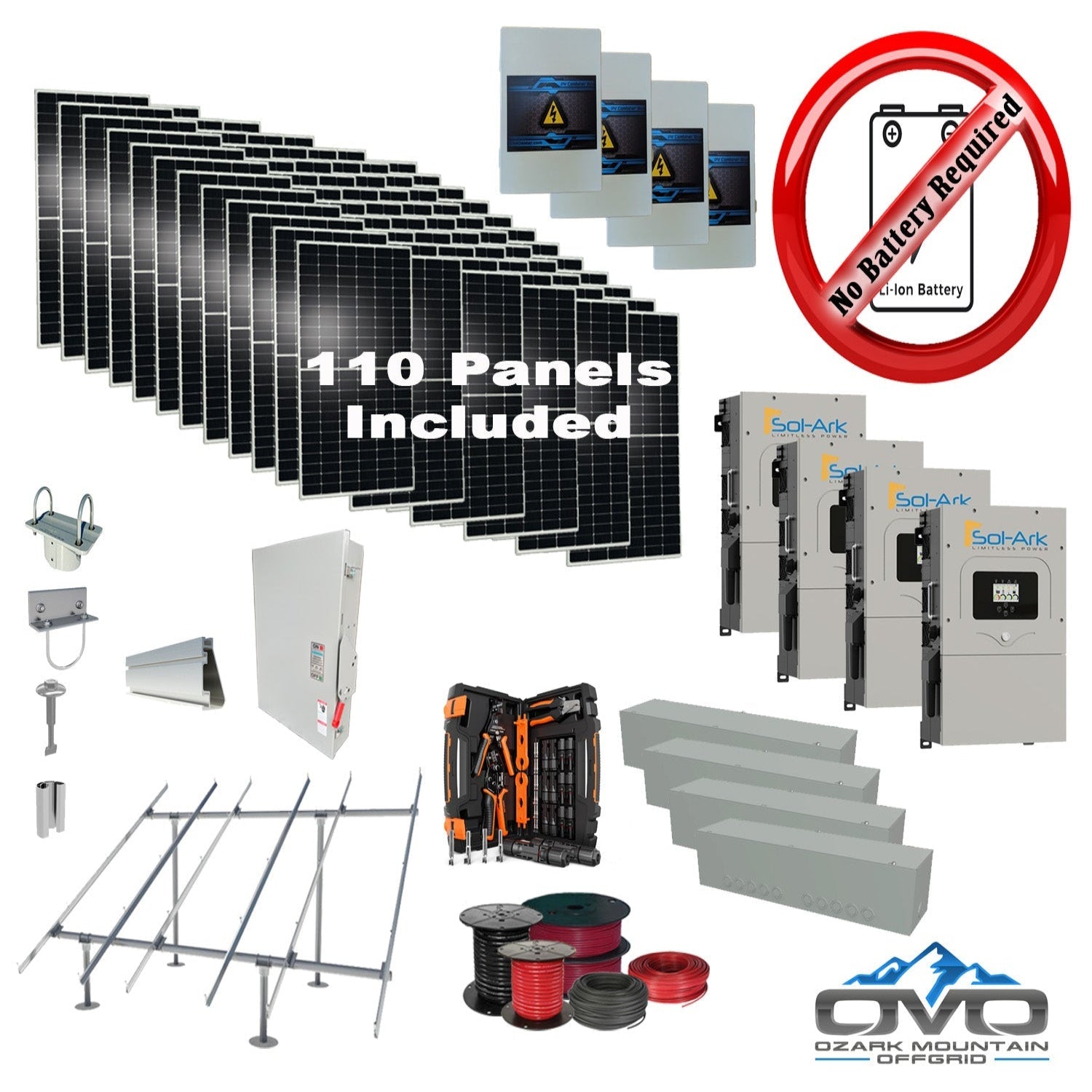

60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter +60.5KW Solar with Ground Mount and Wiring

The 60KW Complete Offgrid Solar Kit + 4x 15K Sol-Ark Inverter +60.5KW Solar with Ground Mount and Wiring includes four 15K Sol-Ark hybrid inverters and a powerful 60.5KW bifacial solar array paired with Iron Ridge ground-mount rails and a full wiring package. Capable of producing approximately 272,250 watts per day based on 4.5 peak sun hours, this system is ideal for large homes, farms, and high-demand off-grid properties using around 8,167 kWh monthly. Designed with scalability in mind, the system supports easy expansion with additional panels or batteries as energy needs grow.

Specifications

• Solar Array: 110× 550W Bifacial Mono Solar Panels (60,500W total)

• Inverters: 4× Sol-Ark Hybrid/Off-Grid All-in-One 15K 48V Inverters with built-in MPPT charge controllers

• Battery Ready: System can run without a battery; compatible with any 48V lithium or lead-acid battery added later

• Ground Mount System: Iron Ridge rails, top caps, rail connectors, fasteners, and bolts (customer sources 3" Schedule 40 pipe locally)

• Solar Wiring: 4× Solar PV combiner boxes, 2× 500' spools of 10AWG MC4 cabling, 1× MC4 crimper tool set

• AC Cabling: 2× 100' spools of 6 AWG AC output/input/generator cabling, 2× 20' spools of 2/0 AC main line cable

• AC Hardware: 4× wire gutter boxes, 1× AC combiner box kit (supports 2+ Sol-Ark units)

• Documentation: Installation Manual included

Features

• Bifacial Double-Glass Panels: Capture up to 25% additional rear-side energy, superior low-light performance, 5400 PA snow load, 2400 PA wind load, 30-year power warranty

• High Solar Output: Produces ~272,250W/day at 4.5 sun hours, suitable for large homes and agricultural properties

• Sol-Ark 15K Inverter Features: 120/240 split phase, grid-tie or off-grid operation, generator support, 3× MPPT inputs, WiFi connectivity, LCD touchscreen, transformerless design, 97.5% efficiency

• Battery Flexibility: System operates perfectly without batteries; add 48V batteries at any time

• Outdoor Verified: NEMA 3R enclosure rated for safe outdoor installation

• Scalable Design: Parallel stacking capability for up to 8 Sol-Ark inverters

• Fast Transfer Time: 4ms automatic switching from grid to battery power (if batteries are added)

• Installation Support: Installation services available upon request; contact for custom pricing

Maintenance

• Daily: Monitor inverter status and ensure solar panels receive unobstructed sunlight

• Weekly: Inspect solar panels for dust, dirt, or shading obstructions

• Annually: Inspect ground-mount hardware, wiring, inverter connections, and AC hardware for proper function

Warranty

• Solar Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year warranty

• Ground Mount Hardware: Manufacturer-backed structural warranty
