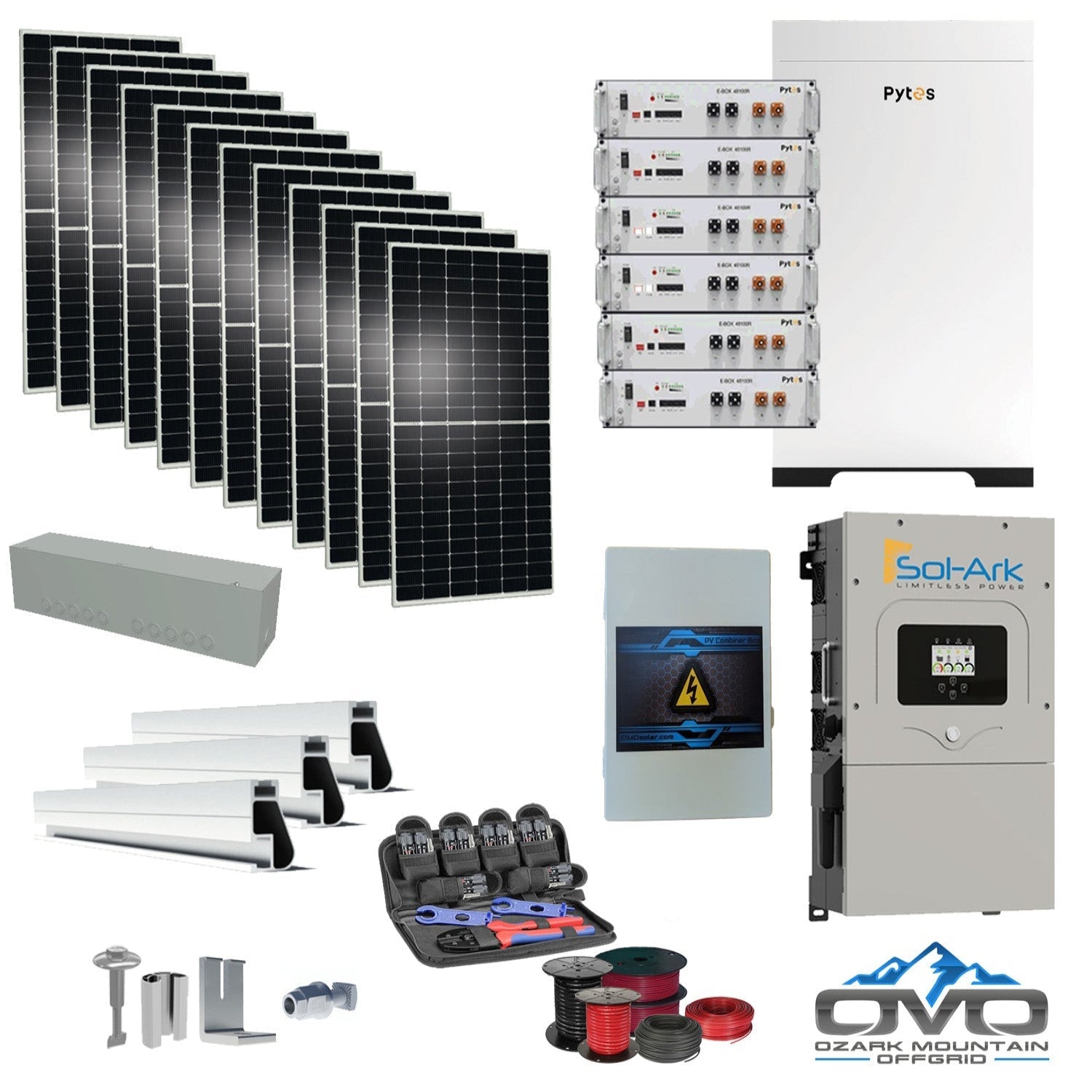

6KW Complete Offgrid Solar Kit - 30.72kWh Pytes Lithium Battery + 15K Sol Ark Inverter +6.6KW Solar with Mounting Rails and Wiring

The 6KW Complete Offgrid Solar Kit - 30.72kWh Pytes Lithium Battery + 15K Sol Ark Inverter +6.6KW Solar with Mounting Rails and Wiring is a high-performance starter package designed for full off-grid living. With 30,720 watts of usable Pytes lithium storage, a 6.6KW bifacial solar array, and the elite Sol-Ark 15K hybrid inverter, this system supports homes using around 920kWh per month. It produces up to 29,700 watts of solar energy per day based on 4.5 hours of sun and is engineered to scale easily with additional panels or batteries in the future.

Specifications

• Solar Panels: 12× 550W Bifacial Mono Panels (6,600W total array)

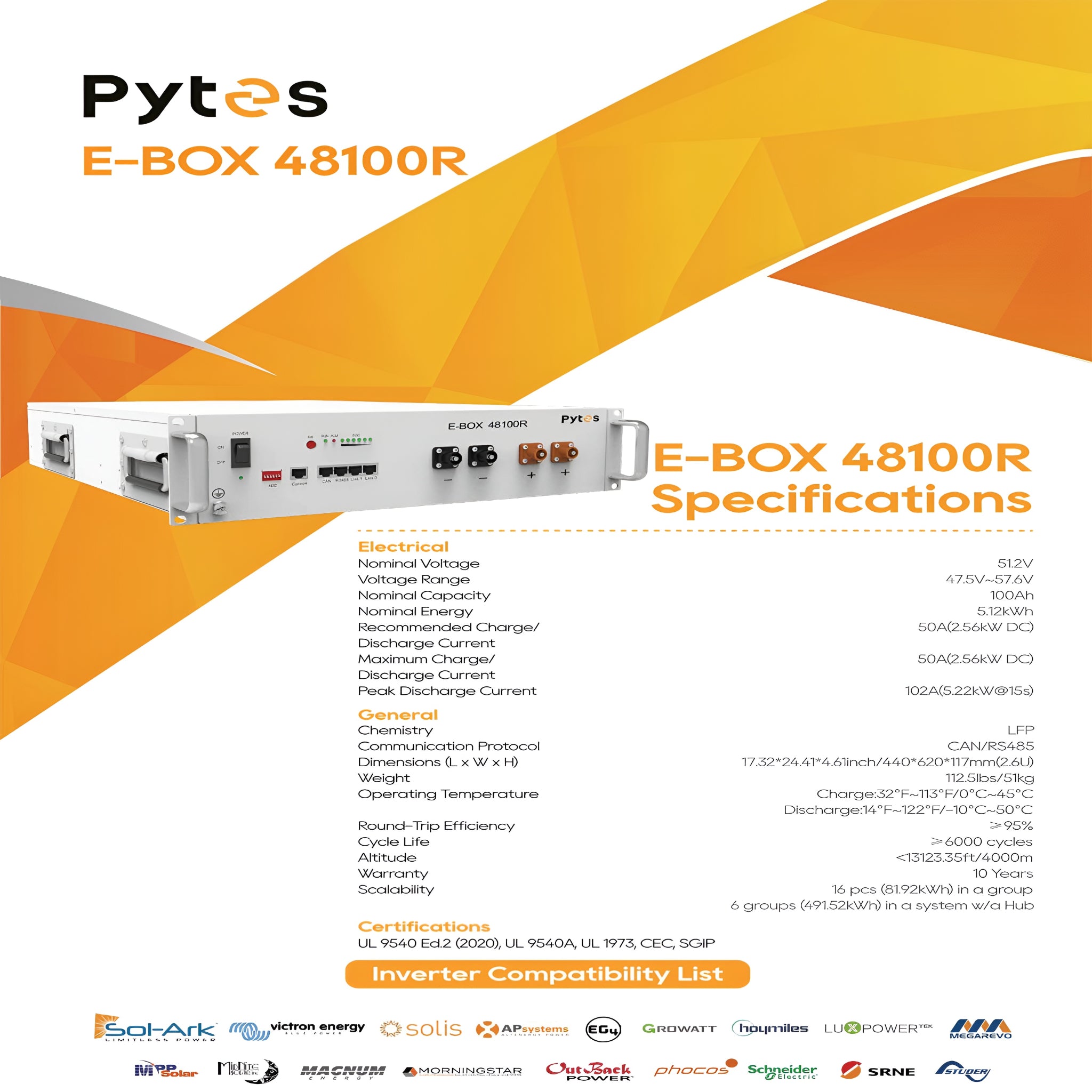

• Batteries: 6× Pytes E-Box 48100 Lithium Batteries (5.12kWh each, 30.72kWh total)

• Battery Enclosure: Pytes Forest-RB Rack (fits up to six Pytes 48100 batteries)

• Inverter: Sol-Ark 15K Hybrid/Off-Grid All-in-One Inverter (with built-in MPPT controllers)

• Mounting System: Iron Ridge Roof Mount Rails, Splices, Legs, Fasteners & Bolts

• Cabling: 500' 10AWG PV Wire, 100' 6AWG AC Wire, 20' 4/0 Main Line

Features

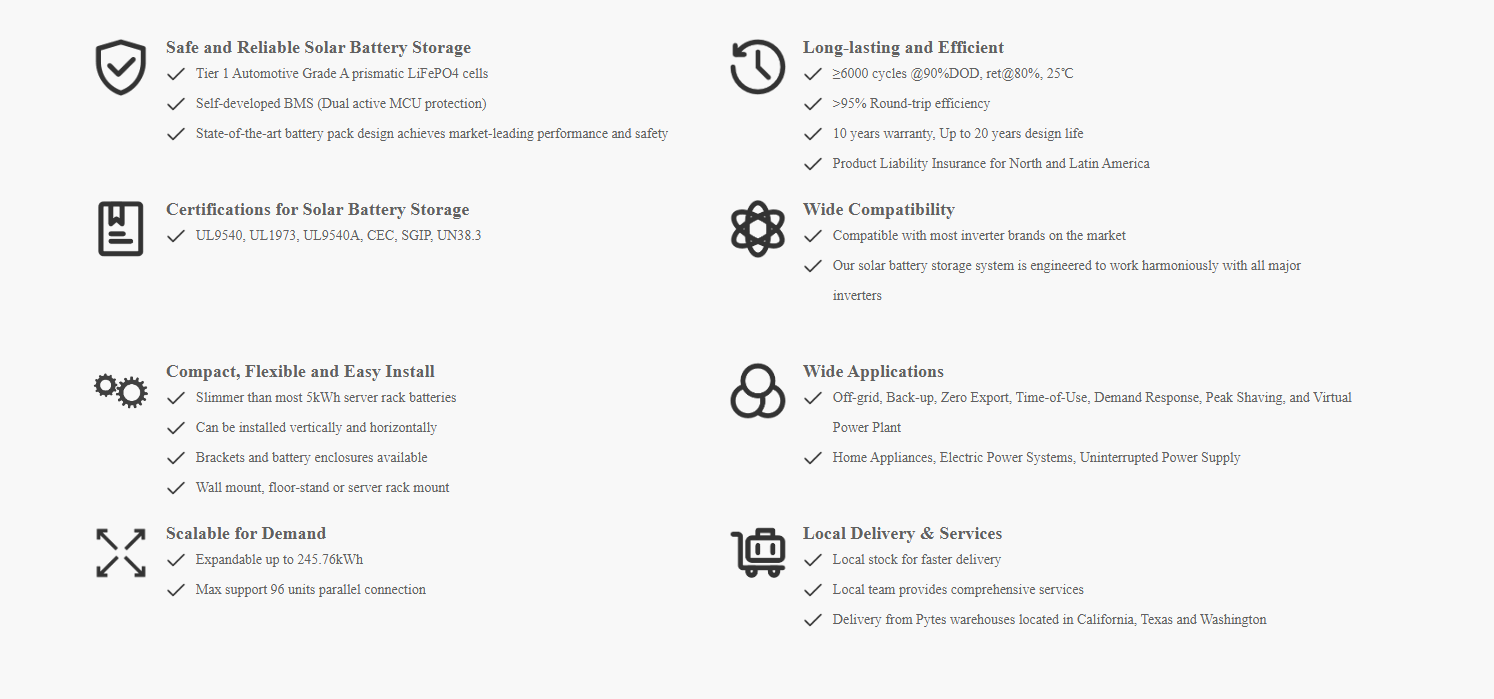

• High-Capacity Lithium Storage: 30,720W of reliable, long-life backup power

• Bifacial Solar Technology: Double-glass panels harvest up to 25% more from reflected light

• Sol-Ark Hybrid Power: Supports grid-tie, off-grid, or generator integration with redundant fail-safes

• Extreme Weather Durability: Rated for 5400 PA snow load & 2400 PA wind load

• Future-Ready Design: Solar combiner box allows panel growth and system expansion

• Complete Installation Kit: Includes MC4 crimp kit, gutter box, battery cables, and full manual

Inverter Details

• Output: 120/240V split phase pure sine wave

• Battery Input: Compatible with 48V lithium or flooded lead-acid

• MPPT Charging: 3× integrated MPPT charge controllers

• User Interface: LCD touchscreen with WiFi monitoring

• Efficiency: 97.5% transformerless inverter efficiency

• Enclosure Rating: NEMA 3R outdoor-approved

• Parallel Support: Stack up to 8 Sol-Ark units

• Transfer Time: 4ms transfer between battery and grid

Maintenance

• Daily: Ensure panels are unobstructed and inverter indicators show normal operation

• Weekly: Inspect wiring, battery indicators, and solar panel surfaces

• Annually: Check all mounting hardware, tighten connections, clean vents, and review system logs

Warranty

• Solar Panels: 30-year performance warranty

• Sol-Ark Inverter: 10-year warranty

• Pytes Batteries: Manufacturer warranty applies (model-specific)
