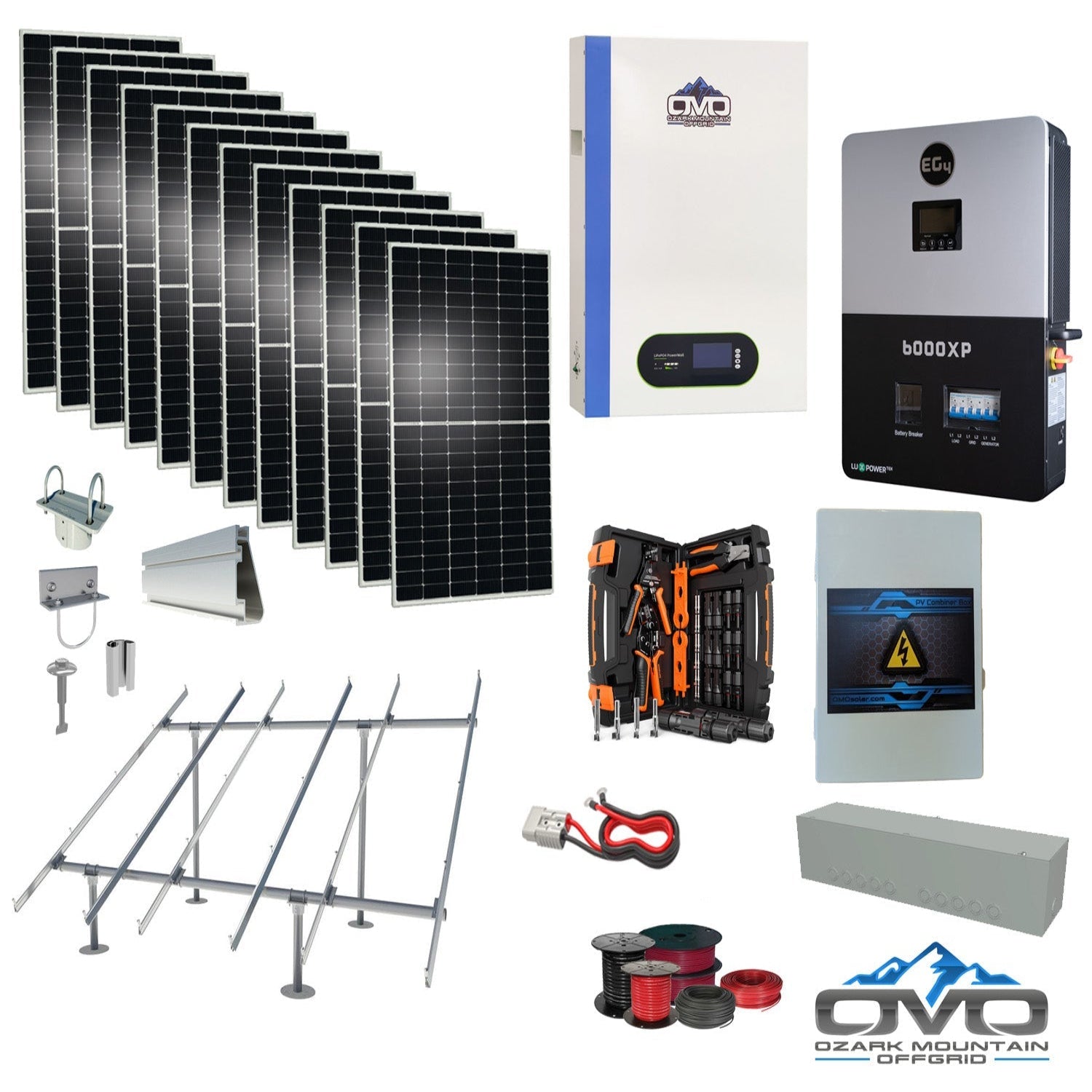

6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Ground Mount and Wiring

The 6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter + 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Ground Mount and Wiring features the EG4 6000XP inverter paired with a single 5.12kWh OMO 48V Patriot Lithium Battery, delivering reliable off-grid power for small cabins, shops, garages, RVs, and pole barns. The 6.6KW bifacial solar array generates approximately 29,700 watts per day based on 4.5 sun hours, supporting households that consume around 920kWh per month. This system is fully expandable, allowing easy addition of solar panels or batteries over time.

Specifications

• Solar Panels: 12× 550W bifacial double-glass solar modules (6,600W total)

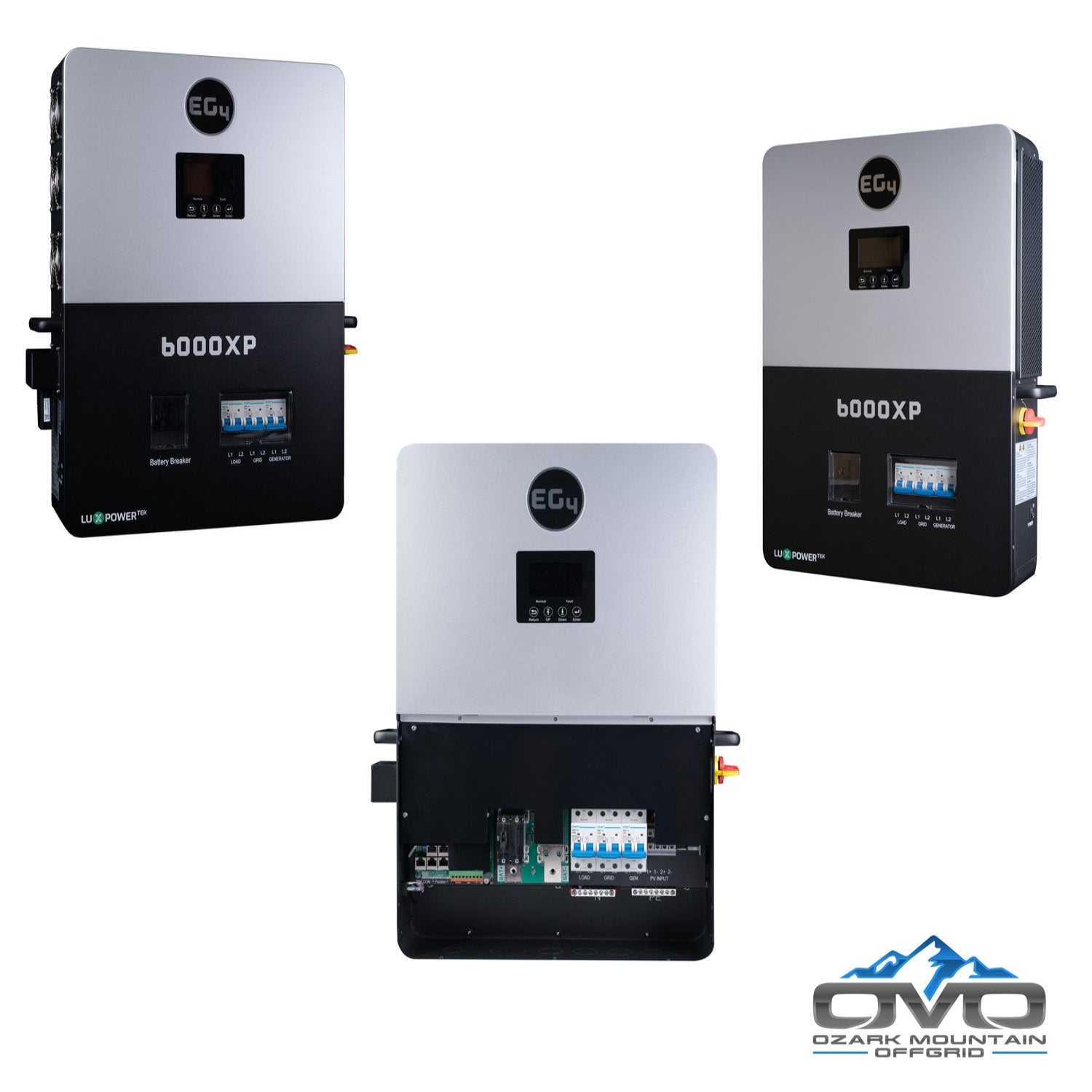

• Inverter: 1× EG4 6000XP, 208/240VAC split-phase, 48VDC off-grid inverter/charger

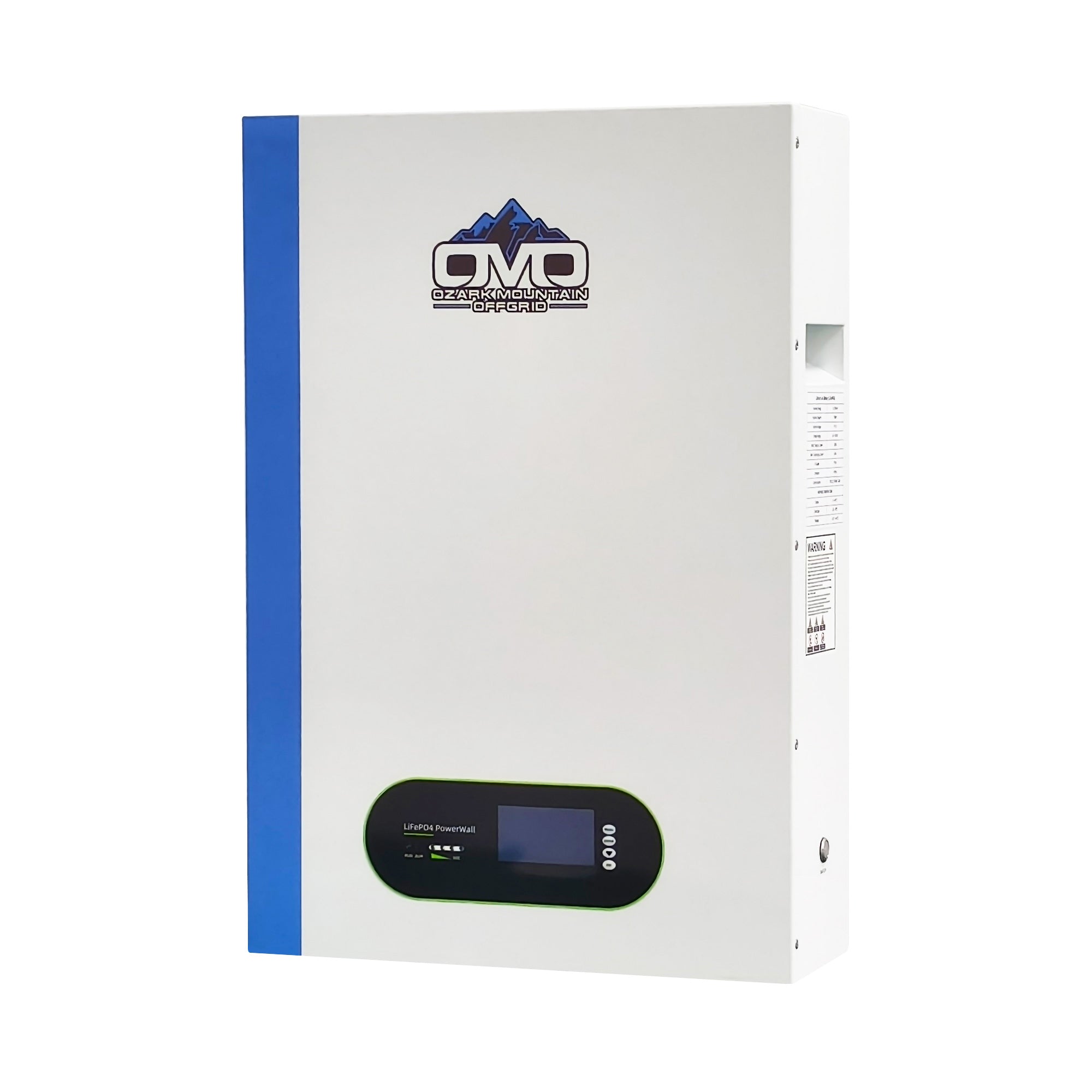

• Battery: 1× OMO 48V Patriot Lithium Battery (5.12kWh usable) with wall bracket

• Mounting System: Complete Iron Ridge ground-mount kit — rails, top caps, connectors, fasteners, and bolts

• Combiner & Enclosures: Solar combiner box and gutter box

• Wiring: 500′ PV direct-burial solar wire, 100′ 6AWG AC output/input/generator cable

• Battery Cable Set: Anderson plug battery-to-inverter cabling

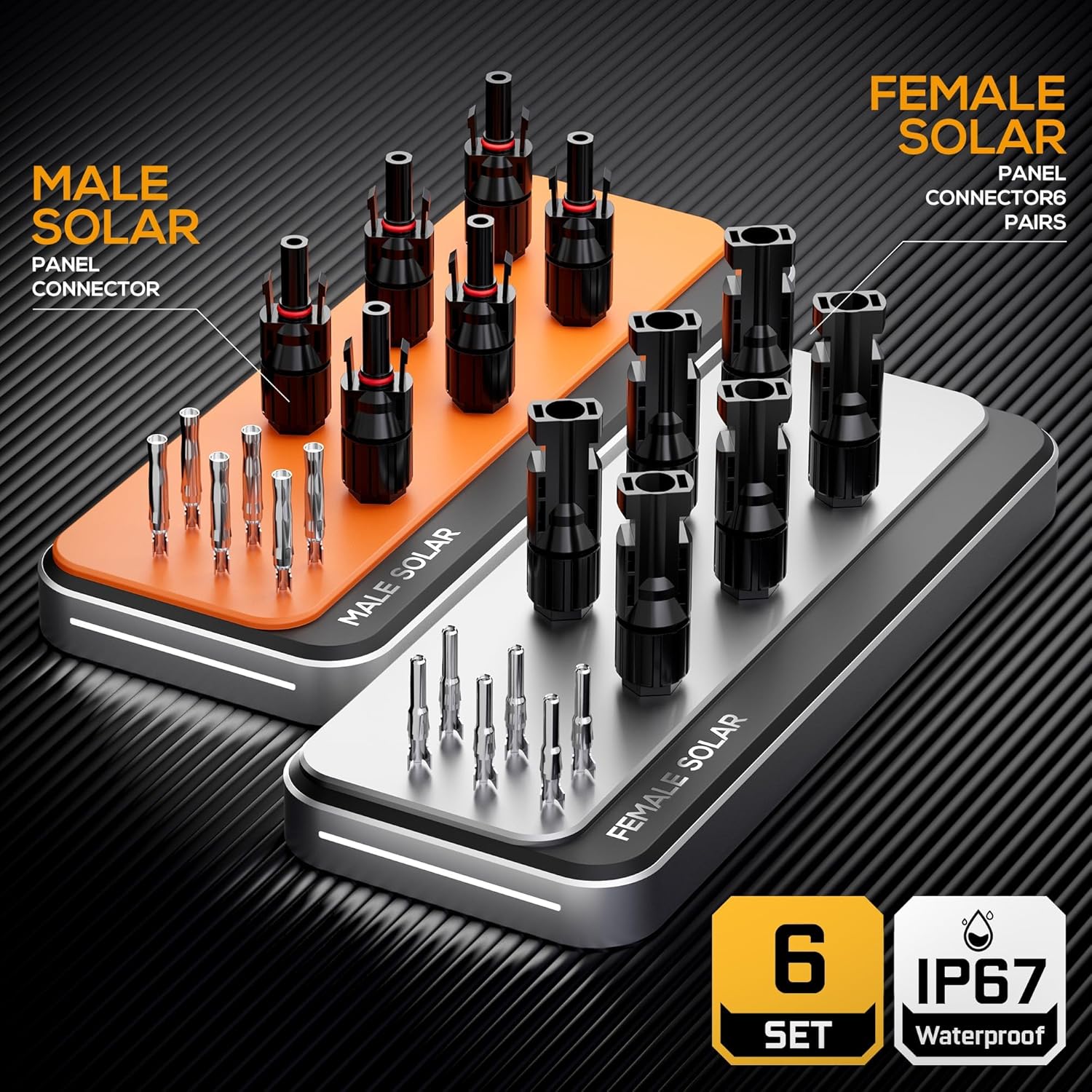

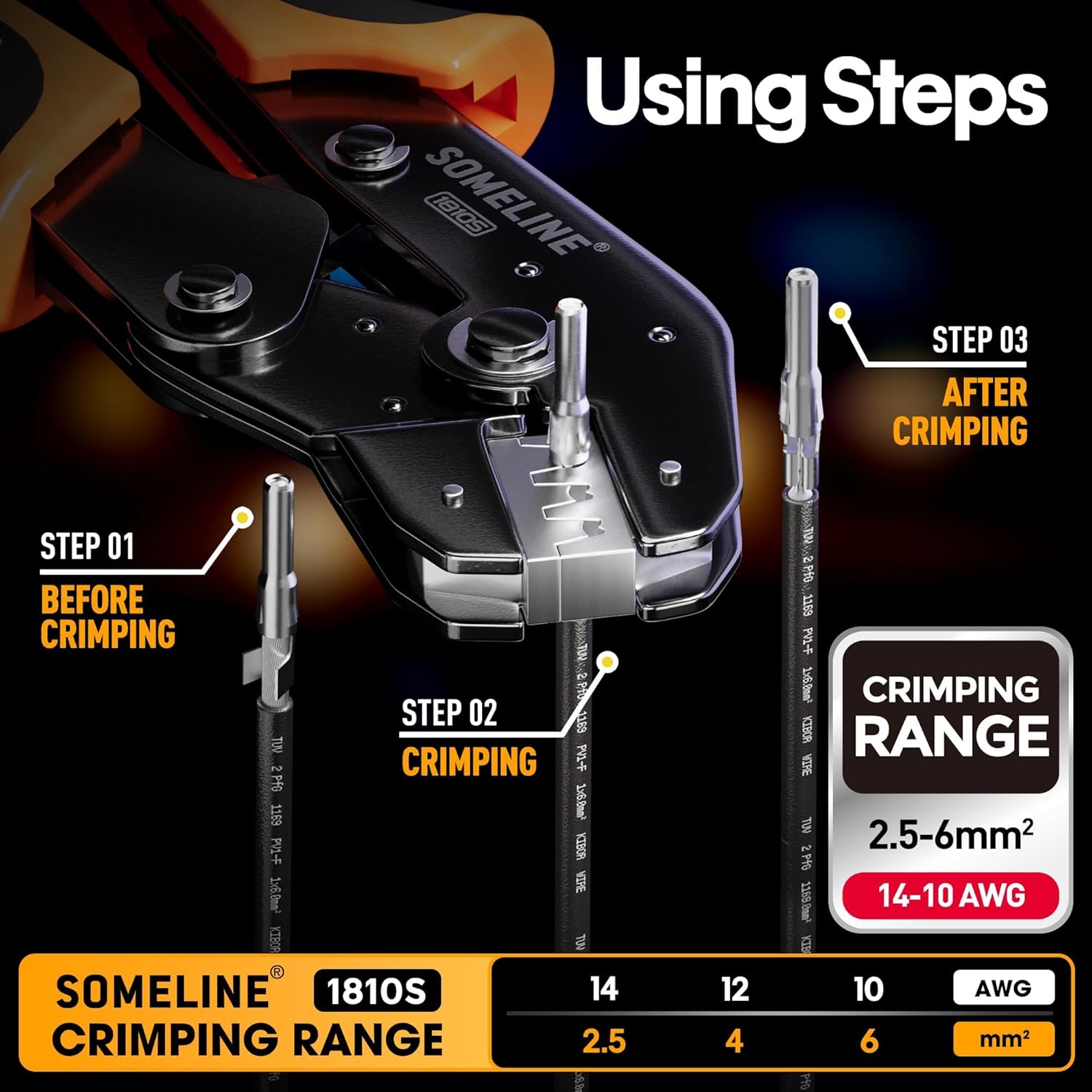

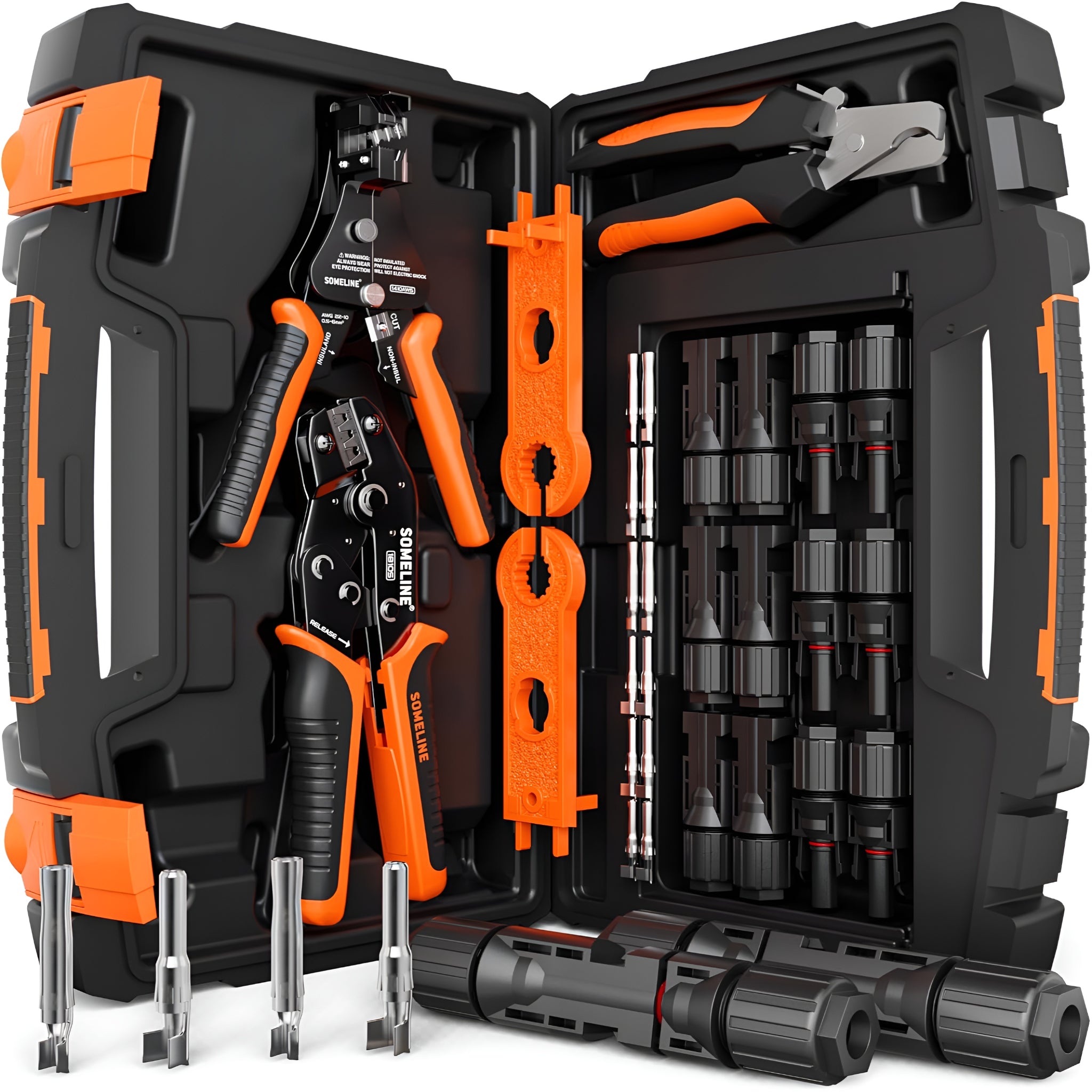

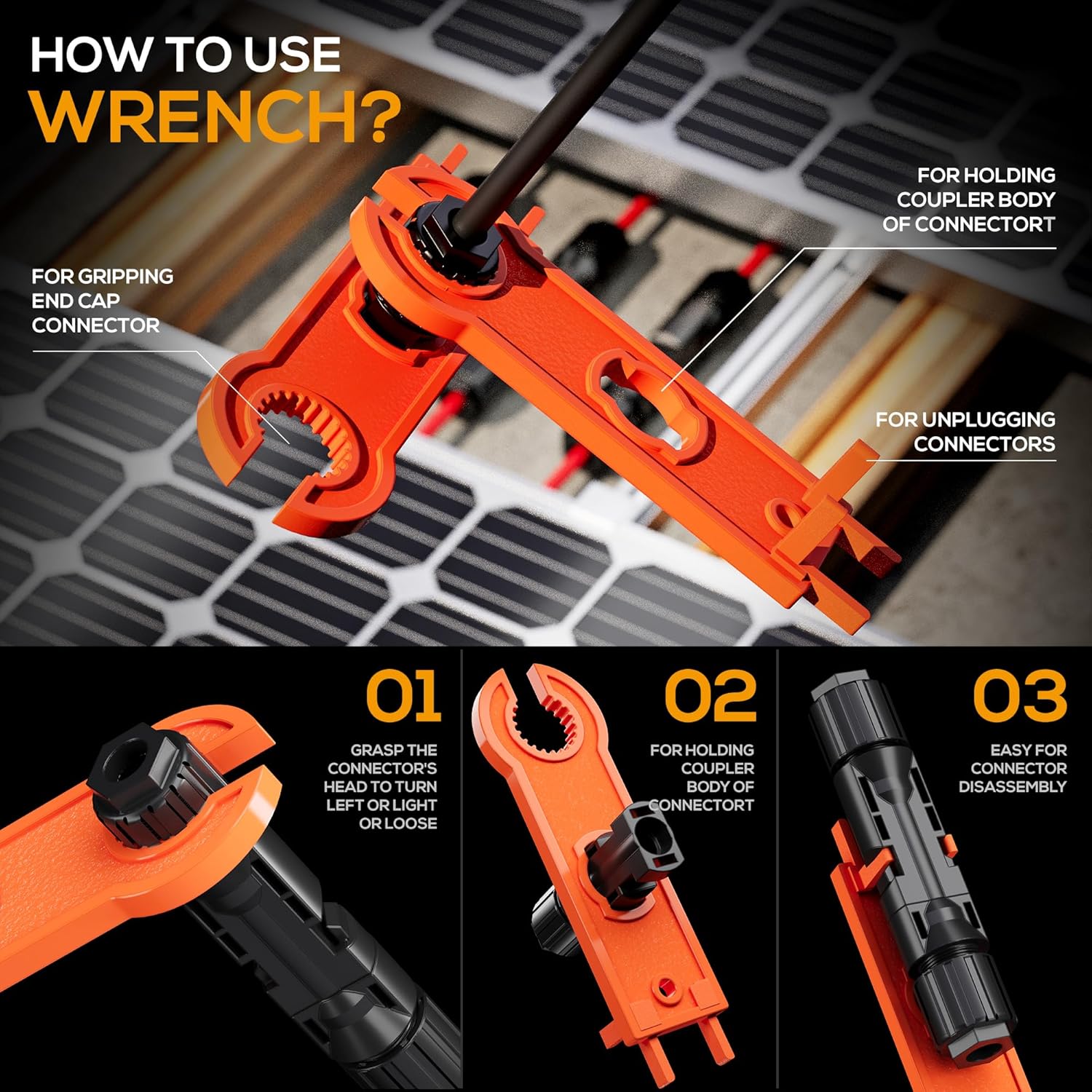

• Tools & Documentation: MC4 crimp kit and Installation Manual

• Battery Specs: Patriot Battery Specification Sheet

Features

• Bifacial Solar Technology: Up to 25% increased rear-side generation; improved performance in cloudy or low-light conditions

• Durable Panels: 5400 PA snow load & 2400 PA wind load with 30-year power warranty

• Ground Mount System: Built around 3" schedule-40 pipe (customer-supplied); includes all rail hardware

• Appliance Compatibility: Supports wells, washers, fans, TVs, lights, refrigerators, freezers, electronics, and smaller AC systems

• Production Capacity: ~29,700W/day depending on sunlight conditions; ideal for light-to-moderate energy users

• DIY-Friendly Design: Installable by homeowners with basic wiring knowledge; racking is typically the most labor-intensive component

• EG4 6000XP Performance: High-efficiency split-phase inverter with reliable off-grid capability (see spec sheet image)

Maintenance

• Daily: Clear panels of debris and ensure unobstructed sun exposure

• Weekly: Review inverter readings, battery status, and visible hardware

• Annually: Inspect structural mounts, wiring connections, grounding, battery terminals, and system output

Warranty

• Solar Panels: 30-year performance warranty

• EG4 6000XP Inverter: Manufacturer's warranty per EG4 guidelines

• OMO Patriot Lithium Battery: Warranty information available in specification sheet
